Body,container reach stacker, SRSC45H1 GTH





















Group 11 System, traveling






















Item No.

Part No.

Description

Qty.

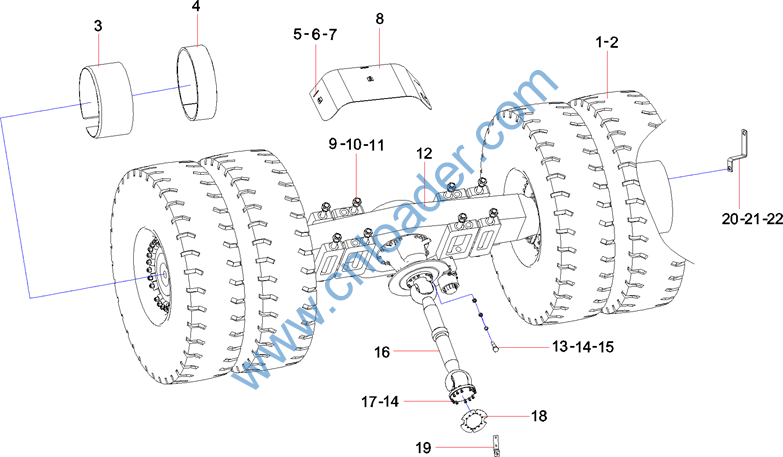

1

A229900002057

Rim

4

2

A210881000093

Tyre

4

3

60112798

Ring, lock

2

4

12938597

Ring, sleeve, middle

2

5

A210111000348

Bolt

3

6

A210405000007

Washer

3

7

A210401000017

Washer

3

8

11346189

Plate, oilproof

1

9

A829900001442

Bolt

8

10

A210401000012

Washer 36GB93

8

11

A820204000388

Nut

8

12

60308535

Drive axle

1

13

A210110000341

Bolt

4

14

A210319000019

Nut

4

15

A210401000003

Washer

12

16

60341728

Shaft, transimission

1

17

21005237

Bolt

4

18

13938227

Plate, sensor

2

19

11342780

Support, speed sensor

1

20

A820101313646

Plate, lock, fixed, air pipe

4

21

A210111000038

Bolt

4

22

A210401000002

Washer

4


















Item No.

Part No.

Description

Qty.

1

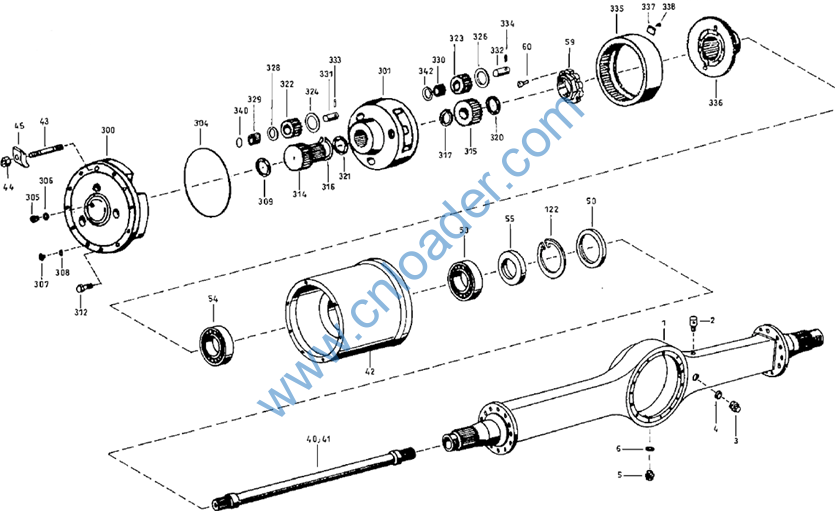

60121013

Shell, shaft

1

2

60061416

Plug, ventilation

1

5

60099157

Plug, pipe

1

6

60099263

Ring, seal

1

40

60099180

Axle, driving

2

42

60054025

Hub

2

43

B229900002716

Stud

48

50

60099258

Ring, seal

4

53

60099167

Bearing, roller, tapered

2

54

60099167

Bearing, roller, tapered

2

55

60099195

Sleeve, separating

2

59

60099179

Nut

2

60

60099214

Screw, hexagon, inner

2

122

60121071

Ring, retaining, elastic

2

300

60099175

Chamber, planet gear

2

301

60120996

Bracket, planet gear

2

304

60099253

O-ring

2

305

60099157

Plug, pipe

1

306

60099263

Ring, seal

1

307

60099155

Screw

2

308

60121015

Ring, seal

2

309

60099231

Ring, thrust

2


















Item No.

Part No.

Description

Qty.

312

60099219

Bolt, hexagon

44

314

60099171

Gear, central

2

315

60099172

Gear, central

2

316

60099199

Ring, retaining, elastic

2

317

60121005

Ring, retaining, elastic

2

320

60099233

Washer, thrusting

2

321

60099231

Ring, thrust

2

322

60099174

Gear, planet

10

323

60099173

Gear, planet

6

324

60099230

Washer, thrusting

20

326

60099232

Washer, thrust

12

329

60099163

Bearing, needle

10

330

60099162

Bearing, needle

6

331

60099235

Pin, planet

10

332

60099236

Pin, planet

6

333

60099226

Pin, lock

10

334

60099225

Pin, lock

6

335

60099183

Ring, gear

2

336

60121003

Support, toothed ring

2

337

60099178

Bracket, fixed

6

338

60099210

Bolt, hexagon

12

340

60099252

O-ring

10


















Item No.

Part No.

Description

Qty.

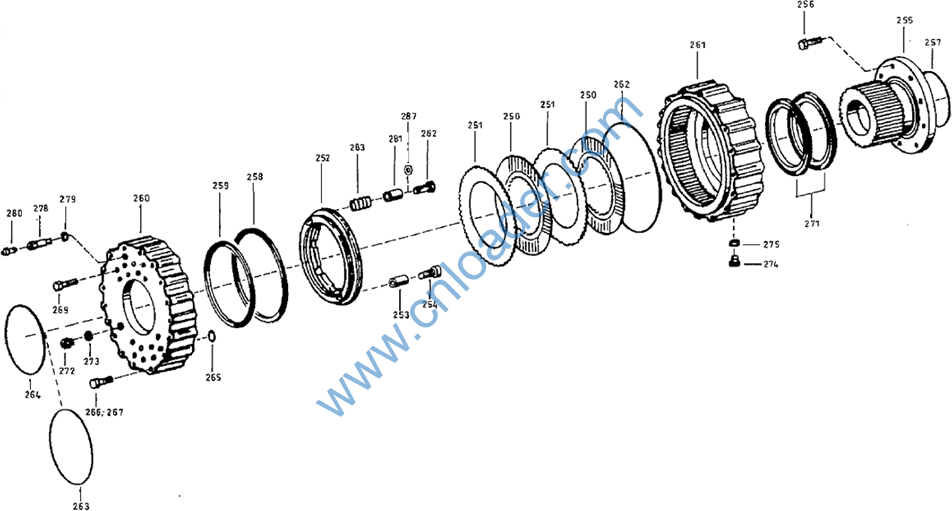

250

60062647

Disc, friction plate, brake

16

251

60062646

Blade, steel, brake

16

252

60121008

Piston

4

253

60099227

Bushing

4

254

60099215

Bolt, hexagon

4

255

60099241

Bearer, brake

2

256

60099206

Bolt, screw

48

257

60099251

O-ring

2

258

60099257

Seal, oil, piston

2

259

60099256

Seal, oil, piston

2

260

60099240

Housing, axle

2

261

60099239

Housing, axle

2

262

60099254

O-ring

2

263

60099250

O-ring

2

264

60099249

O-ring

2

265

60099248

O-ring

6

266

60099218

Screw, hexagon, inner

52

267

60099217

Bolt, hexagon

8

269

60099211

Bolt, hexagon

32

271

60062648

Seal, mirror surface

2

272

60099156

Plug, pipe

2

273

60099262

Ring, seal

2


















Item No.

Part No.

Description

Qty.

274

60099154

Screw

2

275

60099260

Ring, seal

2

278

60099198

Connector

2

279

60099260

Ring, seal

2

280

60099160

Valve, exhaust

2

281

60099228

Pipe

16

282

60099193

Screw, flange

16

283

60099185

Spring, compressed

16


















Item No.

Part No.

Description

Qty.

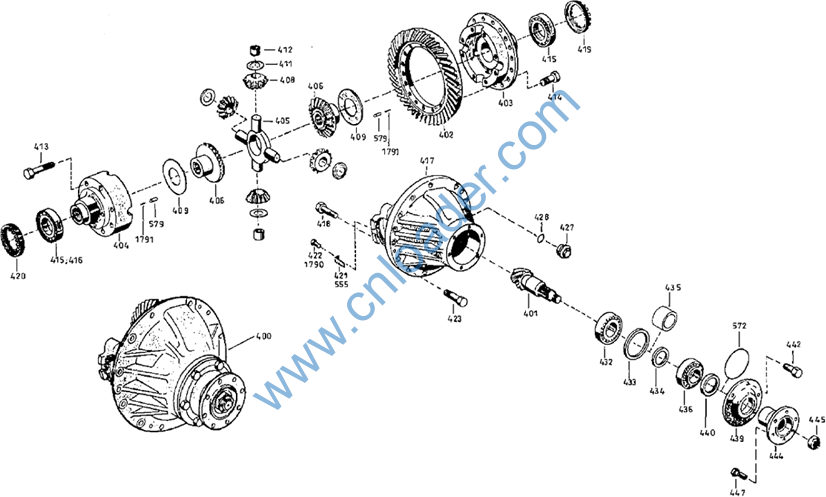

400

60120998

Components, differential and bracket

1

401

60120995

Pinion, transmission

1

402

60121002

Ring, gear

1

403

60120986

Chamber, differential

1

404

60120985

Chamber, differential

1

405

60120999

Joint, differential

1

406

60120994

Gear, half-shaft, differential

2

408

60120993

Gear, differential

4

409

60121007

Disc, flange

2

412

60121012

Bushing, bearing

4

413

60121009

Bolt, hexagon

12

414

60121010

Bolt, hexagon

16

415

60121070

Bearing, roller, tapered

1

416

60121702

Bearing, roller, tapered

1

417

60121000

Bracket, differential

1

418

60099205

Bolt, screw

1

419

60099190

Nut, adjusting

1

420

60099190

Nut, adjusting

1

421

60099177

Plate, lock

2

422

60099210

Bolt, hexagon

12

423

60099208

Bolt, screw

16

427

60099158

Plug, pipe

1


















Item No.

Part No.

Description

Qty.

428

60099264

Ring, seal

1

432

60120992

Bearing, roller, tapered

1

433

60099187

Disc

1

434

60099187

Disc

1

435

60121001

Bushing

1

436

60120991

Bearing, roller, tapered

1

439

60120987

Cover

1

440

60120989

Ring, sleeve

1

442

60099220

Bolt, hexagon

6

444

60121004

Disc, flange, transmission

1

445

60006495

Nut, tightening

1

572

60099246

O-ring

1

579

60099224

Pin, lock

6

1791

60099223

Pin, lock

6
