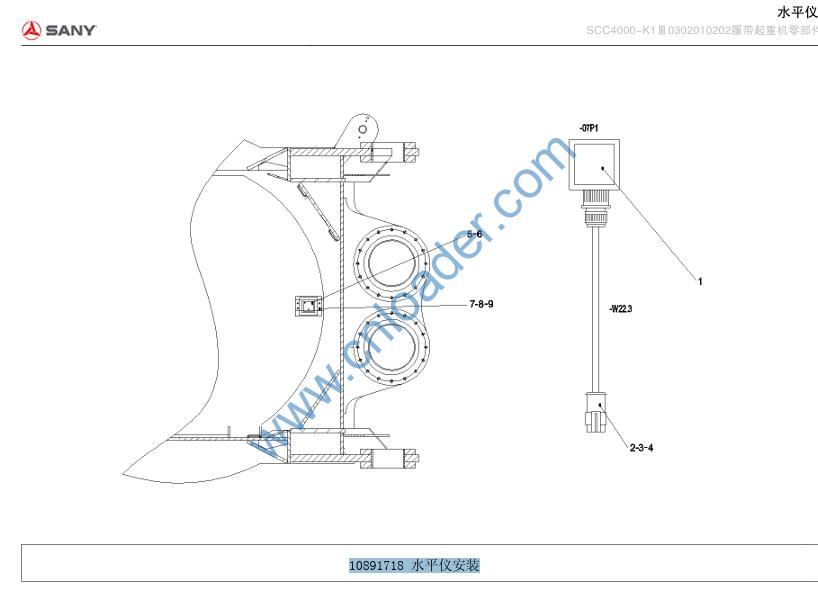

10891718 水平仪安装

10891718 水平仪安装

1 A810299000636 Inclination sensor assembly 1
2 B241200001050 four-wire plug sheath assembly Q/SY1149 1
3 60004056 pin 282109-1 4
4 A241000000272 seal blocked 4
5 A210202000016 screw M4×35GB67 3
6 A210405000004 gasket 4GB97.1 3
7 A210204000132 screw M6×25GB70.1 4
8 A210405000007 Washer 8GB97.1 4
9 10917741 Protective cover 1

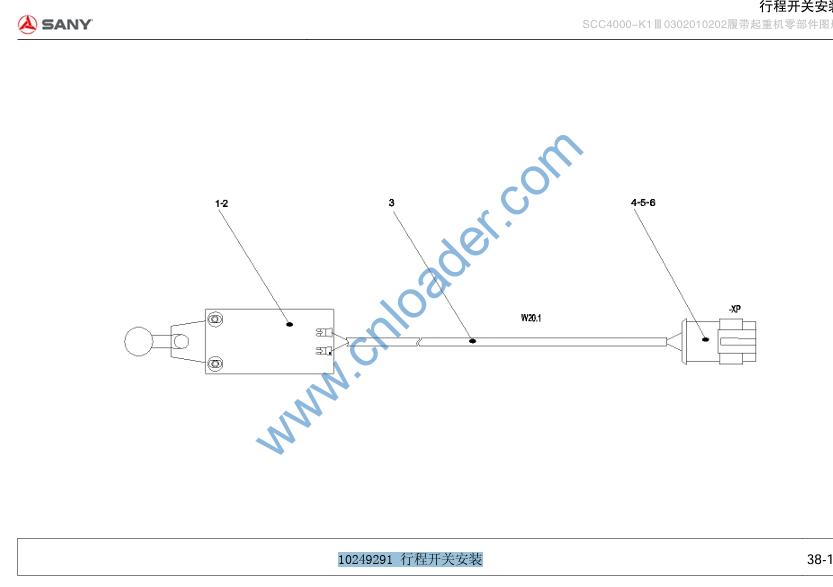

10249291 行程开关安装

1 B241200000922 travel switch 1
2 B242000000083 fork type pre-insulated terminal 2
3 60000491 Cable 575-3G1.0 UL/CE/VDE0295 0
4 B241000000003 second-wire plug sheath assembly Q/SY1149 1
5 60004056 pin 282109-1 2
6 A241000000272 seal blocked 2

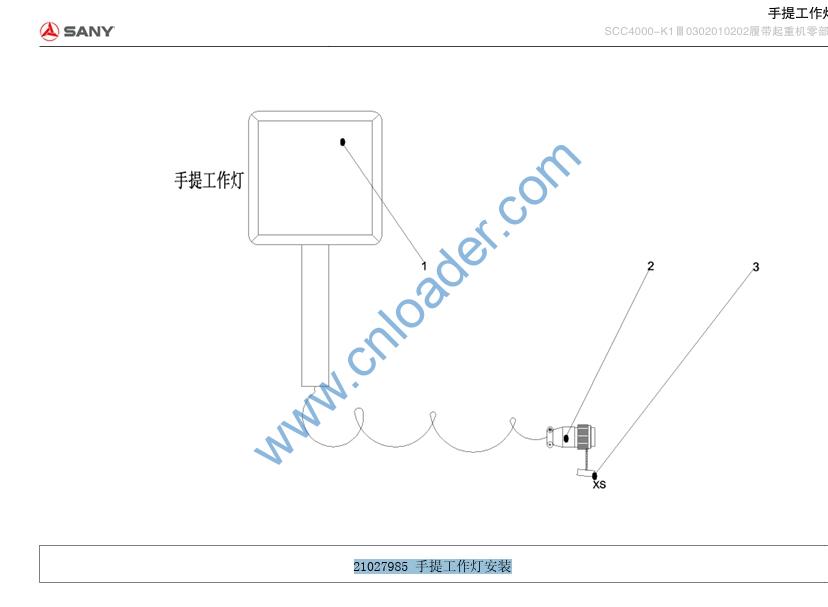

21027985 手提工作灯安装

1 A241100000596 Portable work light 1
2 21015269 connector 1
3 21008843 Protective cover 1

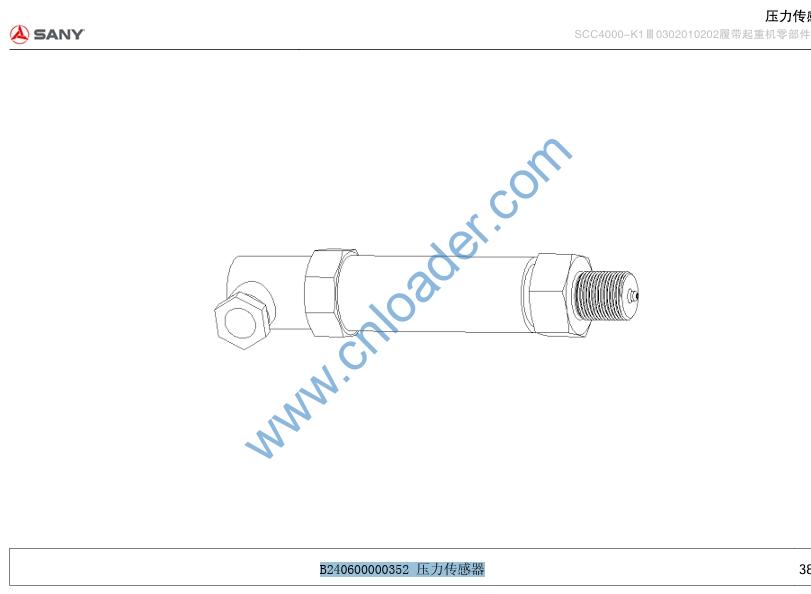

B240600000352 压力传感器

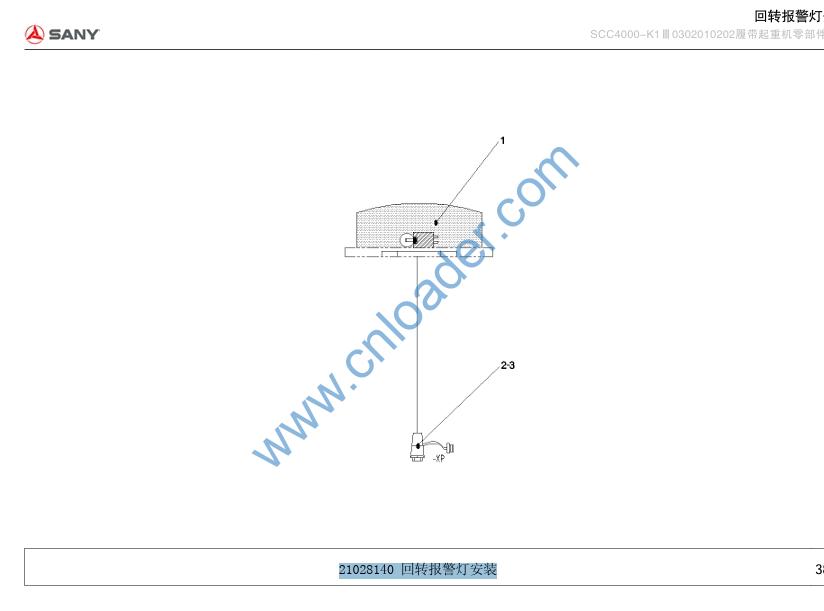

21028140 回转报警灯安装

1 60016932 Signal light assembly 1
2 21015255 CAN bus splitter plug PG9 1
3 A241000000287 connector dust cover 1

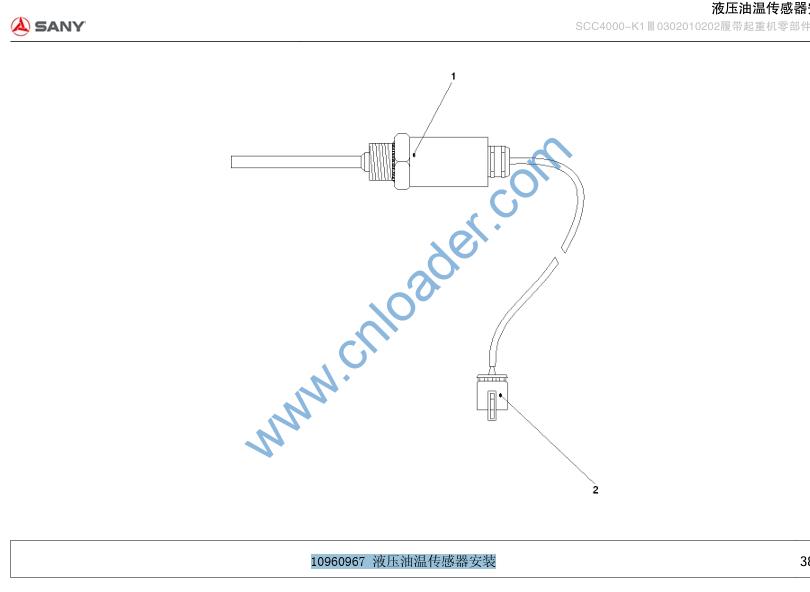

10960967 液压油温传感器安装

1 60020068 temperature sensor 1
2 11250971 Second-wire waterproof socket assembly 1

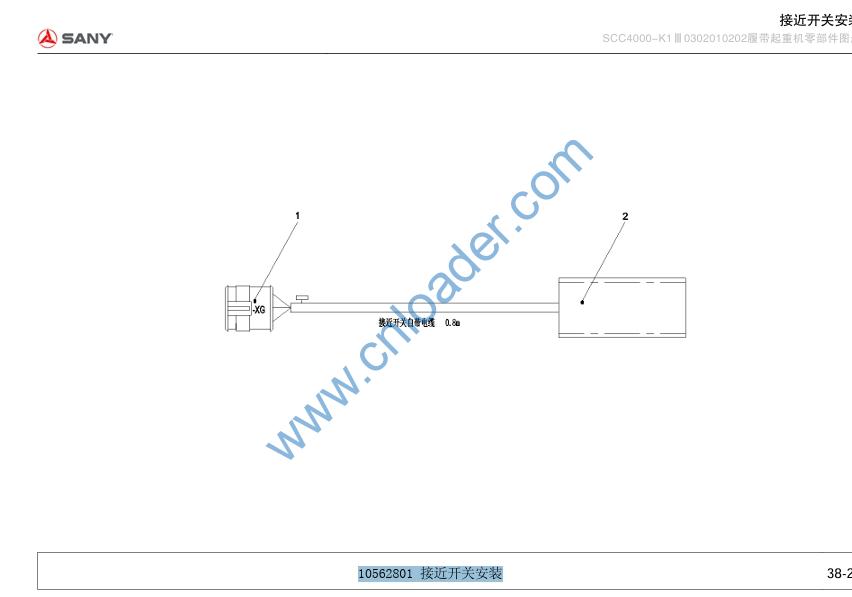

10562801 接近开关安装

1 21024821 Proximity switch 1
2 11250973 Four-wire waterproof plug assembly 1
