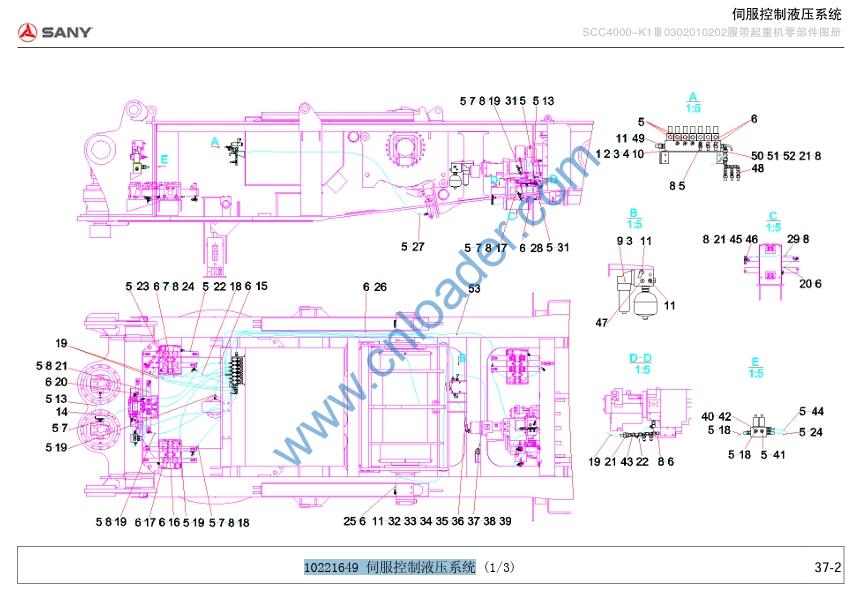

10221649 伺服控制液压系统

10221649 伺服控制液压系统

1 10057483 Electromagnetic pawl cylinder control valve group 1
2 10221650 Control valve group I mounting bracket 1
3 A210111000024 bolt M10×30GB5783 10.9 level 8
4 A210405000011 Washer 10GB97.1 4
5 A210770000616 pipe joint 29
6 A229900002600 pipe joint 14
7 21003049 pipe joint 7
8 A229900002938 pipe joint 15
9 21026069 Accumulator group 1
10 A210111000089 Bolt M8×20GB5783 4
11 21002824 pipe joint 4
13 A831313045000 hose Q/SY1102 2
14 B230103006194 hose Q/SY1102 1
15 B230103004309 hose Q/SY1102 1
16 B230103004290 hose Q/SY1102 1
17 B230103004291 Hose Q/SY1102 3
18 B230103004127 hose Q/SY1102 4
19 B230103003138 hose Q/SY1102 6
20 A831311035000 hose Q/SY1102 2
21 21022262 pipe joint 3
22 B230103002486 hose Q/SY1102 2
23 B230103003136 hose Q/SY1102 1

24 B230103004999 hose Q/SY1102 2
25 B230103002943 hose Q/SY1102 1
26 B230103002946 hose Q/SY1102 1
27 B230103000131 hose Q/SY1102 1
28 B230103006274 hose Q/SY1102 2
29 B230103004654 hose Q/SY1102 1
31 B230103003612 hose Q/SY1102 2
32 A229900002489 split flange 1
33 B230101000580 O-ring 1
34 A210204000181 screw GB70.1 4
35 21002808 Right angle flange joint 1
36 B230103008101 hose 1000Q/SY1102 1
37 B230103008102 hose 1450Q/SY1102 1
38 21002826 Pipe joint 1
39 A229900002561 pipe joint 1
40 B220402000423 proportional solenoid valve group 1
41 B230103005061 hose Q/SY1102 1
42 A210111000012 bolt M10×20GB5783 10.9 level 2
43 A229900002533 pipe joint 1
44 B230103002373 hose Q/SY1102 1
45 21022351 pipe joint 1
46 21022351 pipe joint 1

47 21001442 Plug 4BN-08WD 1
48 21083669 Test connector 1
49 21026672 Hose 1SN16-DKOL-4000Q/SY1102 1
50 A229900002895 pipe joint 1
51 A229900003479 pipe joint 2
52 A229900002559 pipe joint 1
53 B230103000785 hose Q/SY1102 1
