2 A210111000203 Bolt 24
3 A210491000121 Washer 24
4 13021566 Sleeve 24
6 A210804000001 Oil Cup 26
8 12276778 buffer pad 8
9 A210405000007 Washer 36
10 A210204000162 Screw 28

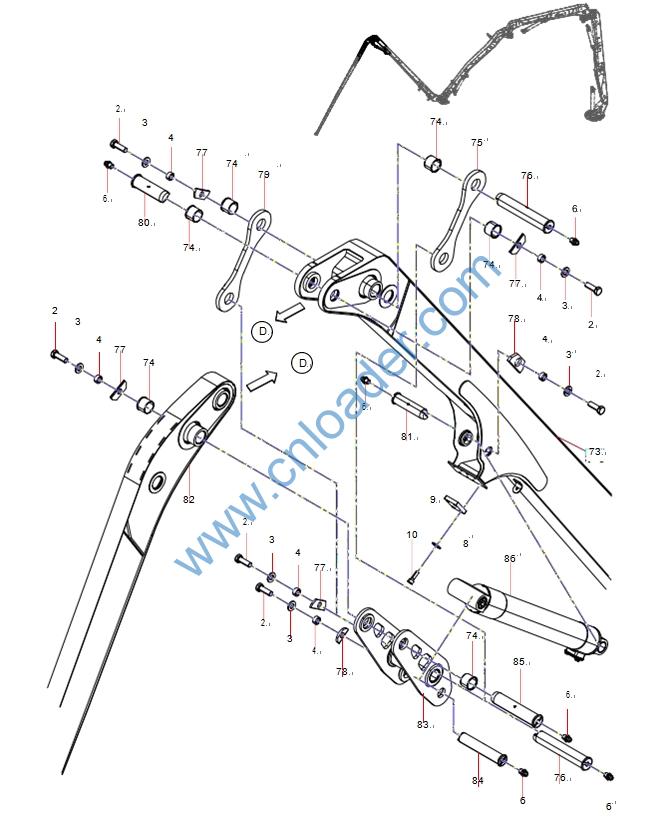

73 BCB005036132 Arm 4 1
74 A820208000385 Bearing 6
75 BCB005043961 Connection Rod 7 Main Plate 1
76 BCB005035947 Shaft (16) 2
77 12862233 Limit Plate 4
78 12912195 Limit Plate 2
79 BCB-0050-43962 Left Connection Rod 7 1
80 BCB005035945 Shaft (13) 1
81 BCB005035949 Shaft (14) 1
82 BCB005031074 Arm 5 1
83 BCB005039415 Connection Rod (8) 1 2-30
84 BCB005035948 Shaft (15) 1
85 BCB005035946 Shaft (17) 1
86 150902050072A Arm 5 Cylinder 1 2-32
22 12630124 Plug 3

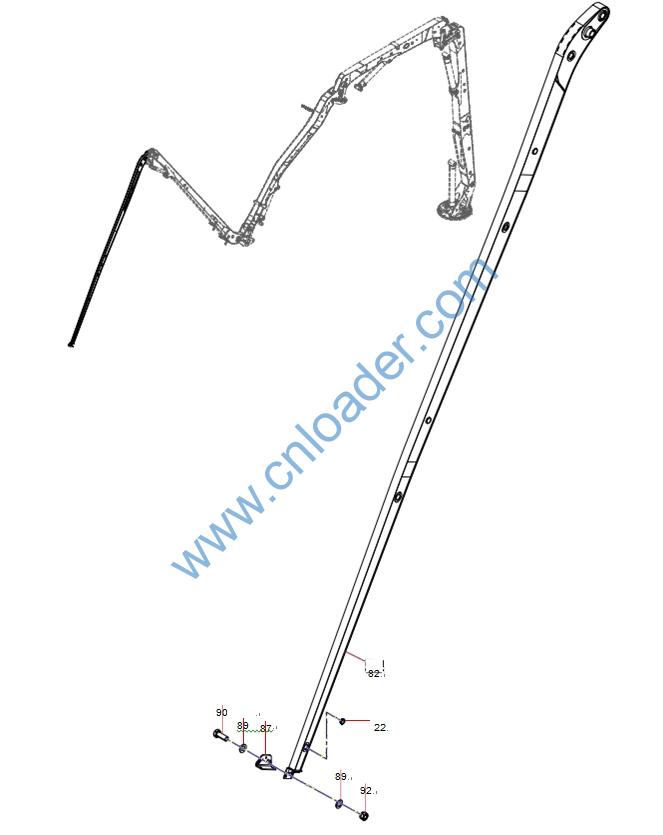

82 BCB005031074 Arm 5 1
87 11665464 Support Seat Sany red 1
11665464GC Support Seat Yellow green
11665464HA Support Seat Iron grey
11665464HA Support Seat Iron grey
11665464HA Support Seat Iron grey
11665464GD Support Seat Pure green
11665464WD Support Seat Pure white
11665464GC Support Seat Yellow green
11665464WD Support Seat Pure white
11665464HA Support Seat Iron grey
11665464GD Support Seat Pure green
89 A210-405-000003 Washer 6
90 A210111000053 Bolt 3
92 A210314000004 Nut 3

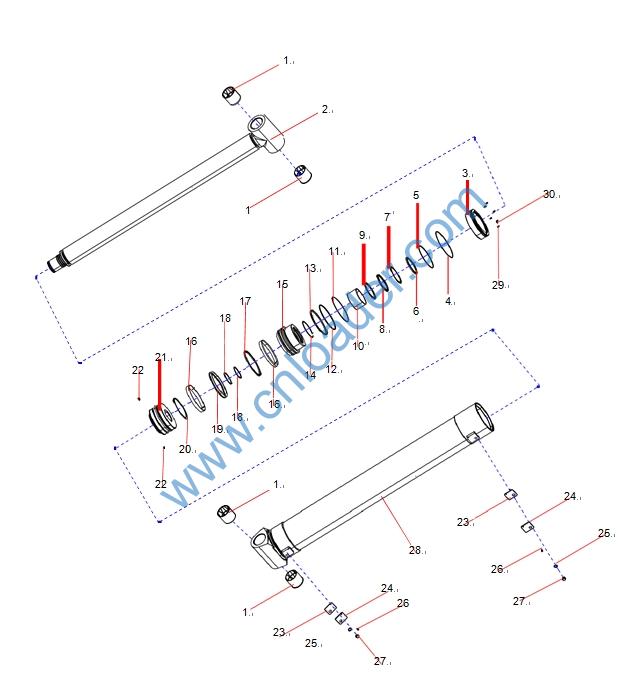

1 201422- 84
1378 Bushing 4
2 SYG005040022 Piston Rod GP 1
3 14289732 Screwed Cover 1
4 A230101000324 O-ring 1
5 A210609000302 O-ring 1
6 B230101000429 AY Dust Ring 1
7 11304382 Retainer Ring 1
8 B230101000431 B3 Seal Ring 1
9 13599579 GSJ Seal Ring 1
10 60013713 Oil-free Bearing 1
11 10250760 Retainer Ring 1
12 A210609000318 O-ring 1
13 60124160 K08-D Seal Ring 1
14 6001-4259 Retainer Ring 1
15 14289731 Guide Bush 1
16 B230101001639 UP Guide Ring 2
17 B230101000021 OK Seal Ring 1
18 24000548 O-ring 2
19 B230101002113 UNP Seal Ring 1
20 24000574 Retainer Ring 1
21 14289730 Piston 1
22 A210208000007 Screw 2
23 SYG005078245 Cushion Plate 2
24 SYG005078223 Plate 2
25 A210434000010 Washer 2
26 A210111000079 Bolt 2
27 A880801040005 Screw Plug 2
28 SYG-005040084 Cylinder Bore GP 1
29 A210208000001 Screw 6
30 24004294 Screw 1

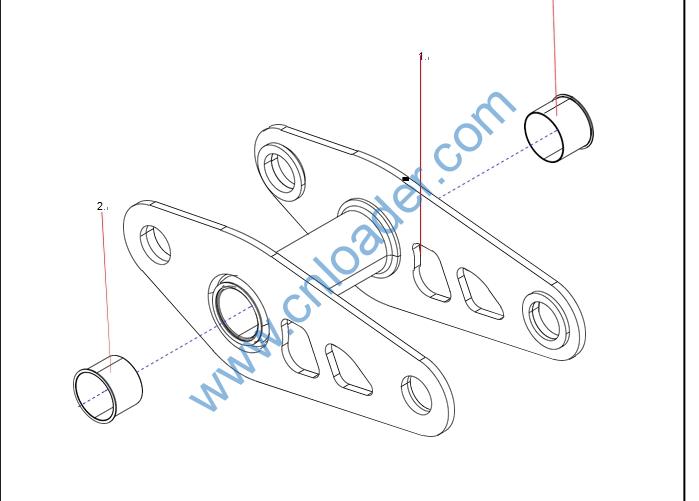

1 BCB005039439 Connection Rod (2) Main Body 1
2 10515522 Bearing 2

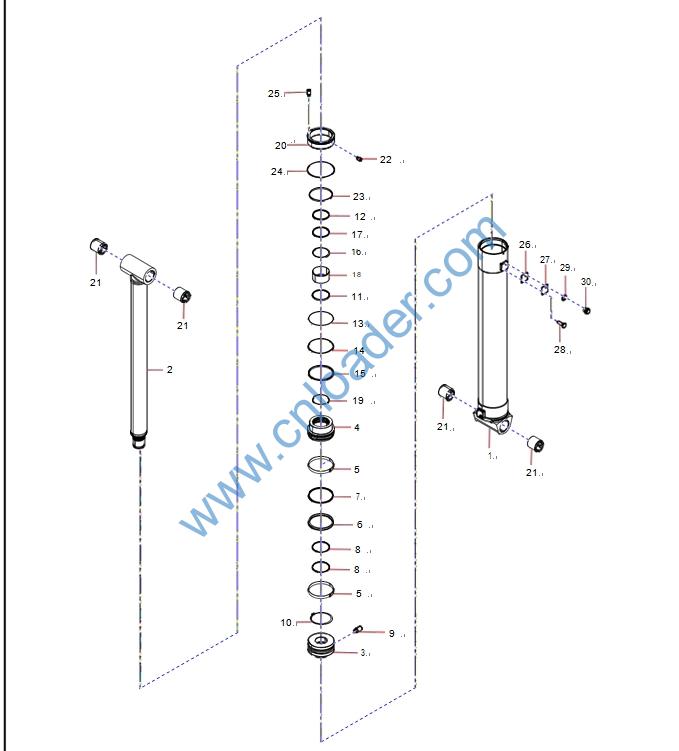

1 SYG005052651 Cylinder Bore GP 1
2 SYG005052650 Piston Rod GP 1
3 14289730 Piston 1
4 14289731 Guide Bush 1
5 B230101001639 UP Guide Ring 2
6 B230101002113 UNP Seal Ring 1
7 B230101000021 OK Seal Ring 1
8 24000548 O-ring 2
9 A210208000007 Screw 2
10 24000574 Retainer Ring 1
11 13599579 GSJ Seal Ring 1
12 B230101000429 AY Dust Ring 1
13 10250760 Retainer Ring 1
14 A210-609000318 O- ring 1
15 60124160 K08-D Seal Ring 1
16 11304382 Retainer Ring 1
17 B230101000431 B3 Seal Ring 1
18 60013713 Oil-free Bearing 1
19 60014259 Retainer Ring 1
20 14289732 Screwed Cover 1
21 10351508 Bearing 4
22 24004294 Screw 1
23 A210609000302 O-ring 1
24 A230101000324 O-ring 1
25 A210208000001 Screw 6
26 SYG005078245 Cushion Plate 2
27 SYG005078223 Plate 2
28 A210-111000079 Bolt 2
29 A210434000010 Washer 2
30 A880801040005 Screw Plug 2

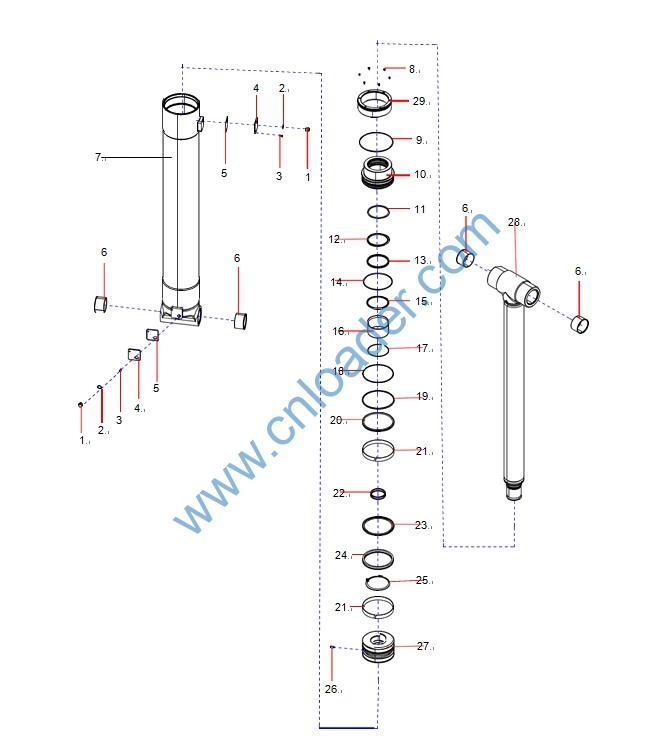

1 A880801040005 Screw Plug 2
2 A210434000010 Washer 2
3 A210111000079 Bolt 2
4 SYG005078223 Plate 2
5 SYG005078245 Cushion Plate 2
6 A820208000379 Bearing 4
7 SYG005046239 Cylinder Bore GP 1
8 24004294 Screw 7
9 A210609000302 O-ring 1
10 14292116 Guide Bush 1
11 14252647 Retainer Ring 1
12 A880808070061 AY Dust Ring 1
13 61024411 ZBR Seal Ring 1
14 A210-609-000329 O- ring 1
15 13599577 GSJ Seal Ring 1
16 61031807 Oil-free Bearing 1
17 A210417000002 Retainer Ring 1
18 10250757 Retainer Ring 1
19 A210609000260 O-ring 1
20 60124157 K08-D Seal Ring 1
21 60000473 UP Guide Ring 2
22 A210609000083 O-ring 2
23 B230101000313 OK Seal Ring 1
24 B230101002110 UNP Seal Ring 1
25 A210414000019 Retainer Ring 1
26 A210208000022 Screw 1
27 14292115 Piston 1
28 SYG-005046236 Piston Rod GP 1
29 14292118 Screwed Cover 1

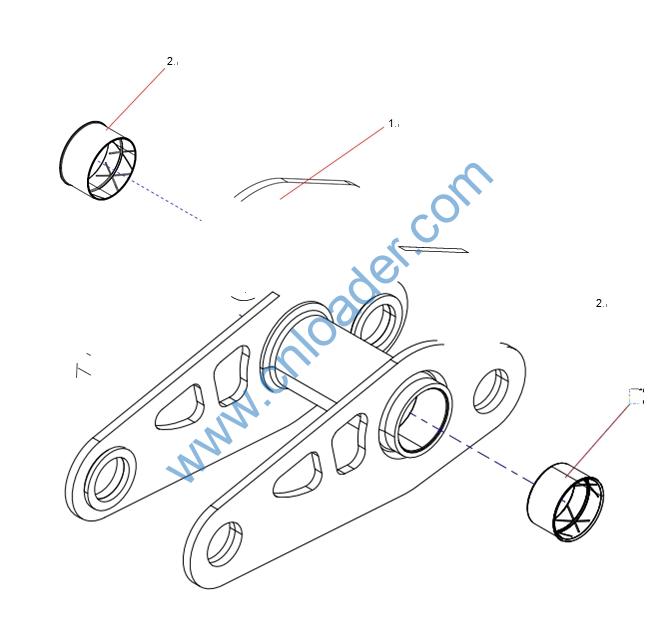

1 BCB005039438 Connection Rod (4) Main Body 1
2 A820208000432 bushing 2
1 2A0822- 1040005
8080 Screw Plug 2
2 A210434000010 Washer 2
3 A820202000987 bearing 4
4 A210111000079 Bolt 2
5 12800247 Plate 2
6 12800246 Cushion Plate 2
7 SYG005046414 Cylinder Bore GP 1
8 A880801010064 Screw 2
9 13229818 Piston 1
10 A210414000014 Retainer Ring 1
11 A210609000310 O-ring 2
12 60017891 UP Guide Ring 2
13 B230101000142 OK Seal Ring 1
14 20B22230-1001-00129109
9 UNP Seal Ring 1
15 60083231 K08-D Seal Ring 1
16 60009091 Oil- free Bearing 1
17 10250750 Retainer Ring 2
18 60166540 O-ring 1
19 A210417000001 Retainer Ring 1
20 A210609000329 O-ring 1
21 13599572 Gsj Seal Ring 1
22 60011794 Zbr Seal Ring 1
23 12298491 Retainer Ring 1
24 24001272 AY Dust Ring 1
25 SYG004757064 Guide Bush 1
26 SYG005046412 Piston Rod GP 1

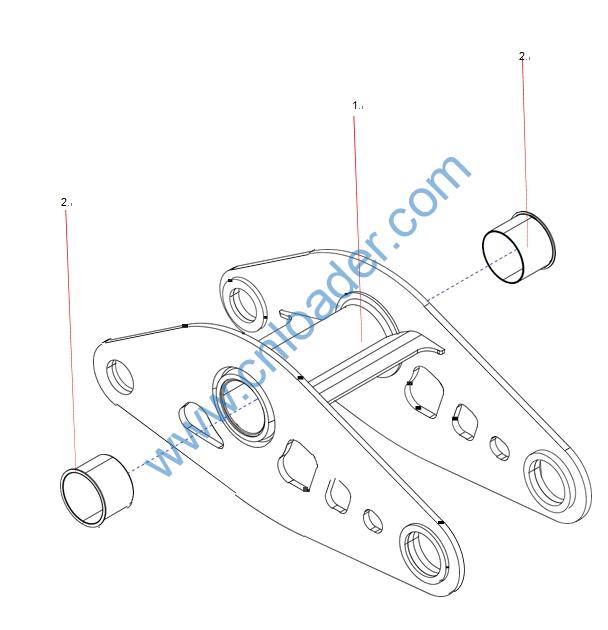

1 BCB005039422 Connection Rod (6) Main Body 1
2 A820208000432 bushing 2
1 BCB005039416 Connection Rod (8) Main Body 1
2 A820208000385 Bearing 2

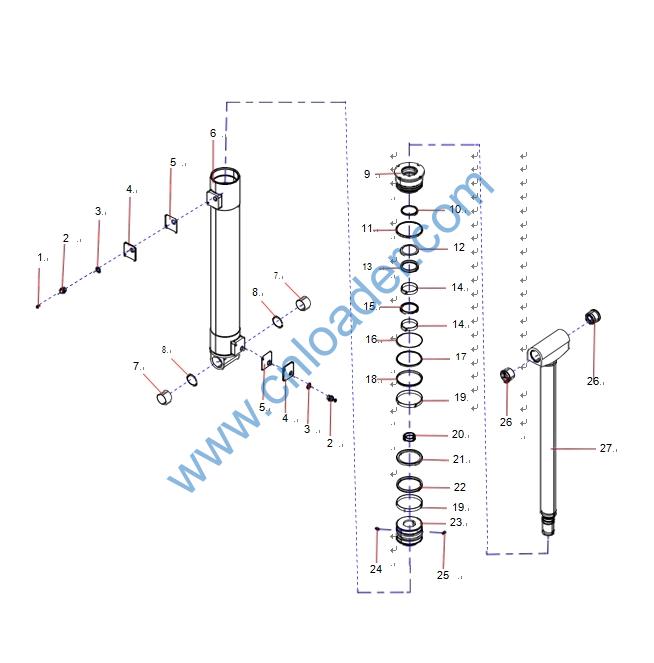

1 A210111000078 Bolt 2
2 A880801040005 Screw Plug 2
3 A210434000010 Washer 2
4 12800247 Plate 2
5 12800246 Cushion Plate 2
6 SYG005048424 Cylinder Bore GP 1
7 60209836 Oil- free Bearing 2
8 A210417000107 Retainer Ring 2
9 SYG004824934 Guide Bush 1
10 B230101000204 Ay Dust Ring 1
11 A210609000123 O-ring 1
12 12298513 Retainer Ring 1
13 B230101002124 ZBR Seal Ring 1
14 B230-101-001492 UP Guide Ring 2
15 13599611 Gsj Seal Ring 1
16 10250738 Retainer Ring 1
17 A210609000157 O-ring 1
18 60061678 K08-D Seal Ring 1
19 B230101002190 Guide Ring 2
20 A210609000060 O-ring 2
21 B230101000136 Ok Seal Ring 1
22 B230101001330 B7 Seal Ring 1
23 SYG004824938 Piston 1
24 A210804000001 Oil Cup 1
25 A210208000001 Screw 1
26 A820208000103 Bearing 2
27 SYG005048428 Piston Rod 1

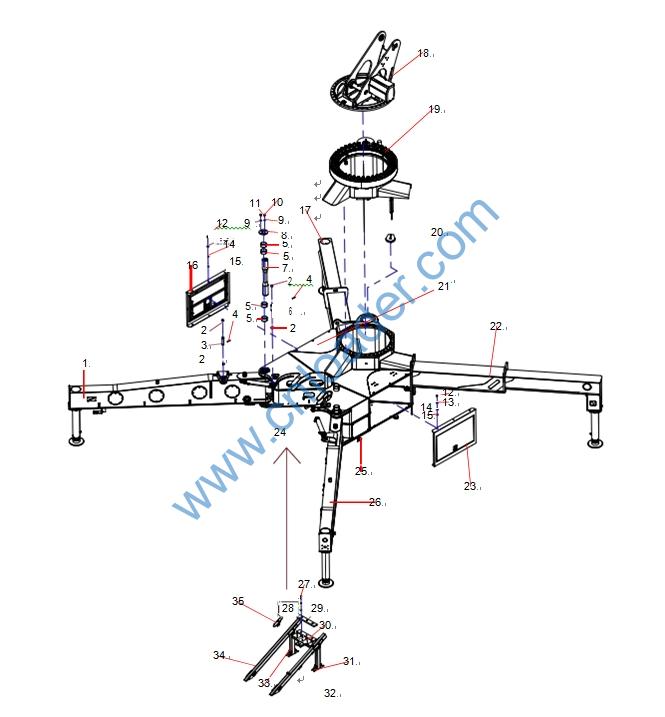

1 BCB005046729 Left Rear Outrigger 1 3-4
2 A820202000248 Stop Collar 8
3 14142772 Shaft 2
4 A210491000020 Pin 4
5 60226266 Oil- free Bearing 8
6 11039590 Shaft 2
7 BCB005046831 Rear Outrigger Shaft 2
8 12981391 Lock Plate 2
9 A210405000001 Washer 19
10 A210111000203 Bolt 8
11 A210111000202 Bolt 8
12 A210111000023 Bolt 12
13 A210404000003 Washer 12
14 A210-401-000001 Washer 12
15 A210307000017 Nut 12
16 BCB005031578 Left Covering Parts 1 3-10
17 BCB005051127 Left Front Outrigger 1 3-12
18 BCB005051120 Turntable AS 1 3-24
19 BCB005054586 Rotary Mechanism 1 3-26
20 BCB005047294 Turntable Encoder 1 3-30
21 BCB005050205 Revolving Tower 1
22 BCB005051059 Right Front Outrigger 1 3-32
23 BCB005031579 Right Covering Parts 1 3-42
24 A810302010036 Hydraulic Cylinder, Rear Outrigger Swing Sany yellow 2 3-44
A810302010036GC Rear Outrigger Swing Cylinder Yellow green
A810302010036WD Rear Outrigger Swing Cylinder Pure white 25 BCB005053684 Accessories, Revolving Tower 1 3-46
26 BCB005046728 Right Rear Outrigger 1 3-50
27 A210204000024 Screw 3
28 A210307000001 Nut 3
29 11574149 Buffer Pad 1
30 BCB005046702 Support AS 1
31 12955116 Triangle Plate 8
32 BCB005046560 Right Oblique Tie Bar 1
33 BCB005046604 Support Beam -2
34 BCB005046561 Left Oblique Tie Bar 1
35 BCB005046563 T-Plate 4
1 20BC2B005222169 Left Rear Outrigger Section 1
2 13258431 Cover Plate Sany yellow 1
13258431GC Cover Plate Yellow green
13258431HA Cover Plate Iron grey
13258431GD Cover Plate Pure green
13258431WD Cover Plate Pure white
3 A210211000003 2- Screw 2- 2
4 12576443 special- made bolt 1
5 60151318 Air Filter 1 3-6
6 60054115 Liquid level meter 1
7 12652890 Water Outlet Pipe Sany yellow 1
12652890GC Water Outlet Pipe Yellow green
12652890WD Water Outlet Pipe Pure white
20122625-208990H1A9 Water Outlet Pipe Iron grey
8 A220400000004 Ball Valve 1
9 60107392 Fitting 1
10 A210111000018 Bolt 32
11 A210401000001 Washer 32
12 A210405000011 Washer 32
13 A820203000292 Flange Cover Sany yellow 4
A820203000292HA blind flange Iron grey
A820203000292WD blind flange Pure white
A820203000292GC blind flange Yellow green
14 A210609000294 O-ring 4
15 A210204000129 Screw 4
16 A210401000016 Washer 4
17 A820101356588 Cover plate Sany yellow 1
A820101356588GC Cover plate Yellow green
A820101356588GD Cover plate Pure green
A820101356588HA Cover plate Iron grey
A820101356588WD Cover plate Pure white
18 BCB006225563 Left Outrigger Lock Installation 1
19 A210204000095 -Screw – 8
20 13279465 Front Outrigger Cylinder 1 3-8
21 A210111000038 Bolt 6
22 A210401000002 Washer 6
23 13544177 Pressure Plate 1
24 13544180 Outrigger Seat 1

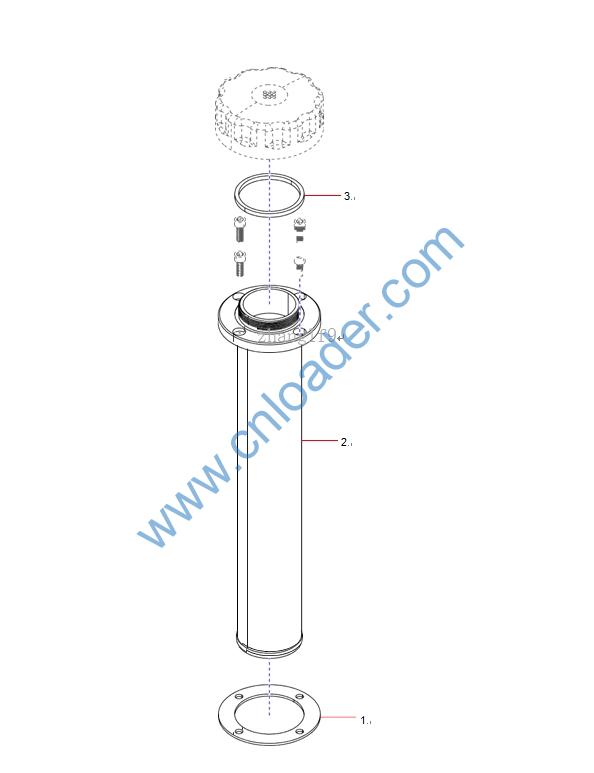

1 151800000053A001 Gasket 1
2 151800000053A002 Filter Core 1
3 151800000053A003 Seal Ring 1
