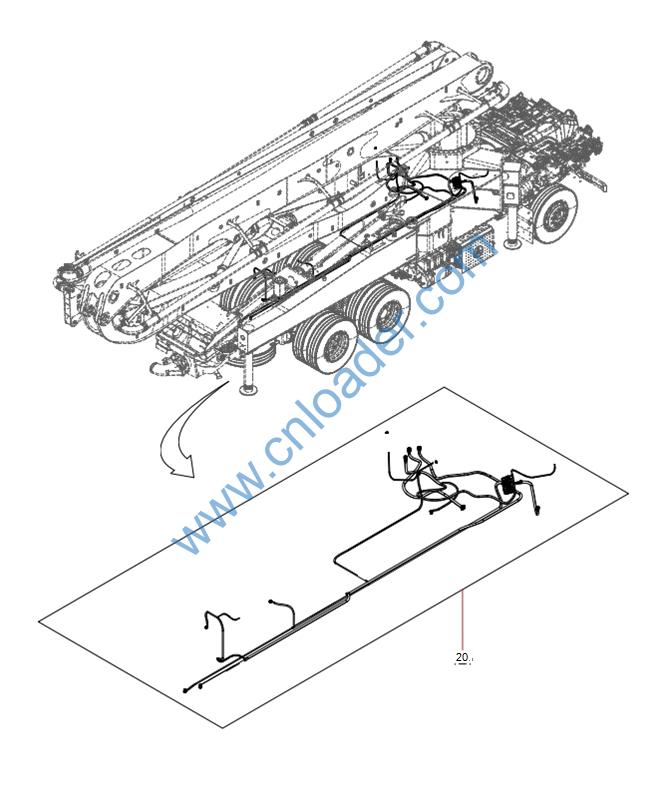

20 BCB005047871 Harness GP 1 7-44
21 BCB005768529 Horn GP 1 7-46

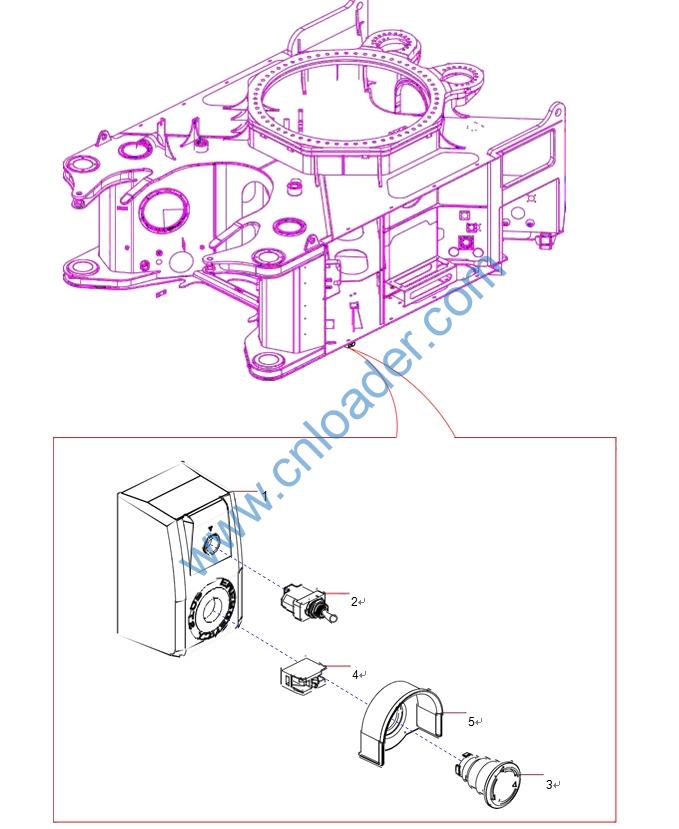

2 B241200000531 TOGGLE SWITCH 1
3 B240200000059 Emergency Stop Button 1
4 B240200000081 Contact Block 1
5 60195465 Protective Cover, Emergency Switch 1

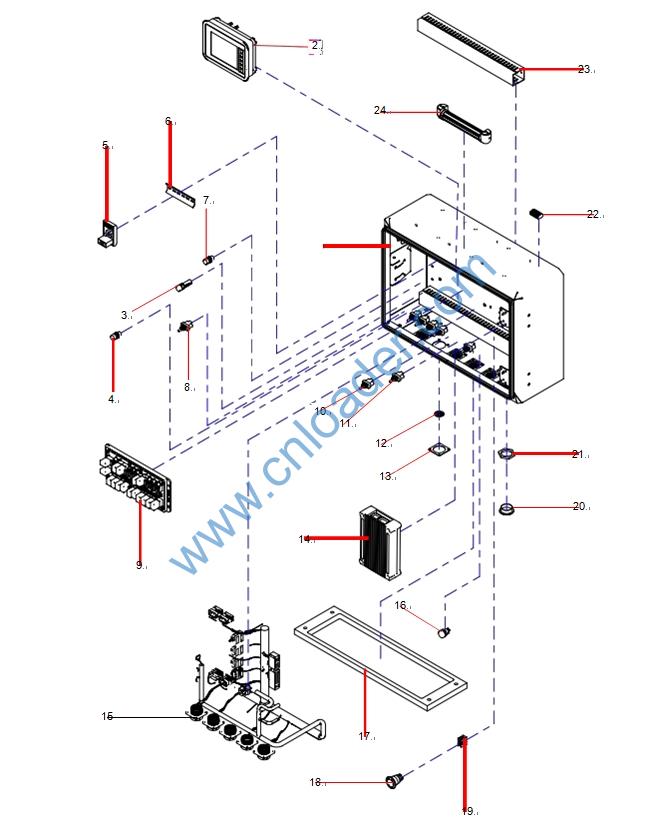

2 SZN004575739 Display GP 1
3 60134345 Indicator Lamp 1
4 60134346 Indicator Lamp 1
5 A810201204055 Electrical Panel GP 1
6 A241600000003 Rail 1
7 60134344 Indicator Lamp 1
8 B241200000529 Toggle Switch 2
9 61005688 Relay control module 1 7-20
10 B241200000531 TOGGLE SWITCH 4
11 B241200000530 TOGGLE SWITCH 2
12 B229900006163 Positioning Disc 6
13 B229900006162 Spacer 6
14 A81020120169111
9 SANY Motion Controller GP 1
15 BCB004782383 Electric Control Cabinet Harness 1
16 60125605 DC Power Socket 1
17 11619369 Rubber Pad 1
18 B240200000059 Emergency Stop Button 1
19 B240200000081 Contact Block 1
20 60009697 Plug 1
21 60015464 Nylon nut 1
22 B249900001268 3-position Rectangular Socket 3
23 60067207 Wire Slot 2
24 60016006 Work Lamp 1

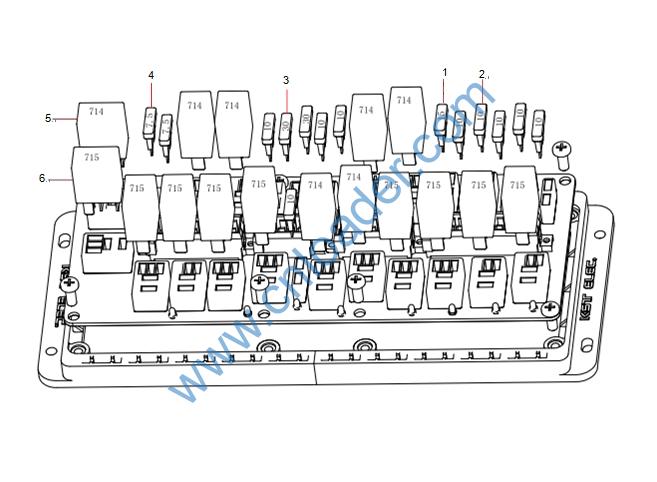

2 142099000056A003 Fuse 9
3 142099000056A005 Fuse 2
4 142099000056A002 Fuse 2
5 142099000056A007 Relay 7
6 142099000056A008 Relay 9

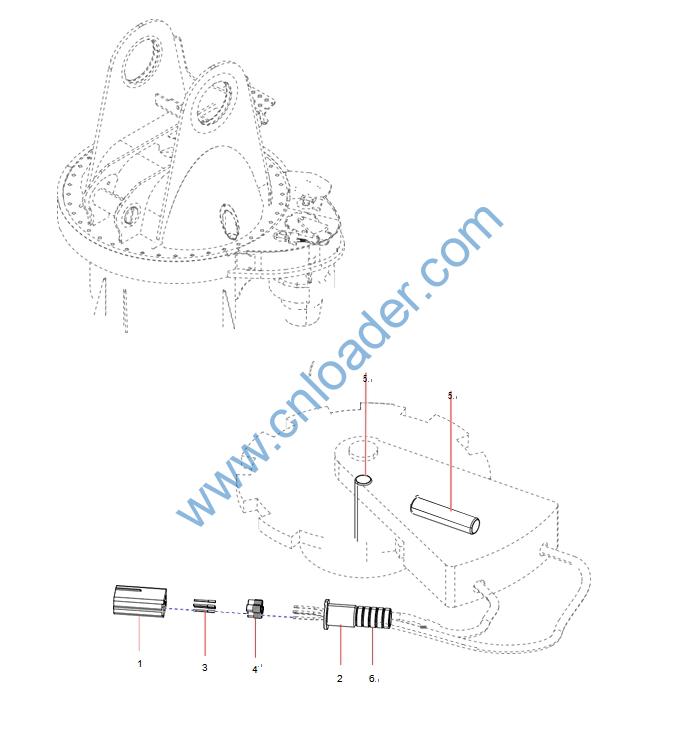

2 A229900004103 Hose Head 2
3 B241200000460 Pin 4
4 B241200001155 Waterproof Plug 4
5 B240600000312 Displacement Sensor 2
6 A239900000561 Nylon Bellows 1

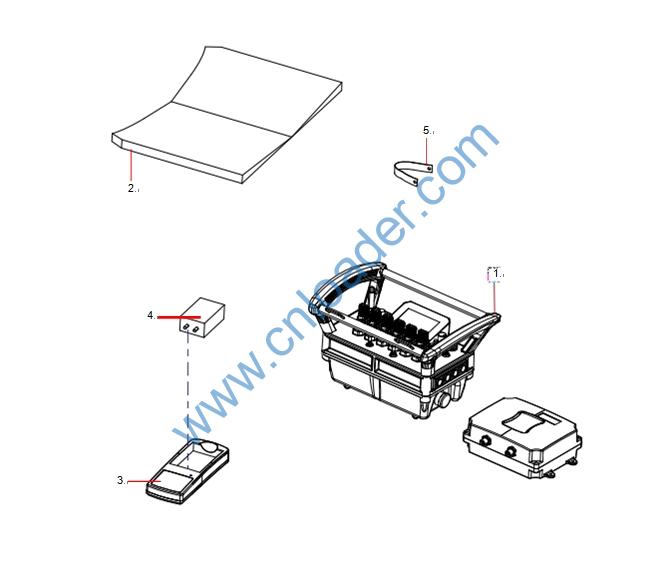

2 A810299000615 Operation Manual 1
3 SZN005186113 Charger 1
4 140102020022A Polymer Lithium Battery 1
5 139999000872A Straps of Remote Controller 1

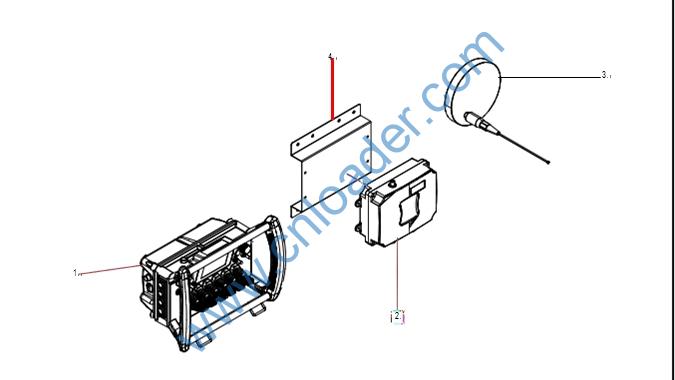

2 SZN005883819 Receiver AS 1
3 60081857 Antenna 1
4 A820199003741 Mounting Plate 1

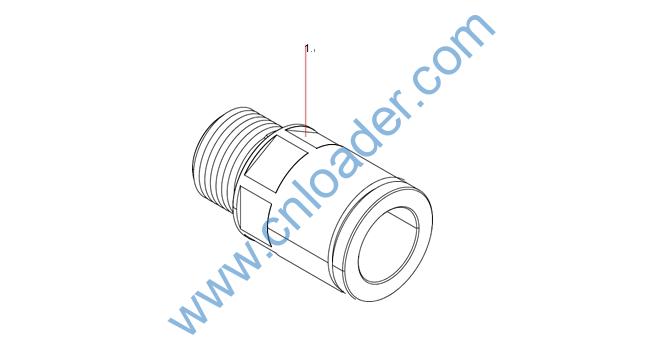

1 A229900004483 Hose Fitting 4

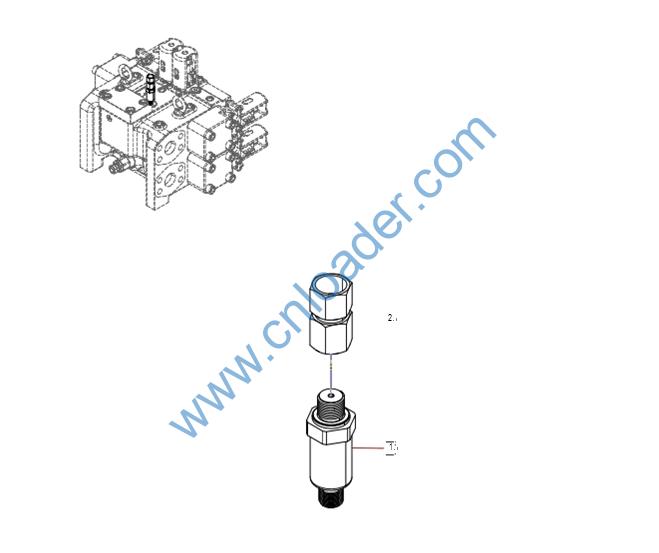

1 60191566 Pressure Sensor 1
2 21032658 60 Degree Taper Sleeve Joint 1
11744789

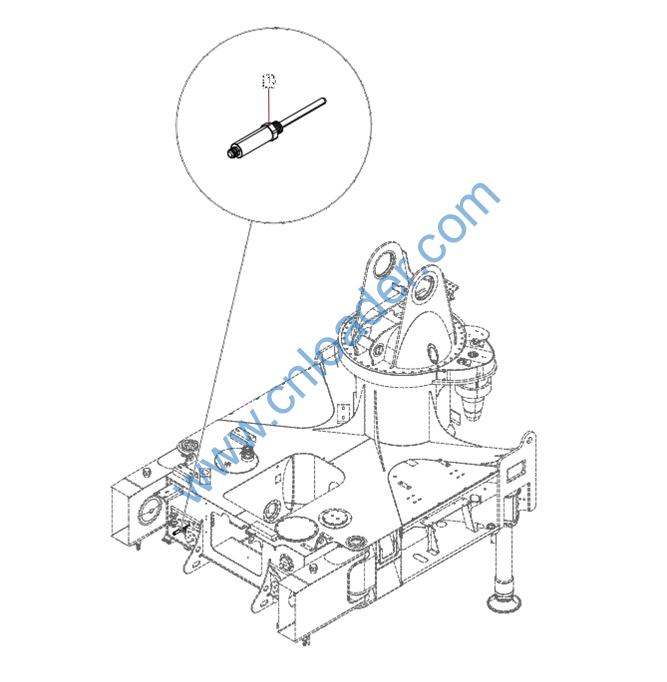

1 140525000046A Stroke ( Limit) Switch
1 140524000095A Proximity Switch 4
60090272

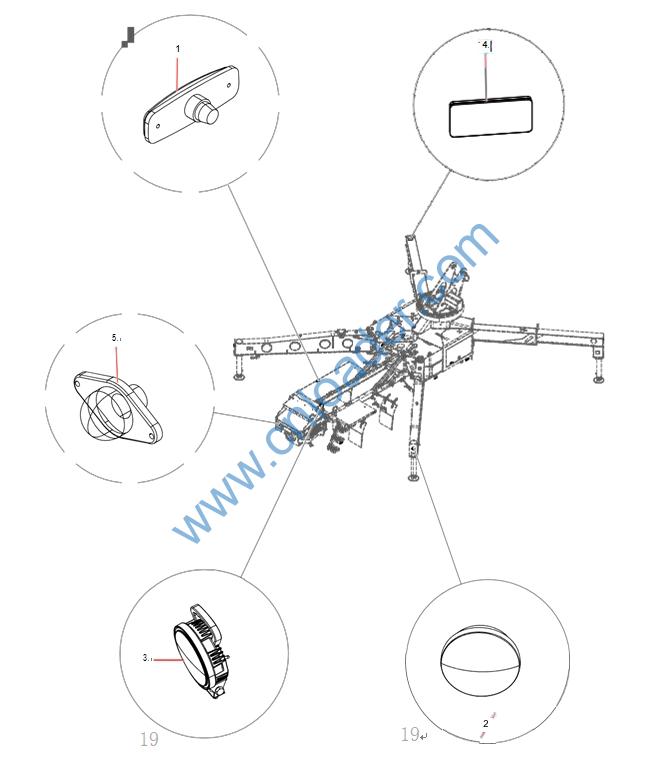

2 60126367 Marker Lamp 2
3 60167487 Work Lamp 1
4 A229900009868 SIDE REFLECTION DEVICE 2
5 A241100000514 License Plate Lamp 3
