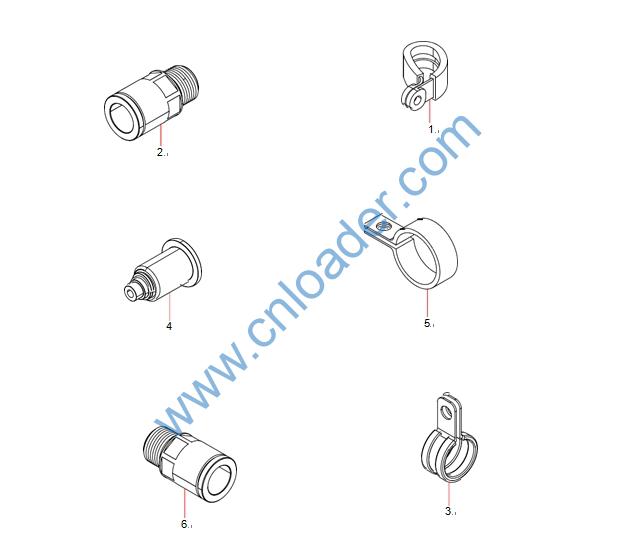

2 A229900004382 Quick Hose Connector 4
3 21004518 Clamp 8
4 A229900004103 Hose Head 3
5 A229900004095 Clamp 3
6 A229900004483 Hose Fitting 4

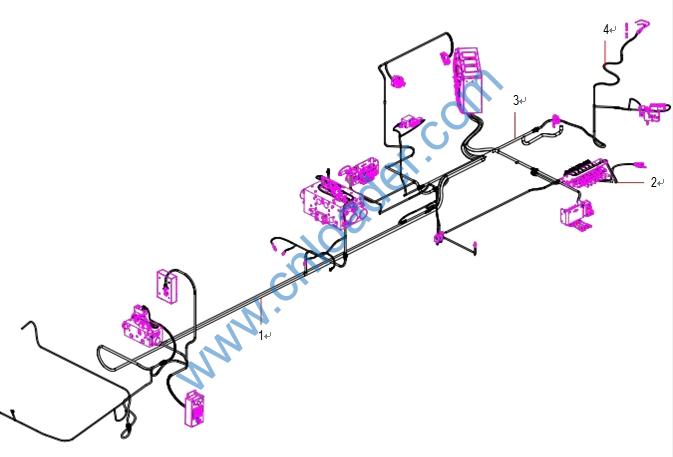

2 BCB005047793 Multiple Unit Valve Harness 1
3 BCB005047795 1# Main Harness 1
4 BCB005047832 Chassis Harness 1
1 146301000019A Speaker 2
2 BCB005762215 Horn Harness 1

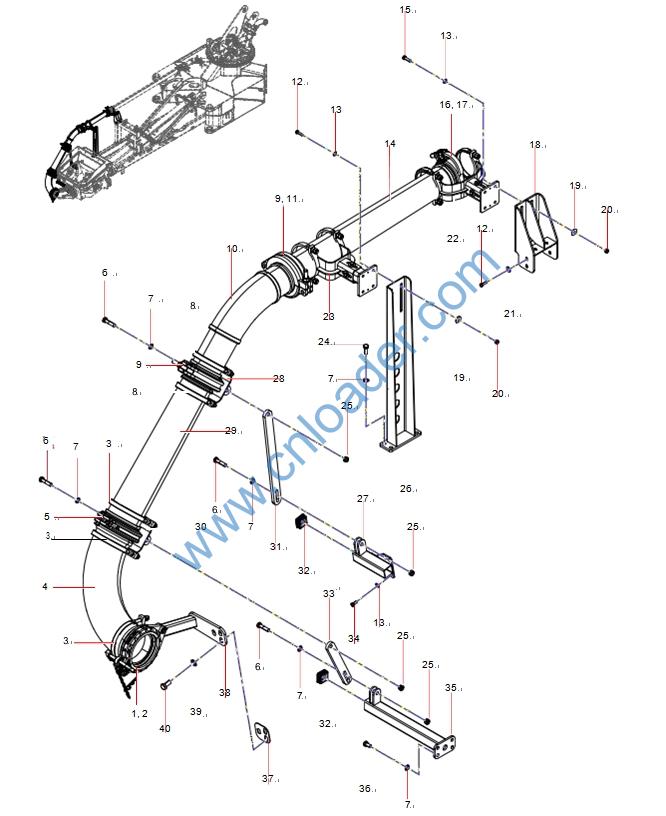

2 BCB005050979 Boom Conveyor Piping 1 8-18
2 12579712 Seal Ring
3 A810301010127 U-type Bolt
4 14484491 Elbow
5 12787533 Clamp
6 A210110000324 Bolt
7 A210405000003 Washer
8 12018563 U-type Bolt
9 A810301010927 Clamp Sany yellow
A810301010927WD H150A Pure white
A810301010927HA H150A Iron grey
A810301010927GC H150A Yellow green
10 13856798 Elbow
11 20A28220-6006-03109048
9 Seal Ring
12 A210111000026 Bolt
13 A210405000001 Washer
14 13798148 Taper Pipe
15 A210111000204 Bolt
16 A820606030049 Seal Ring
17 11936886Y Forged pipe clamp
18 BCB005034078 Support Seat
19 A210404000004 Washer
20 A210314000010 Nut
21 A210404000003 Washer
22 BCB005044142 140 Double Support
23 11473163 150 Double Support
24 A210111000053 Bolt
25 A210314000004 Nut
26 10983506 Support Seat Sany yellow
10983506GC support seat Yellow green
10983506WD support seat Pure white
27 12026023 Support AS Sany yellow
12026023HA support component Iron grey
12026023GC support component Yellow green
12026023WD support component Pure white
28 10949235 Upper Bent Seat Sany yellow
10949235HA SEAT BENT UPPER Iron grey
10949235GC SEAT BENT UPPER Yellow green
10949235WD SEAT BENT UPPER Pure white
29 13798143 Taper Pipe
31 BCB005207760 Connection Rod
32 11840956 Plug
33 11023961 Connection plate
11023961GC Connection plate
11023961GD Connection plate
11023961HA Connection plate
11023961WD Connection plate
34 A210111000101 Bolt
35 12893827 Connection Rod Support
12893827WD SEAT SUPPORT ROD CONNECTION
12893827GC SEAT SUPPORT ROD CONNECTION
36 A210111000263 Bolt
37 13264499 Spacer
13264499WD Spacer
13264499GC Spacer
13264499HA Spacer
38 13902051 Outlet Support
39 A210405000008 Washer
40 A210111000220 Bolt
17 11936886Y Forged pipe clamp

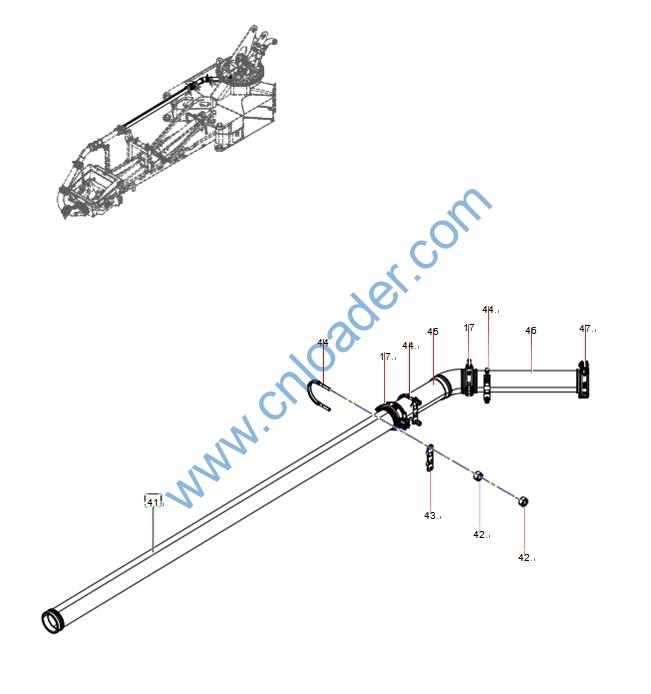

41 13566112Y Straight Pipe
42 A210307000028 Nut
43 A820699000291 Small Cushion Plate
44 A810301010996 133 U-type Bolt B
45 SSG005843300 Elbow and Straight Pipe
46 13574393Y Straight Pipe
47 11936886 Forged Pipe Clamp
11936886HB Forged pipe clamp
11936886YB Forged pipe clamp
11936886GC Forged pipe clamp
11936886YA Forged pipe clamp
11936886BC Forged pipe clamp
11936886YC Forged pipe clamp
11936886WE Forged pipe clamp
11936886HC Forged pipe clamp
7 A210405000003 Washer
42 A210307000028 Nut
44 A810301010996 133 U-type Bolt B
47 11936886 Forged Pipe Clamp
11936886HB Forged pipe clamp
11936886YB Forged pipe clamp
11936886GC Forged pipe clamp
11936886YA Forged pipe clamp
11936886BC Forged pipe clamp
11936886YC Forged pipe clamp
11936886WE Forged pipe clamp
11936886HC Forged pipe clamp
48 10972967 Clamp
10972967HB Clamp, fixed
10972967GC Clamp, fixed
10972967YB Clamp, fixed
10972967HA Clamp, fixed
10972967WD Clamp, fixed
10972967YA Clamp, fixed
10972967YC Clamp, fixed
10972967BC Clamp, fixed
10972967HC Clamp, fixed
10972967WE Clamp, fixed

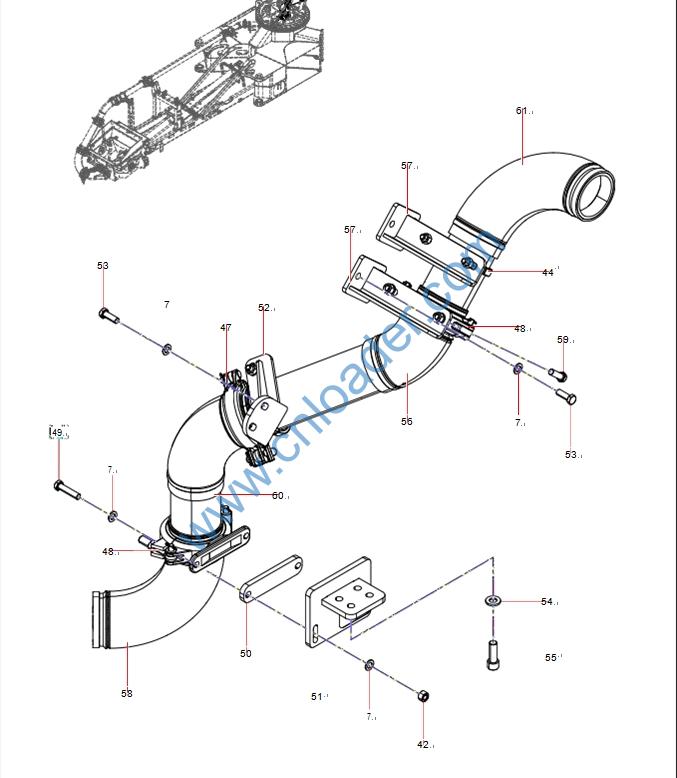

49 A210111000291 Bolt
50 A820699000293 Large Pad
51 BCB005043984 Center Support
52 BCB004936903 Support Seat
53 A210111000106 Bolt
54 A210491000132 Washer
55 A210204000450 Screw
56 13781920 Elbow and Straight Pipe
57 BCB004936890 Support Seat
58 13740079 -Elbow
13740079HB T90 R275 ELBOW
13740079YC – T90 R275 ELBOW
13740079BC T90 R275 ELBOW
13740079WE T90 R275 ELBOW
13740079YA T90 R275 ELBOW
13740079YB T90 R275 ELBOW
13740079GC T90 R275 ELBOW
13740079WD T90R275 ELBOW Pure white
13740079HA T90 R275 ELBOW Iron grey
13740079GD T90 R275 ELBOW Pure green
59 A210111000243 Bolt 2
60 SSG004912700 Elbow and Straight Pipe 1
61 13780537 2- Elbow and straight pipe 2- 1

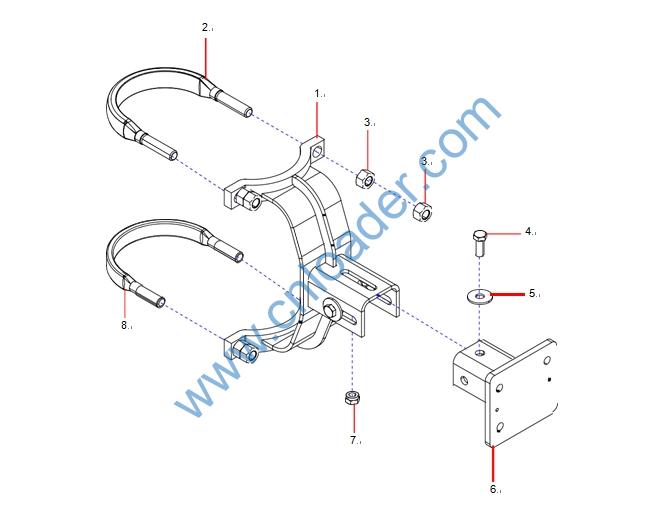

1 133487 Upper Bent Seat
13348709HA Upper Bent Seat
13348709GC Upper Bent Seat
13348709WD Upper Bent Seat
2 A810301010729 133 U-type Bolt
3 A210307000028 Nut
4 A210111000202 Bolt
5 A210404000004 Washer
6 BCB005044137 Small Bracket
BCB005044137WD Small plugboard seat
BCB005044137GC Small plugboard seat
7 A210314000010 Nut
8 A810301010125 U-type Bolt

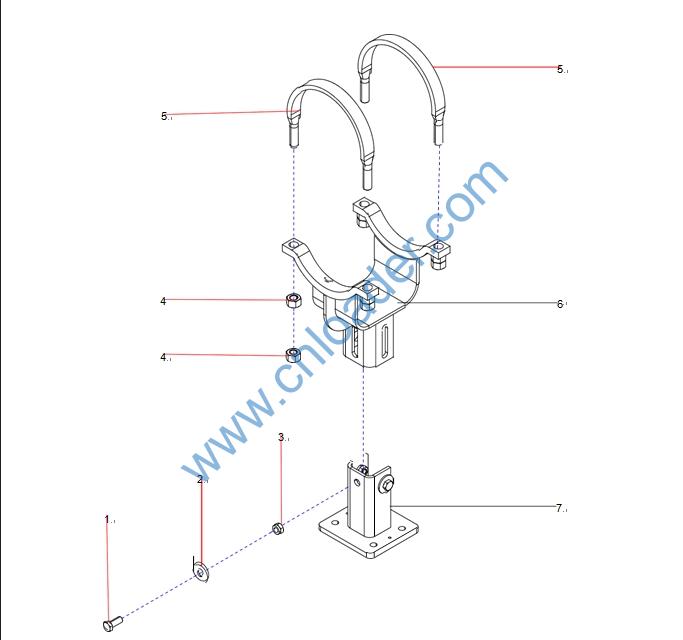

1 A210111000202 Bolt
2 A210404000004 Washer
3 A210314000010 Nut
4 A210307000028 Nut
5 A810301010126 U-type Bolt
6 11473164 Upper Bent Seat
11473164HA 150 Upper bent seat 1
11473164WD 150 Upper bent seat 1
11473164GC 150 Upper bent seat 1
7 11620049 Small Bracket
11620049GC Small Bracket
11620049HA Small Bracket
11620049G1D9 Small Bracket
11620049WD Small Bracket

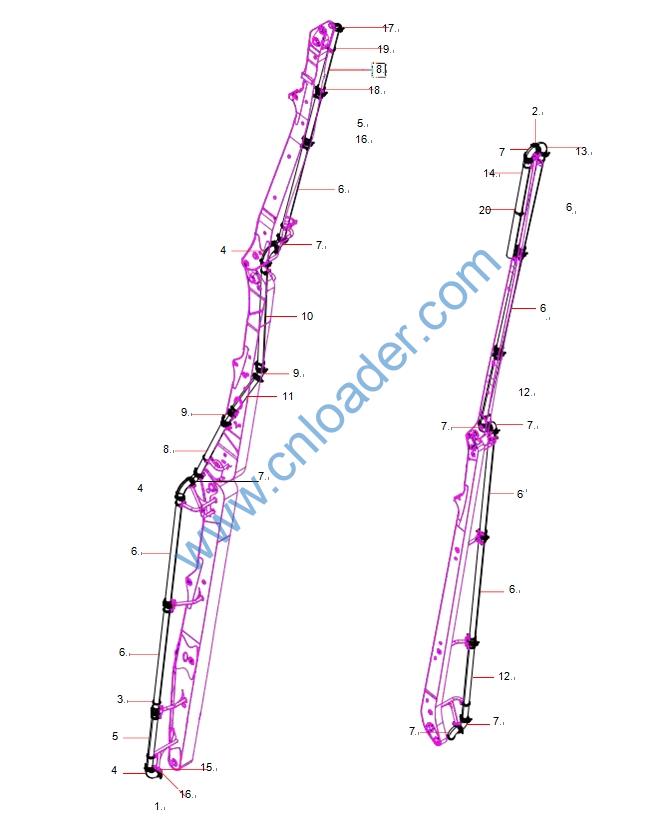

1 A820699000293 Large Pad
2 A810301010723 Clamp
A810301010723BC Clamp, fixed
A810301010723HA Clamp, fixed
A810301010723GD Clamp, fixed
A810301010723YA Clamp, fixed
A810301010723HC Clamp, fixed
A810301010723HB Clamp, fixed
A810301010723YC Clamp, fixed
A810301010723WE Clamp, fixed
A810301010723YB Clamp, fixed
A810301010723GC Clamp, fixed
A810301010723WD Clamp, fixed
3 A820606-030049 Seal Ring
4 13740079 Elbow
13740079HB T90 R275 ELBOW
13740079YC T90 R275 ELBOW
13740079BC T90 R275 ELBOW
13740079WE T90 R275 ELBOW
13740079YA T90 R275 ELBOW
13740079YB T90 R275 ELBOW
13740079GC T90 R275 ELBOW
13740079HC T90 R275 ELBOW
13740079WD T90 R275 ELBOW
13740079HA T90 R275 ELBOW
13740079GD T90 R275 ELBOW
5 13004948 Straight Pipe
6 12997175 Straight Pipe
7 13740915 Elbow
13740915GD T90 R180 ELBOW
13740915HA T90 R180 ELBOW
13740915BC T90 R180 ELBOW
13740915RE T90 R180 ELBOW
13740915WE T90 R180 ELBOW
13740915YC – T90 R180 ELBOW
13740915HB T90 R180 ELBOW
13740915HC T90 R180 ELBOW
13740915GC T90 R180 ELBOW
13740915YB T90 R180 ELBOW
13740915WD T90 R180 ELBOW
8 12997926 Straight Pipe
9 13741097 Elbow
13741097GC 45R275 ELBOW
13741097WD 45R275 ELBOW
10 12999809 Straight Pipe
11 13005519 Straight Pipe
12 13003691 Straight Pipe
13 13759028 Elbow
13759028HB 90R275 END ELBOW
13759028HC 90R275 END ELBOW
13759028WE 90R275 END ELBOW
13759028YC 90R275 END ELBOW
13759028HA 90R275 END ELBOW
20123725900928G1D9 90R275 END ELBOW
13759028GC 90R275 END ELBOW
13759028YB 90R275 END ELBOW
13759028BC 90R275 END ELBOW
13759028WD 90R275 END ELBOW
13759028YA 90R275 END ELBOW
14 A810301011314 Hose
15 A210111000055 Bolt
16 A210314000004 Nut
17 11936886 Forged Pipe Clamp
11936886HB Forged pipe clamp
11936886YB Forged pipe clamp
11936886GC Forged pipe clamp
11936886YA Forged pipe clamp
11936886BC Forged pipe clamp
11936886YC Forged pipe clamp
11936886WE Forged pipe clamp
11936886HC Forged pipe clamp
18 A820699000291 Small Cushion Plate
19 A810301010729 -133 U-type Bolt
20 A810301010755 Buckle
2 A210110000016 Bolt 1
3 A210307000025 Nut 2
4 A810301011527 Buckle Rope 1
0182700 Piston . . . . . . . . . . . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41 11023961HA Connection plate 8-7
10250738 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 11023961WD Connection plate 8-7
10250742 Retainer Ring . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 11036715 Drainage Pipe, Waterproof Valve 6-77
10250744 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 11038817 Bushing 3-31
10250750 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27 11038817GC Sleeve, shaft 3-31
10250757 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 11038817GD Sleeve, shaft 3-31
10250760 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 11038817HA Sleeve, shaft 3-31
10351508 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21 11038817RE Sleeve, shaft 3-31
10451273 Piston Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 11038817WD Sleeve, shaft 3-31
10486371 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25 11038818 Shaft 3-31
10510817 Outrigger Operation Box . . . . . . . . . . . . . . . . . . . . . 7-3 11038821 Bushing 3-31
10515522 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5, 2-19 11038821GC shaft sleeve 3-31
10527502 Wear Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43 11038821GD shaft sleeve 3-31
10682796 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33 11038821HA shaft sleeve 3-31
10765452 Flange Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51 11038821RE shaft sleeve 3-31
10855582 Spacing Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49 11038821WD shaft sleeve 3-31
10898103GC Outrigger Operation Box, 11039590 Shaft 3-3
Four-lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31 11053304 Machanical Encoder 7-3
10898103 Outrigger Operation Box, Four-lever . . 6-31 11053320 Temperature Sensor AS 7-3
10898103WD Outrigger Operation Box, 11053609 Limit Switch GP 7-5
Four-lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31 11060889GC Protective Cover 3-31
10911841 Seal and Retainer Ring . . . . . . . . . . . . . .4-51, 4-53 11060889 Protective Cover 3-31
10940217GC Travel switch bracket . . . . . . . . . . . . . . . . . . . 5-13 11060889WD Protective Cover 3-31
10940217HA Travel switch bracket . . . . . . . . . . . . . . . . . . . . 5-13 11092222 Damping Rubber Pad . . . . . . . . . . . . . . . . .3-11, 3-43
10940217 Travel switch bracket . . . . . . . . . . . . . . . . . . . . . . . . 5-13 11142524 Holding Support 3-31
10940217WD Travel switch bracket . . . . . . . . . . . . . . . . . . . 5-13 11154837 Special-shaped Nut 4-45
10949235GC SEAT BENT UPPER . . . . . . . . . . . . . . . . . . . . . . 8-5 11156002 buffer pad 2-9
10949235HA SEAT BENT UPPER . . . . . . . . . . . . . . . . . . . . . . 8-5 11252641 Pressure Plate . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57
10949235 Upper Bent Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 11252642 Plate . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57
10949235WD SEAT BENT UPPER . . . . . . . . . . . . . . . . . . . . . 8-5 11266830 Waterproof Disc 4-53
10957681 Cover plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 11296613 Roller Wheel Shaft 3-49
10957681GC Cover plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 11300603 Contact Roller AS 3-47
10957681HA Cover plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 11304382 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21
10957681WD Cover plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 11352544 Filter 6-193
10969372GC Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31 11353152 Upper Bent Seat 8-7
10969372 Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31 11440784 Buffer Block Grille 4-31
10969372WD Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31 11473163 150 Double Support 8-5
10972967BC Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11473164GC 150 Upper bent seat 1 8-17
10972967 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11473164HA 150 Upper bent seat 1 8-17
10972967GC Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11473164 Upper Bent Seat 8-17
10972967HA Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11473164WD 150 Upper bent seat 1 8-17
10972967HB Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11487728 Buffer Pad 2-9
10972967HC Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11502561 Pressure Sensor AS 7-3
10972967WD Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11516892 Cover Plate 3-47
10972967WE Clamp, fixed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11516892GC Cover Plate 3-47
10972967YA Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11516892GD Cover Plate 3-47
10972967YB Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11516892HA Cover Plate 3-47
10972967YC Clamp, fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 11516892WD Cover Plate 3-47
10983506GC support seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 11574149 Buffer Pad 3-3
10983506 Support Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 11619369 Rubber Pad 7-19
10983506WD support seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 11620049GC Small Bracket 8-17
10990353 Outrigger Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47 11620049GD Small Bracket 8-17
11023961 Connection plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 11620049HA Small Bracket 8-17
11023961GC Connection plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 11620049 Small Bracket 8-17
11023961GD Connection plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 11620049WD Small Bracket
11633558 Oil Level Sensor AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5 12092817GC Stopping washer 4-29
11660952 Installation Parts of Hopper . . . . . . . . . . . . . . . . . . 4-3 12092817HA Stopping washer 4-29
11662442 Check Valve Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-63 12092817 Lock Washer 4-29
11665464GC Support Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 12092817YA Stopping washer 4-29
11665464GD Support Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 12127357 Lower Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-45, 6-55
11665464HA Support Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 12127381 Upper Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-45, 6-55
11665464 Support Seat . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 2-15 12204324 Breathing Cover 5-15
11665464WD Support Seat……. . . . . . . . . . . . . . . . . . . . . . . . . 2-15 12211591 Side Plate 4-57
11695006 Bent Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 12257441 Adapter 4-37
11696026GC Hose support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 12276778 buffer pad . . . . . . . . . . . . . . . . . . . . . . 2-3, 2-5, 2-7, 2-13
11696026GD Hose support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 12298491 Retainer Ring 2-27
11696026HA Hose support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 12298513 Retainer Ring 2-33
11696026 Hose Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 12302980 Plate 6-105
11696026WD Hose support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 12332903GC Motor cover 4-31
11696403 Check Valve Spring . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-61 12332903HA Motor cover 4-31
11699880GC adjusting spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 12332903 Protective Cover 4-31
11699880GD adjusting spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 12332903WD Motor cover 4-31
11699880HA adjusting spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 12343138 Rotation Balancing Valve AS 6-101
11699880 Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 12351189 Boot 5-13
11699880WD adjusting spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 12355723 Screw Plug . . 3-9, 3-17, 3-21, 3-23, 3-35,
11706258 Check Valve Cover Plate . . . . . . . . . . . . . . . . . . . 6-61 3-39, 3-41, 3-45, 3-57
11708919 V-shaped block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 12448525GC SPANNER HANDLE
11733557 Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3, 3-25 WELDMENT 4-29
11737447 Guide Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13 12448525 Handle Weldment 4-29
11744789 Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . 7-33 12448525HA SPANNER HANDLE
11747045 Hose . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .6-103 WELDMENT 4-29
11747826 Rubber Protective Cap . . . . . . . . . . . . . . . . . . . . . . 4-43 12448525YA SPANNER HANDLE
11747828 M24 rubber screw block . . . . . . . . . . . . . . . . . . . . 4-43 WELDMENT 4-29
11763407GC Positioning seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 12518316 end cover 4-51
11763407GD Positioning seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 12562209 Flange Cover 6-93
11763407HA Positioning seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 12562604 Remote Control AS 7-3
11763407 Positioning seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 12563781 Cover, Oil Suction 6-95
11763407WD Positioning seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 12563841 Oil Return Cover 6-93
11805684 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-173 12576443 special-made bolt . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
11840956 Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 12579712 Seal Ring 8-5
11912632GC Feeding Door Plate . . . . . . . . . . . . . . . . . . . . . . 4-33 12630124 Plug……………………………………. 2-5, 2-15
11912632HA Feeding Door Plate . . . . . . . . . . . . . . . . . . . . . . 4-33 12631714 Ball Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 19
11912632Outlet Flap…. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33 12638346GC Plate, set 6-37
11912632YA Feeding Door Plate . . . . . . . . . . . . . . . . . . . . . . . 4-33 12638346 Mounting Plate 6-37
11936886BC Forged pipe clamp. . . . . . . . . . .8-9, 8-11, 8-21 12638346WD Plate, set 6-37
11936886 Forged Pipe Clamp . . . . . . . . . . . . . .8-9, 8-11, 8-21 12638380 Clamp . . . . . . . . . . . . . . . . 6-131, 6-135, 6-149, 6-159
11936886GC Forged pipe clamp . . . . . . . . . .8-9, 8-11, 8-21 12640485 Slew Bearing 3-27
11936886HB Forged pipe clamp. . . . . . . . . . .8-9, 8-11, 8-21 12642416 buffer pad 5-13
11936886HC Forged pipe clamp . . . . . . . . . .8-9, 8-11, 8-21 12652890GC Water Outlet Pipe . . . . . . . . . . . . . . . . . . 3-5, 3-51
11936886WE Forged pipe clamp . . . . . . . . . .8-9, 8-11, 8-21 12652890HA Water Outlet Pipe . . . . . . . . . . . . . . . . . . . 3-5, 3-51
11936886YA Forged pipe clamp . . . . . . . . . . .8-9, 8-11, 8-21 12652890 Water Outlet Pipe . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
11936886YB Forged pipe clamp . . . . . . . . . . .8-9, 8-11, 8-21 12652890WD Water Outlet Pipe . . . . . . . . . . . . . . . . . . 3-5, 3-51
11936886YC Forged pipe clamp. . . . . . . . . . .8-9, 8-11, 8-21 12666824GC protective cover 6-93
11936886Y Forged pipe clamp . . . . . . . . . . . . . . . . . . . . . . 8-5, 8-9 12666824HA protective cover 6-93
12004486 Check Valve Core AS . . . . . . . . . . . . . . . . . . . . . . . . 6-61 12666824 protective cover 6-93
120104010485 A Screw . . . . . .6-123, 6-125, 6-127, 6-145, 12666824WD protective cover 6-93
6-155, 6-157 12666824YA protective cover 6-93
120104010486A Screw . . . . . .6-123, 6-125, 6-127, 6-139, 12673325GC Oil Tube 4-21
6-141, 6-145, 6-153, 6-155, 6-157, 6-163, 6-165, 6-167 12673325HA Oil Tube 4-21
120104010507A Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 12673325 Oil Tube 4-21
12018563 U-type Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 12673325WD Oil Tube 4-21
12026023GC support component . . . . . . . . . . . . . . . . . . . . . . . . 8-5 12673335GC Oil Tube 4-21
12026023HA support component . . . . . . . . . . . . . . . . . . . . . . . . 8-5 12673335HA Oil Tube 4-21
12026023 Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 12673335 Oil Tube 4-21
12026023WD support component . . . . . . . . . . . . . . . . . . . . . . . 8-5 12673335WD Oil Tube 4-21
12068400 Clamp…………….. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 12784367GC Rocker Arm
12784367HA Rocker Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 12997175 Straight Pipe 8-19
12784367 Rocker Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 12997926 Straight Pipe 8-21
12784367WD Rocker Arm .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 12999809 Straight Pipe 8-21
12784925 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19 13003691 Straight Pipe 8-21
12787533 Clamp………………….. . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 13004948 Straight Pipe 8-19
12789309 Connector Plate, Nine-hole . . . . . . . . . . . . . .6-147 13005519 Straight Pipe 8-21
12789309GC adapter plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-147 130101010214A Reducer GP 3-27
12789309GD adapter plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-147 13021566 Sleeve . . . . . . . . . . . . . . . . . . . . . 2-3, 2-5, 2-7, 2-9, 2-13
12789309HA adapter plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-147 13022207GC Oil Tube 4-21
12789309WD adapter plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-147 13022207HA Oil Tube 4-21
12800246 Cushion Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-27, 2-33 13022207 Oil Tube 4-21
12800247 Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-27, 2-33 13022207WD Oil Tube 4-21
12802475 Standard Parts GP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3 13022212GC Oil Tube 4-21
12807822 Work Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31 13022212HA Oil Tube 4-21
12826898 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-193 13022212 Oil Tube 4-21
12830619 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . .2-3, 2-5, 2-7, 2-9 13022212WD Oil Tube 4-21
12830621 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 13022214GC Oil Tube 4-21
12830625 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 13022214HA Oil Tube 4-21
12862233 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 13022214 Oil Tube 4-21
12893827 Connection Rod Support . . . . . . . . . . . . . . . . . . . . . 8-7 13022214WD Oil Tube 4-21
12893827GC SEAT SUPPORT ROD 13022215GC Oil Tube 4-21
CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 13022215HA Oil Tube 4-21
12893827WD SEAT SUPPORT ROD 13022215 Oil Tube 4-21
CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 13022215WD Oil Tube 4-21
12903293 Connection Rod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95 13022216GC Oil Tube 4-21
12911706 washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57 13022216HA Oil Tube 4-21
12912195 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 13022216 Oil Tube 4-21
12922430 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-103 13022216WD Oil Tube 4-21
12922615 Hose………. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 13028612 Hose……….. . . . . . . . . . . . . . . . . . . . . . . . . . . 6-173, 6-175
12923063 Hose………………… . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21 13034739 Sleeve 2-5
12925471GC Support Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47 13099824 Piston Rod . . . . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57
12925471HA Support Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47 131299000020B001 Right Rear Mudguard 5-35
12925471 Support Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47 131299000020B002 Splash Guard . . . . 5-29, 5-31, 5-33,
12925471WD Support Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47 5-35
12926118 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105 131299000020B Right Rear Mudguard AS 5-27
12936050 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 131299000021B001 Right Front Mudguard 5-33
12936787 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-103 131299000021B Right Front Mudguard AS 5-27
12954871 Hose……. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 131299000022B001 Left Rear Mudguard 5-29
12955116 Triangle Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 131299000022B Left Rear Mudguard AS 5-27
12958191 Pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 131299000023B001 Left Front Mudguard 5-31
12962535GC Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 131299000023B Left Front Mudguard AS 5-27
12962535GD Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 13160233 Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . 6-37, 6-41, 6-105
12962535HA Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 13169433 Protective Cover GP 6-73
12962535 Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 13198751 Connection Rod 4-13
12962535WD Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 13198753 Piston Head 4-9
12964137 Bearing Block . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 13201597 Bearing Seat 4-5
12964141 Motor Mounting Seat. . . . . . . . . . . . . . . . . . . . . . . . . 4-53 13201598 Bent Pressure Plate 4-5
12965623 Connection Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13201599 Damping Block 4-5
12965623GC connecting plate . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13202970 Nut 4-19
12965623GD connecting plate . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13205373 License plate 4-29
12965623HA connecting plate. . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13212761 Left Mixing Blade Seat 4-51
12965623WD connecting plate . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13212762 Right Mixing Blade Seat 4-51
12966137GC backup plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13229818 Piston 2-27
12966137GD backup plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13245668 Mixer Shaft 4-51
12966137HA backup plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13246814 Mixing Device 4-3
12966137 Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13258315 Chain 4-31
12966137WD backup plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13258431 Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
12966276 U-type Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-123 13258431GC Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
12981256 Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 13258431GD Cover Plate . . . . . .. . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
12981391 Lock Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 3-3 13258431HA Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51
12983482 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 13258431WD Cover Plate . . . . . . . . . . . .. . . . . . . . . . . . . . 3-5, 3-51
13263337 Handrail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25 13740079HC T90R275 ELBOW .8-13, 8-19
13264499GC Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 13740079WD T90R275 ELBOW . . . . . . . . . . . . . . . .8-13, 8-19
13264499HA Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 13740079WE T90R275 ELBOW . . . . . . . . . . . . . . . .8-11, 8-19
13264499 Spacer……………………………………….. 8-7 13740079YA T90R275 ELBOW . . . . . . . . . . . . . . . . . .8-11, 8-19
13264499WD Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 13740079YB T90R275 ELBOW . . . . . . . . . . . . . . . . .8-11, 8-19
13265249 Left Lock Plate Weldment GP . . . . . . . . . . . . 5-25 13740079YC T90R275 ELBOW . . . . . . . . . . . . . . . . .8-11, 8-19
13266590 Hwm Dust Ring . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 13740915BC T90R180 ELBOW 8-19
13267524 Polyurethane Sleeve……………………. 6-59 13740915 Elbow 8-19
13267547 Guide Bush . . . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41 13740915GC T90R180 ELBOW 8-19
13268795 Right Lock Plate Weldment GP . . . . . . . . . . 5-25 13740915GD T90R180 ELBOW 8-19
13268936 Seal Ring . . . . . . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41 13740915HA T90R180 ELBOW 8-19
13272323 Oil-out Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-23, 3-41 13740915HB T90R180 ELBOW 8-19
13279465 Front Outrigger Cylinder . . . . . .3-5, 3-13, 3-33, 13740915HC T90R180 ELBOW 8-19
3-51 13740915RE T90R180 ELBOW 8-19
13281077 Swing Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 13740915WD T90R180 ELBOW 8-19
13300438 Pressure Valve . . . . . . . . . . . . . . . . . . . . . . . . 6-77, 6-175 13740915WE T90R180 ELBOW 8-19
13300439 Oil Feeding Valve . . . . . . . . . . . . . . . . . . . . . .6-53, 6-59 13740915YB T90R180 ELBOW 8-19
13314017Protective Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 13740915YC T90R180 ELBOW 8-19
13348709GC Upper Bent Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15 13741097 Elbow 8-21
13348709HA Upper Bent Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15 13741097GC 45R275 ELBOW 8-21
13348709 Upper Bent Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15 13741097WD 45R275 ELBOW 8-21
13348709WD Upper Bent Seat . . . . . . . . . . . . . . . . . . . . . . . . . 8-15 13746800 JT Guide Ring . . . 3-21, 3-23, 3-39, 3-41, 3-45
13367127 Hopper Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 13746817 JT Guide Ring . . . 3-21, 3-23, 3-39, 3-41, 3-45
13395982 Shutoff Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55 13759028BC 90R275 END ELBOW 8-21
13400608 Harness Fastener GP . . . . . . . . . . . . . . . . . . . . . . . 7-11 13759028 Elbow 8-21
13453515Cover Plate… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15 13759028GC 90R275 END ELBOW 8-21
13464292 Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-103 13759028GD 90R275 END ELBOW 8-21
13522668 Air Pipe…………………………………….. 5-15 13759028HA 90R275 END ELBOW 8-21
13528404 Elbow Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-27 13759028HB 90R275 END ELBOW 8-21
13544177 Pressure Plate. . . . . . . . . . . . .3-5, 3-13, 3-33, 3-51 13759028HC 90R275 END ELBOW 8-21
13544180 Outrigger Seat . . . . . . . . . . . . .3-5, 3-13, 3-33, 3-51 13759028WD 90R275 END ELBOW 8-21
13546326 Pin…………………………. . . . . . . . . . . . . . . . . . . . . 4-57 13759028WE 90R275 END ELBOW 8-21
13564464 Cross Beam .. . . . . . . . . . . . . . . . . . . . . . . . . . . .5-19, 5-21 13759028YA 90R275 END ELBOW 8-21
13566112Y Straight Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 13759028YB 90R275 END ELBOW 8-21
13573483 PADV Dust Ring . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 13759028YC 90R275 END ELBOW 8-21
13573486 PADV Dust Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 13780537 Elbow and straight pipe 8-13
13574393Y Straight Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9 13781920 Elbow and Straight Pipe 8-11
13595754 Oil Suction Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55 13798143 Taper Pipe 8-5
13599572 Gsj Seal Ring . . . . . . 2-27, 3-9, 3-17, 3-35, 3-57 13798148 Taper Pipe 8-5
13599577 GSJ Seal Ring…… . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 13856798 Elbow 8-5
13599579 GSJ Seal Ring………………………2-17, 2-21 13902051 Outlet Support 8-7
13599606GSJ Seal Ring…. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 13917900 Support AS 2-7
13599611 Gsj Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 13969152 S-valve 4-47
13603199GC Oil Tube . . . . . . . . . . . . . . . . . 6-9, 6-11, 6-13, 6-15 13969162 Wear Plate 4-47
13603199 Oil Tube . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11, 6-13, 6-15 13969211 cutting ring 4-47
13603199WD Oil Tube . . . . . . . . . . . . . . . . 6-9, 6-11, 6-13, 6-15 13969212 Hinged Elbow 4-49
13603219 support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-19, 5-21 13972525 Hinged Elbow GP 4-3
13615875 Guide Bush . . . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 13973095 Valve GP, Outrigger Control . . . . . . . .6-23, 6-25
13615882 Cylinder Bore GP… . . . . . .3-9, 3-17, 3-35, 3-57 13977202 Davit 4-5
13620824 turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 139999000872A Straps of Remote Controller 7-25
13709002 Connector Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-157 140102020022A Polymer Lithium Battery 7-25
13709002GC connecter plank . . . . . . . . . . . . . . . . . . . . . . . . . .6-157 14029848 Hose 6-21
13709002GD connecter plank . . . . . . . . . . . . . . . . . . . . . . . . . .6-157 140524000095A Proximity Switch 7-37
13709002HA connecter plank . . . . . . . . . . . . . . . . . . . . . . . . . .6-157 140525000046A Stroke (Limit) Switch 7-35
13709002 WD connecter plank . . . . . . . . . . . . . . . . . . . . . . . . .6-157 140912000025A Intelligent Wireless Remote Control
13740079BC T90R275 ELBOW . . . . . . . . . . . . . . . . .8-11, 8-19 System GP 7-25
13740079Elbow .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11, 8-19 14092300 Front Seal Plate 5-5
13740079GC T90R275 ELBOW . . . . . . . . . . . . . . . . .8-11, 8-19 14099775 mounting seat . . . . . . . . . . . . . . . . . . . . . . . . . . .5-19, 5-21
13740079GD T90R275 ELBOW . . . . . . . . . . . . . . . . .8-13, 8-19 14099997 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-173, 6-175
13740079HA T90R275 ELBOW . . . . . . . . . . . . . . . . .8-13, 8-19 14136281 Cylinder Bottom 4-17
13740079HB T90R275 ELBOW . . . . . . . . . . . . . . . . .8-11, 8-19 14136282 Gland 4-17
14136897 Left Tail Lamp Support . . . . . . . . . . . . . . . . . . . . . . . . 5-9 150204010016A006 Oil Seal 6-199
14136901 Left Tail Lamp Cover . . . . . . . . . . . . . . . . . . . . . . . . . 5-39 150204010016A007 Gasket 6-199
14137884 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17 150401020024A001 Coil . . . . . . . . . . . . . . . . . . . 6-69, 6-71, 6-89
14138918 Right Tail Lamp Support . . . . . . . . . . . . . . . . . . . . . . 5-9 150401020024A002 O-ring . . . . . . . . . . . . . . . . 6-69, 6-71, 6-89
14138919 Right Tail Lamp Cover . . . . . . . . . . . . . . . . . . . . . . . 5-23 150401020024A004 O-ring . . . . . . . . . . . . . . . . 6-69, 6-71, 6-89
14139494 Cylinder Connection Valve Block . . . . . . . 6-61 150404990010A001 Lever 6-43
14139495 Connecting Valve GP . . . . . . . . . . . . . . . . . . . . . . . . 6-53 150404990010A002 Lever Support AS 6-43
14139687 Oil suction seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95 150404990010A003 Overflow Valve 6-43
14142772 Shaft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 150404990010A004 Valve Core and Spring AS 6-43
14142788Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 150404990010A005 End Cover 6-43
14144985 Main valve block seat . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 150404990010A006 Seal Kit 6-43
14145134 Protective Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 150404990010A Directional Valve, Manual 6-39
14145359 Cantilever Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 150406040004A001 Check Valve 6-29
14146922 Tie Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 150406040004A002 O-ring 6-29
14155825 Cylinder Bore GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 150504010163A001 Overflow Valve 6-113
14209011 Damping Plug . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 150504010163A002 O-ring 6-113
142099000056A002 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 150504010163A003 Check Valve 6-113
142099000056A003 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 150504010163A004 O-ring 6-113
142099000056A004 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 150504050029A001 Balancing Valve . . 6-133, 6-137,
142099000056A005 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 6-151, 6-161, 6-171
142099000056A007 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 150504050029A002 O-ring . . 6-133, 6-137, 6-151,
142099000056A008 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21 6-161, 6-171
14252647 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 150504050029A003 Overflow Valve . . 6-133, 6-137,
142599000073A Button Box, Big Ball Horn . . . . . . . . . . 7-5 6-151, 6-161, 6-171
14289730 Piston . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 150504050029A004 O-ring . . 6-133, 6-137, 6-151,
14289731 Guide Bush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 6-161, 6-171
14289732 Screwed Cover. . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 150504050029A005 Plug . . .6-133, 6-137, 6-151, 6-161,
14292115 Piston . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 6-171
14292116 Guide Bush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 150504050029A006 Connector . . . . 6-133, 6-137, 6-151,
14292118 Screwed Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 6-161, 6-171
14295778 Retainer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 150602060032A001 Flow Valve 6-179
14296953 Valve GP, Piston-exit Control . . . . . . . . . . . . . 6-79 150603030033A001 Lever 6-33
142999000067A Piston Control Box GP . . . . . . . . . . . . . . . 7-5 150603030033A002 Lever Support AS 6-33
14373971 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-53 150603030033A003 Overflow Valve 6-33
14412731 Mudguard Mounting Plate . . . . . . . . . . . . . . . . . 5-27 150603030033A004 Valve Core and Spring AS 6-33
14413116 Flange Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95 150603030033A005 End Cover 6-33
14413380 Box, electric control . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 150603030033A006 Seal Kit 6-33
14420417GC Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 150603040002A004 Valve Core and Spring AS 6-33
14420417HA Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 150699000019A001 Lever . . 6-181, 6-183, 6-185,
14420417 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 6-187, 6-189, 6-191
14420417WD Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 150699000019A002 Main Overflow Valve 6-179
14426852 Sensing Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 150702000007A001 Pressure Guage 6-195
14431539 Mounting Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21 150702000007A002 Watertight 6-195
14484491 Elbow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 150702000007A003 backwater spring 6-197
14495921 End Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39 150702000007A004 O-ring 6-195
14495922 End Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41 150702000007A005 O-ring 6-197
14518997 Delivery Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 150702000007A006 T-joint Ball Valve 6-195
14520545 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-57 150702000007A007 Overflow Valve 6-195
14550198 Water Tank Support Seat . . . . . . . . . . . . . . . . . . 4-19 150702000007A008 Pump Head 6-195
14550199 Water Tank Support Pin Shaft . . . . . . . . . . . . 4-19 150702000007A009 Seal Ring 6-195
14550200 Shaft End Retainer Ring . . . . . . . . . . . . . . . . . . . . 4-19 150702000007A Water Pump 6-193
14550201 Support, Water Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 150788000004A O-ring 6-197
14557792GC material outlet body . . . . . . . . . . . . . . . . . . . . . 4-43 150901020126A Combined Cylinder . . . . . . . . . .3-13, 3-33 14557792HA material outlet body . . . . . . . . . . . . . . . . . . . . . . 4-43 150901020127A Front Outrigger Telescoping 14557792 Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43 Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19, 3-37
14557792WD material outlet body . . . . . . . . . . . . . . . . . . . . . 4-43 150901020128A Front Outrigger Telescoping
146301000019A Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47 Cylinder…… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19, 3-37
150204010016A002 Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . .6-199 150902050068A Arm 1 Cylinder 2-3
150204010016A003 Gasket. . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-199 150902050069A Arm 2 Cylinder 2-5
150204010016A004 Inner Seal Ring . . . . . . . . . . . . . . . .6-199 150902050070A Arm 3 Cylinder 2-7
150902050071A Arm 4 Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 151702000010C012 Rubber Washer 6-83
150902050072A Arm 5 Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 2-13 151800000053A001 Gasket. . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-55
150902070062A Main Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 151800000053A002 Filter Core . . . . . . . . . . . . . . . . . . . 3-7, 3-55
151002160084A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11 151800000053A003 Seal Ring . . . . . . . . . . . . . . . . . . . . 3-7, 3-55
151004210034A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-129 151800000054A001 Filter Core 6-97
151004210465A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-163 151800000054A002 O-ring 6-97
151004210466A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-163 152300000066B001 End Cover AS 6-65
151004260037A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-173 152300000066B002 End Cover AS 6-65
151004260254A Hose . . . . . . . . . . . . . . . . . . 6-125, 6-143, 6-155 152300000066B003 Overflow Valve 6-65
151004260257A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-153 152300000067A004 Safety Valve 6-65
151004260262A Hose AS . . . . . . . . . . . . . . . . . . . . . . 6-123, 6-173 152503010014 Directional Valve 5-15
151004260265A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-169 152503010215A001 Coil 5-17
151004260275A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-129 152503010215A002 Plug 5-17
151004260276A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-125, 6-143 152601000010A001 Collecting valve block 4-27
151004260278A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-139 152601000010A002 Pump body assembly 4-27
151004260279A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-143 152601000010A003 Screw cap 4-27
151004260280A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-155 152601000010A004 Housing 4-27
151005160078A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-117 152601000010A Grease Pump 4-23
151005160289A Hose AS…………………………… 6-39 152601000066A001 Lever 4-27
151006160011 Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-107 152601000066A002 Bolt 4-27
151006160161A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 152601000066A003 Butterfly Valve 4-27
151006160166A Hose AS . . . . . . . . . . . . . . . . . . . . . . 6-173, 6-175 152602000001 Distributor 4-21
151006160169A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 152688000011A Cylinder 4-27
151006160172A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-107 152688000012A Lubrication center 4-27
151006160199A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-39 152688000013A Filter Core 4-25
151007210385A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-117 168804000004A Plug 5-27
151007210418A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-73, 6-79 21004518 Clamp 7-43
151007260292A Hose AS . . . . . . . . . . . . . . . . . . . . . . 6-173, 6-175 21005036 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53, 6-93
151007260293A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-117 21008727 Fitting . . 6-9, 6-11, 6-47, 6-59, 6-73, 6-75,
151008110061A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 6-79, 6-107
151008110122A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-57 21008728 Adapter . .6-37, 6-39, 6-41, 6-73, 6-103,
151008110163A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55 6-105, 6-107, 6-109
151008160064A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45 21010435 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-93, 6-95
151008210115A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45 21011613 O-ring . . . . . . . . . . . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57
151009110100A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-57, 6-59 21015735 Reducer Union 6-105
151009110170A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-117 21017337 Fitting 6-39
151009210397A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53, 6-57 21030883 Bolt 3-25
151009210398A Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-57 21032658 60 Degree Taper Sleeve Joint . . . . .6-57, 7-31
151009210399A Hose AS…….. . . . . . . . . . . . . . . . . . . . . . . . . . 6-57 21033030 Hose 6-11
151010110002A Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-117 23000066 Screw 6-95
151399000267A Drag Chain . . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11 23000678 Screw Plug 6-57
151403021145A O-ring . . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 24000420 Screw 4-17
151499000185A rubber piston . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13 24000548 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21
151501000052A001 Signaler . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-119 24000574 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21
151501000052A003 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-119 24000579 Retainer Ring 4-53
151501000052A004 Retainer Ring . . . . . . . . . . . . . . . . . . . 6-119 24001173 Screw Plug 6-95
151501000052A005 Filter Head . . . . . . . . . . . . . . . . . . . . . . . 6-119 24001272 AY Dust Ring 2-27
151501000052A High-pressure Filter. . . . . . . . . . . . . . . . 6-117 24001386 Adapter 6-117
151502000067A Oil Suction Filter . . . . . . . . . . . . . . . . . . . . . 6-95 24002327 Bolt 5-5
151601010022B001 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . .6-115 24002742 O-RING 6-53
151601010022B002Blade AS . . . . . . . . . . . . . . . . . . . . . . . . . 6-115 24003464 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . 6-129, 6-147, 6-157
151601010022B003 Fan Grille . . . . . . . . . . . . . . . . . . . . . . . . . 6-115 24004294 Screw . . 2-17, 2-21, 2-23, 3-9, 3-17, 3-35,
151601010022B004 Radiator Fin . . . . . . . . . . . . . . . . . . . . . 6-115 3-57
151702000010C004 Air Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-85 24004551 Screw 6-53
151702000010C005 Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-85 60000473 UP Guide Ring 2-23
151702000010C006 Oil Filling Valve . . . . . . . . . . . . . . . . . 6-83 60004252 Hose 6-19
151702000010C007 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-83 60009091 Oil-free Bearing 2-27
151702000010C008 Retainer Ring . . . . . . . . . . . . . . . . . . . . 6-83 60009697 Plug 7-19
151702000010C009 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-83 60011794 Zbr Seal Ring 2-27
151702000010C010 Bladder AS . . . . . . . . . . . . . . . . . . . . . . . 6-83 60013713 Oil-free Bearing . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21
151702000010C011 Bladder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-85 60014259 Retainer Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21
60015673 Seal Strip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29 60161093 Red Copper Washer 4-21
60016006 Work Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 60166540 O-ring 2-27
60016857Grease Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 60167487 Work Lamp 7-41
60016860 90 Degree Taper Sleeve Joint . . . . . . . . . . . . 4-23 60170220 Door Lock 4-9
60017832 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-193 60172578 Directional Valve 6-177
60017891 UP Guide Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27 60172580 Directional Valve, Outrigger Unit 6-177
60019592 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 60180840 Directional Valve 6-177
60019593 Hose……… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 60181059 Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41
60019597 Hose………… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-79 60185393 Gear Motor 6-193
60023506 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-45, 6-55 60185722 Filter Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75, 6-77
60023938 Clamp Welding Plate . . . . . . . . . . . . . 6-125, 6-129 60186394 Adapter Fitting 4-21
60023942 Clamp………………..6-13, 6-15, 6-143, 6-147 60186395 Fitting 4-21
60024465 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15 60186396 Fitting 4-21
60027237Clamp … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11 60186397 Adapter Fitting 4-21
60029802 Manometric Hose . . . . . . . . . . . . . . . . . . 6-173, 6-175 60189421 lamp clamp 4-35
60034173 Outrigger Operation Box . . . . . . . . . . . . . . . . . . . 7-17 60191566 Pressure Sensor 7-31
60035568 Distributor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 60191709 90 Degree Taper Sleeve Joint 4-21
60044162 Hose .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-173, 6-175 60193267 Return Oil Filter 6-93
60048668 Damper Valve, One-way . . . . . . . 6-149, 6-159, 60193268 Air Filter 6-93
6-169 60193368 Clamp . . . . . . . . . . . . . . . . . . . . . . . 6-25, 6-27, 6-39, 6-41
60048669 Damper Valve, One-way . . . . . . . . 6-131, 6-135 60195076 FSR Seal Ring . . . 6-9, 6-11, 6-13, 6-15, 6-17,
60050358 BALL VALVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-41 6-19, 6-41, 6-47, 6-75, 6-107, 6-123, 6-125, 6-129, 6-131,
60054115 Liquid level meter. . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51 6-135, 6-139, 6-143, 6-145, 6-147, 6-149, 6-153, 6-155,
60056150 Hydraulic Lock. . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-21 6-157, 6-159, 6-163, 6-165, 6-167
60057089 UP Dust Seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 60195078 FSR Seal Ring . . 6-41, 6-73, 6-103, 6-105,
60061678 K08-D Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 6-107, 6-109, 6-117
60063102 Mudguard Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27 60195465 Protective Cover, Emergency Switch 7-17
60067207 Wire Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 60196985 Clamp…………….. . . . . . . . . . . . . . . . . . . 6-149, 6-159
60072121 K08-D Seal Ring………. . . . . . . . . . . . . . . . . . . . . . 4-17 60196987 Clamp…………………………….. 6-131, 6-135
60081857 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 60198117 Door Lock 4-11
60083231 K08-D Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27 60202487 Nut . . 6-13, 6-15, 6-19, 6-27, 6-39, 6-107,
60090272 Level Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39 6-109, 6-127, 6-139, 6-141, 6-143, 6-145, 6-147, 6-153,
60098348 Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 6-155, 6-157, 6-163, 6-165, 6-167
60098744 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-77 60205649 Hose 6-105
60098746 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 6-59, 6-117 60206324 Screw 2-9
60099417 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21 60208488 Oil-Free Bearing . . . . . . . . . .3-9, 3-17, 3-35, 3-57
60101296 Hose.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21 60208647 Seal Ring . . . . . . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41
60101297 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27, 6-101 60209836 Oil-free Bearing 2-33
60101298 Hose…………….. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25 60210215 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13, 6-15
60101299 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101 60213585 Marker Plate, Heavy Vehicles 4-29
60104247 Hose………… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105 60214753 Gear Motor 6-105
60106604 Side Marker Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41 60215697 Hose 6-41
60107392 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51 60221741 Pin 3-27
60113023 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . . . 6-19 60223134 Control Block 6-177
60115017 BS SEAL RING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 60226266 Oil-free Bearing 3-3
60122597 Pressure Relief Valve GP . . . . . . . . . . . . . . . . . . 6-75 60228754 Pressure Gauge . . . . . . . . . . . . . . . . . . . . . . 6-55, 6-173
60124154 K08-D Seal Ring…….. . . . . . . . . . . . . . . . .4-39, 4-41 60233827 Nut 4-19
60124157 K08-D Seal Ring……. . . . . . . . . . . . . . . . . . . . . . . . . 2-23 60234608 Coil 6-67
60124160 K08-D Seal Ring . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 60240397 Manometric Hose . . 6-37, 6-39, 6-55, 6-57,
60125605 DC Power Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 6-73
60126367 Marker Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41 60247288 Dual-gear Pump Set 6-91
60134344 Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 60247473 Marker Plate, Heavy Vehicles 4-29
60134345 Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 60249820 Screw . . 6-141, 6-145, 6-153, 6-163, 6-165,
60134346 Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 6-167
60144481 Bolt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27 60249875 Muffler 5-15
60148827 Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 60249876 Quick Connection Thread 5-15
60151318 Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51 60249877 L-type Quick Connection Thread 5-15
60156549 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 60253600 Clamp . . 6-19, 6-27, 6-123, 6-125, 6-127,
60156800 Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101 6-139, 6-141, 6-145, 6-153, 6-155, 6-157, 6-163, 6-165,
60156805 Hose…………… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-79 6-167
60253604 Clamp…………….. . . . . . . . . . . . . . . . . . . 6-125, 6-129 A210111000105 BOLT 4-37
60253605 Clamp Cover Plate. . . . . . . . .6-19, 6-123, 6-125, A210111000106 Bolt 8-11
6-127, 6-139, 6-141, 6-145, 6-153, 6-155, 6-157, 6-163, A210111000118 Bolt 4-51
6-165, 6-167 A210111000127 Bolt 4-29
60257687 O-ring . . . . . . . 6-131, 6-135, 6-149, 6-159, 6-169 A210111000197 Bolt 5-13
60263124 Waterproof Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77 A210111000199 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7, 2-9, 5-25
60263257 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-173 A210111000202 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3, 8-15, 8-17
60263259 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-123 A210111000203 Bolt . . . 2-3, 2-5, 2-7, 2-9, 2-13, 3-3, 5-3,
60263260 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-173 6-117
60263263 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-139 A210111000204 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25, 8-5
60263264 Hose Protective Sleeve . . . . . . . . . . . . . . . . . . . .6-153 A210111000207 Bolt 5-3
60275748 Directional Solenoid Valve . . . . . . . . . . . . . . . . . 6-65 A210111000212 Bolt 4-29
60275753 Directional Solenoid Valve . . . . . . . . . . . . . . . . . 6-65 A210111000220 Bolt 8-7
60283589 Directional Solenoid Valve . . . . . . . . . . . . . . . . . 6-87 A210111000229 Bolt 5-25
60283940 Hydraulic Filter Core . . . . . . . . . . . . . . . . . . . . . . . . 6-119 A210111000243 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5, 8-13
60306220 Directional Solenoid Valve . . . . . . . . . . . . . . . . . 6-65 A210111000263 Bolt 8-7
60306671GC Radiator……… . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105 A210111000283 Bolt 4-9
60306671 Radiator…… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105 A210111000291 Bolt 8-11
60306671WD Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105 A210203000009 Screw 2-9
60323896 Hydraulic Lock. . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-21 A210204000011 Screw 3-31
60344813 Check Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 A210204000017 Screw 4-53
60358674 Balancing Valve . . . . . . . . . . . 6-131, 6-135, 6-149, A210204000019 Screw 4-53
6-159, 6-169 A210204000020 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-45, 6-91
61005688 Relay control module . . . . . . . . . . . . . . . . . . . . . . . . 7-19 A210204000021 Screw 6-173
61008935 Main Valve GP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-57 A210204000022 Screw 4-53
61012749 Hose……… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101 A210204000024 Screw 3-3
61019458 HBY Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 A210204000041 Screw 4-47
61020189 Check Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-65 A210204000055 Screw 6-93
61024411 ZBR Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 A210204000057 Screw 4-9
61031807 Oil-free Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 A210204000084 screw 4-43
A210108000160 Bolt .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25 A210204000095 Screw . . . . . . . . . . . . . . .3-5, 3-13, 3-33, 3-51
A210110000014 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19, 3-37 A210204000115 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53
A210110000016 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23 A210204000116 Screw 4-45
A210110000201 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 A210204000124 Screw . .6-131, 6-135, 6-149, 6-159,
A210110000260 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 6-169
A210110000324 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 A210204000129 Screw . .3-5, 3-9, 3-17, 3-35, 3-51,
A210110000330 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 3-57, 4-29, 4-31, 5-13 19
A210110000336 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 A210204000130 Screw . . . . . . . . . . . . . . .3-13, 3-33, 4-9, 4-15
A210110000341 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-193 A210204000134 Screw 6-27
A210111000011 Bolt . . . . . . . . . . 3-51, 4-35, 5-3, 5-27, 6-193 A210204000138 Screw 4-21
A210111000018 Bolt . . . . . . . . . . . . . . . . . 3-5, 3-49, 3-51, 6-193 A210204000140 Screw 6-19
A210111000023 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 2-9, 3-3 A210204000145 Screw 4-45
A210111000026 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 A210204000146 Screw . . . . . . . . . . . . . 3-47, 3-49, 4-33, 4-37
A210111000030 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 A210204000147 Screw . . . . 3-15, 3-33, 3-47, 4-43, 4-51,
A210111000036 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51 4-53
A210111000038 Bolt .. . . . . . . . . . . . . . . . . .3-5, 3-51, 5-23, 5-39 A210204000149 Screw 6-31
A210111000039 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . 3-13, 3-33, 4-51 A210204000151 Screw 4-23
A210111000040 Bolt . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 A210204000152 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53
A210111000053 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . .2-15, 5-13, 8-5 A210204000153 Screw 4-5
A210111000055 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21 A210204000161 Screw 3-45
A210111000078 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-33, 3-25 A210204000162 Screw . . . . . . . . .2-3, 2-5, 2-7, 2-13, 6-173
A210111000079 Bolt . . 2-5, 2-17, 2-21, 2-23, 2-27, 3-25, A210204000164 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-47, 4-11
4-29, 5-23, 5-39 A210204000167 Screw 4-29
A210111000080 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-37 A210204000168 Screw 6-87
A210111000088 Bolt . . . . . . . . . . . . .2-9, 4-29, 4-51, 4-53, 5-3 A210204000172 Screw . . . . . . . . . . . . . 3-13, 3-33, 3-47, 6-31
A210111000089 Bolt . . . . . . . . . 3-27, 4-31, 5-19, 5-21, 5-37 A210204000181 Screw 5-13
A210111000090 Bolt . . . . . . . . . 4-29, 4-31, 4-35, 4-51, 5-25 A210204000203 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41
A210111000092 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23 A210204000216 Screw 4-19
A210111000100 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31, 5-3 A210204000217 Screw . . . . . . . . . . . . . . . 6-9, 6-11, 6-13, 6-15
A210111000101 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91, 8-7 A210204000218 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77, 6-101
A210111000104 Bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47 A210204000233 Screw 6-61
A210204000288 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 A210401000017 Washer . . . . 2-9, 3-13, 3-27, 3-33, 3-47,
A210204000296 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 4-11, 4-23, 4-29, 4-31, 4-33, 4-35, 4-37, 4-51, 5-3, 5-19,
A210204000304 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13 5-21, 5-25, 5-27, 5-37, 6-31, 6-75, 6-93
A210204000320 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-75 A210402000046 Washer 3-31
A210204000337 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-93, 6-95 A210404000003 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3, 8-5
A210204000340 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93 A210404000004 Washer . . . . . . . . . . . . .4-35, 8-5, 8-15, 8-17
A210204000341 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13 A210404000005 Washer . . . . . . . . . . . . . . . . . . . . .2-9, 3-27, 3-47
A210204000343 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-53 A210404000009 Washer . . . . . . . . . . . . . . . . . . . . .2-5, 4-29, 5-37
A210204000347 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 A210405000001 Washer . . 2-7, 2-9, 3-3, 4-29, 4-47,
A210204000354 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-91, 6-93 4-51, 5-3, 5-23, 5-25, 5-39, 6-91, 6-93, 6-95, 6-117,
A210204000357 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-45, 6-55 6-173, 8-5
A210204000450 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11 A210405000002 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3, 6-117
A210204000454 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59, 6-117 A210405000003 Washer . . . . 2-15, 5-3, 5-13, 5-25, 6-93,
A210204000486 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-79 6-129, 6-147, 6-157, 8-5, 8-11
A210207000008 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A210405000006 Washer . . .3-11, 3-25, 3-43, 4-21, 5-13,
A210208000001 Screw . . . . . . . . . . . . . 2-17, 2-21, 2-33, 4-37 5-23, 5-39, 6-77, 6-101
A210208000007 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 A210405000007 Washer . . 2-3, 2-5, 2-7, 2-13, 3-13,
A210208000013 Screw . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41 3-27, 3-33, 3-47, 4-23, 4-31, 4-35, 5-3, 5-5, 5-13, 5-19,
A210208000022 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 5-21, 5-25, 5-27, 5-37, 6-75, 6-173
A210210000003 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 A210405000008 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93, 8-7
A210210000008 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11, 3-43 A210405000011 Washer . . 2-9, 3-5, 3-31, 3-49, 3-51,
A210210000015 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 4-35, 5-3, 5-11, 5-13, 5-27, 6-93
A210210000028 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15 A210405000014 Washer . . . . . . . . . . . . . . 3-13, 3-33, 4-5, 4-7
A210211000003 Screw . . . . . . . . . . . . . . . . . . . . . . . .3-5, 3-15, 3-53 A210414000014 Retainer Ring 2-27
A210211000010 Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33 A210414000019 Retainer Ring 2-23
A210307000001 Nut. . . . . . . . . . . . . . . . . . 3-3, 3-31, 4-29, 6-173 A210414000033 Retainer Ring 4-17
A210307000007 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 A210414000102 Retainer Ring . . . .3-9, 3-17, 3-35, 3-57
A210307000009Nut.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 A210414000103 Retainer Ring . . . . . . . . . . . . . . . . . .4-39, 4-41
A210307000012 Nut. . . . . . . . . 3-47, 4-29, 4-31, 4-35, 5-19, A210416000037 Retainer Ring 3-45
5-21, 5-25, 5-27, 5-37 A210417000001 Retainer Ring . . . 2-27, 3-9, 3-17, 3-35,
A210307000016 Nut. . . . . . . . . . . . . . . . . . 3-11, 3-43, 4-21, 4-29 3-57, 4-17
A210307000017 Nut. . . . . . . . . . . . . . . . . . . . . 2-9, 3-3, 5-11, 5-13 A210417000002 Retainer Ring 2-23
A210307000025 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-193, 8-23 A210417000004 Retainer Ring . . . .3-9, 3-17, 3-35, 3-57
A210307000028 Nut. . . . . . . . . . . . . . . . . . . . 8-9, 8-11, 8-15, 8-17 A210417000103 Retainer Ring . . . . . . . . . . . . . . . . . .4-39, 4-41
A210307000029 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 A210417000107 Retainer Ring 2-33
A210307000031 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-47, 4-51 A210434000008 Washer . . . . 3-9, 3-17, 3-21, 3-23, 3-35,
A210307000040 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25 3-39, 3-41, 3-45, 3-57, 4-37
A210309000016 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 A210434000010 Washer . . . 2-17, 2-21, 2-23, 2-27, 2-33
A210310000002 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7, 4-49 A210434000013 Washer 5-15
A210313000036 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57 A210434000015 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41
A210314000004 Nut. . . . . . . . . . . . . . . . . . . . . . . . . . . .2-15, 8-5, 8-21 A210491000014 Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11, 3-43
A210314000010 Nut……………………….8-5, 8-15, 8-17 A210491000018 Pin 4-49
A210319000006 Nut…………………………….4-31, 4-35 A210491000020 Pin 3-3
A210319000028 Nut….. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 A210491000021 Pin 4-57
A210342000002 Screw Plug . . . . . . . . . . . . . . . . . . . . . .3-27, 4-43 A210491000118 Washer 2-5
A210342000003 Screw Plug . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 A210491000121 Washer . . . . . . . . . . 2-3, 2-5, 2-7, 2-9, 2-13
A210401000001 Washer . . . . . . 3-3, 3-5, 3-31, 3-45, 3-49, A210491000122 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25, 3-27
3-51, 4-35, 5-3, 5-11, 5-27, 6-93, 6-95, 6-193 A210491000132 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . .3-27, 8-11
A210401000002 Washer . . . . 3-5, 3-13, 3-19, 3-31, 3-33, A210501000010 Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33
3-37, 3-51, 4-29, 4-45, 4-47, 4-51, 4-53, 5-3, 5-23, 5-25, A210507000015 Pin 3-27
5-39, 6-93, 6-95, 6-117 A210601006210 Roller Bearing 4-53
A210401000003 Washer . . . . . . . . . . . . . . . . . 5-3, 6-117, 6-193 A210602002210 Roller Bearing 4-51
A210401000004 Washer . . . . 4-9, 4-13, 4-39, 4-41, 4-47, A210608000048 O-ring 4-9
5-3, 5-25, 6-93, 6-129, 6-147, 6-157 A210608000137 O-RING 4-47
A210401000006 Washer . . . . . . . . . . . . . 4-9, 4-11, 4-17, 4-19 A210608000151 O-ring 6-95
A210401000008 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43 A210608000307 O-RING . . . . . . . . . . . . . . . . . . . . . . . . . 3-51, 6-193
A210401000011 Washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5, 4-7 A210609000003 O-ring 6-91
A210401000015 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 A210609000013 O-ring . . . . . . . . . . . . . . . . . . . . . 4-17, 4-51, 4-53
A210401000016 Washer . . . . . . 2-5, 3-5, 3-25, 3-47, 3-51, A210609000060 O-ring 2-33
4- 1 5 , 4-21 , 4-29 , 4-31 , 5-23 , 5-37 , 5-39 , 6-9 , 6-11 , 6-13 , A210609000077 O-ring . . . . . . . . . . . . . 3-21 , 3-23 , 3-39 , 3-41
6-15, 6-31, 6-77, 6-101 A210609000083 O-ring 2-23
A210609000084 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 A230103000809 Hose 5-15
A210609000087 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 A230200000492 Plastic Protective Sleeve 5-15
A210609000088 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 A239900000561 Nylon Bellows 7-23
A210609000102 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 A241100000514 License Plate Lamp 7-41
A210609000123 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 A241600000003 Rail 7-19
A210609000125 O-RING . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17, 4-45 A250100000041 Liquid Level Meter 6-95
A210609000134 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A250100000145 Level Gauge, Full Directional 3-47
A210609000135 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A290000001564 Nozzle Protective Cap 3-45
A210609000149 O-RING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43 A31C211500530 O-ring 4-13
A210609000150 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 A810201010034 Hoop 5-11
A210609000157 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 A810201052514 Lamp Post 4-35
A210609000165 O-ring . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57 A810201204055 Electrical Panel GP 7-19
A210609000168 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 A810201206111 SANY Motion Controller GP 7-19
A210609000260 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 A810299000615 Operation Manual 7-25
A210609000272 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A810301010125 U-type Bolt 8-15
A210609000294 O-ring . . . . . . . . . . . . . . . . . . . . . . .3-5, 3-51, 6-93 A810301010126 U-type Bolt . . . . . . . . . . . . . . . . . . . . . .3-25, 8-17
A210609000302 O-ring . . . . . . . . . . . . . . . . . . . . . 2-17, 2-21, 2-23 A810301010127 U-type Bolt 8-5
A210609000310 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27 A810301010476 Pin AS 4-49
A210609000314 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-93, 6-95 A810301010723BC Clamp, fixed 8-19
A210609000317 O-ring . . . . . . . . . . . . . 3-21, 3-23, 3-39, 3-41 A810301010723 Clamp 8-19
A210609000318 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 A810301010723GC Clamp, fixed 8-19
A210609000321 O-RING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-61 A810301010723GD Clamp, fixed 8-19
A210609000329 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-23, 2-27 A810301010723HA Clamp, fixed 8-19
A210609000343 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49 A810301010723HB Clamp, fixed 8-19
A210609000353 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91 A810301010723HC Clamp, fixed 8-19
A210612000023 Joint Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A810301010723WD Clamp, fixed 8-19
A210661000015 Steel Ball . . . . . . . . . 3-21, 3-23, 3-39, 3-41 A810301010723WE Clamp, fixed 8-19
A210713000009 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27 A810301010723YA Clamp, fixed 8-19
A210804000001 Oil Cup . . . . . . . . . . 2-3, 2-5, 2-7, 2-9, 2-13, A810301010723YB Clamp, fixed 8-19
2-33, 3-25, 3-45, 4-37 A810301010723YC Clamp, fixed 8-19
A210804000002 Fitting, Grease . . . . . . . . . . . . . . . . . . . . . . . . 3-27 A810301010729 133 U-type Bolt . . . . . . . . . . . . . . . .8-15, 8-21
A210804000003 Oil Cup . . . . . . . . . . . . . . . . . . . . 3-13, 3-33, 3-49 A810301010755 Buckle 8-21
A220400000004 Ball Valve . . . . . . . . . . . . . . . . . .3-5, 3-51, 6-95 A810301010927 Clamp 8-5
A220401000753 Ball Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77 A810301010927GC H150A 8-5
A220501000080 Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 A810301010927HA H150A 8-5
A222200000130 Cover Latch . . . . . . . . . . . . . . . . . . . . .3-11, 3-43 A810301010927WD H150A 8-5
A229900000176 Key Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31 A810301010996 133 U-type Bolt B . . . . . . . . . . . . . . 8-9, 8-11
A229900000298 Air Spring . . . . . . . . . . . . . . . . . . . . . . . .3-11, 3-43 A810301011314 Hose 8-21
A229900001659 T-type Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55 A810301011527 Buckle Rope 8-23
A229900002420 Clamp . . . . 6-27, 6-37, 6-39, 6-41, 6-73, A810301029031 Grille Lock Plate 4-31
6-107, 6-109, 6-117 A810301060017 Cylinder Bore. . . . . . . . . . . . . . . . . . .4-39, 4-41
A229900002422 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 A810301060032GC Left swing valve cylinder 4-37
A229900002434 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77 A810301060032HA Left swing valve cylinder 4-37
A229900002966 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59 A810301060032 Hydraulic Cylinder, Left Swing
A229900003095 Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57 Valve 4-37
A229900004092 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29, 7-43 A810301060032WD Left swing valve cylinder 4-37
A229900004095 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43 A810301060033GC Left swing valve cylinder 4-37
A22990000 4103 Hose Head . . . . . . . . . . . . . . . . . . . . . .7-23, 7-43 A810301060033HA Left swing valve cylinder 4-37
A229900004382 Quick Hose Connector . . . . . . . . . . . . 7-43 A810301060033 Hydraulic Cylinder, Swing Valve,
A229900004483 Hose Fitting . . . . . . . . . . . . . . . . . . . . .7-29, 7-43 Right 4-37
A229900006820 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-103 A810301060033WD Left swing valve cylinder 4-37
A229900007244 Mudguard Adjustment Pressure A810302010036GC Rear Outrigger Swing Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27 Cylinder 3-3
A229900008750 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-59 A810302010036 Hydraulic Cylinder, Rear Outrigger A229900009868 SIDE REFLECTION DEVICE… 7-41 Swing 3-3
A229900010390 Reducer Union. . . . . . . . . . . . . . . . . . . . . . . . 6-41 A810302010036WD Rear Outrigger Swing
A230101000007 J Dust Ring…….. . . . . . . . . . . . . . .4-51, 4-53 Cylinder 3-3
A230101000016 Seal Ring . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 A810401100841 Hopper Lamp bracket 4-35
A230101000034 B Oil Seal . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 A819800000580 Bushing AS 4-45
A230101000038 YX Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43 A820101010889GC Limit baffle plate 4-37
A230101000324 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17, 2-21 A820101010889HA Limit baffle plate 4-37
A820101010889 Limit Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 A820205000260 Motor Flange 6-91
A820101010889WD Limit baffle plate . . . . . . . . . . . . . . . . 4-37 A820205001077 Oil Filling Pipe Joint 5-15
A820101019303 Pressure Plate . . . . . . . . . . . . . . . . . . . . . . . . 4-43 A820205001205 Connector 6-95
A820101031798 Plate Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49 A820205001244 Fitting 6-45
A820101213519 Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23 A820205001687 Accumulator Fitting 6-81
A820101356098 Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13 A820205002338 Damping Joint 6-53
A820101356098GC cover plate . . . . . . . . . . . . . . . . . . . . . . . . 3-13 A820207010071GC Oil tube 9 3-27
A820101356098GD cover plate . . . . . . . . . . . . . . . . . . . . . . . . 3-13 A820207010071 Oil Tube 3-27
A820101356098HA cover plate . . . . . . . . . . . . . . . . . . . . . . . . . 3-13 A820207010071WD Oil tube 9 3-27
A820101356098WD cover plate . . . . . . . . . . . . . . . . . . . . . . . . 3-13 A820208000045 Shaft Clipping Key . . . .3-9, 3-17, 3-35,
A820101356099 Cover Plate . . . . . . . . . . . . . . . . . . . . .3-13, 3-33 3-57
A820101356099GC Cover plate . . . . . . . . . . . . . . . . .3-13, 3-33 A820208000103 Bearing 2-33
A820101356099GD Cover plate . . . . . . . . . . . . . . . . .3-13, 3-33 A820208000161 Shaft Clipping Key 4-17
A820101356099HA Cover plate . . . . . . . . . . . . . . . . .3-13, 3-33 A820208000379 Bearing 2-23
A820101356099WD Cover plate . . . . . . . . . . . . . . . .3-13, 3-33 A820208000385 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13, 2-31
A820101356588 Cover plate . . . . . . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820208000409 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33
A820101356588 GC Cover plate . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820208000432 bushing . . . . . . . . . . . . . . 2-7, 2-9, 2-25, 2-29
A820101356588GD Cover plate . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820299002216 roller wheel . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33
A820101356588HA Cover plate . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820301010056 Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11, 3-43
A820101356588WD Cover plate . . . . . . . . . . . . . . . . . 3-5, 3-51 A820301010061 small shaft 4-33
A820101362335 Marker Lamp Seat . . . . . . . . . . . . . . . . . . 3-47 A820301010402 Articulated Bolt 6-19
A820101990716 cover plate . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33 A820301010414 piston rod 3-45
A820101990716GC cover plate . . . . . . . . . . . . . . . . .3-13, 3-33 A820301012187 Damping Plug . . . . . . . . . . . . . . . . . .4-39, 4-41
A82 0 1 01990716 GD cover plate . . . . . . . . . . . . . . . . .3-13 , 3-33 A820301017919 Damping Plug . . . .3-9 , 3-17 , 3-35 , 3-57 A820101990716HA cover plate . . . . . . . . . . . . . . . . . .3-13, 3-33 A820301018265 Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13, 3-33 A820101990716WD cover plate . . . . . . . . . . . . . . . . .3-13, 3-33 A820301018516 Roller Wheel Shaft . . . . . . . . . . .3-13, 3-33
A820103010034 Pressure Plate . . . . . . . . . . . . . . . . . . . . . . . . 4-51 A820301018553 SCREW 4-43
A820103010054 Bearing Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 A820301018816 Roller Wheel 3-49
A820103010177 Lug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A820301020421 Pin 4-49
A820103010849 Cylinder Control Valve Block . . . . 6-87 A820301020422 Pin-type Screw Rod 4-49
A820199003741 Mounting Plate. . . . . . . . . . . . . . . . . . . . . . . . 7-27 A820301020423 Support Bolt 4-49
A820201000242 Pressure Ring . . . . . . . . . . . . . . . . . .4-51, 4-53 A820402000014 piston 4-17
A820201010036 End Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49 A820402000185 Piston . . . . . . . . . . . . . . .3-9, 3-17, 3-35, 3-57
A820202000027 Splined Adapter Sleeve . . . . . . . . . . . 4-53 A820403000031 Bearing Block 4-45
A820202000079 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 A820403000033 Bearing Block 4-43
A820202000248 Stop Collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 A820404000006 Bearing 4-45
A820202000814 Guide Bush . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45 A820404000007 Lower Spherical Bearing 4-37
A820202000823 Transition Sleeve . . . . . . . . . . . . . . . . . . . . 4-47 A820404000091 Upper Spherical Bearing 4-37
A820202000930 Clipping Key Cap . . . . . .3-9, 3-17, 3-35, A820601020352 Retainer Ring 3-45
3-57 A820601040004 nylon bearing 4-43
A820202000951 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49 A820601990011 Retainer Ring . . . . . . . . . . . . . . . . . . .4-39, 4-41
A820202000983 Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 A820601991028 J Dust Ring 4-43
A820202000987 bearing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27 A820606010001 Pad 6-81
A820202001019 Bearing . . . . . . . . . . . . . . . . . . . . . . . . 2-3, 2-5, 2-9 A820606010160 Rubber Plug 4-43
A820202002331 ring gasket . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 A820606010164 Rubber Plug . . . . . . . . . . . . 4-45, 4-51, 4-53
A820202003241 Clipping Key Cap . . . . . . . . . . . . . . . . . . . . 4-17 A820606010265 Rubber Spring 4-47
A820203000030 Seal End Cover. . . . . . . . . . . . . . . . . . . . . . . 4-53 A820606010376 Protective Sleeve 4-49
A820203000031 Seal cover . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53 A820606010713 Dust Ring 3-27
A820203000292 Flange Cover . . . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820606020001 O-ring 4-29
A820203000292GC blind flange . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820606020004 Gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53
A820203000292HA blind flange . . . . . . . . . . . . . . . . . . 3-5, 3-51 A820606020006 Rubber Pad 4-43
A820203000292WD blind flange . . . . . . . . . . . . . . . . . 3-5, 3-51 A820606020007 Rubber Pad 4-45
A820203002137 Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91 A820606020008 Gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51, 4-53
A820203003054 Pressure Ring……………………. 4-45 A820606020232 Plug 2-3
A820204000066 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15 A820606030048 Seal Ring 8-5
A820204000343 Locknut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49 A820606030049 Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . 8-5, 8-19
A820205000022 Articulated Bolt . . . . . . . . . . . . . . . . . . . . . . . 6-37 A820606030470 Sleeve Ring 3-47
A820205000023 Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21 A820608000017 Felt Ring 4-53
A820205000197 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 A820699000291 Small Cushion Plate . . . . . . . . . . 8-9, 8-21
A820205000229 Balancing Valve Fitting . . . . . . . . . . . 6-111 A820699000293 Large Pad . . . . . . . . . . . . . . . . . . . . . . .8-11, 8-19
A820205000230 Balancing Valve Fitting . . . . . . . . . . . 6-111 A880801010064 Screw 2-27
A880801040005 Screw Plug . . . . . 2-17, 2-21, 2-23, 2-27, B210780001024 Reducer Union 6-77
2-33 B210780001026 Adapter Fitting . . 6-17, 6-19, 6-21,
A880806030096 Bearing Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 6-107
A880808070061 AY Dust Ring . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23 B210780001028 Adapter Fitting 6-77
B210361000000 Screw Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93 B210780001183 Fitting . . 6-13, 6-15, 6-19, 6-23, 6-25,
B210399000002 Screw Plug . . . . . . . . . .6-93, 6-131, 6-135, 6-27, 6-39, 6-41, 6-101, 6-123, 6-125, 6-139, 6-143,
6-149, 6-159, 6-169 6-153, 6-155, 6-163, 6-165, 6-167
B210780000005 Split Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-53 B210780001241 Elbow Fitting 6-45
B210780000012 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-77 B210780001307 Adapter Fitting 6-175
B210780000015 Tee Joint . . . . . . . . 6-47, 6-59, 6-73, 6-75, B210780001310 Elbow Fitting . . 6-37, 6-41, 6-77,
6-77 6-103, 6-107, 6-193
B210780000016 Tee Joint . . . . . . . . . . . 6-103, 6-131, 6-135, B210780001363 Tee Joint 6-77
6-149, 6-159, 6-169, 6-173, 6-175 B210780001380 Bulkhead Fitting 6-117
B210780000017 Tee Joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 B210780001394 Adapter Fitting . . 6-37, 6-77, 6-103,
B210780000024 Elbow Fitting . . . . . 6-9, 6-11, 6-13, 6-15, 6-175
6-19, 6-21, 6-23, 6-41, 6-101, 6-131, 6-135, 6-143, 6-149, B210780001404 Adapter Fitting 6-77
6-159 , 6-169 , 6-173, 6-175 B210780001748 Pressure-measuring Fitting 6-75
B210780000025 Elbow Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . 6-117 B210780001749 Pressure-measuring Fitting 6-77
B210780000030 Elbow Fitting . . . . . . . . . . . . . . . . . . 6-59, 6-117 B210851000001 Clamp . . .6-45, 6-47, 6-75, 6-79, 6-101,
B210780000036 Adapter Fitting . . . . . . . . 6-45, 6-53, 6-75, 6-107
6-77, 6-105 B210851000013 Clamp 6-109
B210780000037 Adapter Fitting . . 6-9, 6-11, 6-13, 6-15, B210851000056 Clamp 5-15
6-17 , 6-19 , 6-21, 6-39, 6-131, 6-135, 6-149, 6-159, 6-169 B220400000073 Balancing Valve 6-111
B210780000043 Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 B220400000303 Electrical Multiple Unit Valve . . 6-173,
B210780000048 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . .6-175 6-175
B210780000051 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-79 B220401000305 Manual Multiple Unit Valve 6-31
B2 1 0780000052 Adapter Fitting . . . . . . . 6-37 , 6-55 , 6-109 B220401000311 Directional Solenoid Valve 6-177
B210780000053 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-45 B220401000505 Directional Valve Core 6-177
B210780000054 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-57 B220401000506 Directional Valve 6-177
B210780000061 Flange Connection . . . . . . . . . . . . . . . . . 6-117 B220401000507 Directional Valve 6-177
B2 10780000100 Bulkhead Fitting . . . . . . . . 6-9 , 6-11, 6-13 , B220401000555 Electrical Proportional Valve 6-177
6-15, 6-19, 6-21 B222200000051 Hydraulic Lock . . . 6-9, 6-11, 6-13, 6-15
B210780000115 Bulkhead Fitting . . . . . . . . . . 6-101, 6-103, B229900002352 Repair Kit, Multiple Unit
6-129, 6-147, 6-157, 6-175 Valve 6-177
B210780000118 Tee Joint . . . . . . 6-23, 6-25, 6-125, 6-129, B229900003532 Tee Joint 6-109
6-145, 6-155 B229900003708 Accumulator 6-81
B210780000121 Elbow Fitting . . . . . . . 6-125, 6-129, 6-145 B229900003722 Adapter Fitting 6-57
B210780000131 Adapter Fitting . . . . . . 6-39, 6-41, 6-105, B229900006162 Spacer 7-19
6-107 B229900006163 Positioning Disc 7-19
B210780000157 Bulkhead Fitting . . . .6-37, 6-103, 6-175 B230101000019 FR Guide Ring 4-17
B210780000179 Adapter Fitting . . . . . . . . . . . . . 6-101, 6-175 B230101000021 OK Seal Ring . . . . . . . . . . . . . . . . . . .2-17, 2-21
B210780000180 Adapter Fitting . . . . .6-31, 6-131, 6-135, B230101000053 A5 Dust Ring 4-45
6-149, 6-159, 6-169 B230101000067 AY Dust Ring . . 3-21, 3-23, 3-39, 3-41,
B210780000184 Adapter Fitting . . . . . . . . . . . . . 6-175, 6-193 3-45
B210780000200 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . .6-105 B230101000084 BS Seal Ring . . . . . . . . . . . . . . . . . . .4-39, 4-41
B210780000201 Screw Plug . . . . . 4-17, 4-39, 4-41, 6-87, B230101000094 C1 Seal Ring 4-45
6-95 B230101000115 FR Guide Ring . . . . . . . . . . . . . . . . .4-39, 4-41
B210780000232 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . . 6-41 B230101000132 OK Seal Ring . . . 3-21, 3-23, 3-39, 3-41
B210780000245 Bulkhead Fitting . . . . . . . . . . . . . . . . . . . . . . 6-37 B230101000135 OK Seal Ring . . . . . . . . . . . . . . . . . . .4-39, 4-41
B210780000266 Adapter Fitting . . . . . . . . . . . . . . . . . . . . . . . 6-117 B230101000136 Ok Seal Ring 2-33
B210780000631 Tee Joint . . . . . . . . . . . . . . . . . . . . . . . . .6-57, 6-75 B230101000138 OK Seal Ring . . . . .3-9, 3-17, 3-35, 3-57
B210780000636 Elbow Fitting . . 6-53, 6-75, 6-77, 6-193 B230101000139 OK Seal Ring 4-17
B210780000683 Reducer Union. . . 6-9, 6-11, 6-19, 6-21 B230101000142 OK Seal Ring 2-27
B210780000684 Reducer Union. . . . . . . . . . . . . . . . . . . . . . . . 6-39 B230101000191 OK Seal Ring 6-63
B210780000693 Split Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59 B230101000204 Ay Dust Ring 2-33
B210780000733 Adapter Fitting . . . . . . . 4-23, 6-47, 6-175 B230101000313 OK Seal Ring 2-23
B210780000838 Elbow Fitting . . . . . . . . . . . . . . . . . . 6-55, 6-105 B230101000348 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53, 6-81
B210780000847 Adapter Fitting . . . . . . . . . . . . . 6-101, 6-175 B230101000429 AY Dust Ring . . . . . . . . . . . . . . . . . . .2-17, 2-21
B210780000996 Bulkhead Fitting . . . . . . . . . . . 6-117, 6-173 B230101000431 B3 Seal Ring . . . . . . . . . . . . . . . . . . .2-17, 2-21
B210780000998 Reducer Union. . . . . . . . . . . . . . . . . . . . . . .6-105 B230101000460 TRE Oil Seal 4-55
B210780001007 Tee Joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-41 B230101000690 UP Guide Ring 4-17
B230101001046 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-81 BCB004595980HA wellding-Accumulator
B230101001330 B7 Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 Bracke 5-11
B230101001371 UP Guide Ring . . .3-9, 3-17, 3-35, 3-57 BCB004595980WD wellding-Accumulator
B230101001492 UP Guide Ring…….. . . . . . . . . . . . . . . . . 2-33 Bracke 5-11
B230101001639 UP Guide Ring . . . . . . . . . . . . . . . . .2-17, 2-21 BCB004596415 Accumulator Bracket AS 5-3
B230101001842 UNP Seal Ring . . . . . . . . . . . . . . . . . . . . . . . 3-45 BCB004596415GC Accumulator Bracket AS 5-3
B230101002071 O-ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53, 6-59 BCB004596415HA Accumulator Bracket AS 5-3
B230101002105 UNP Seal Ring . .3-9, 3-17, 3-35, 3-57 BCB004596415WD Accumulator Bracket AS 5-3
B230101002109 UNP Seal Ring . . . . . . . . . . . . . . . . . . . . . . . 2-27 BCB004596415YA Accumulator Bracket AS 5-3
B230101002110 UNP Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . 2-23 BCB004637282 Front Guard 5-21
B230101002113 UNP Seal Ring . . . . . . . . . . . . . . . . .2-17, 2-21 BCB004638621 Front Guard 5-19
B230101002121 ZBR Seal Ring . . . . . . . . 3-21, 3-23, 3-39, BCB004744938 Stop Collar 4-9
3-41, 3-45 BCB004744952 Ring Sleeve 4-9
B230101002124 ZBR Seal Ring . . . . . . . . . . . . . . . . . . . . . . . . 2-33 BCB004744959 Connection Disc 4-9
B230101002131 ZBR Seal Ring . . .3-9, 3-17, 3-35, 3-57 BCB004745214 Water Tank 4-7
B230101002190 Guide Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33 BCB004747135 S-valve GP 4-3
B230103000090 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13, 6-15 BCB004748649 Oil Tube 4-23
B230103002530 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59 BCB004748849 Tie Bar 4-7
B230103003856 Hose AS . . . . . . . . . . . . . . . . . . . . . . . . 6-59, 6-105 BCB004749600 Water Tank Cover Plate 4-15
B230103003867 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-41 BCB004749620 Cover Plate Set, Water Tank 4-9
B230103003869 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-77, 6-103 BCB004749716 Pumping Mechanism 4-3
B230103003870 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-41 BCB004762130 Connector Plate 6-129
B230103003874 Hose . . . . . . . . . . . . . 6-45, 6-75, 6-77, 6-107 BCB004764767 Mounting Component, Distributing B230103003875 Hose . . . . . . . . . . . . . . . . . . . . . . . 6-19, 6-75, 6-79 Valve 4-23
B230103003876 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75, 6-79 BCB004782383 Electric Control Cabinet B230103003877 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47 Harness 7-19
B230103003914 Hose AS . . . . . . . . . . . . . . . . . . 6-47, 6-59, 6-79 BCB004782389 Electric Control Cabinet GP 7-3
B230103003916 Hose AS…………………………..6-193 BCB004790564 Hinge 4-31
B230103003933 Hose . . . . . . . . . . . . . . . . . . . . . . . 6-21, 6-47, 6-77 BCB004805856 Hopper Cover 4-29
B230103003967 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-73 BCB004805939 Hopper Weldment 4-33
B230103003978 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37 BCB004806010 Hopper AS . . . . . . . . . . . . . . . . . . . . . . .4-29, 4-31
B230103003981 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39, 6-117 BCB004823990 Oil Tube 4-23
B230103003982 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 BCB004824011 Oil Tube 4-23
B230103003984 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53, 6-57 BCB004838657 Outrigger Pad Box AS 5-3
B230103004168 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25 BCB004929665 Mounting Seat 5-13
B230103004190 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27, 6-101 BCB004932583 Mounting Seat, Horn 5-25
B230103004202 Hose AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-75 BCB004936890 Support Seat 8-11
B230103004472 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39, 6-125 BCB004936903 Support Seat 8-11
B230103004474Hose.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-173 BCB004952495 Pressure Plate 4-13
B230103004932 Hose . . . . . . . . . . . . . . . . . . . .6-73, 6-173, 6-175 BCB005029266 Arm 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7, 2-9
B230103004933 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-39 BCB005031074 Arm 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13, 2-15
B230103006904 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19 BCB005031578 Left Covering Parts 3-3
B230103008383 Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-169 BCB005031579 Right Covering Parts 3-3
B240200000059 Emergency Stop Button . . . .7-17, 7-19 BCB005031582 Right Door AS 3-43
B240200000081 Contact Block . . . . . . . . . . . . . . . . . .7-17, 7-19 BCB005031584 Left Door AS 3-11
B240600000312 Displacement Sensor . . . . . . . . . . . . . . 7-23 BCB005032554 Shaft (2) . . . . . . . . . . . . . . . . . . . . . . . . 2-3, 2-5, 2-9
B241000000059 Protective Sleeve GP, 4-wire BCB005032555 Shaft (4) 2-5
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23 BCB005032556 Shaft (3) 2-5
B241200000460 Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23 BCB005032557 Shaft (1) 2-3
B241200000529 Toggle Switch . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 BCB005032717 Electrical System 1-3
B241200000530 TOGGLE SWITCH . . . . . . . . . . . . . . . . . . 7-19 BCB005033083 Arm 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5, 2-7
B241200000531 TOGGLE SWITCH . . . . . . . . . . .7-17, 7-19 BCB005033592 Mount 2-7
B241200001155 Waterproof Plug . . . . . . . . . . . . . . . . . . . . . . 7-23 BCB005033597 Support AS 2-9
B249900001268 3-position Rectangular BCB005033602 Support AS 2-7
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19 BCB005033778 Shaft (8) 2-7
B250202000005Pressure Gauge. . . . . . . . . . . . . . . . . . . . . . 6-37 BCB005033779 Shaft (7) 2-7
B250202000006Pressure Gauge. . . . . . . . . . . . . . . . . . . . . . 6-73 BCB005033780 Shaft (5) 2-7
BCB004583167 Mounting Seat, Horn . . . . . . . . . . . . . . . . 4-31 BCB005034078 Support Seat 8-5
BCB004595980 Accumulator Mount Weldment . . 5-11 BCB005034521 Oil Tube 6-17
BCB004595980GC wellding-Accumulator BCB005034703 Oil Tube 6-17
Bracke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11 BCB005034926 Oil Tube 6-23
BCB005035139 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23 BCB005046829 Seal Plate 3-47
BCB005035234 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23 BCB005046830 Connector Plate 3-47
BCB005035309 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-25, 6-27 BCB005046831 Rear Outrigger Shaft 3-3
BCB005035333 Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 BCB005046832 Cover Plate 3-47
BCB005035373 Shaft (11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 BCB005047056 Footing 3-31
BCB005035374 Shaft (10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 BCB005047166 Left Platform 5-25
BCB005035375 Shaft (9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 BCB005047167 Mudguard AS 5-25
BCB005035382Shaft(12). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 BCB005047171 Right Platform 5-25
BCB005035456 Arm 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3, 2-5 BCB005047286 Hydraulic System, Boom
BCB005035485 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-25, 6-27 Pump 6-99
BCB005035609 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25 BCB005047294 Turntable Encoder 3-3
BCB005035655 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25 BCB005047295 Left Half-ring Plate 3-27
BCB005035665 Platform and Accessories . . . . . . . . . . . 5-7 BCB005047296 Right Half-ring Plate 3-27
BCB005035945 Shaft (13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 BCB005047425 Hydraulic System, Revolving BCB005035946 Shaft (17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 Tower 6-5
BCB005035947 Shaft (16) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 BCB005047641 Pumping System 1-3
BCB005035948 Shaft (15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 BCB005047688 Main Cylinder Support 4-3
BCB005035949 Shaft (14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 BCB005047710 Oil Tube 6-47
BCB005035973 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25 BCB005047712 Oil Tube 6-45
BCB005035986 Shaft (6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 BCB005047793 Multiple Unit Valve Harness 7-45
BCB005036105 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25 BCB005047794 2# Main Harness 7-45
BCB005036132 Arm 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11, 2-13 BCB005047795 1# Main Harness 7-45
BCB005036448 Oil Tube . . . . . . . . . . . 6-19, 6-21, 6-23, 6-25 BCB005047832 Chassis Harness 7-45
BCB005036531 Oil Tube . . . . . . . . . . . 6-19, 6-21, 6-23, 6-25 BCB005047871 Harness GP 7-13
BCB005036609 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25 BCB005050022 Main Support 5-3
BCB005036771 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25 BCB005050126 Main Support 5-13
BCB005036941 Outrigger Lamp Harness . . . . . . . . . . . . 7-7 BCB005050151 Guardrail 5-5
BCB005039415 Connection Rod (8) . . . . . . . . . . . . . . . . . . 2-13 BCB005050154 Guardrail 5-5
BCB005039416 Connection Rod (8) Main BCB005050205 Revolving Tower 3-3
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-31 BCB005050626 Arm Extension 1, Right 3-33
BCB005039422 Connection Rod (6) Main BCB005050716 Arm Extension 2, Right 3-33
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29 BCB005050786 Arm Extension 1, Left 3-13
BCB005039428 Connection Rod (6) . . . . . . . . . . . . . . . . . . 2-11 BCB005050794 Arm Extension 2, Left 3-13
BCB005039432 Connection Rod (4) . . . . . . . . . . . . . . . . . . . . 2-7 BCB005050804 Platform Conveyor Piping 8-3
BCB005039438 Connection Rod (4) Main BCB005050806 Hydraulic System, Mixing Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25 System 6-35
BCB005039439 Connection Rod (2) Main BCB005050979 Boom Conveyor Piping 8-3
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 2-19 BCB005050987 Cover Plate 3-33
BCB005039443 Connection Rod (2) . . . . . . . . . . . . . . . . . . . . 2-5 BCB005050989 Connector Plate . . . . . . . . . . . . . . . .3-13, 3-33
BCB005039570 Right Connection Rod (1) . . . . . . . . . . . 2-5 BCB005051043 Hydraulic System, Auxiliary BCB005039584 Left Connection Rod (1). . . . . . . . . . . . . . 2-5 Beam 6-3
BCB005039629 Left Connection Rod 5 . . . . . . . . . . . . . . . . 2-9 BCB005051059 Right Front Outrigger 3-3
BCB005039723 Right Connection Rod (5) . . . . . . . . . . . 2-9 BCB005051109 Cover Plate 3-25
BCB005043669 Left Connection Rod (3). . . . . . . . . . . . . . 2-7 BCB005051112 Turntable Weldment 3-25
BCB005043961 Connection Rod 7 Main Plate . . . . 2-13 BCB005051116 Bushing 3-25
BCB005043962 Left Connection Rod 7 . . . . . . . . . . . . . . 2-13 BCB005051117 Cylinder Connection Shaft 3-25
BCB005043984 Center Support . . . . . . . . . . . . . . . . . . . . . . . . 8-11 BCB005051120 Turntable AS 3-3
BCB005044137GC Small plugboard seat . . . . . . . . . . 8-15 BCB005051127 Left Front Outrigger 3-3
BCB005044137 Small Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15 BCB005052436 Concrete Conveyor Piping 1-3
BCB0 0 5 0 4 4 1 3 7 WD Small plugboard seat . . . . . . . . . . 8 – 1 5 BCB0 0 5 0 5 2 7 5 1 Hydraulic System, Waterproof Valve
BCB005044142 140 Double Support . . . . . . . . . . . . . . . . . . . 8-5 and Pilot Valve 6-49
BCB005044641 Right Connection Rod (3) . . . . . . . . . . . 2-7 BCB005052941 Hydraulic System, Pumping
BCB005044761 Boom GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Unit 6-3
BCB005045922 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 BCB005053684 Accessories, Revolving Tower 3-3
BCB005046560 Right Oblique Tie Bar . . . . . . . . . . . . . . . . . 3-3 BCB005053707 Rubber Protective Cap 3-27
BCB005046561 Left Oblique Tie Bar . . . . . . . . . . . . . . . . . . . 3-3 BCB005054218 Gear 3-27
BCB005046563 T-Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 BCB005054586 Rotary Mechanism 3-3
BCB005046604 Support Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 BCB005054587 Hydraulic System 1-3
BCB005046702 Support AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 BCB005055682 Revolving Tower GP 1-3
BCB005046728 Right Rear Outrigger . . . . . . . . . . . . . . . . . . 3-3 BCB005092363 S-pipe Scraper 4-47
BCB005179706 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-163, 6-165 BCB005589108 Oil Tube 6-9
BCB005180023 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-165, 6-167 BCB005589129 Oil Tube 6-9
BCB005180024 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-163, 6-165 BCB005589142 Hydraulic System, Left Front BCB005180049 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-165, 6-167 Outrigger 6-7
BCB005180213 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-155, 6-157 BCB005590033 Oil Suction Pipe 6-55
BCB005180223 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-155, 6-157 BCB005590040 Oil Suction Pipe 6-55
BCB005 180234 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-155, 6-157 BCB005590082 Hydraulic System, Main Valve and BCB005180687 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-155, 6-157 Main Pump 6-49
BCB005180692 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-155, 6-157 BCB005592958 Oil Tube 6-13
BCB005180714 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-153, 6-155 BCB005593009 Oil Tube 6-13
BCB005180773 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-153, 6-155 BCB005593077 Hydraulic System, Right Rear BCB005194269 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-143, 6-147 Outrigger 6-7
BCB005194321 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-143, 6-147 BCB005593244 Oil Tube 6-11
BCB005194366 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-145, 6-147 BCB005594329 Oil Tube 6-11
BCB005194414 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-145 BCB005594432 Hydraulic System, Right Front BCB005196065 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-145, 6-147 Outrigger 6-7
BCB005196087 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-145, 6-147 BCB005599024 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-55, 6-57
BCB005196128 Oil Tube . . . . . . . . . . . . . . 6-139, 6-141, 6-145 BCB005602238 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-25
BCB005196252 Oil Tube . . . . . . . . . . . . . . 6-139, 6-141, 6-145 BCB005602252 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-25
BCB005196648 Oil Tube . . . . . . . . . . . . . . 6-139, 6-141, 6-145 BCB005602265 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-25
BCB005196773 Oil Tube . . . . . . . . . . . . . . 6-139, 6-141, 6-145 BCB005602284 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19, 6-25
BCB005196933 Oil Tube . . . . . . . . . . . . . . 6-139, 6-141, 6-145 BCB005602292 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21, 6-23
BCB005197015 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-145 BCB005602307 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21, 6-23
BCB005197038 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-145 BCB005602326 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21, 6-23
BCB005197220 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-145 BCB005602348 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21, 6-23
BCB005197485 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-145 BCB005602828 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23, 6-25
BCB005198668 Arm 1 Cylinder GP . . . . . . . . . . . . . . . . . .6-129 BCB005603033 Oil Tube . . . . . . . . . . . 6-21, 6-23, 6-25, 6-27
BCB005198797 Hydraulic System, Arm 2 BCB005603118 Oil Tube 6-21
Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-125 BCB005603225 Oil Tube 6-19
BCB005199240 Hydraulic System, Arm 3 BCB005603265 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-25, 6-27
Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-143 BCB005603577 Hydraulic System, Outrigger Multiple
BCB005199290 Hydraulic System, Arm 4 Unit Valve 6-7
Cylinder….. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-155 BCB005606192 Hydraulic System, Combined BCB005199841 Accumulator AS . . . . . . . . . . . . . . . . . . . . . . . 6-73 Cylinder 6-7
BCB005201243 Hydraulic System, Arm 1 . . . . . . . . .6-121 BCB005606221 Hydraulic System, Outrigger 6-3
BCB005202739 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-153, 6-155 BCB005606599 Horn Button Seat 5-25
BCB005202888 Hydraulic System, Arm 3 . . . . . . . . .6-121 BCB005611023 Oil Tube 6-117
BCB005204621 Hydraulic System, Arm 2 . . . . . . . . .6-121 BCB005611133 Flushing System 6-5
BCB005205198 Hydraulic System, Arm 5 BCB005619493 Main Hydraulic Cylinder Proximity
Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-163 Switch GP 7-5
BCB005205266 Hydraulic System, Arm 4 . . . . . . . . .6-121 BCB005620131 Oil Tube 6-107
BCB005206920 Hydraulic System, Boom . . . . . . . . . . . . 6-5 BCB005620193 Oil Tube 6-109
BCB005207446 Hydraulic System, Boom Multiple BCB005620291 Oil Tube 6-107
Unit Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-121 BCB005620346 Oil Tube 6-101
BCB005207760 Connection Rod . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 BCB005620391 Oil Tube 6-101
BCB005222169 Left Rear Outrigger Section . . . . . . . . 3-5 BCB005620425 Oil Tube 6-101
BCB005222170 Right Rear Outrigger Section . . . . 3-51 BCB005620492 Oil Tube 6-103
BCB005236261 Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13 BCB005620515 Oil Tube 6-103
BCB005264027 Right Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-37 BCB005620624 Hydraulic System, Rotary Unit and
BCB005264838 Right Steps Weldment . . . . . . . . . . . . . . 5-37 Air Cooler 6-99
BCB005264994 Right Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25 BCB005620924 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-73, 6-77
BCB005266212 Hose Fitting Seat . . . . . . . . . . . . . . . . . . . .6-173 BCB005620935 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75, 6-79
BCB005305328 Hose Limit Plate. . . . . . . . . . . . . . . . . . . . . . . 3-47 BCB005622287 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-39, 6-41
BCB005351697 Cover Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25 BCB005622395 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37, 6-39
BCB005497904 Dual-gear Pump AS . . . . . . . . . . . . . . . . . 6-51 BCB005622414 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-39, 6-41
BCB005588141 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 BCB005622446 Oil Tube 6-37
BCB005588172 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 BCB005623729 Oil Tube 6-47
BCB005588732 Hydraulic System, Left Rear BCB005623734 Oil Tube 6-47
Outrigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 BCB005623739 Hydraulic System, Swing
BCB005588893 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11 Cylinder 6-35
BCB005589042 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9, 6-11 BCB005623811 Oil Tube 6-39
BCB005623862 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 BCB006615099 Oil Tube 6-135
BCB005637330 Cushion Plate . . . . . . . . . . . . . . . . . . .3-13, 3-33 BCB006615331 Oil Tube 6-159
BCB005695122 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75, 6-79 BCB006660292 Base Structure GP 1-3
BCB005695340 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-73 BCB006692153 Oil Tube 6-131
BCB005695362 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75, 6-79 BCB006692221 Oil Tube 6-131
BCB005721741 Oil Tube . . . . . . . . . . . . . . 6-125, 6-127, 6-129 BCB006692237 Oil Tube 6-131
BCB005721761 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-125, 6-129 BCB006704612 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-143, 6-145
BCB005721769 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-129 HBC005163796 Drain Screw 4-11
BCB005721807 Oil Tube . . . . . . . . . . . . . . 6-125, 6-127, 6-129 QDP100000433 Chassis GP 1-3
BCB0057 21857 Oil Tube . . . . . . . . . . . . . . 6-125, 6-127, 6-129 SSG004912700 Elbow and Straight Pipe 8-13
BCB005721 870 Oil Tube . . . . . . . . . . . . . . 6-125, 6-127, 6-129 SSG005843300 Elbow and Straight Pipe 8-9
BCB005721897 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-129 SYG004744074 Piston Rod 4-17
BCB005721908 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-129 SYG004757064 Guide Bush 2-27
BCB005721928 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . 6-123, 6-125 SYG004824934 Guide Bush 2-33
BCB005739761 Hopper GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 SYG004824938 Piston 2-33
BCB005762215 Horn Harness . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47 SYG005040022 Piston Rod GP 2-17
BCB005768529 Horn GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15 SYG005040084 Cylinder Bore GP 2-17
BCB005807483 Hydraulic Oil Tank . . . . . . . . . . . . . . . . . . . 6-93 SYG005046236 Piston Rod GP 2-23
BCB005807521 Air Cleaner Seat AS . . . . . . . . . . . . . . . . . 6-93 SYG005046239 Cylinder Bore GP 2-23
BCB005814994 Grille . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31 SYG005046256 Piston Rod GP. . . . . . . . . . . . . . . . . .3-21, 3-39
BCB005829079 Middle Cover Plate . . . . . . . . . . . . . . . . . . . . . 5-3 SYG005046257 Piston Rod GP. . . . . . . . . . . . . . . . . .3-23, 3-41
BCB005910269 Protective Cover AS . . . . . . . . . . . . . . . . . 3-25 SYG005046262 Cylinder Bore GP . . . . . . . . . . . . . .3-21, 3-39
BCB005984935 Lubrication System . . . . . . . . . . . . . . . . . . . . 4-3 SYG005046285 Cylinder Bore GP . . . . . . . . . . . . . .3-23, 3-41
BCB005995362 Hydraulic Oil Tank Installation . . . . . 6-5 SYG005046412 Piston Rod GP 2-27
BCB005998052 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 SYG005046414 Cylinder Bore GP 2-27
BCB005998063 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-109 SYG005048424 Cylinder Bore GP 2-33
BCB006003849 Lamp GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9 SYG005048428 Piston Rod 2-33
BCB006156560 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 SYG005052650 Piston Rod GP 2-21
BCB006225563 Left Outrigger Lock Installation . . . . 3-5 SYG005052651 Cylinder Bore GP 2-21
BCB006225780 Right Outrigger Lock SYG005067625 Guide Bush . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51 SYG005078223 Plate . . . . . . . . . . . . . . . . . . . . . . . . 2-17, 2-21, 2-23 BCB006305 916 Threading Tube . . . . . . . . . . . . . . . .6-13, 6-15 SYG005078245 Cushion Plate . . . . . . . . . . . 2-17, 2-21, 2-23
BCB006592606 Air Valve and Oil Filling Pipe SYG005408672 Piston 3-45
GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5 SYG005913994 Internal Snap Ring . . . . . . . . . . . .4-39, 4-41
BCB006612585 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-135 SYG005913995 Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39, 4-41
BCB006612620 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-135 SYG006008441 Cylinder Bore GP 4-17
BCB006612639 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-149 SZN004575739 Display GP 7-19
BCB006612651 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-149 SZN005186113 Charger 7-25
BCB006612669 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-149 SZN005247722 Transmitter GP 7-27
BCB006612779 Oil Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-159 SZN005883819 Receiver AS 7-27
