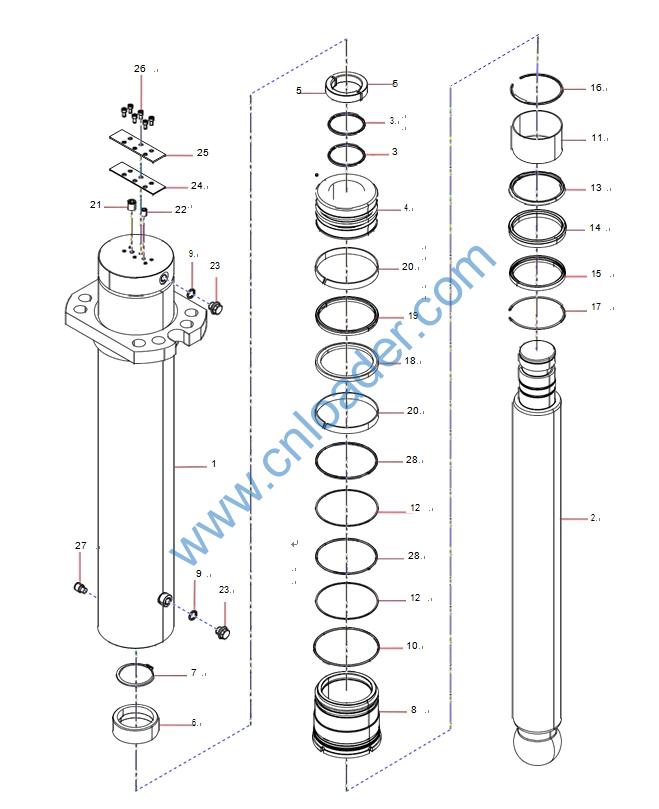

1 201322- 82
6158 Cylinder Bore GP 1
2 13099824 Piston Rod 1
3 A210609000165 O-ring 2
4 A820402000185 Piston 1
5 A820208000045 Shaft Clipping Key 2
6 A820202000930 Clipping Key Cap 1
7 A210414000102 Retainer Ring 1
8 13615875 Guide Bush 1
9 A210434000008 Washer 2
10 21011613 O- ring 1
11 60208488 Oil- Free Bearing 1
12 10250742 Retainer Ring 2
13 13599572 Gsj Seal Ring 1
14 B230-101-002131 ZBR Seal Ring 1
15 13266590 Hwm Dust Ring 1
16 A210417000001 Retainer Ring 1
17 A210417000004 Retainer Ring 1
18 B230101000138 OK Seal Ring 1
19 B230101002105 UNP Seal Ring 1
20 B230101001371 UP Guide Ring 2
21 14209011 Damping Plug 1
22 A820301017919 Damping Plug 1
23 12355723 Screw Plug 2
24 11252642 Plate 1
25 11252641 Pressure Plate 1
26 A210204000129 Screw 6
27 24004294 Screw 1
28 151403021145A O- ring 2

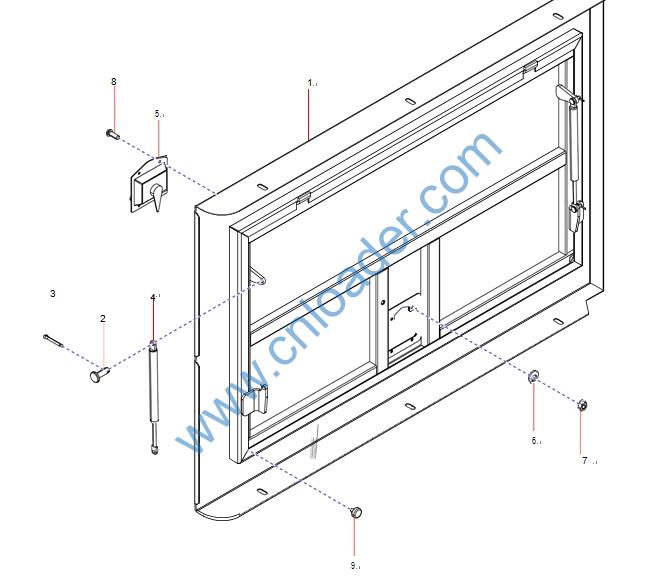

1 BCB005031584 Left Door AS 1
2 A820301010056 Pin 4
3 A210491000014 Pin 4
4 A229900000298 Air Spring 2
5 A222200000130 Cover Latch 1
6 A210405000006 Washer 4
7 A210307000016 Nut 4
8 A210210000008 Screw 4
9 11092222 Damping Rubber Pad 2

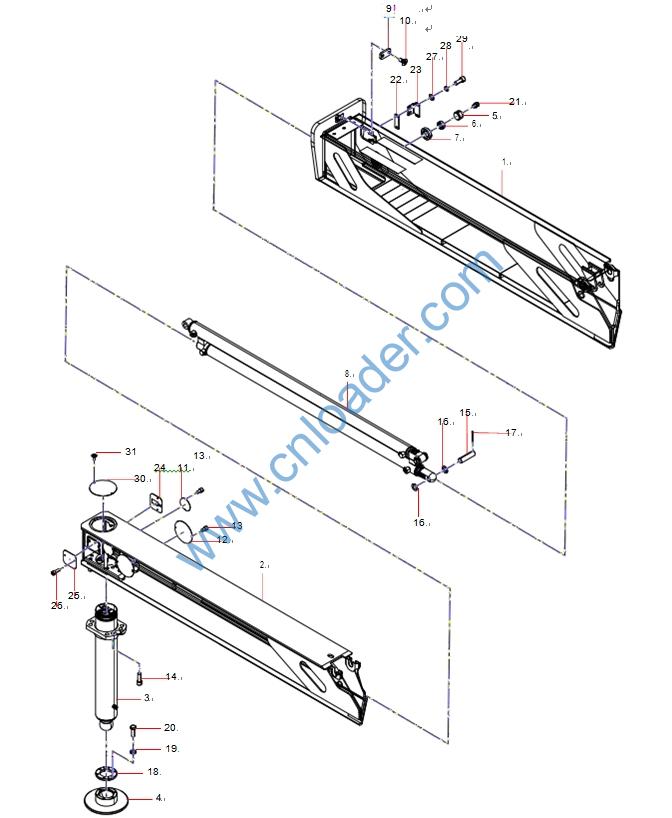

1 BCB005050786 Arm Extension 1, Left 1
2 BCB005050794 Arm Extension 2, Left 1
3 13279465 Front Outrigger Cylinder 1 3-16
4 13544180 Outrigger Seat 1
5 A820301018516 Roller Wheel Shaft 4
6 A820208000409 Bearing 4
7 A820299002216 roller wheel 4
8 150901020126A Combined Cylinder 1 3-18
9 10682796 Limit Plate 1
10 A210211000010 Screw 2
11 A820101356098 Cover Plate Sany yellow 2
A820101356098WD cover plate Pure white
A820101356098HA cover plate Iron grey
A820101-356098GD cover plate Pure green
A820101356098GC cover plate Yellow green
12 A820101990716 cover plate Sany yellow 2
A820101990716WD cover plate Pure white
A820101990716GC cover plate Yellow green
A820101990716GD cover plate Pure green
A820101990716HA cover plate Iron grey
13 A210204000172 Screw 8
14 A210204000095 Screw 8
15 A820301018265 Pin 3
16 A210405000014 Washer 6
17 A210501000010 Pin 6
18 13544177 Pressure Plate 1
19 A210401000002 Washer 6
20 A210-111000039 Bolt 6
21 A210804000003 Oil Cup 4
22 BCB005637330 Cushion Plate 1
23 BCB005050989 Connector Plate 1
24 BCB005236261 Cover Plate 1
25 A820101356099 Cover Plate – Sany yellow 1
A820101356099WD Cover plate Pure white
A820101356099GC- Cover plate – Yellow green
A820101356099HA Cover plate Iron grey
A820101356099GD Cover plate Pure green
26 A210204000130 Screw 4
27 A210405000007 Washer 2
28 A210401000017 Washer 2
29 A210204000147 Screw 2
30 13453515 Cover Plate 1
31 A210211000003 Screw 2

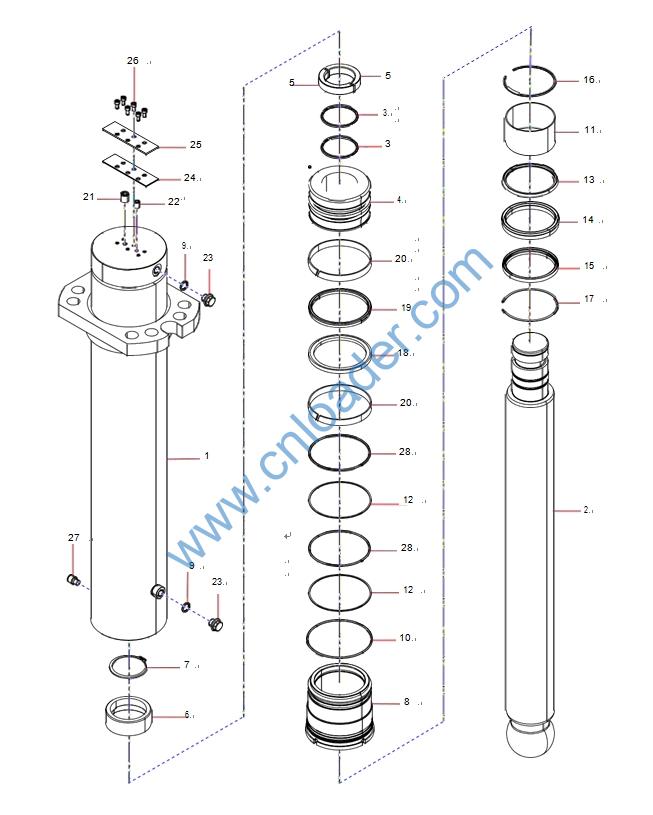

1 20132615882 Cylinder Bore GP 1
2 13099824 Piston Rod 1
3 A210609000165 O-ring 2
4 A820402000185 Piston 1
5 A820208000045 Shaft Clipping Key 2
6 A820202000930 Clipping Key Cap 1
7 A210414000102 Retainer Ring 1
8 13615875 Guide Bush 1
9 A210434000008 Washer 2
10 21011613 O- ring 1
11 60208488 Oil- Free Bearing 1
12 10250742 Retainer Ring 2
13 13599572 Gsj Seal Ring 1
14 B230-101-002131 ZBR Seal Ring 1
15 13266590 Hwm Dust Ring 1
16 A210417000001 Retainer Ring 1
17 A210417000004 Retainer Ring 1
18 B230101000138 OK Seal Ring 1
19 B230101002105 UNP Seal Ring 1
20 B230101001371 UP Guide Ring 2
21 14209011 Damping Plug 1
22 A820301017919 Damping Plug 1
23 12355723 Screw Plug 2
24 11252642 Plate 1
25 11252641 Pressure Plate 1
26 A210204000129 Screw 6
27 24004294 Screw 1
28 151403021145A O- ring 2
1 201520901020127A Front Outrigger Telescoping 2C-ylinder 1 3-20
2 150901020128A Front Outrigger Telescoping Cylinder 1 3-22
3 A210401000002 Washer 8
4 A210110000014 Bolt 8

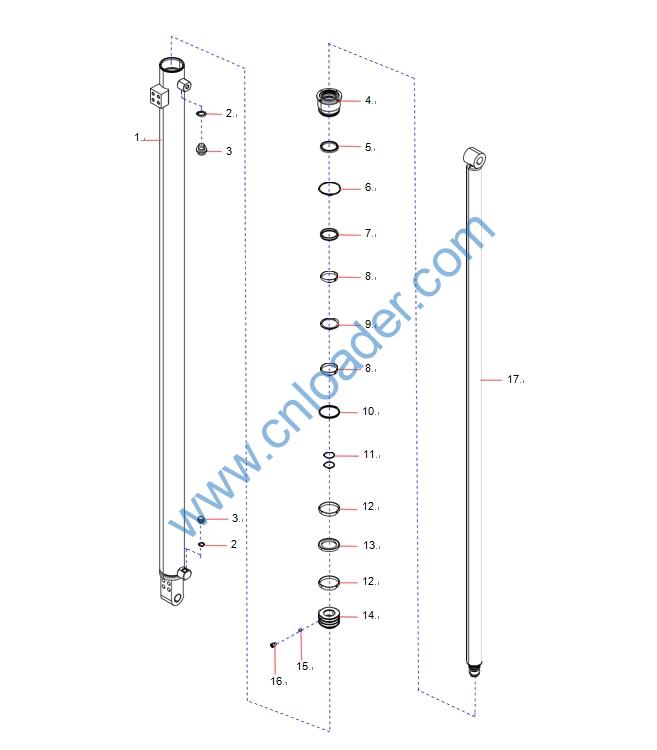

1 SYG005046262 Cylinder Bore GP 1
2 A210434000008 Washer 2
3 12355723 Screw Plug 2
4 13267547 Guide Bush 1
5 B230101000067 AY Dust Ring 1
6 A210609000077 O-ring 1
7 B230101002121 ZBR Seal Ring 1
8 13746800 JT Guide Ring 2
9 13268936 Seal Ring 1
10 60208647 Seal Ring 1
11 A210609000317 O-ring 2
12 13746817 JT Guide Ring 2
13 B230101000132 OK Seal Ring 1
14 1018-2700 Piston 1
15 A210661000015 Steel Ball 1
16 A210208000013 Screw 1
17 SYG005046256 Piston Rod GP 1

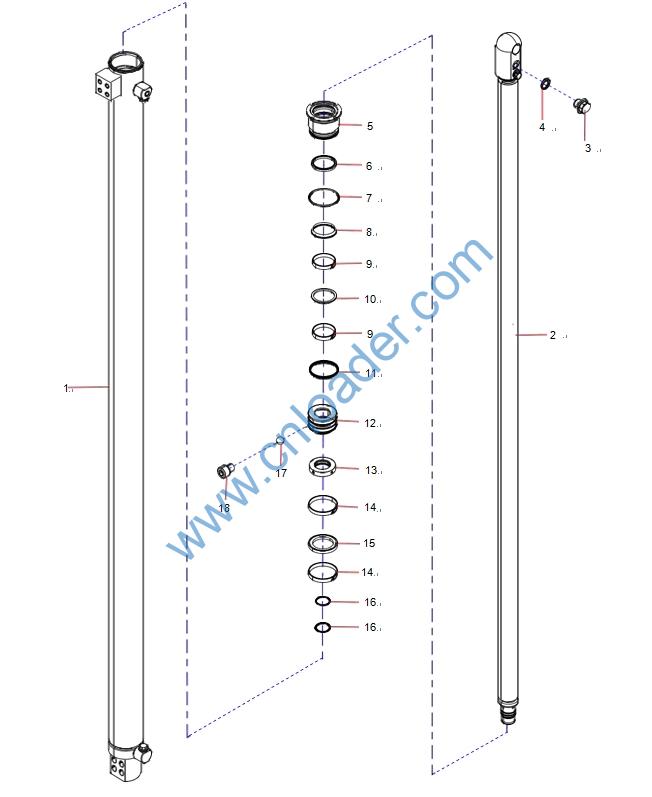

1 SYG005046285 Cylinder Bore GP 1
2 SYG005046257 Piston Rod GP 1
3 12355723 Screw Plug 4
4 A210434000008 Washer 4
5 13267547 Guide Bush 1
6 B230101000067 AY Dust Ring 1
7 A210609000077 O-ring 1
8 B230101002121 ZBR Seal Ring 1
9 13746800 JT Guide Ring 2
10 13268936 Seal Ring 1
11 60208647 Seal Ring 1
12 10182700 Piston 1
13 13272323 Oil-out Ring 1
14 1374-6817- JT Guide Ring 2
15 B230101000132 OK Seal Ring 1
16 A210609000317 O-ring 2
17 A210661000015 Steel Ball 1
18 A210208000013 Screw 1

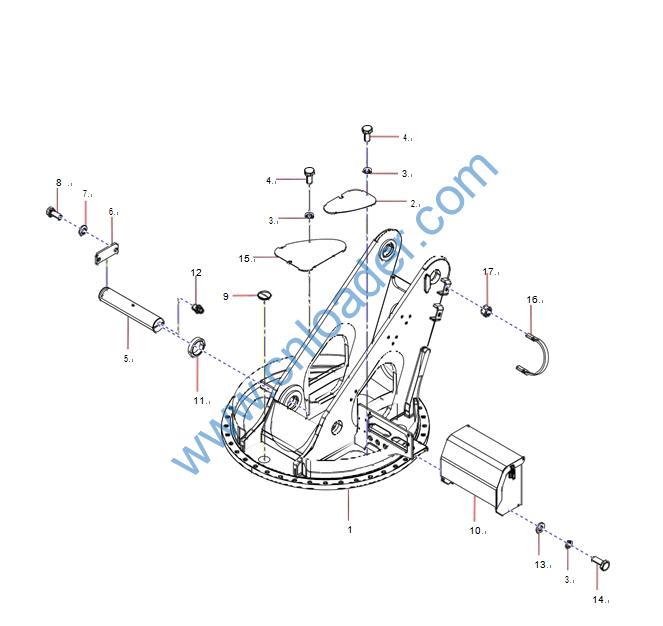

1 20B 22- 5051112
CB00 Turntable Weldment 1
2 BCB005051109 Cover Plate 1
3 A210401000016 Washer 14
4 A210111000078 Bolt 10
5 BCB005051117 Cylinder Connection Shaft 1
6 10486371 Limit Plate 1
7 A210491000122 Washer 2
8 21030883 Bolt 2
9 11733557 Plug 1
10 BCB005910269 Protective Cover AS 1
11 BCB005051116 Bushing 2
12 A210804000001 Oil Cup 1
13 A210405000006 Washer 4
14 20A22120-10110-0100979
9 Bolt 4
15 BCB005351697 Cover Plate nglf9 2022 09 19 nglf9 20222 09 19
16 A810301010126 U-type Bolt 1
17 A210307000040 Nut 4

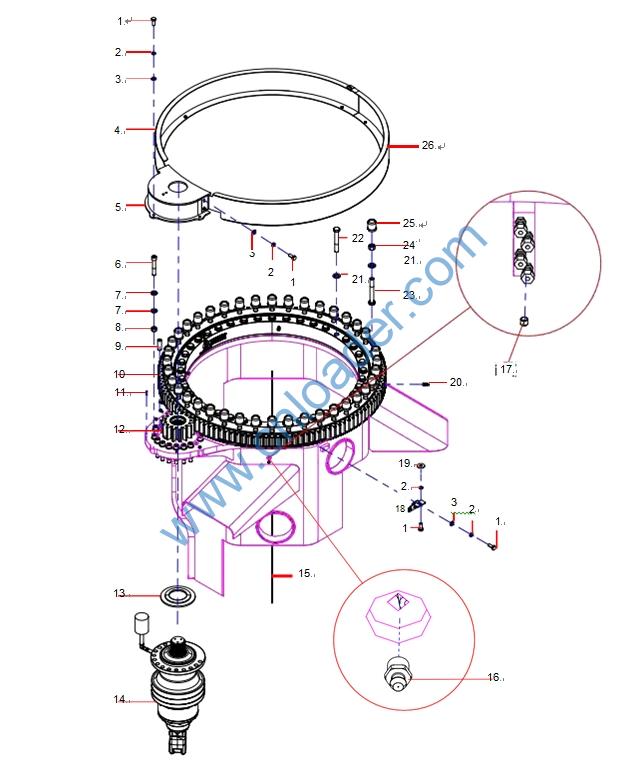

1 2A0222- 1000089
1011 Bolt 20
2 A210401000017 Washer 20
3 A210405000007 Washer 16
4 BCB005047295 Left Half-ring Plate 1
5 13314017 Protective Cover 1
6 120104010507A Screw 12
7 A210491000132 Washer 24
8 A210307000029 Nut 12
9 60221741 Pin 2
10 12640485 Slew Bearing 1 3-28
11 A210507000015 Pin 2
12 BCB005054218 Gear 1
13 A820606010713 Dust Ring 1
14 201232010010-1012914A
9 Reducer GP 1
15 A820207010071 Oil Tube Sany yellow 4
A820207010071GC Oil tube 9 Yellow green
A820207010071WD Oil tube 9 Pure white
16 A210804000002 Fitting, Grease 1
17 A210342000002 Screw Plug 1
18 12981256 Spacer 4
19 A210404000005 Washer 4
20 A210713000009 Fitting 8
21 A210491000122 Washer 120
22 A210110000260 Bolt 40
23 A210110000330 Bolt 40
24 A210307000007 Nut 40
25 BCB0050539707 Rubber Protective Cap 9 40
26 BCB005047296 Right Half- ring Plate 1
1 20602015673 Seal Strip 2

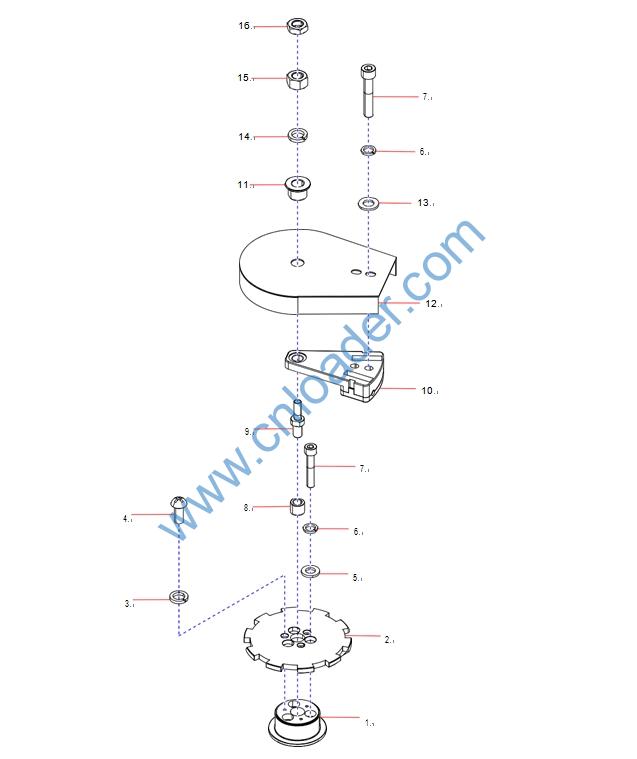

1 20B22- 5047056 Footing 1
CB00
2 13620824 turntable 1
3 A210401000015 Washer 3
4 A210210000003 Screw 3
5 A210402000046 Washer 3
6 A210401000001 Washer 5
7 A210204000011 Screw 5
8 11038817 Bushing Sany yellow 1
11038817RE Sleeve, shaft Sany red
11038817GD Sleeve, shaft Pure green
11038817HA Sleeve, shaft Iron grey
11038817GC Sleeve, shaft Yellow green
11038817WD Sleeve, shaft Pure white
9 20121023-80818- 9 Shaft 1
9 1
10 11142524 Holding Support 1
11 11038821 Bushing Sany yellow 1
11038821WD shaft sleeve Pure white
11038821GC shaft sleeve Yellow green
11038821GD shaft sleeve Pure green
11038821RE shaft sleeve Sany red
11038821HA shaft sleeve Iron grey
12 11060889 Protective Cover Sany yellow 1
11060889WD Protective Cover Pure white
11060889GC Protective Cover Yellow green
13 A210405000011 Washer 2
14 A210401000002 Washer 1
15 A2103070009001 Nut 9 1 9
1
16 A210309000016 Nut 1

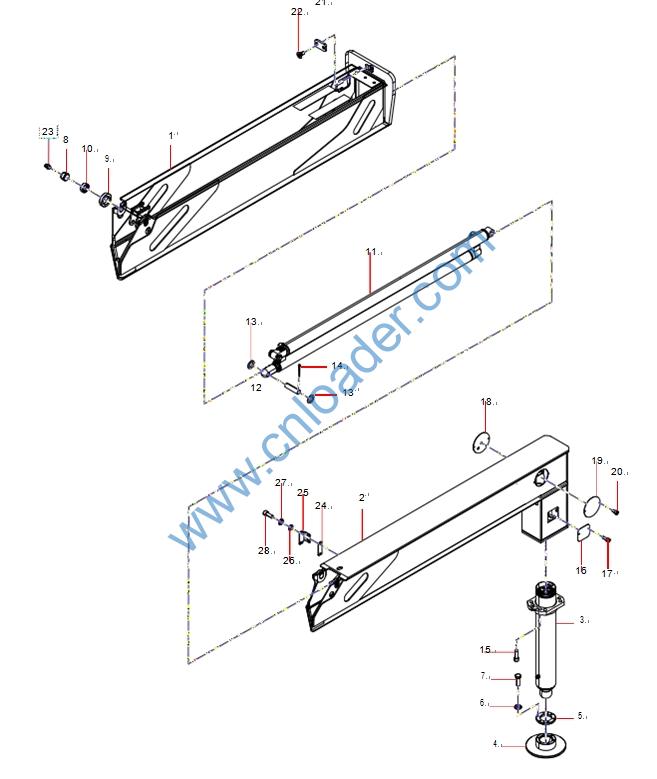

1 20B22- 5050626
CB00 Arm Extension 1, Right 1
2 BCB005050716 Arm Extension 2, Right 1
3 13279465 Front Outrigger Cylinder 1 3-34
4 13544180 Outrigger Seat 1
5 13544177 Pressure Plate 1
6 A210401000002 Washer 6
7 A210111000039 Bolt 6
8 A820301018516 Roller Wheel Shaft 4
9 A820299002216 roller wheel 4
10 A820208000409 Bearing 4
11 150901020126A Combined Cylinder 1 3-36
12 A820301018265 Pin 3
13 A210405000014 Washer 6
14 20A22120-5001-00109010
9 Pin 6
15 A210204000095 Screw 8
16 A820101356099 Cover Plate Sany yellow 2
A820101356099WD Cover plate Pure white
A820101356099GC Cover plate Yellow green
A820101356099HA Cover plate Iron grey
A820101356099GD Cover plate Pure green
17 A210204000130 Screw 4
18 BCB005050987 Cover Plate 1
19 A820101990716 cover plate Sany yellow 1
A820101990716WD cover plate Pure white
A820101990716GC cover plate Yellow green
A820101990716GD cover plate Pure green
A820101990716HA cover plate Iron grey
20 A210-204000172 Screw 4
21 10682796 Limit Plate 1
22 A210211000010 Screw 2
23 A210804000003 Oil Cup 4
24 BCB005637330 Cushion Plate 1
25 BCB005050989 Connector Plate 1 –
26 A210405000007 Washer 2
27 A210401000017 Washer 2
28 A210204000147 Screw 2

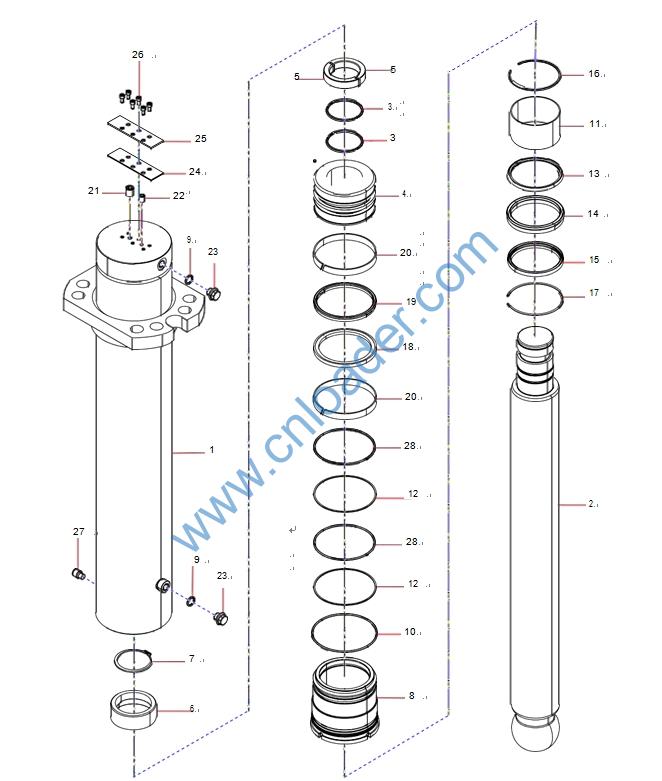

1 201322- 82
6158 Cylinder Bore GP 1
2 13099824 Piston Rod 1
3 A210609000165 O-ring 2
4 A820402000185 Piston 1
5 A820208000045 Shaft Clipping Key 2
6 A820202000930 Clipping Key Cap 1
7 A210414000102 Retainer Ring 1
8 13615875 Guide Bush 1
9 A210434000008 Washer 2
10 21011613 O- ring 1
11 60208488 Oil- Free Bearing 1
12 10250742 Retainer Ring 2
13 13599572 Gsj Seal Ring 1
14 20B22230-1001-00129131
9 ZBR Seal Ring 1
15 13266590 Hwm Dust Ring 1
16 A210417000001 Retainer Ring 1
17 A210417000004 Retainer Ring 1
18 B230101000138 OK Seal Ring 1
19 B230101002105 UNP Seal Ring 1
20 B230101001371 UP Guide Ring 2
21 14209011 Damping Plug 1
22 A820301017919 Damping Plug 1
23 12355723 Screw Plug 2
24 11252642 Plate 1
25 11252641 Pressure Plate 1
26 A210204000129 Screw 6
27 24004294 Screw 1
28 151403021145A O- ring 2

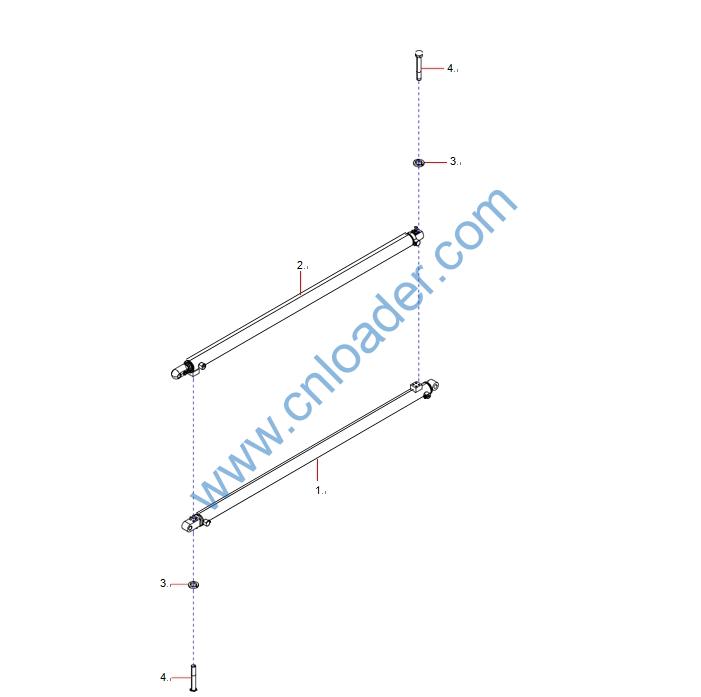

1 201520901020127A Front Outrigger Telescoping 2C-ylinder 1 3-38
2 150901020128A Front Outrigger Telescoping Cylinder 1 3-40
3 A210401000002 Washer 8
4 A210110000014 Bolt 8
