LONKING forklift spare parts AT

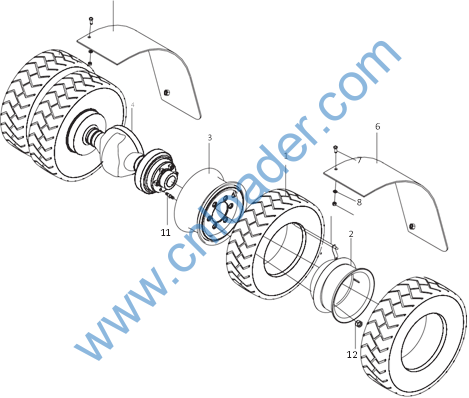

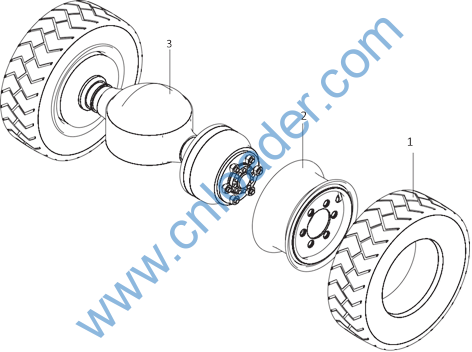

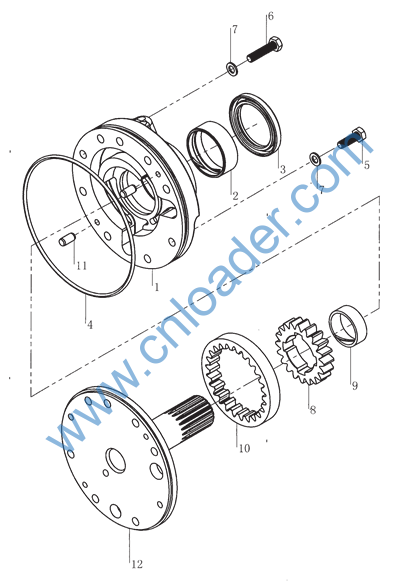

序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

1

51517121702

GB/T119.2

销10×30    Pin10×30

1

驱动桥带

2

30001111503

30D-0200005

密封垫    Seal gasket

1

GLTPB/

DTXB/ DTDB


30001111503

LG0030D.02-001

密封垫    Seal gasket

1

DTIH/GLT/GLTND/GNTND/ DTHB/DTHD/DTIB/DTJB/DTMB

3

51207115314

GB/T5786

螺栓M12×1.25×35    Bolt M12×1.25×35

12



4

51401110107

GB/T93

垫圈12    Washer 12

12



5

30002020339

LG0030DTXB.02.01

变速箱总成    Transmission assembly

1

DTXB/DTDB


30002020335

LG0030DTIH.02.01

变速箱总成    Transmission assembly

1

DTIH/GLT/GLTND/GNTND/

DTHB/DTHd/DTIB/DTJB/DTMB


30002020355

LG0030GLTPB .02.01

变速箱总成    Transmission assembly

1

GLTPB

6

51204091014

GB/T5783

螺栓M8×20    Bolt M8×20

6

DTXB/DTDB/GLTPB


51204091014

GB/T5783

螺栓M8×20    Bolt M8×20

12

DTIH/GLT/GLTND/GNTND/

DTHB/DTIB/DTJB/DTMB

7

51401090107

GB/T93

垫圈8    Washer 8

6

DTXB/DTDB/GLTPB


51401090107

GB/T93

垫圈8    Washer 8

12

DTIH/GLT/GLTND/GNTND/

DTHB/DTHD/DTIB/DTJB/DTMB

8

51204101314

GB/T5783

螺栓M10×35    Bolt M10×35

9

DTXB/DTDB


51207105314

GB/T5786

螺栓M10×1.25×35    Bolt M10×1.25×35

7

DTIH/GLT/GLTND/GNTND/

DTHB/DTHD/DTIB/DTJB/DTMB

9

51401100107

GB/T93

垫圈10    Washer 10

9

DTXB/DTDB


51401100107

GB/T93

垫圈10    Washer 10

8

DTIH/GLT/GLTND/GNTND/

DTHB/DTIB/DTJB/DTMB/DTHD

10

51203102114

GB/T5782

螺栓M10×75    Bolt M10×75

1

DTIH/GLT/GLTND/GNTND/

DTHB/DTIB/DTJB/DTMB/DTHD

11

51307001019

GB/T6170

螺母M10    Nut M10

1

DTIH/GLT/GLTND/GNTND/

DTHB/DTIB/DTJB/DTMB/DTHD




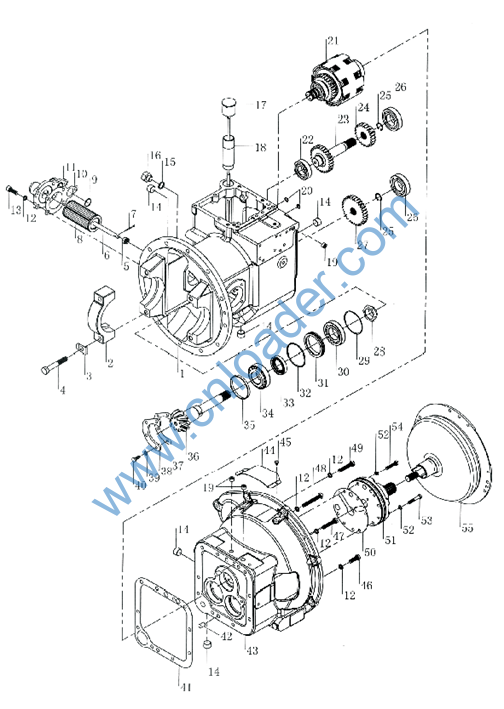

序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30AS-0101

壳体

Case

1



2

YQX30-0102

轴承座

Bearing carrier

2



3

YQX30-0023

锁片

Lock plate

4



4

YQX30-0101

螺栓

Bolt

4



5

GB6181-86

螺母M12

Nut M12

1



6

YQX30AS-0502

螺杆

Screw stud

1



7

GB91-86

开口销3.2X28

Cotter pin 3.2×28

1



8

YQX30AS-0510

滤网组件

Filter screen element

1



9

GB1235-76

O形密封圈28X2.4

O-ring 28×2.4

1



10

YQX30AS-0503

纸垫

Paper gasket

1



11

YQX30AS-0501

油滤座

Oil filter seat

1



12

GB93-87

垫圈10

Washer 10

14



13

GB70-85

螺钉M10X30

Screw M10×30

5



14

JB/ZQ4446-86

螺塞R1/2

Plug R1/2

5



15

Q20-03

密封垫

Seal gasket

1



16

JDS30-0046

螺塞

Plug

1



17

YQX30-0400

加油器盖组件

Oil filler cap element

1



18

YQX30-0007

加油管

Oil filling pipe

1



19

JB/ZQ4446-86

螺塞R1/4

Plug R1/4

3



20

GB1235-76

O形密封圈15X2.4

O-ring 15×2.4

2



21

YQX30-1000A

离合器总成

Clutch assembly

1



22

GB276-94

球轴承6206

Ball bearing 6206

1



23

YQX30-0015

惰轮轴

Idler wheel shaft

1



24

YQX30-0013

惰轮

Idler wheel

1



25

GB893.1-86

孔用弹性挡圈24

Spring sprag 24

2



26

GB276-94

球轴承6207

Ball bearing 6207

2



27

YQX30-0012

输出齿轮

Gear,input

1



28

YQX30-0014

锁紧螺母

Nut,lock

1



29

YQX30-0016

垫

Shim

按需



30

GB297-94

轴承30208

Bearing 30208

1



31

YQX30-0001

油封保持架

Retainer,oil seal

1



32

GB1235-76

O形密封圈80X3.1

O-ring 80×3.1

1



33

YQX30-0005

输出轴油封

Seal ring

1



34

GB297-94

轴承32208

Bearing 32208

1



35

YQX30-0003

轴环

Collar

1



36

YQX30-0011

输出轴

Output shaft

1





序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

37

YQX30-0002

垫片

Gasket

按需



38

YQX30-0004

支承片

Support plate

1



39

GB93-87

垫圈8

Washer 8

4



40

GB5783-86

螺栓M8X20

Bolt M8×20

4



41

YQX30AS-0001

垫片

Gasket

1



42

GB119-86

圆柱销B12X20

Cylindrical pin B12×20

2



43

YQX30-0201

变矩器外壳

Case of torque converter

1



44

YQX30-0202

盖板

Cover plate

1



45

GB818-85

十字槽螺钉M6X8

Screw M6×8

2



46

GB5783-86

螺栓M10X30

Bolt M10×30

4



47

GB5783-86

螺栓M10X50

Bolt M10×50

1



48

GB5783-86

螺栓M10X75

Bolt M10×75

1



49

GB5783-86

螺栓M10X55

Bolt M10×55

3



50

YQX30-0010

垫片

Gasket

1



51

YQX30-3000

油泵总成

Oil pump assebmly

1



52

Q20-03

密封圈8X14X1.5

Seal ring 8×14×1.5

6



53

GB5780-86

螺栓M8X45

Bolt M8×45

4



54

GB5780-86

螺栓M8X40

Bolt M8×40

2



55

YQX30-6000

液力变矩器总成

Hydraulic torque converter assembly

1





序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-0008

垫片    Gasket

1



2

GB1235-76

O形密封圈11X1.9    O-ring 11×1.9

2



3

YQX30-4000

盖和控制阀总成    Cover & control valve assembly

1



4

GB5783-86

螺栓M10X55    Bolt M10×55

2



5

GB93-87

弹簧垫圈10    Spring washer 10

16



6

GB5783-86

螺栓M10X40    Bolt M10×40

6



7

14×24×2

纸垫圈    Paper gasket

2



8

JK208

倒车灯开关    Backup lamp witch

2



9

YQX30-0300

滤油器（Ⅱ)    Oil filter

1



10

YQX30-0022

衬垫    Spacer

1



11

YQX30-5000

微动阀总成    Inching valve assembly

1



12

GB93-87

弹簧垫圈8    Spring washer 8

5



13

GB5783-86

螺栓M8X25    Bolt M8×25

3



14

GB5783-86

螺栓M8X50    Bolt M8×50

2



15

YQX30-2000

差速器总成    Differential assembly

1



16

YQX30-0018

齿轴    Gear shaft

1



17

YQX30-0019

衬套    Bushing

1



18

YQX30-0020

螺旋伞齿轮    Spiral bevel gear

1



19

GB297-94

轴承32207    Bearing 32207

2



20

YQX30-0017

垫片(δ=0.1,0.2,0.5)    Shim

按需



21

YQX30-0021

轴承盖    Bearing cover

2



22

GB1235-76

O形密封圈75X3.1    O-ring 75×3.1

2



23

GB5783-86

螺栓M10X25    Bolt M10×25

8





序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-1100A

输入轴组件

Input shaft element

1



2

YQX30-1006

密封环（A）

Seal ring

4



3

GB276-94

轴承6206

Bearing 6206

2



4

YQX30-1007

离合器-止推环（B）

Clutch- thrust ring(B)

2



5

K35×42×20

滚针轴承

Needle bearing

2



6

YQX30-1005

倒车档齿轮

Reverse gear

1



7

YQX30-1003

前进档齿轮

Forward gear

1



8

YQX30-1008

离合器-止推环（A）

Clutch- thrust ring(A)

2



9

GB894.1-86

轴用弹性挡圈40

Spring sprag 40

2



10

YQX30-1009

弹簧座

Spring seat

2



11

YQX30-1004

回程弹簧

Return spring

2



12

YQX30-1014

卡环

Snap ring

2



13

YQX30-1001

端板

End plate

2



14

YQX30-1013B

摩擦片

Friction plate

8



15

YQX30-1012A

隔片

Distance plate

8



16

YQX30-1002B

活塞

Piston

2



17

YQX30-1011

密封环（B）

Seal ring (B)

2



18

YQX30-1010

堵塞

Plug

2



19

GB308-89

钢球3.1750 G200b

Steel ball

2



20

GB1235-76

O形密封圈40X3.5

O-ring 40×3.5

2



21

GB78-85

内六角螺钉M8X8

Inner hexagon screw M8×8

2



22

YQX30-1016

碟形板

Disk plate

2











序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-3007

泵壳

Pump case

1



2

YQX30-3001

衬套

Bushing

1



3

GB9877.1-88

油封（F）B50X68X8

Oil seal B50×68×8

1



4

GB3452.1-92

O形密封圈145X3.55

O-ring 145×3.55

1



5

GB5783-86

螺栓M8X25

Bolt M8×25

1



6

GB5783-86

螺栓M8X35

Bolt M8×35

1



7

Q20-03

密封垫8X14X1.5

Seal gasket 8×14×1.5

2



8

YQX30-3003

主动齿轮

Drive gear

1



9

YQX30-3004

衬套

Bushing

1



10

YQX30-3005

被动齿轮

Drive gear

1



11

GB119-86

圆柱销B8X16

Cylindrical pin B8×16

2



12

YQX30-3006

导轮座

Guide wheel seat

1





盖和控制阀总成/ Cover & Control valv e assembly

序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-4010

壳体盖

Case cover

1



2

JB/ZQ4446-86

螺塞R1/8

Plug R1/8

6



3

JB/ZQ4446-86

螺塞R1/4

Plug R1/4

4



4

YQX30-4006

变速臂轴

Speed shaft arm

1



5

YQX30-4008

变速臂

Speed arm

1



6

GB879-86

弹性圆柱销6X32

Spring cylindrical pin 6×32

1



7

GB1235-76

O形密封圈20X2.4

O-ring 20×2.4

1



8

YQX30-4009

塞子

Plug

1



9

GB1099-79

半圆键5X19

Woodruff key

1



10

Q301 B202-86

密封圈8X14X1.5

Seal ring 8×14×1.5

1



11

YQX30-4007

固定螺钉

Set screw

1



12

YQX30-4004

活塞

Piston

1



13

GB879-86

弹性圆柱销4X25

Spring cylindrical pin 4×25

1



14

YQX30-4003

弹簧

Spring

1



15

JB982-77

组合密封垫20

Seal gasket 20

1



16

YQX30-4002

安全阀盖

Safety valve cover

1



17

YQX30-4005

管接头

Pipe connector

1



18

YQX30-4001

垫片

Gasket

1



19

YQX30-4102

阀体

Valve body

1



20

YQX30-4108

活塞

Piston

1



21

YQX30-4106

弹簧

Spring

1



22

YQX30-4107

弹簧

Spring

1



23

YQX30-4105

塞

Plug

1



24

GB879-86

弹性圆柱销4X35

Spring cylindrical pin 4×35

1



25

YQX30-4112

阀芯

Valve core

1



26

YQX30-4104

弹簧

Spring

1



27

YQX30-4111

弹簧

Spring

1



28

YQX30-4103

塞

Plug

1



29

GB879-86

弹性圆柱销4X40

Spring cylindrical pin 4×40

1



30

YQX30-4101

滑阀

Slide valve

1



31

GB308-89

钢球10.3188 G200b

Steel ball

1



32

YQX30-4110

弹簧

Spring

1



33

YQX30-4109

油塞

Oil plug

1



34

GB93-87

弹簧垫圈8

Spring washer 8

6



35

GB5783-86

螺栓M8X35

Bolt M8×35

2



36

GB5783-86

螺栓M8X50

Bolt M8×50

2



37

GB5783-86

螺栓M8X55

Bolt M8×55

2









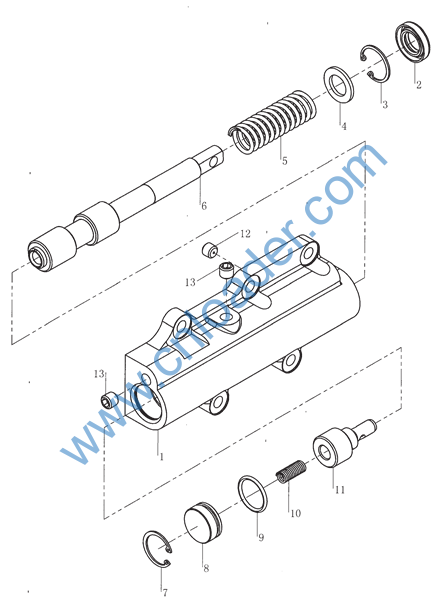

微动阀/ Inching valve

序号

Item

No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-5008

微动阀体

Body,inching valve

1



2

GB9877.2-88

油封FW16X30X7

Oil seal FW16×30×7

1



3

GB893.1-86

孔用弹性挡圈30

Snap ring 30

1



4

YQX30-5007

垫块

Plate

1



5

YQX30-5006

弹簧

Spring

1



6

YQX30-5005

微动阀杆

Inching valve rod

1



7

GB893.1-86

孔用弹性挡圈28

Snap ring 28

1



8

YQX30-5004

堵塞

Plug

1



9

GB3452.1-92

O形密封圈23.6X2.65

O-ring 23.6×2.65

1



10

YQX30-5003

弹簧

Spring

1



11

YQX30-5009

微动滑阀

Inching spool

1



12

YQX30-5001

螺塞

Plug

1



13

JB/ZQ4446-86

螺塞R1/8

Plug R1/8

2









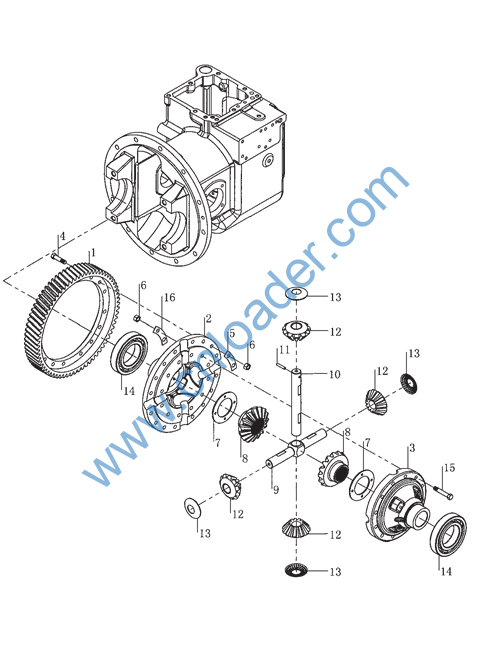

序号 Item No

代号

Specification

零部件名称

Description

数量

Q’ty

备    注

Remark

1

YQX30-2003

大齿圈

Ring gear

1



2

YQX30-2101

差速器右半壳

Right half case of differential

1



3

YQX30-2102

差速器左半壳

Left half case of differential

1



4

YQX30-2002

螺栓

Bolt

16



5

YQX30-2001

锁片(A)

Lock plate(A)

8



6

GB6176-86

螺母M10X1.25

Nut M10×1.25

28



7

YQX30-2007

垫圈

Washer

2



8

YQX30-2009

半轴齿轮

Axle shaft gear

2



9

YQX30-2008

齿轮轴（Ⅰ）

Gear shaft(I)

1



10

YQX30-2005

齿轮轴（Ⅱ）

Gear shaft(II)

1



11

GB119-86

圆柱销B6X30

Cylindrical pin B6×30

1



12

YQX30-2006

行星齿轮

Planetary gear

4



13

YQX30-2004

止推垫圈

Thrust washer

4



14

GB276-94

深沟球轴承6213

Deep groove ball bearing 6213

2



15

YQX30-2104

螺栓

Bolt

12



16

YQX30-2103

锁片（B）

Lock plate(B)

6














序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

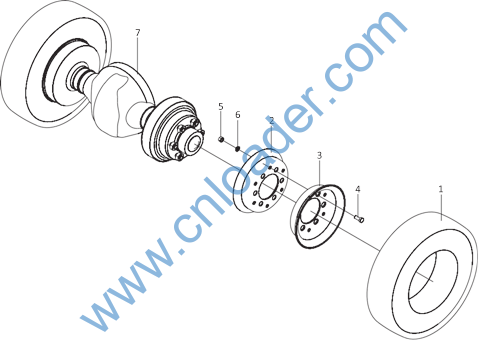

1

60205000175

LG0025D.02.01.02.01

轮胎总成7.00-12-12PR

Tire 7.00-12-12PR

2



2

60205000161

20D-0201001

内轮辋5.00S-12

Inner rim 5.00S-12

2



3

60205000162

20D-0201002

外轮辋5.00S-12

Outer rim 5.00S-12

2



4

30002111100

20D-0201005

螺栓

Bolt

12



5

51307001319

GB/T6170

螺母M16

Nut M16

12



6

51401130107

GB/T93

垫圈16

Washer 16

12



7

30002024535

LG0025DⅢ.02.01.01

驱动桥总成

Drive axle assembly

1
























序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

1

60205000183

LG0030D.02.01.03

轮胎总成28X9-15-14PR    Tire28×9-15-14PR

2



2

60205000216

LG0030DⅢ.02.01.01

轮辋总成7.00T-15    Rim assembly7.00T-15

2



3

30002024511

30D-0201200

驱动桥总成    Drive axle assembly

1



10








序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

1

60205000175

LG0025D.02.01.02.01

轮胎总成7.00-12-12PR    Tire 7.00-12-12PR

4



2

60200000114

LG0025DIII.02.02.03

轮辋总成5.00S-12    Rim 5.00S-12

2



3

60200000113

LG0025DIII.02.02.02

轮辋总成5.00S-12    Rim 5.00S-12

2



4

30002024558

LG0025DIII.02.02.01

驱动桥总成    Drive axle

1



5

30002119100

LG0100DT.02.01.02-001

气阀加长管    Lengthening pipe

2



6

30008154374

LG0025DIII.02.02-001

挡泥板    Baffle

1



7

51204111314

GB/T5783

螺栓M12×35    Bolt

6



8

51421110115

GB/T97.1

垫圈12    Washer 12

12



9

51341000719

GB/T889.1

螺母M12    Nut M12

6



10

30008154375

LG0025DIII.02.02-002

挡泥板    Baffle

1



11

68051011264



轮彀螺柱    Hub nut

12

驱动桥带

12

68051011263



轮彀螺母    Hub nut

12

驱动桥带





10

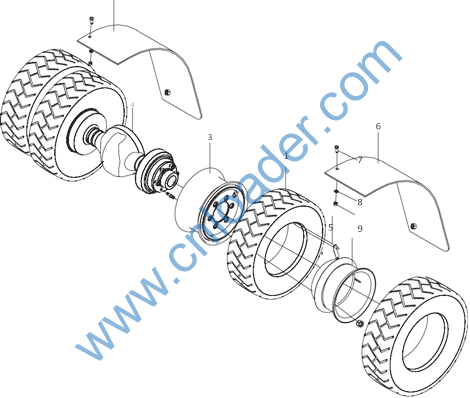

序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

1

60205000183

LG0030D.02.01.03

轮胎总成28×9-15-14PR    Tire assembly

4



2

60205000174

LG0030DⅢ.02.02.02

双排驱动轮辋7.00T-15    Rim 7.00T-15

2



3

60205000216

LG0030DⅢ.02.01.01

轮辋总成7.00T-15    Rim assembly 7.00T-15

2



4

30002024552

LG0030DⅢ.02.02.01

驱动桥总成    Drive axle

1



5

30002119100

LG0100DT.02.01.02-001

气阀加长管    Lengthening pipe

2



6

30008154356

LG0030DⅢ.08.02-003

挡泥板    Baffle

1



7

51204111314

GB/T5783

螺栓M12×35    Bolt M12×35

6



8

51421110115

GB/T97.1

垫圈12    Washer 12

12



9

51341000719

GB/T889.1

螺母M12    Nut M12

6



10

30008154357

LG0030DⅢ.08.02-004

挡泥板    Baffle

1









11



序号

Item

No

编    码

Code

图    号

Part No

零部件名称

Description

数量

Q’ty

备    注

Remark

1

36480000008

LG853.04.01.05

螺塞    Plug

2



2

36401100060

LGQ030AQ-001

桥壳    Axle house

1

3-3.5T


36401100061



桥壳    Axle house

1

2-2.5T

3

36400100180

LGQ030AQ.01

右制动器总成    Right brake assembly

1

3-3.5T


60900000494



右制动器总成    Right brake assembly

1

2-2.5T

4

51207121318

GB/T5786

螺栓M14×1.5×35    Bolt M14×1.5×35

16

3-3.5T


51207121318



螺栓M14×1.5×35    Bolt M14×1.5×35

8

2-2.5T

5

56177014306

GB/T13871.1

油封FB100×130×13    Oil seal FB100×130×13

2



6

36400100188

LGQ030AQ-009

轴套2    shaft sleeve

2



7

52321001401

GB/T297

轴承30214    Bearing 30214

2



8

52326001202

GB/T297

轴承32012    Bearing 32012

2



9

56145057211

GB/T3452.1

O形圈56×2.65    O-ring 56×2.65

2



10

36400100186

LGQ030AQ-007

轴套1    Shaft sleeve 1

2



11

56177007406

GB/T13871.1

油封FB75×100×10    Oil seal FB75×100×10

2

3-3.5T

12

51513131703

GB/T119.1

圆柱销10×30    Cotter pin 10×30

1



13

51309001020

GB/T6171

螺母M20×1.5    Nut M20×1.5

12

3-3.5T

14

36400100181

LGQ030AQ-002

制动鼓    Brake drum

2

3-3.5T


36402100293



制动鼓    Brake drum

2

2-2.5T

15

36400100187

LGQ030AQ-008

轮毂    Wheel hub

2

3-3.5T


36402100298



轮毂    Wheel hub

2

2-2.5T

16

36400100182

LGQ030AQ-003

轮辋螺栓    Hub bolt

12

3-3.5T


36402100294



轮辋螺栓    Hub bolt

12

2-2.5T

17

36400100183

LGQ030AQ-004

轮辋螺母    Hub nut

12




36402100295



轮辋螺母    Hub nut

12

2-2.5T

18

51363001903

GB/T810

螺母M60×2    Bolt M60×2

4



19

51439340105

GB/T858

垫圈60    Washer 60

2



20

36400100185

LGQ030AQ-006

半轴    Axle shaft

2

3-3.5T


36402100297



半轴    Axle shaft

2

2-2.5T

21

36400100184

LGQ030AQ-005

纸垫    Paper gasket

2



22

36402100292

LGQ030AQ-010

半轴螺栓    Axle shaft bolt

4



23

36400100189

LGQ030AQ.02

左制动器总成    Left brake

1

3-3.5T


60900000495



左制动器总成    Left brake

1

2-2.5T

24

51207121218



螺栓M14×1.5×30    Bolt M14×1.5×30

8

2-2.5T
