Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60208014 |
LCD Display |
1 |
|
|
2 |
60208015 |
Camera, Rearview |
1 |
|
|
3 |
60208016 |
Mount, Monitor |
1 |
|
|
4 |
60208017 |
Frame, Monitor |
1 |
|
|
5 |
60208018 |
Power Supply |
1 |
|

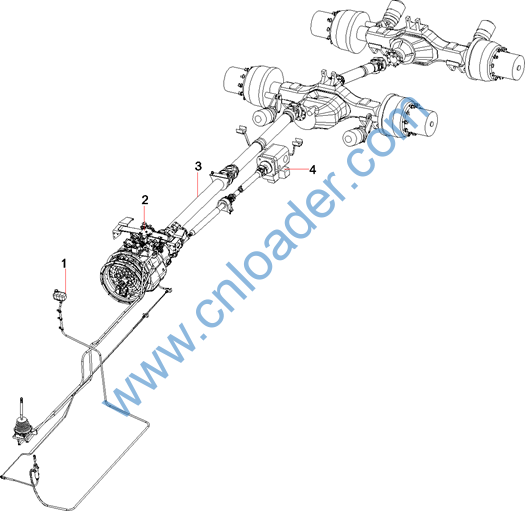

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
12262165 |
clutch and control mechanism SYM5454JW.2 |
1 |
|
|
2 |
13265050 |
Transmission control device SYM5463JD3.2 |
1 |
|
|
3 |
13264966 |
Transmission shaft device SYM5463JD3.2 |
1 |
|
|
4 |
12269655 |
Power take-off gearing SYM5454JW.2.4 |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

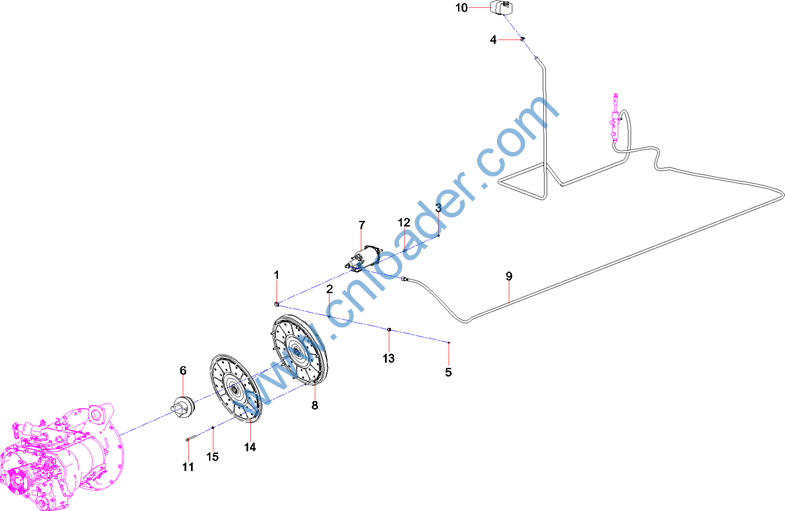

1 |
60285438 |
Fitting, Elbow |
1 |
|
|
2 |
A210710000003 |
Sleeve |
1 |
|
|
3 |
A210401000017 |
Washer |
4 |
|
|
4 |
A229900002960 |
Clamp, Hose |
2 |
|
|
5 |
A229900003019 |
Bushing |
1 |
|
|
6 |
60058321 |
Bearing |
1 |
|
|
7 |
60154176 |
ClutchBoosterAssembly |
1 |
|
|
8 |
60260210 |
Disc Assembly, Retaining, Clutch |
1 |
|
|
9 |
60195105 |
Hose Assembly, Clutch |
1 |
|
|
10 |
A229900006403 |
Reservoir, Clutch Oil |
1 |
|
|
11 |
A210111000270 |
Bolt |
12 |
|
|
12 |
A210111000089 |
Bolt |
4 |
|
|
13 |
A210306000008 |
Nut |
1 |
|
|
14 |
60260211 |
Disc Assembly, Idler, Clutch |
1 |
|
|
15 |
A210405000011 |
Washer |
12 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

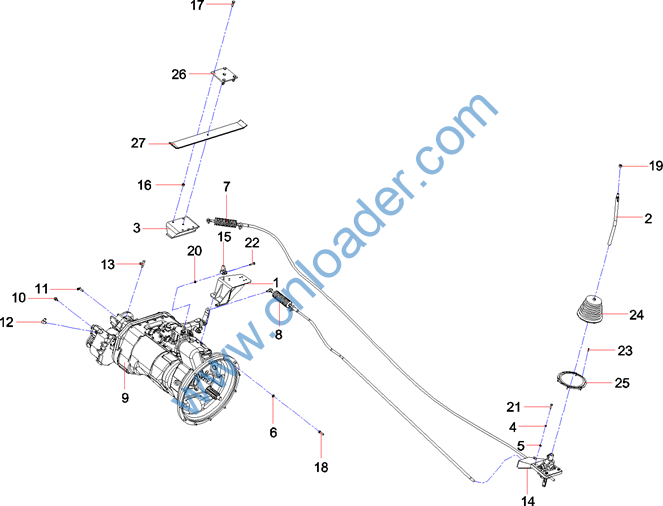

1 |
10205004 |
Support, Cable |
1 |
|
|
2 |
10047858 |
Control Lever, Gear Shift |
1 |
|
|
3 |
12191118 |
Mounting rack assemblySYM5454JW.2.1.1 |
1 |
|
|
4 |
A210401000017 |
Washer |
4 |
|
|
5 |
A210405000007 |
Washer |
4 |
|
|
6 |
A210405000011 |
Washer |
12 |
|
|
7 |
60230117 |
Cable, Gear Select |
1 |
|
|
8 |
60230125 |
Cable, Gear Shift |
1 |
|
|
9 |
60249489 |
Transmission |
1 |
|
|
10 |
A229900003040 |
Fitting, Elbow |
1 |
|
|
11 |
A229900003249 |
Fitting, Elbow |
1 |
|
|
12 |
A229900003038 |
Fitting, Elbow |
1 |
|
|
13 |
A229900003033 |
Fitting, Tee |
1 |
|
|
14 |
A229900003059 |
Controller |
1 |
|
|
15 |
A229900003063 |
Arm, Rocker |
1 |
|
|
16 |
A210319000001 |
Nut |
5 |
|
|
17 |
A210111000025 |
Bolt |
5 |
|
|
18 |
A210111000026 |
Bolt M10×35GB5783 |
12 |
|
|
19 |
A210307000001 |
Nut |
1 |
|
|
20 |
A210314000008 |
Nut |
1 |
|
|
21 |
A210111000091 |
Bolt |
4 |
|
|
22 |
A210111000093 |
Bolt |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
A210218000016 |
Screw |
6 |
|
|
24 |
A229900003374 |
Shield, Dust |
1 |
|
|
25 |
A229900003375 |
Ring, Retainer |
1 |
|
|
26 |
10678735 |
Plate, Keeper |
1 |
|
|
27 |
12191162 |
Steel leaf springSYM5454JW.2.1-1 |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

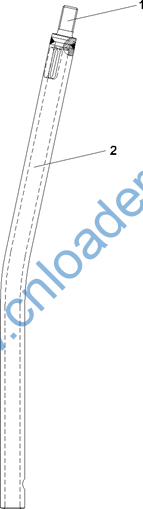

1 |
10047855 |
Head, Rod |
1 |
|
|
2 |
10047824 |
Rod |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

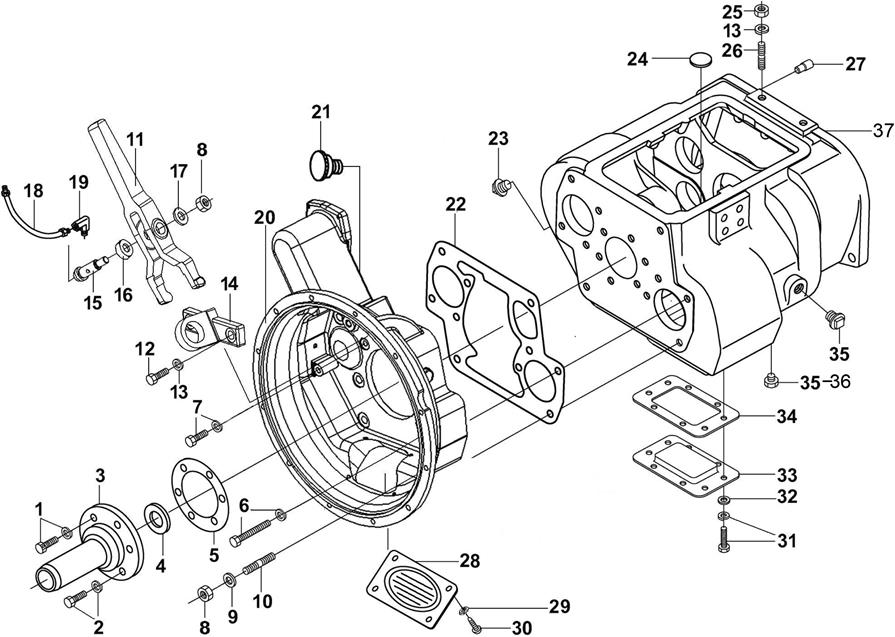

1 |
60256121 |
bolts and spring washer combination part |
2 |
|
|
2 |
60256057 |
Bolt with Washer |
4 |
|
|
3 |
60287356 |
One shaft bearing cover |
1 |
|
|
4 |
60075206 |
Seal Assembly, Oil |
1 |
|
|
5 |
60075242 |
Gasket |
1 |
|
|
6 |
60256058 |
bolts and spring washer combination part |
2 |
|
|
7 |
60256059 |
bolts and spring washer combination part |
2 |
|
|
8 |
60287323 |
Lock nut |
7 |
|
|
9 |
60104370 |
Stud |
6 |
|
|
10 |
60287293 |
Washer |
6 |
|
|
11 |
60164853 |
Shift Fork |
1 |
|
|
12 |
60287347 |
Hexagon bolt |
2 |
|
|
13 |
60287285 |
Spring washer |
4 |
|
|
14 |
60164768 |
T-type plate |
1 |
|
|
15 |
60164808 |
Fork Shaft |
1 |
|
|
16 |
60247897 |
Bearing |
1 |
|
|
17 |
60164813 |
gasket |
1 |
|
|
18 |
60104380 |
Oil tube GP |
1 |
|
|
19 |
60075247 |
Fitting, Elbow |
1 |
|
|
20 |
60287322 |
Clutch shell body |
1 |
|
|
21 |
60287350 |
oil cup |
1 |
|
|
22 |
60075238 |
Gasket |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
60122628 |
Plug, Screw |
1 |
|
|
24 |
60075230 |
Magnet |
3 |
|
|
25 |
60287273 |
Hexagon nut |
2 |
|
|
26 |
60122651 |
Stud |
2 |
|
|
27 |
60075152 |
Pin, Dowel |
2 |
|
|
28 |
60170931 |
Hand Hole Cover Of Clutch |
1 |
|
|
29 |
60287281 |
Spring washer |
4 |
|
|
30 |
60122635 |
Bolt, Hexagon |
4 |
|
|
31 |
60247882 |
Bolt with Washer |
8 |
|
|
32 |
60287333 |
Flat gasket |
8 |
|
|
33 |
60075123 |
Cover |
1 |
|
|
34 |
60075122 |
Gasket |
1 |
|
|
35 |
60129182 |
Plug, oil |
2 |
|
|
36 |
60129208 |
Seal ring, O-type |
2 |
|
|
37 |
60287276 |
Transmission shell body |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

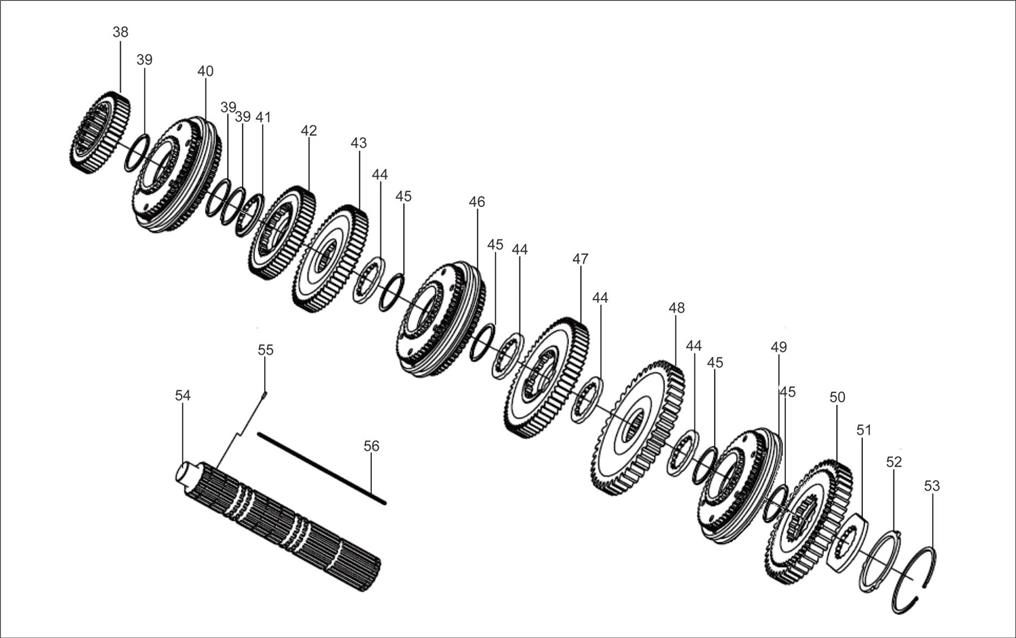

38 |
60287355 |
One shaft gear |
1 |
|
|
39 |
60075212 |
Ring, Stop |
3 |
|
|
40 |
60059690 |
Synchronization Assembly |
1 |
|
|
41 |
60075133 |
Spacer, Spline |
4 |
|
|
42 |
60287302 |
Second Shaft 4-gear |
1 |
|
|
43 |
60287301 |
Second Shaft 3-gear |
1 |
|
|
44 |
60287297 |
Spline cushion |
4 |
|
|
45 |
60287362 |
Stopping ring |
4 |
|
|
46 |
60287354 |
1-gear and 2-gear synchronizer assembly |
1 |
|
|
47 |
60287299 |
Second Shaft 2-gear |
1 |
|
|
48 |
60287303 |
Second Shaft 1-gear |
1 |
|
|
49 |
60256081 |
1-gear synchronizer assembly |
1 |
|
|
50 |
60287298 |
Second Shaft reversing-gear |
1 |
|
|
51 |
60256100 |
Main shaft gear washer |
1 |
|
|
52 |
60075201 |
Gasket |
1 |
|
|
53 |
60075117 |
Ring, Snap |
1 |
|
|
54 |
60287296 |
Second Shaft |
1 |
|
|
55 |
60122625 |
Clip |
1 |
|
|
56 |
60287300 |
hexagonal key |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

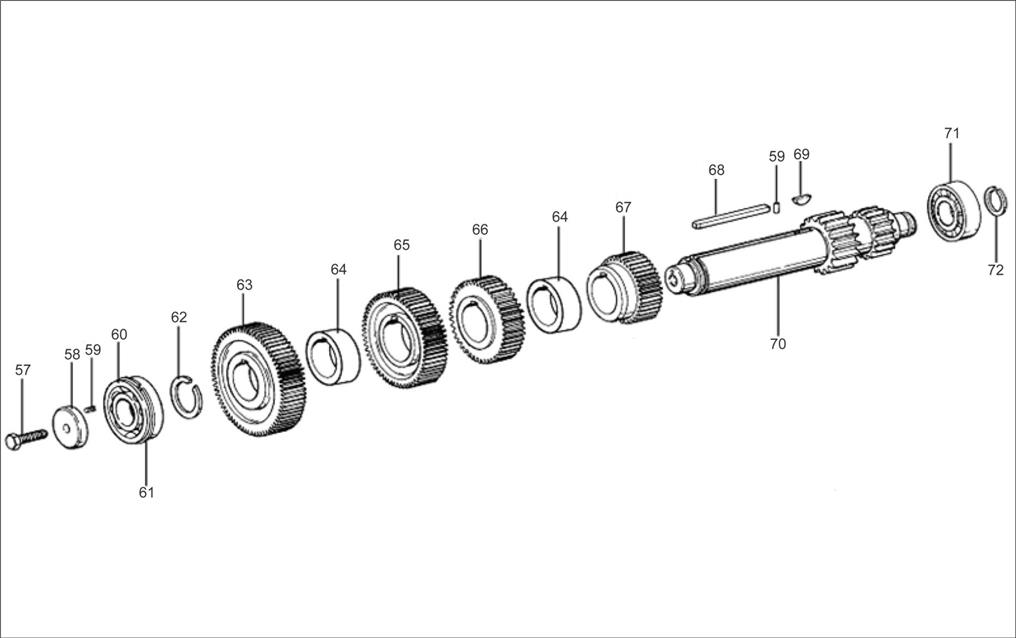

57 |
60287357 |
Bolts and spring washer combination part |
1 |
|
|
58 |
60075194 |
Retainer |
1 |
|
|
59 |
60122626 |
Clip |
1 |
|
|
60 |
60287294 |
cylindrical roller bearing |
1 |
|
|
61 |
60075214 |
Ring, Stop |
1 |
|
|
62 |
60075215 |
Ring, Snap |
1 |
|
|
63 |
60287368 |
Middle shaft transmission gear |
1 |
|
|
64 |
60287317 |
Separating collar |
2 |
|
|
65 |
60287371 |
Middle shaft 4-gear |
1 |
|
|
66 |
60287370 |
Middle shaft 3-gear |
1 |
|
|
67 |
60287369 |
Middle shaft 2-gear |
1 |
|
|
68 |
60287372 |
Middle shaft square key |
1 |
|
|
69 |
60075102 |
Key, Woodruff |
1 |
|
|
70 |
60287367 |
Middle shaft |
1 |
|
|
71 |
60287295 |
cylindrical roller bearing |
1 |
|
|
72 |
60287363 |
Stopping ring |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

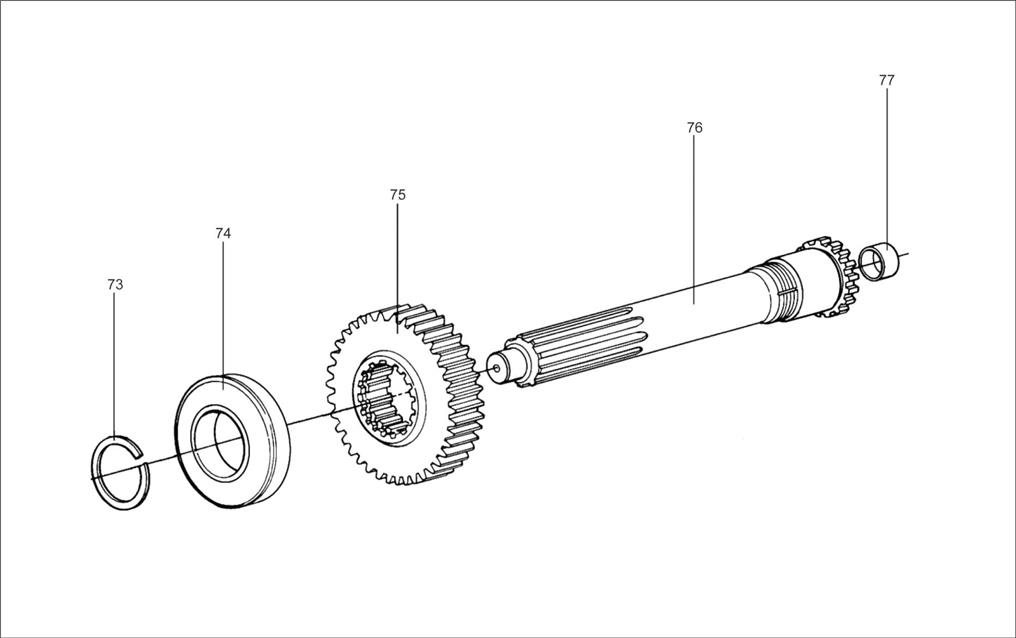

73 |
60287376 |
Retaining ring |
1 |
|
|
74 |
60256082 |
Bearing with check ring |
1 |
|
|
75 |
60287355 |
One shaft gear |
1 |
|
|
76 |
60256083 |
One shaft |
1 |
|
|
77 |
60075134 |
Sleeve, Guide |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

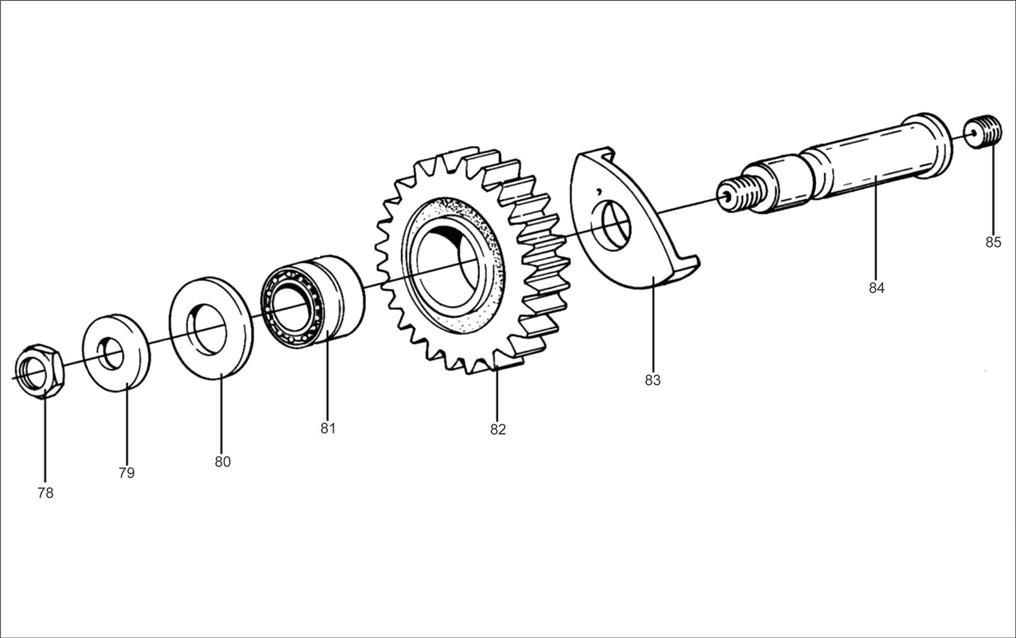

78 |
60287330 |
Nut |
2 |
|
|
79 |
60287291 |
Reversing middle shaft washer |
2 |
|
|
80 |
60287287 |
Reversing thrust washer |
2 |
|
|
81 |
60170817 |
Cylindrical Roller Bearing |
2 |
|
|
82 |
60287289 |
Reversing middle shaft gear |
2 |
|
|
83 |
60287275 |
Washer |
2 |
|
|
84 |
60287290 |
Reversing middle shaft |
2 |
|
|
85 |
60122648 |
Screw |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

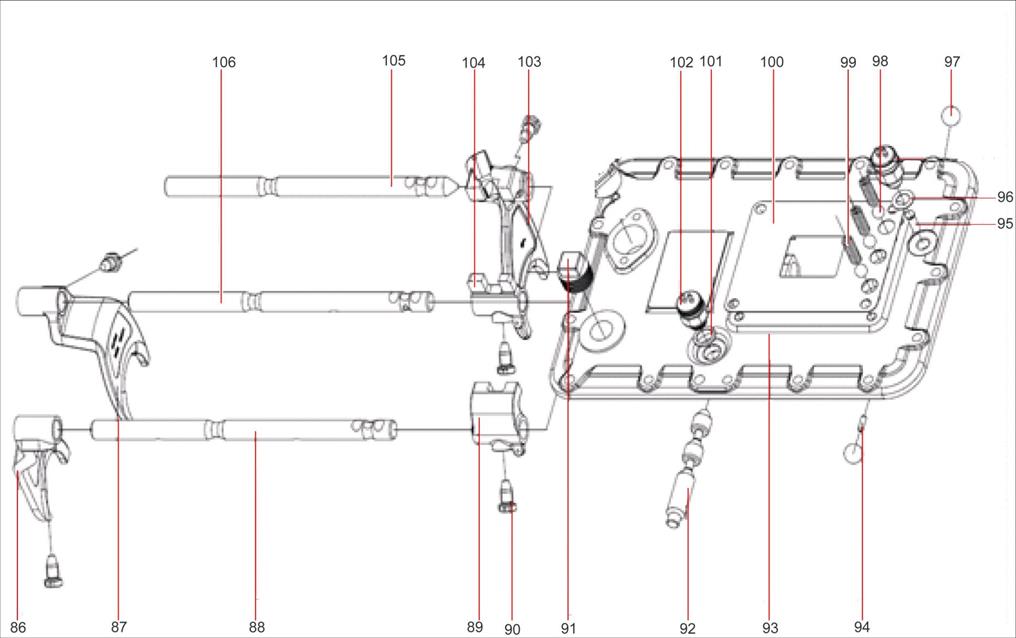

86 |
60075228 |
Fork Shift, Gear 3 & 4 |
1 |
|
|
87 |
60287352 |
1,2-gear shift fork |
1 |
|
|
88 |
60287338 |
3,4-gear shift fork shaft |
1 |
|
|
89 |
60075076 |
Block, Guide |
1 |
|
|
90 |
60075236 |
Screw |
5 |
|
|
91 |
60224914 |
Plug, Screw |
1 |
|
|
92 |
60075243 |
Rod, Servo |
1 |
|
|
93 |
60287339 |
Upper cover |
1 |
|
|
94 |
60075249 |
Pin |
1 |
|
|
95 |
60075251 |
Washer |
2 |
|
|
96 |
60247900 |
Switch, Pressure |
1 |
|
|
97 |
60287314 |
Steel Ball |
2 |
|
|
98 |
60287315 |
Steel Ball |
3 |
|
|
99 |
60287351 |
Compressed spring |
3 |
|
|
100 |
60075250 |
Gasket |
1 |
|
|
101 |
60122646 |
Washer, Sealing |
1 |
|
|
102 |
60125277 |
Switch, pressure |
1 |
|
|
103 |
60287352 |
1,2-gear shift fork |
1 |
|
|
104 |
60125244 |
Block, guide, gear 1&2 |
1 |
|
|
105 |
60287292 |
Low,reversing -gear shift fork shaft |
1 |
|
|
106 |
60287353 |
1,2 -gear shift fork shaft |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

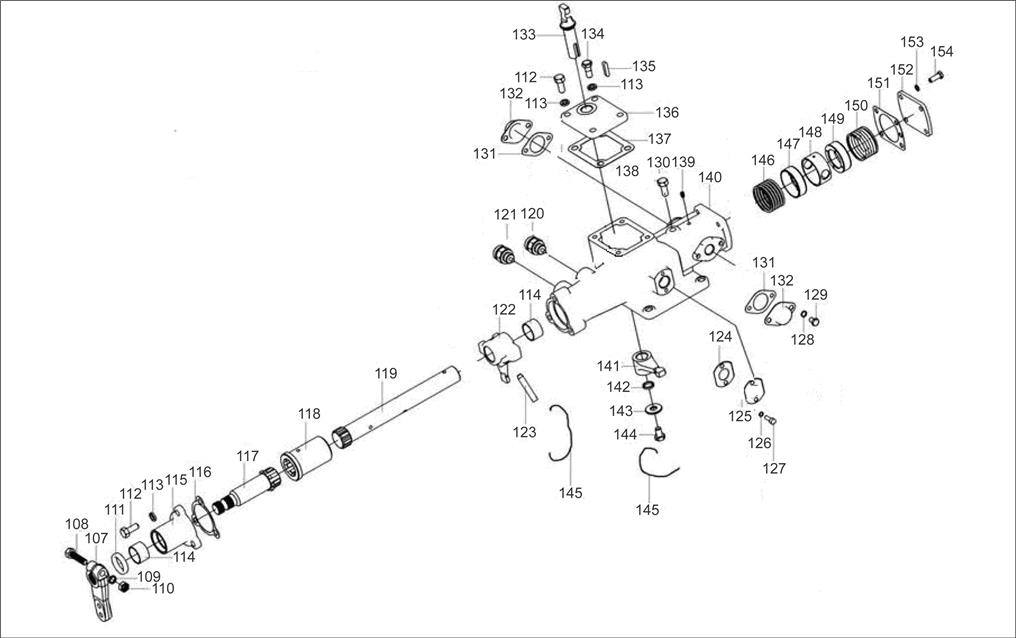

107 |
60129178 |
Arm, Shift |
1 |
|
|
108 |
60287346 |
Hexagon bolt |
1 |
|
|
109 |
24000604 |
Washer 6GB93-87 |
1 |
|
|
110 |
60287344 |
Hexagon nut |
1 |
|
|
111 |
60125276 |
Seal |
1 |
|
|
112 |
60287324 |
Hexagon bolt |
5 |
|
|
113 |
60287284 |
Spring washer |
7 |
|
|
114 |
60075151 |
Bushing |
2 |
|
|
115 |
60104343 |
Cap |
1 |
|
|
116 |
60075115 |
Gasket |
1 |
|
|
117 |
60104355 |
Adapter, Gear Shift |
1 |
|
|
118 |
60075081 |
Adapter, Spline |
1 |
|
|
119 |
60075074 |
Rod, Shift |
1 |
|
|
120 |
60122644 |
Plug |
1 |
|
|
121 |
60122643 |
Plug, Screw |
1 |
|
|
122 |
60075068 |
Block, Shift |
1 |
|
|
123 |
60104381 |
Pin |
1 |
|
|
124 |
60075176 |
Gasket |
1 |
|
|
125 |
60129190 |
Plate, Cover |
1 |
|
|
126 |
60287282 |
Washer, Spring |
2 |
|
|
127 |
60287331 |
Inner hexagon screw |
2 |
|
|
128 |
60107050 |
Washer, Spring |
4 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
129 |
60170894 |
Bolt, Hexagon |
4 |
|
|
130 |
60075178 |
Plug, Breather |
1 |
|
|
131 |
60075107 |
Gasket |
2 |
|
|
132 |
60075112 |
Gland |
2 |
|
|
133 |
60104371 |
Connector, gear range, selector |
1 |
|
|
134 |
60075128 |
Screw, Dowel |
2 |
|
|
135 |
60122649 |
Key |
1 |
|
|
136 |
60075110 |
Cover |
1 |
|
|
137 |
60075109 |
Gasket |
1 |
|
|
138 |
60075178 |
Plug, Breather |
1 |
|
|
139 |
60075188 |
Screw, Stop |
1 |
|
|
140 |
60075175 |
Housing |
1 |
|
|
141 |
60075078 |
Block, Shift |
1 |
|
|
142 |
60125229 |
O-ring |
1 |
|
|
143 |
60104341 |
Washer |
1 |
|
|
144 |
60122641 |
Bolt, Hexagon |
1 |
|
|
145 |
60104309 |
Wire, Steel |
1 |
|
|
146 |
60104375 |
Spring |
2 |
|
|
147 |
60075113 |
Retainer, Spring |
1 |
|
|
148 |
60164814 |
Ring, Dowel |
1 |
|
|
149 |
60075113 |
Retainer, Spring |
1 |
|
|
150 |
60104375 |
Spring |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
151 |
60075071 |
Gasket |
1 |
|
|
152 |
60075105 |
Plate, Cover |
1 |
|
|
153 |
60287325 |
Hexagon bolt |
2 |
|
|
154 |
60287281 |
Spring washer |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

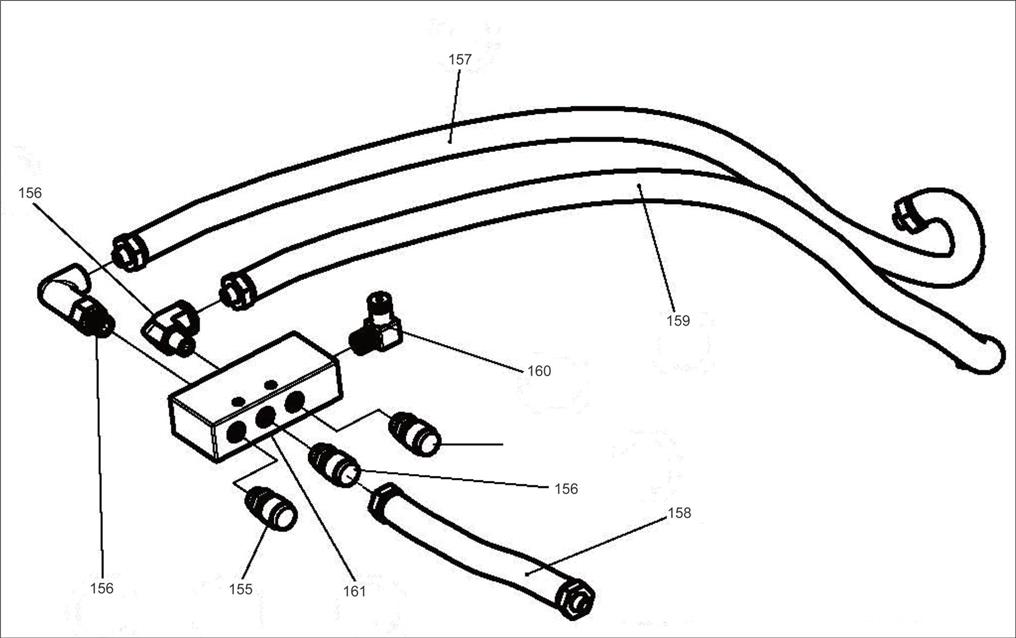

155 |
60075241 |
Plug, Breather |
2 |
|
|
156 |
60287361 |
Pipe connector |
5 |
|
|
157 |
60287334 |
Air pipe assembly |
1 |
|
|
158 |
60287335 |
Air pipe assembly |
1 |
|
|
159 |
60287336 |
Air pipe assembly |
1 |
|
|
160 |
60211872 |
90° Quick adaptor assembly |
1 |
|
|
161 |
60256120 |
Single-H air valve |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

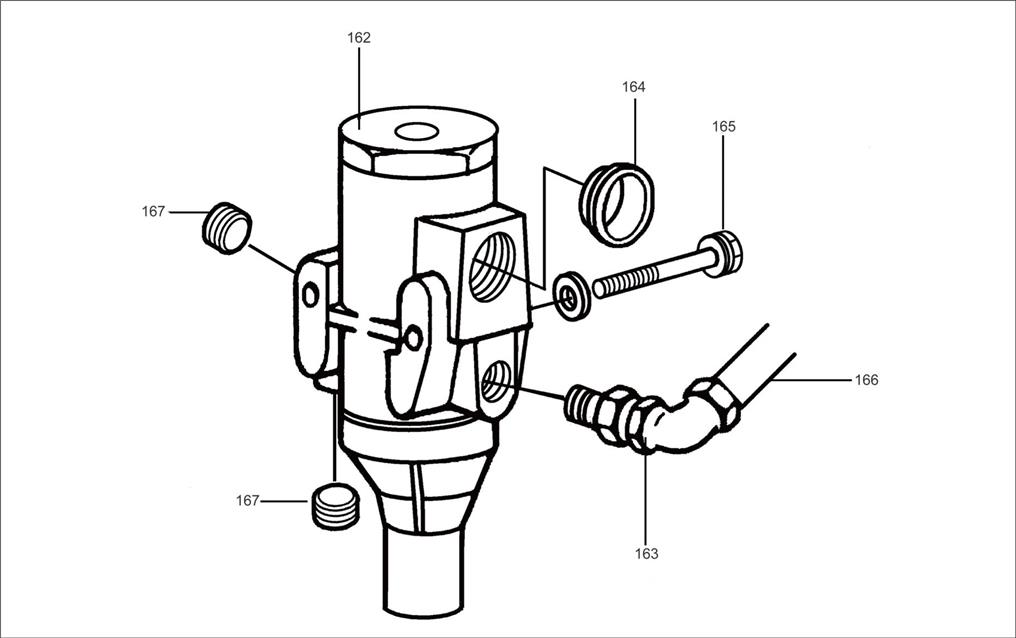

162 |
60037512 |
Regulator, Air Filter |
1 |
|
|
163 |
60075101 |
Fitting, Elbow |
1 |
|
|
164 |
60075067 |
Plug, Expansion |
1 |
|
|
165 |
60256093 |
Bolt with Washer |
2 |
|
|
166 |
60075217 |
Pipe Assembly |
1 |
|
|
167 |
60122642 |
Plug, Screw |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

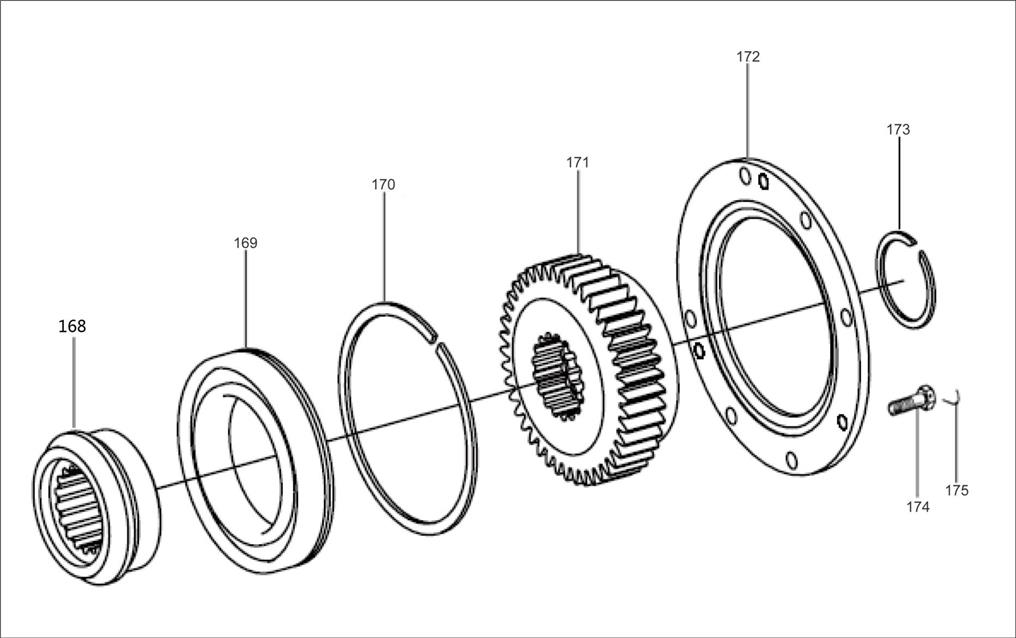

168 |
60287374 |
Bearing seat |
1 |
|
|
169 |
60122659 |
Bearing |
1 |
|
|
170 |
60075213 |
Ring, Stop |
1 |
|
|
171 |
60256094 |
Auxiliary box drive gear |
1 |
|
|
172 |
60287308 |
Locating disc |
1 |
|
|
173 |
60075212 |
Ring, Stop |
2 |
|
|
174 |
60287348 |
Bolt with hole |
6 |
|
|
175 |
60104309 |
Wire, Steel |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

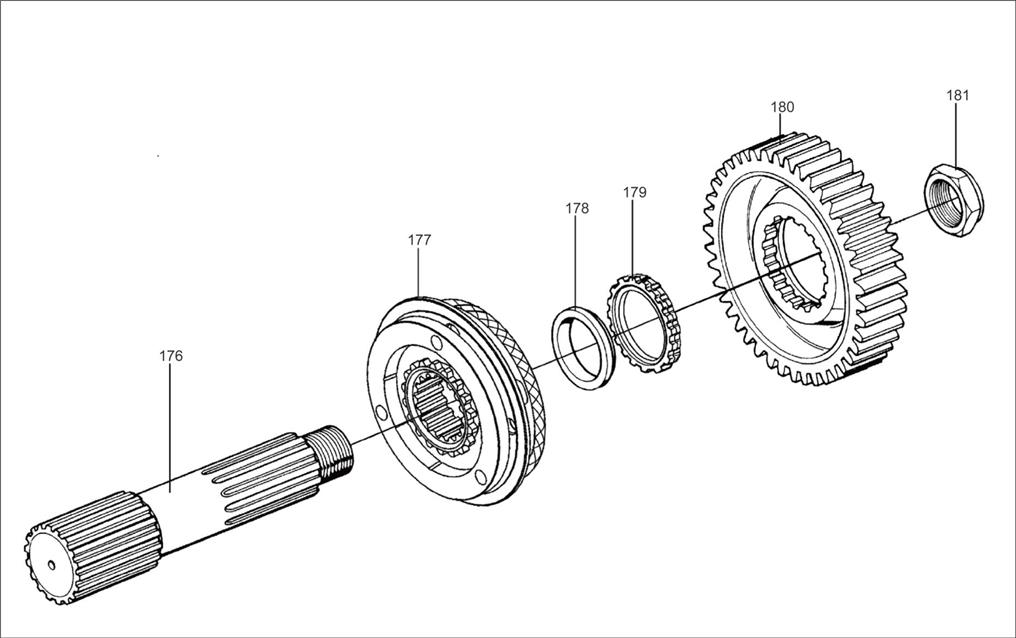

176 |
60287309 |
Auxiliary gear case main shaft |
1 |
|
|
177 |
60287316 |
synchronizer assembly |
1 |
|
|
178 |
60287311 |
Auxiliary gear case main shaft washer |
1 |
|
|
179 |
60287310 |
gear pressure plate |
1 |
|
|
180 |
60287313 |
main shaft speed-down gear |
1 |
|
|
181 |
60075179 |
Nut |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

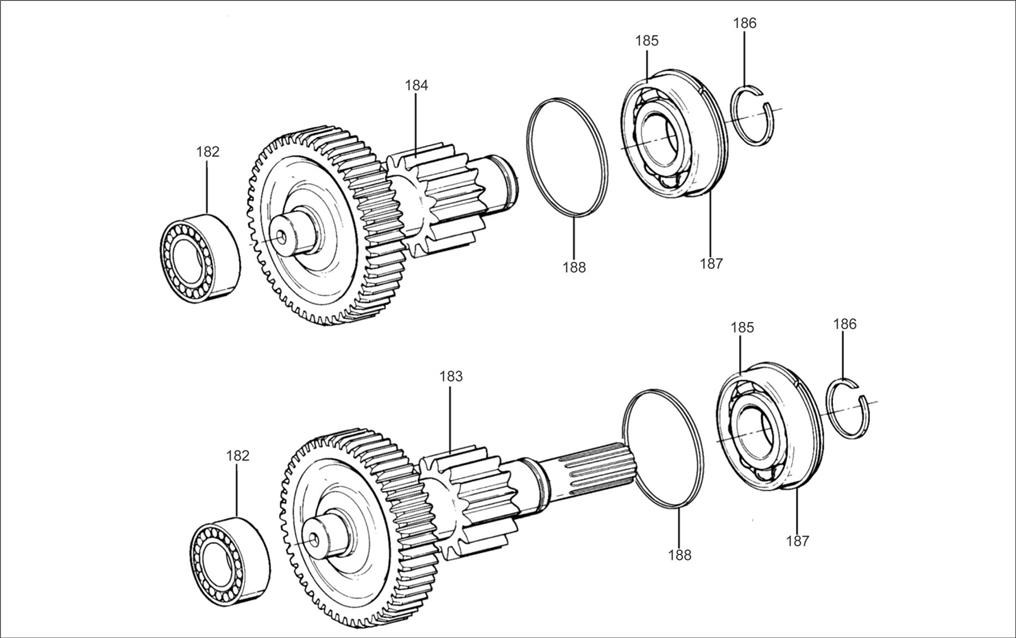

182 |
60104313 |
Bearing, Roller |
2 |
|
|
183 |
60287305 |
extended middle shaft welding assembly |
1 |
|
|
184 |
60287306 |
middle shaft welding assembly |
1 |
|
|
185 |
60104312 |
Bearing, Roller |
2 |
|
|
186 |
60075211 |
Ring, Stop |
2 |
|
|
187 |
60075256 |
Ring, Stop |
2 |
|
|
188 |
60075196 |
Washer, Bearing |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

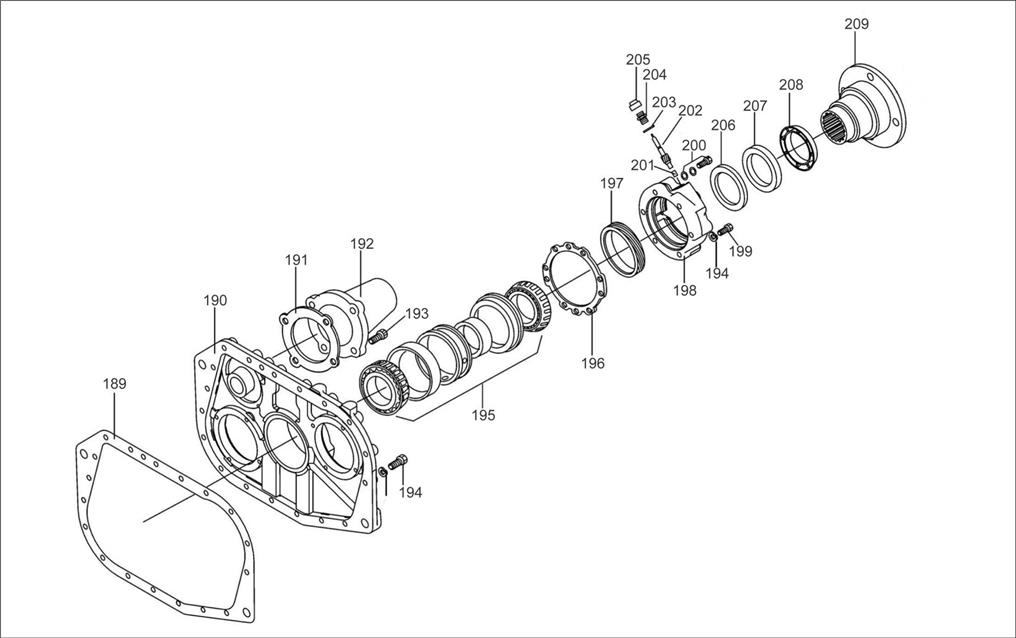

189 |
60287318 |
Rear cover cushion |
1 |
|
|
190 |
60287319 |
Rear cover shell body |
1 |
|
|
191 |
60287307 |
middle shaft bearing cover cushion |
2 |
|
|
192 |
60287321 |
Extended middle shaft bearing cover |
1 |
|
|
193 |
60075162 |
Bolt |
4 |
|
|
194 |
60287328 |
Bolts and spring washer combination part |
13 |
|
|
195 |
60287358 |
Conical roller bearing |
1 |
|
|
196 |
60287312 |
shaft bearing cover cushion |
1 |
|
|
197 |
60075092 |
Gear, Drive, Odometer |
1 |
|
|
198 |
60287342 |
Output shaft rear shaft bearing cover |
1 |
|
|
199 |
60287329 |
Bolts and spring washer combination part |
4 |
|
|
200 |
60075163 |
Bolt |
1 |
|
|
201 |
60075239 |
Bushing |
1 |
|
|
202 |
60075091 |
Gear, Idler, Odometer |
1 |
|
|
203 |
60125229 |
O-ring |
1 |
|
|
204 |
60075161 |
Fitting, Odometer |
1 |
|
|
205 |
60075220 |
Cap, Odometer |
1 |
|
|
206 |
A230101000344 |
Seal |
1 |
|
|
207 |
A230101000345 |
Seal |
1 |
|
|
208 |
60075140 |
Hood, Dust |
1 |
|
|
209 |
60287341 |
Output flange plate |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

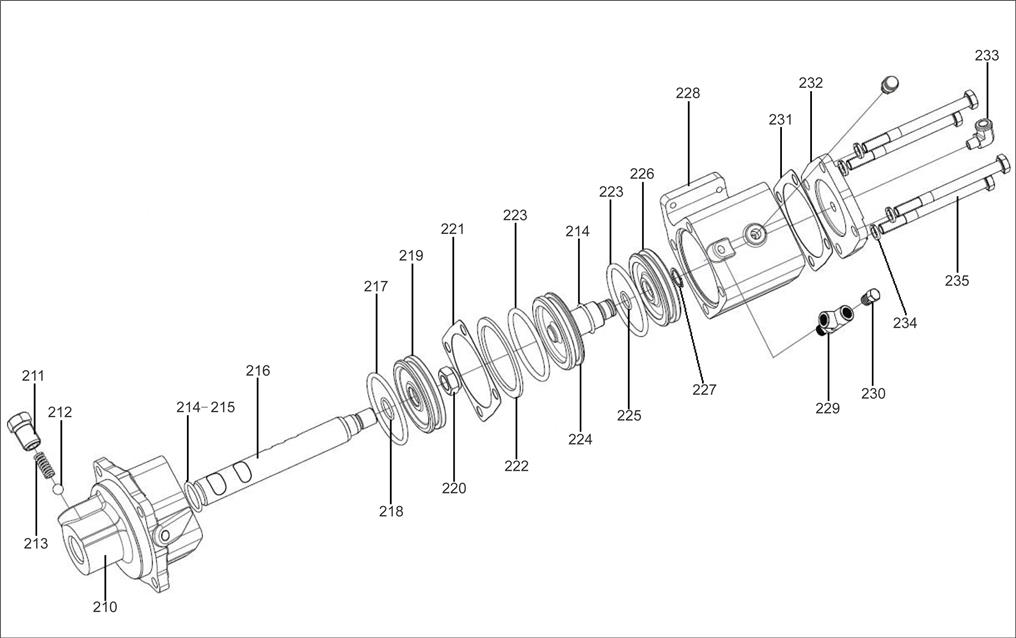

210 |
60287349 |
Bolt with hole |
2 |
|
|
211 |
60075254 |
Fork, Shift |
1 |
|
|
212 |
60075164 |
Cushion, Seal |
1 |
|
|
213 |
60256095 |
Range gear reversing shaft |
1 |
|
|
214 |
60075205 |
O-ring |
2 |
|
|
215 |
60287283 |
Spring washer |
4 |
|
|
216 |
60256096 |
Range gear reversing shaft |
1 |
|
|
217 |
60075203 |
O-ring |
1 |
|
|
218 |
60075139 |
Piston, Cylinder |
1 |
|
|
219 |
60075204 |
O-ring |
1 |
|
|
220 |
60287345 |
Hexagon nut |
4 |
|
|
221 |
60075240 |
Gasket, Cylinder Head |
1 |
|
|
222 |
60075127 |
Ring, Locating |
1 |
|
|
223 |
60075203 |
O-ring |
2 |
|
|
224 |
60287320 |
Piston sonnecting shaft |
1 |
|
|
225 |
60287272 |
O ring |
1 |
|
|
226 |
60287364 |
Middle position piston |
1 |
|
|
227 |
60287375 |
Elastic retaining ring |
1 |
|
|
228 |
60287365 |
Middle position air cylinder |
1 |
|
|
229 |
60075171 |
Fitting, Tee |
1 |
|
|
230 |
60125263 |
Plug, Screw |
1 |
|
|
231 |
60075240 |
Gasket, Cylinder Head |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
232 |
60287366 |
Middle position air cylinder cover |
1 |
|
|
233 |
60075101 |
Fitting, Elbow |
1 |
|
|
234 |
60287284 |
Spring washer |
4 |
|
|
235 |
60287326 |
Hexagon bolt |
4 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

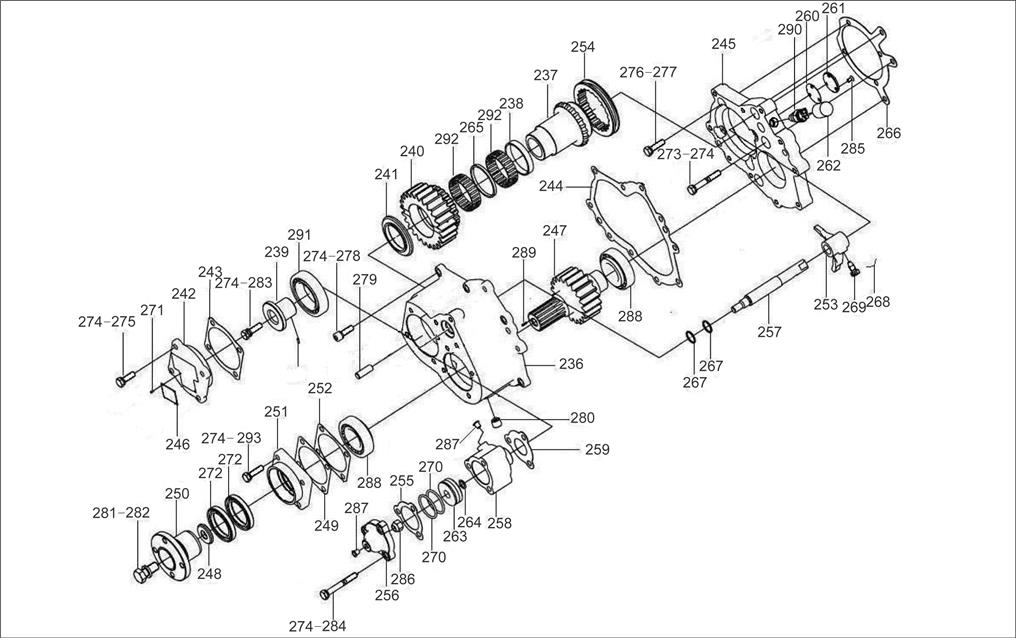

236 |
60287337 |
Power take-off shell body |
1 |
|
|
237 |
60129197 |
Shaft, hollow |
1 |
|
|
238 |
60075198 |
Spacer |
1 |
|
|
239 |
60075077 |
Adapter, Spline |
1 |
|
|
240 |
60287343 |
Input gear |
1 |
|
|
241 |
60075195 |
Retainer |
1 |
|
|
242 |
60075130 |
Cover, End |
1 |
|
|
243 |
60075131 |
Gasket |
1 |
|
|
244 |
60287279 |
Side cover cushion |
1 |
|
|
245 |
60287278 |
Side cover |
1 |
|
|
246 |
60287277 |
Nameplate |
1 |
|
|
247 |
60287340 |
Output gear shaft |
1 |
|
|
248 |
60075114 |
Retainer |
1 |
|
|
249 |
60075125 |
Cushion |
1 |
|
|
250 |
60287304 |
Flange plate |
1 |
|
|
251 |
60075197 |
Cover, Bearing |
1 |
|
|
252 |
60075079 |
Gasket |
1 |
|
|
253 |
60129212 |
Fork, shift |
1 |
|
|
254 |
60075160 |
Tooth sleeve, clutch |
1 |
|
|
255 |
60075167 |
Gasket, Cylinder |
1 |
|
|
256 |
60075166 |
Cover, Cylinder |
1 |
|
|
257 |
60129195 |
Fork shaft, piston |
1 |
