Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102453 |
Bolt, Flange, Hexagon |
12 |
|
|
2 |
60248197 |
Cover, Intake Manifold |
1 |
|
|
3 |
60248248 |
Screw, Hex Flange Head Cap |
2 |
|

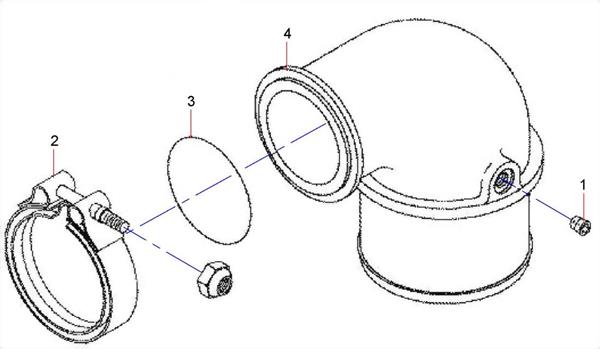

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248271 |
Plug, Pipe |
1 |
|
|
2 |
60057033 |
Clamp, V-type |
1 |
|
|
3 |
60057056 |
O-ring |
1 |
|
|
4 |
60174895 |
Pipe Air Transfer |
1 |
|

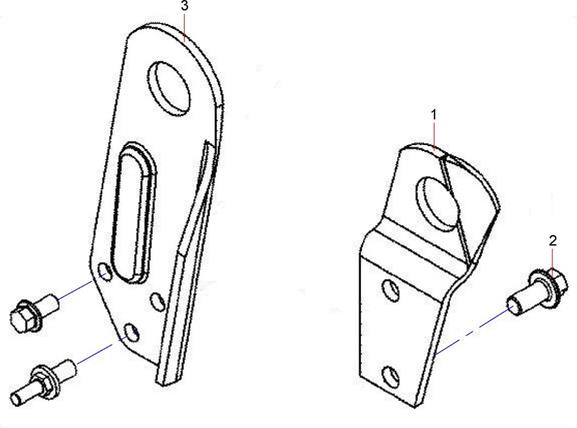

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248125 |
Bracket, Lifting |
1 |
|
|
2 |
60102468 |
Bolt, Flange, Hexagon |
2 |
|
|
3 |
60248126 |
Bracket, Lifting |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102472 |
Bolt, Flange, Hexagon |
2 |
|
|
2 |
60248249 |
Screw, Hex Flange Head Cap |
1 |
|

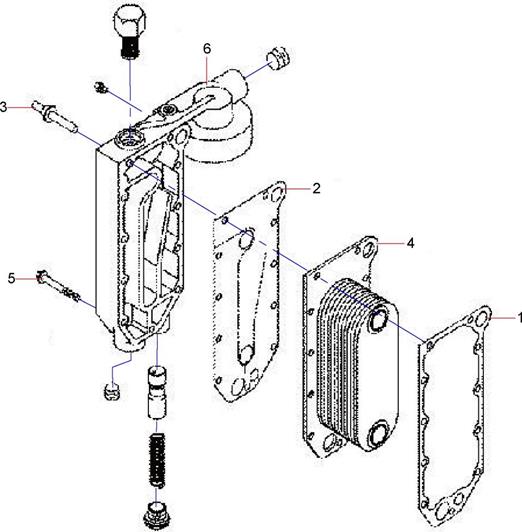

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248174 |
Gasket |
1 |
|
|
2 |
60248176 |
Gasket |
1 |
|
|
3 |
60248250 |
Screw, Hex Flange Head Cap |
3 |
|
|
4 |
60248173 |
Core, Cooler |
1 |
|
|
5 |
60248251 |
Screw, Hex Flange Head Cap |
8 |
|
|
6 |
60248178 |
Head, Lubricating Oil Filter |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60034226 |
Engine Oil Filter |
1 |
|

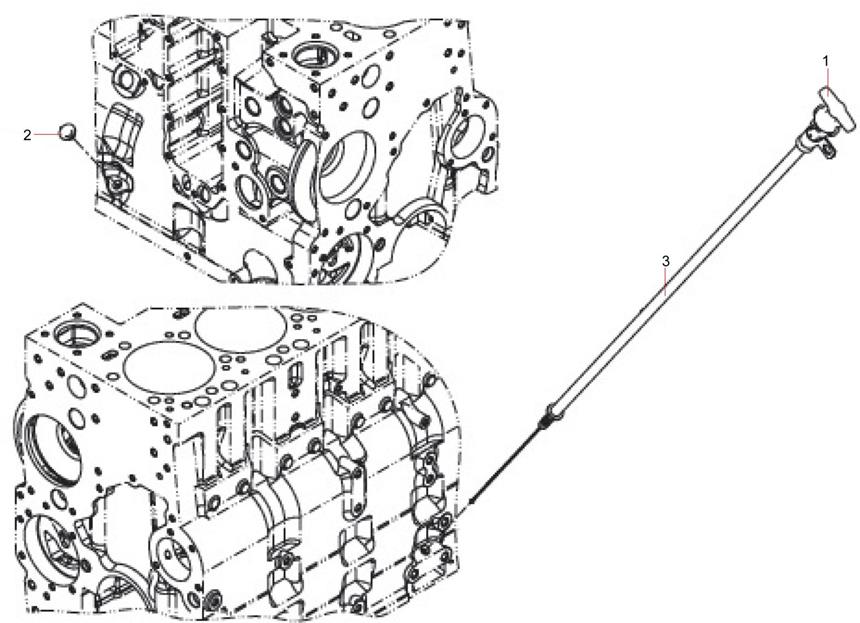

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248159 |
Clip |
1 |
|
|
2 |
60248353 |
Plug, Expansion |
1 |
|
|
3 |
60286219 |
Dipstick |
1 |
|

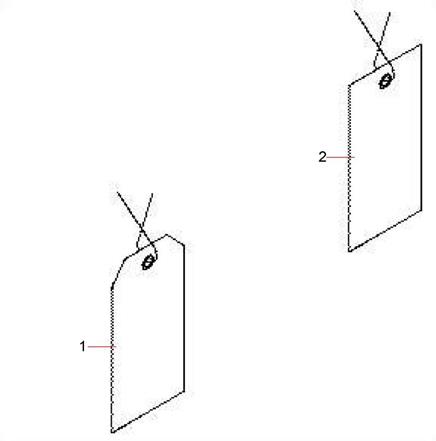

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102680 |
Tag |
1 |
|
|
2 |
60102681 |
Tag |
1 |
|

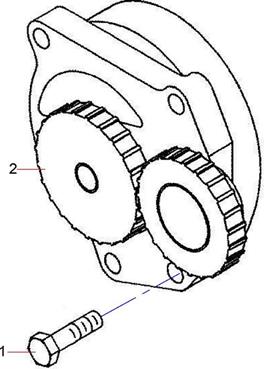

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102473 |
Bolt, Hexagon |
4 |
|
|
2 |
60234898 |
Engine Oil Pump |
1 |
|

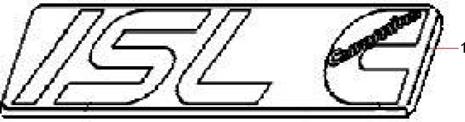

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248269 |
Nameplate |
1 |
|

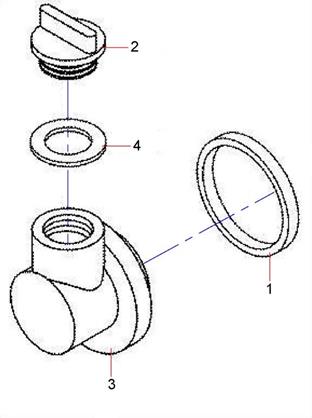

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248206 |
Seal, Rectangle |
1 |
|
|
2 |
60248183 |
Cap, Filler |
1 |
|
|
3 |
60248182 |
Connection, Oil Filler |
1 |
|
|
4 |
60078156 |
Seal Ring, Rectangular |
1 |
|

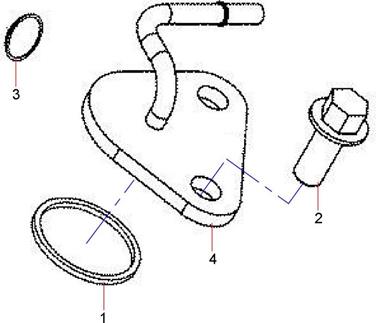

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248207 |
Seal, Rectangular Ring |
1 |
|
|
2 |
60102456 |
Bolt, Flange, Hexagon |
2 |
|
|
3 |
60248354 |
Plug, Expansion |
1 |
|
|
4 |
60248168 |
Tube, Return |
1 |
|

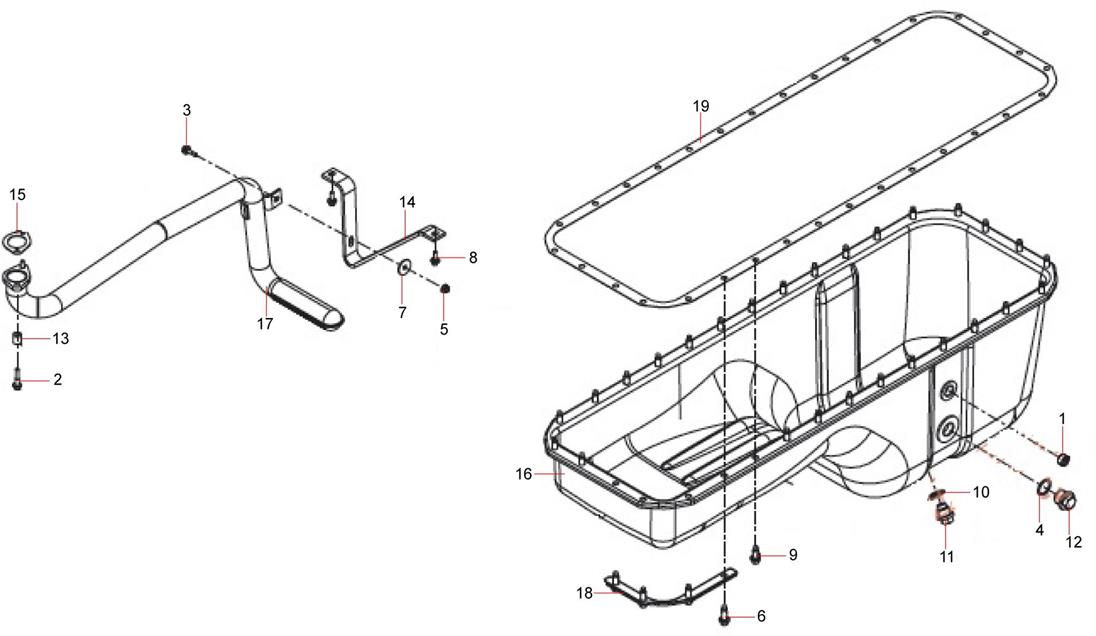

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248261 |
Plug, Screw |
1 |
|
|
2 |
60102448 |
Bolt, Flange, Hexagon |
2 |
|
|
3 |
60102452 |
Bolt, Flange, Hexagon |
1 |
|
|
4 |
A229900008903 |
Gasket, Seal |
1 |
|
|
5 |
60248225 |
Nut, Hexagon Flange |
1 |
|
|
6 |
60248252 |
Screw, Hex Flange Head Cap |
16 |
|
|
7 |
60102686 |
Washer |
1 |
|
|
8 |
60102457 |
Bolt, Flange, Hexagon |
2 |
|
|
9 |
60248253 |
Screw, Hex Flange Head Cap |
16 |
|
|
10 |
A229900008904 |
Gasket, Seal |
1 |
|
|
11 |
60248262 |
Plug,Threaded |
1 |
|
|
12 |
60248263 |
Plug,Threaded |
1 |
|
|
13 |
A229900008899 |
Plate, Spacer |
2 |
|
|
14 |
A229900008900 |
Support, Pipeline |
1 |
|
|
15 |
A229900008902 |
Seal |
1 |
|
|
16 |
60248372 |
Pan, Oil |
1 |
|
|
17 |
60286220 |
Connection, Oil Suction |
1 |
|
|
18 |
60248186 |
Plate, Clamping |
4 |
|
|
19 |
A229900008906 |
Gasket, Oil Pan |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60078098 |
Belt Pulley, Driven, Accessories |
1 |
|

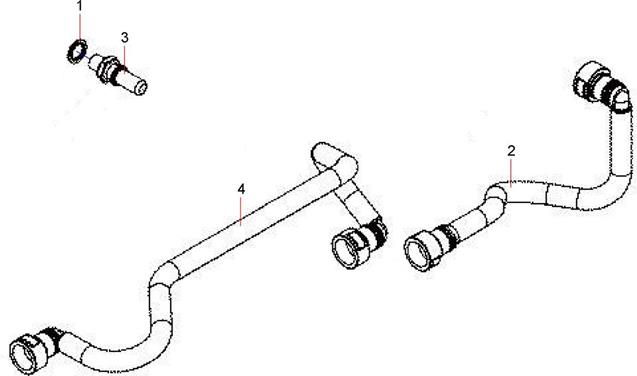

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248267 |
Washer, Sealing |
1 |
|
|
2 |
60248324 |
Tube, Fuel Supply |
1 |
|
|
3 |
60248191 |
Fitting, Adapter |
1 |
|
|
4 |
60248325 |
Tube, Fuel Supply |
1 |
|

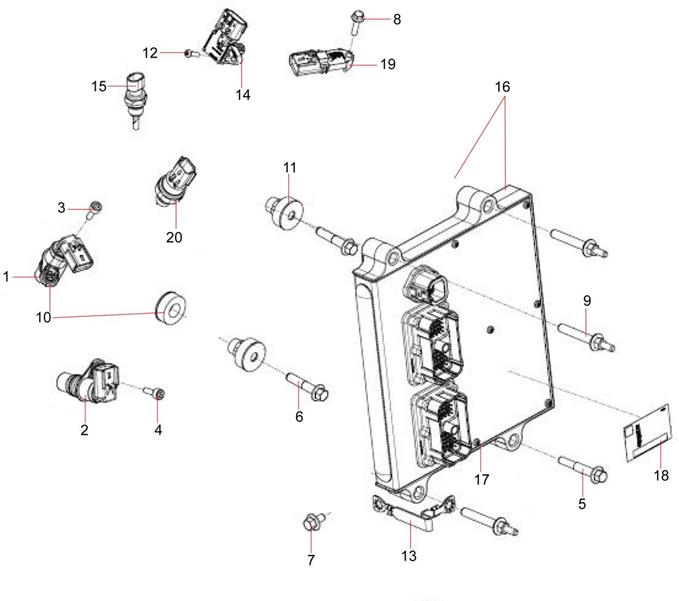

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60286268 |
Sensor, Position |
1 |
|
|
2 |
60286252 |
Sensor, Position |
1 |
|
|
3 |
60103926 |
Bolt, Flange, Hexagon |
1 |
|
|
4 |
60103927 |
Bolt, Flange, Hexagon |
1 |
|
|
5 |
60103929 |
Bolt, Flange, Hexagon |
1 |
|
|
6 |
60103931 |
Bolt, Flange, Hexagon |
4 |
|
|
7 |
60102457 |
Bolt, Flange, Hexagon |
1 |
|
|
8 |
60102326 |
Bolt, With Pad |
1 |
|
|
9 |
60102465 |
Bolt, Flange, Hexagon |
3 |
|
|
10 |
60102395 |
Pad, Damper |
4 |
|
|
11 |
60102396 |
Pad, Damper |
4 |
|
|
12 |
60102318 |
Bolt, Countersunk Head |
1 |
|
|
13 |
60102202 |
Wire, Bonding |
1 |
|
|
14 |
60286269 |
Sensor, Pressure Temperature |
1 |
|
|
15 |
60102664 |
Sensor, Temperature |
1 |
|
|
16 |
60174904 |
Module, ECM |
1 |
|
|
17 |
60102671 |
Module, ECM |
1 |
|
|
18 |
60286197 |
Dataplate |
1 |
|
|
19 |
60286271 |
Sensor, Pressure |
1 |
|
|
20 |
60286272 |
Sensor, Pressure |
1 |
|

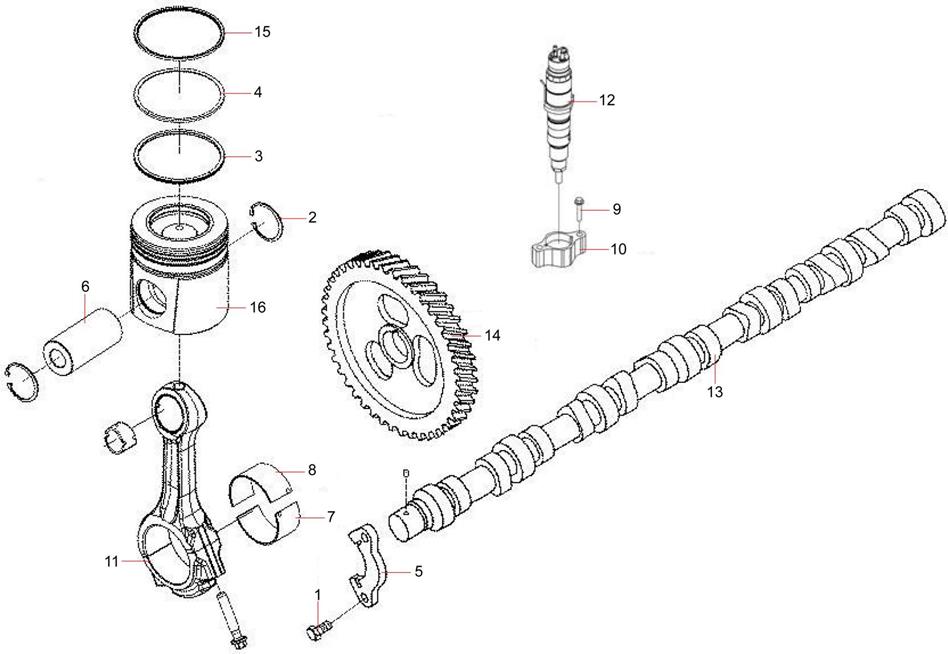

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248260 |
Screw, Hexagon Head Cap |
2 |
|
|
2 |
60151528 |
Ring, Retainer |
12 |
|
|
3 |
60069667 |
Ring, Oil Guide |
6 |
|
|
4 |
60248366 |
Ring, Compression Piston |
6 |
|
|
5 |
60248344 |
Support, Camshaft Thrust |
1 |
|
|
6 |
60151531 |
Pin, Piston |
6 |
|
|
7 |
60248220 |
Bearing, Connecting Rod |
6 |
|
|
8 |
60248221 |
Bearing, Connecting Rod |
6 |
|
|
9 |
60248254 |
Screw, Hex Flange Head Cap |
12 |
|
|
10 |
60286240 |
Clamp, Injector |
6 |
|
|
11 |
60248219 |
Rod, Engine Connecting |
6 |
|
|
12 |
60226228 |
Injector |
6 |
|
|
13 |
60286265 |
Camshaft |
1 |
|
|
14 |
60286266 |
Gear, Camshaft |
1 |
|
|
15 |
60286217 |
Ring, Compression Piston |
6 |
|
|
16 |
60286216 |
Piston, Engine |
6 |
|

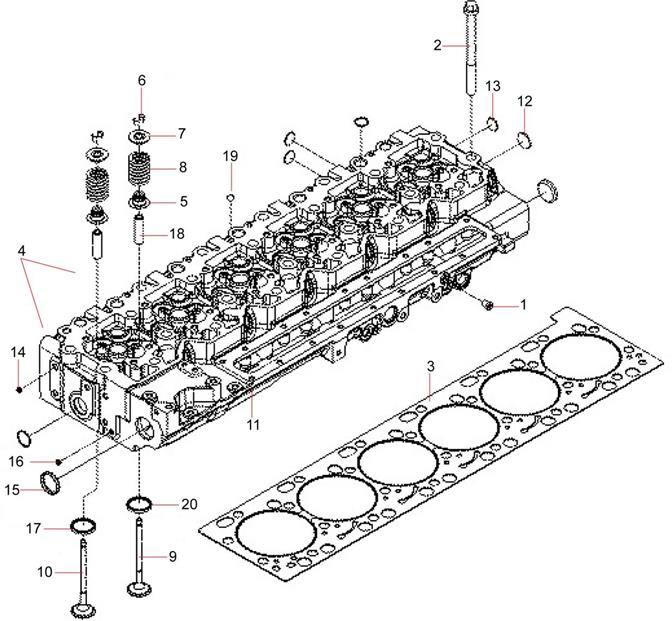

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102488 |
Plug, Screw |
1 |
|
|
2 |
60248255 |
Screw, Hex Flange Head Cap |
26 |
|
|
3 |
60166569 |
Cushion, Cylinder |
1 |
|
|
4 |
60286211 |
Head, Cylinder |
1 |
|
|
5 |
60286243 |
Seal,Valve Stem |
24 |
|
|
6 |
60286247 |
Collet, Valve |
48 |
|
|
7 |
60234895 |
Spring Stand |
24 |
|
|
8 |
60248288 |
Valve, Spring |
24 |
|
|
9 |
60286238 |
Valve, Exhaust |
12 |
|
|
10 |
60286224 |
Valve, Intake |
12 |
|
|
11 |
60286212 |
Head, Cylinder |
1 |
|
|
12 |
60248355 |
Plug, Expansion |
2 |
|
|
13 |
60248356 |
Plug, Expansion |
1 |
|
|
14 |
60248357 |
Plug, Expansion |
2 |
|
|
15 |
60248360 |
Plug, Expansion |
6 |
|
|
16 |
60248358 |
Plug, Expansion |
1 |
|
|
17 |
60286249 |
Insert, Valve |
12 |
|
|
18 |
60286248 |
Guide, Valve Stem |
24 |
|
|
19 |
60286267 |
Plug, Expansion |
18 |
|
|
20 |
60286250 |
Insert, Valve |
12 |
|

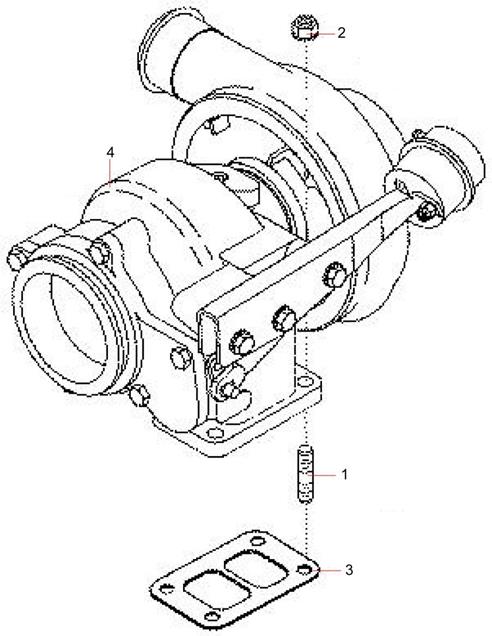

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60174901 |
Stud |
4 |
|
|
2 |
60174898 |
Nut Hexagon Flange |
4 |
|
|
3 |
60248379 |
Gasket, Turbocharger |
1 |
|
|
4 |
60014156 |
Turbocharger |
1 |
|

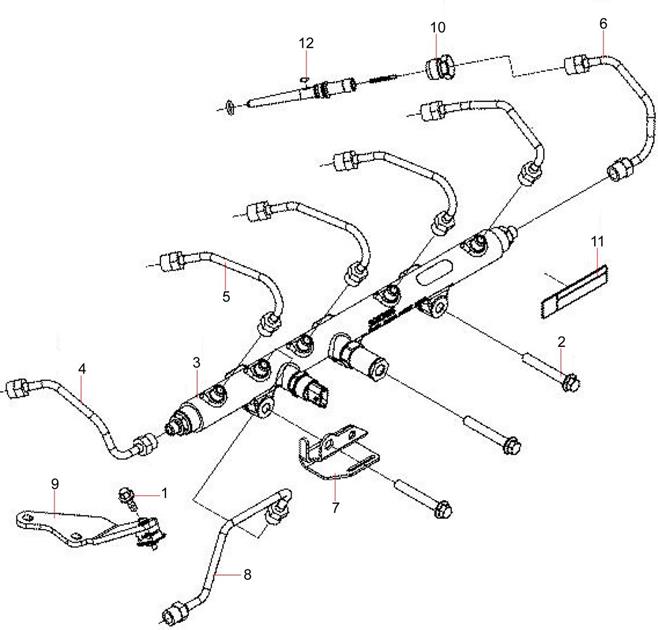

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102452 |
Bolt, Flange, Hexagon |
1 |
|
|
2 |
60248243 |
Screw, Hex Flange Head Cap |
3 |
|
|
3 |
60277421 |
Fuel Common Rail Pipe |
1 |
|
|
4 |
60248153 |
Tube, Injector Fuel Suppl |
1 |
|
|
5 |
60248154 |
Tube, Injector Fuel Suppl |
4 |
|
|
6 |
60248155 |
Tube, Injector Fuel Suppl |
1 |
|
|
7 |
60248383 |
Brace, Tube |
1 |
|
|
8 |
60248326 |
Tube, Fuel Supply |
1 |
|
|
9 |
60248162 |
Brace, Tube |
1 |
|
|
10 |
60286241 |
Retainer, Injector Fuel Supply |
6 |
|
|
11 |
60248109 |
Decal |
1 |
|
|
12 |
60286261 |
Connector, Injector Fuel Supply |
6 |
|

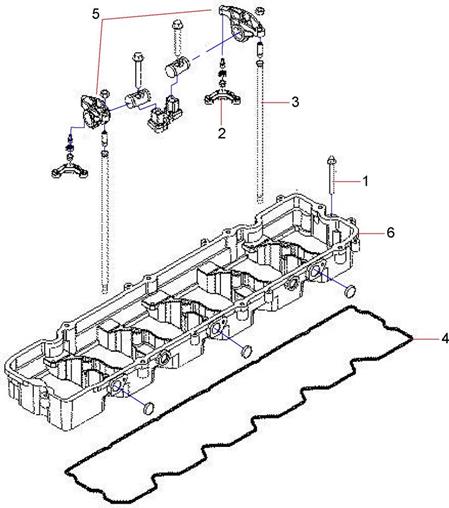

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60102451 |
Bolt, Flange, Hexagon |
7 |
|
|
2 |
60248291 |
Crosshead, Valve |
12 |
|
|
3 |
60248345 |
Rod, Push |
12 |
|
|
4 |
60248367 |
Gasket, Rocker Lever Housing |
1 |
|
|
5 |
60248368 |
Assembly, Rocker Lever |
6 |
|
|
6 |
60174902 |
Housing Rocker Lever |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248192 |
Fitting, Orifice |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60248328 |
Screw, Twelve Point Cap |
3 |
|

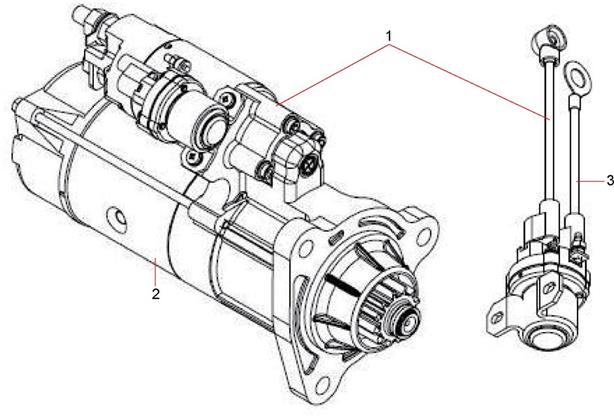

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60106707 |
Starter |
1 |
|
|
2 |
60248287 |
Motor, Starting |
1 |
|
|
3 |
60248181 |
Relay |
1 |
|

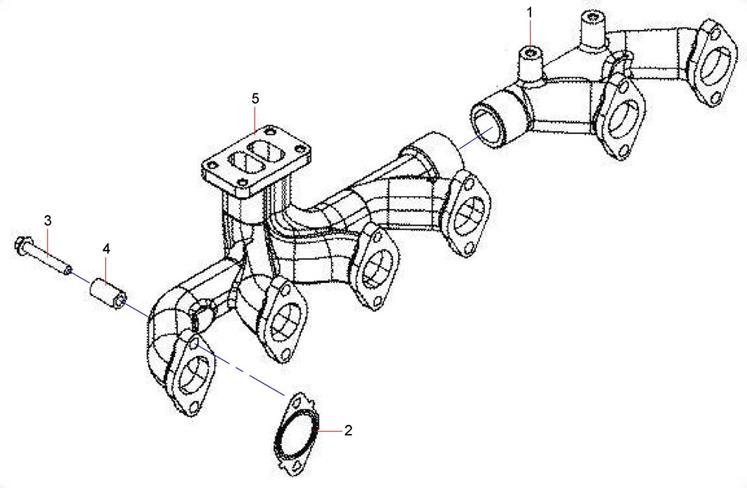

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60106754 |
Manifold, Exhaust |
1 |
|
|
2 |
60248279 |
Gasket, Exhaust Manifold |
6 |
|
|
3 |
60102464 |
Bolt, Flange, Hexagon |
12 |
|
|
4 |
60102196 |
Spacer |
12 |
|
|
5 |
60106755 |
Manifold, Exhaust |
1 |
