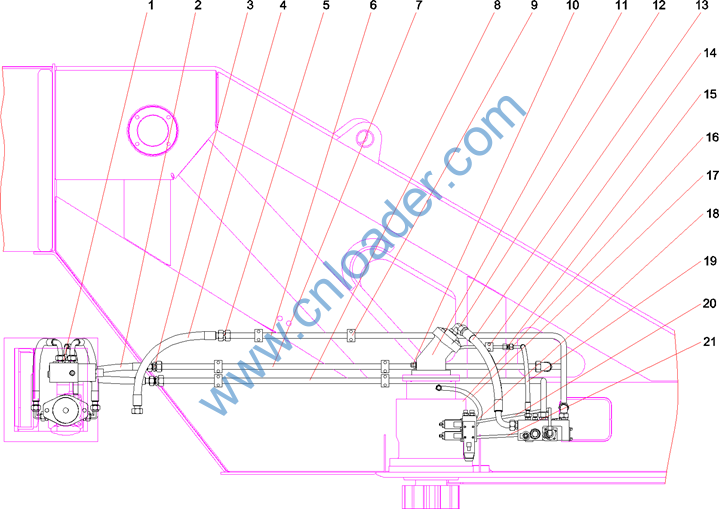

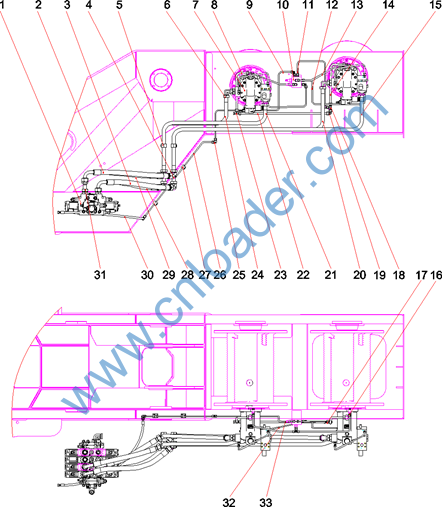

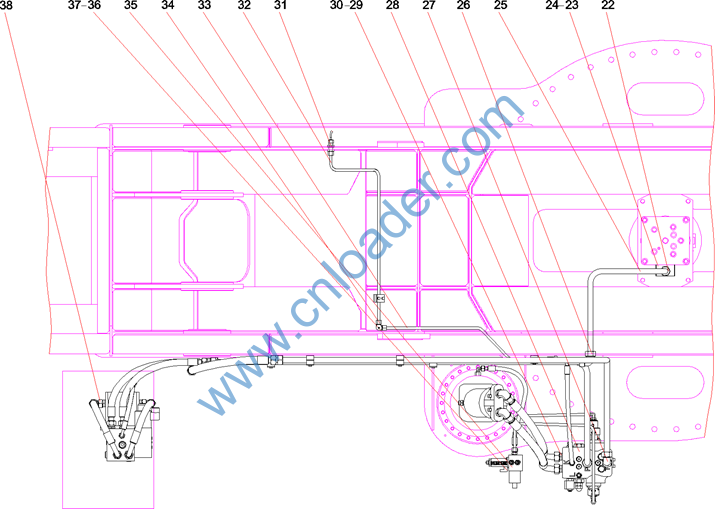

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
12684634 |
主阀装配总成 |
1 |
|
|
2 |
12985550 |
胶管/SY1102 |
1 |
|
|
3 |
B230103002927 |
胶管 |
1 |
|
|
4 |
B210780001732 |
直角接头 |
4 |
|
|
5 |
A229900002040 |
单联管夹 |
4 |
|
|
6 |
B210780001241 |
直角组合接头 |
2 |
|
|
7 |
13688043 |
卷扬马达平衡阀过渡块总成STC500S-D.4.1.18 |
2 |
|
|
8 |
12399583 |
钢管总成 |
1 |
|
|
9 |
13395804 |
钢管总成 |
1 |
|
|
10 |
13068885 |
双联液控阀总成 |
1 |
|
|
11 |
13395802 |
钢管总成 |
1 |
|
|
12 |
13395808 |
钢管总成 |
1 |
|
|
13 |
13687648 |
钢管总成 |
1 |
|
|
14 |
12399577 |
钢管总成 |
1 |
|
|
15 |
13071796 |
钢管总成 |
1 |
|
|
16 |
B210780001286 |
端直通接头 |
2 |
|
|
17 |
B210780000636 |
直角组合接头 |
8 |
|
|
18 |
B210780000199 |
三通变径接头TRLM22-LM16-LM22 |
1 |
|
|
19 |
B210780000025 |
直角组合接头 |
1 |
|
|
20 |
13071798 |
钢管总成 |
1 |
|
|
21 |
13071800 |
钢管总成 |
1 |
|
|
22 |
12399581 |
钢管总成 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
B210780000798 |
三通接头 |
1 |
|
|
24 |
13071794 |
钢管总成 |
1 |
|
|
25 |
24004634 |
直通接头 |
2 |
|
|
26 |
12399591 |
钢管总成 |
1 |
|
|
27 |
A229900002415 |
单联管夹 |
2 |
|
|
28 |
B230103001770 |
胶管Q/SY1102 |
1 |
|
|
29 |
B230103004102 |
胶管 |
1 |
|
|
30 |
B230103003136 |
胶管Q/SY1102 |
1 |
|
|
31 |
11293499 |
钢管总成 |
2 |
|
|
32 |
13687646 |
钢管总成 |
1 |
|
|
33 |
13395806 |
钢管总成 |
1 |
|

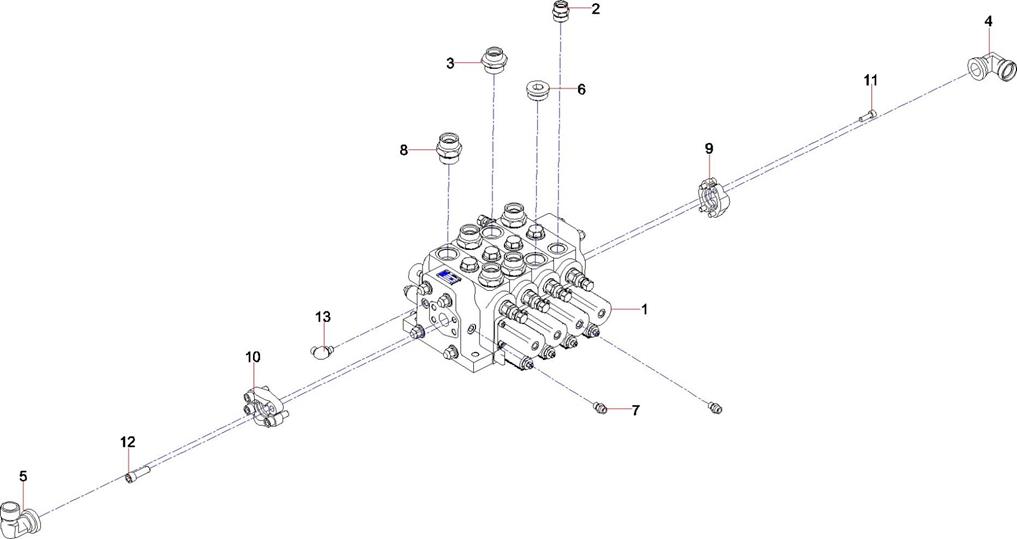

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13100306 |
多路阀 |
1 |
|
|
2 |
A229900002582 |
端直通接头 |
1 |
|
|
3 |
A229900003027 |
端直通接头 |
1 |
|
|
4 |
A210770000614 |
直角法兰接头 |
1 |
|
|
5 |
A210770000615 |
直角法兰接头 |
1 |
|
|
6 |
A229900003573 |
堵头 |
1 |
|
|
7 |
B210780000036 |
端直通接头 |
4 |
|
|
8 |
B210780000053 |
端直通接头 |
5 |
|
|
9 |
B210780000217 |
对开法兰FHS35LA3CX |
2 |
|
|
10 |
B210780000693 |
对开法兰 |
1 |
|
|
11 |
A210204000354 |
螺钉 M10×30GB70.1 10.9级 |
4 |
|
|
12 |
A210204000035 |
螺钉M14×45GB70.1 |
4 |
|
|
13 |
B210780000439 |
端直角可调向接头WEELM14-LM16 |
1 |
|

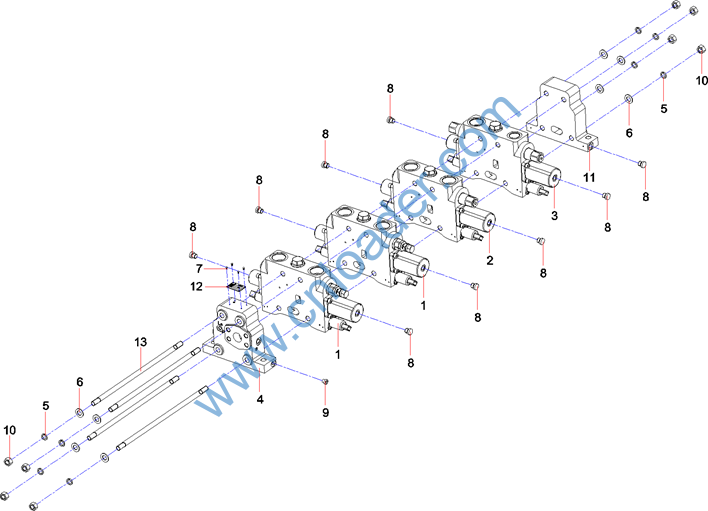

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13099966 |
卷扬联组件M28C104.1 |
2 |
|
|
2 |
13100055 |
变幅联组件M28C104.2 |
1 |
|
|
3 |
13100089 |
伸缩联组件 |
1 |
|
|
4 |
13100097 |
进回油一组件M28C104.4 |
1 |
|
|
5 |
A210401000003 |
垫圈 |
8 |
|
|
6 |
A210405000002 |
垫圈 |
8 |
|
|
7 |
A210510000007 |
铆钉 |
4 |
|
|
8 |
A229900002547 |
堵头 |
9 |
|
|
9 |
A229900002606 |
堵头 |
1 |
|
|
10 |
A210307000025 |
螺母 |
8 |
|
|
11 |
13099707 |
进回油二阀体 |
1 |
|
|
12 |
13429053 |
铭牌M28C106-3 |
1 |
|
|
13 |
13088689 |
紧固螺栓M14×429 |
4 |
|

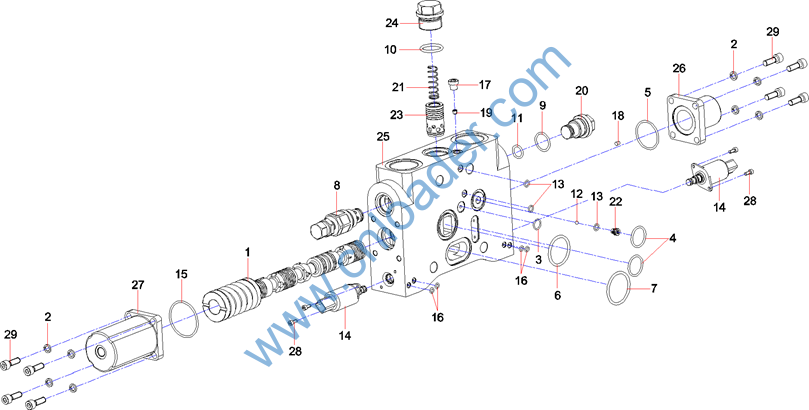

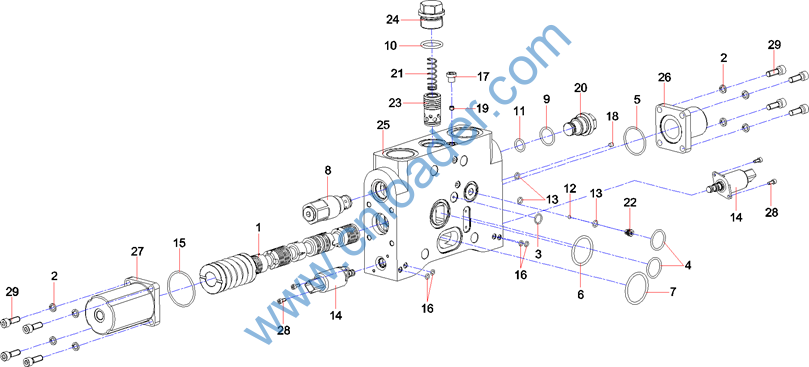

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13869889 |
卷扬阀杆组件M28C104.1.1 |
1 |
|
|
2 |
A210401000017 |
垫圈 |
8 |
|
|
3 |
A210609000097 |
O形圈12.5×1.8GB3452.1 |
1 |
|
|
4 |
A210609000042 |
O形圈 |
2 |
|
|
5 |
A31C203870265 |
O形圈38.7×2.65GB3452.1 |
1 |
|
|
6 |
A210609000051 |
O形圈 |
1 |
|
|
7 |
A210609000138 |
O形圈42.5×3.55GB3452.1 |
1 |
|
|
8 |
60024941 |
过载阀 |
1 |
|
|
9 |
60246790 |
O形圈23.6×2.65GB3452.1 N70 |
1 |
|
|
10 |
60246791 |
O形圈26.57×3.53AS568-215 N70 |
1 |
|
|
11 |
60246792 |
O形圈15×2.65GB3452.1 N70 |
1 |
|
|
12 |
60255752 |
钢球GCr155G10+4GB308.1 |
1 |
|
|
13 |
60267000 |
O形圈7.1×1.8GB3452.1 N70 |
3 |
|
|
14 |
60277823 |
电磁换向阀PPCD04-001-a-a-25-24-D-N-0 |
2 |
|
|
15 |
A210609000065 |
O形圈50×2.65GB3452.1 |
1 |
|
|
16 |
A31C200500100 |
O形圈 |
4 |
|
|
17 |
A229900002606 |
堵头 |
1 |
|
|
18 |
A229900010656 |
球涨式堵头5×5.5JB9157 |
1 |
|
|
19 |
12616957 |
φ0_5阻尼M28A001.3-3 |
1 |
|
|
20 |
11259982 |
插装堵M28A001.4-5 |
1 |
|
|
21 |
11987646 |
单向阀弹簧M28A001.5-10 |
1 |
|
|
22 |
13066945 |
梭阀座M28C100.1-3 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
13066915 |
补偿阀芯M28C100.1-4 |
1 |
|
|
24 |
13066918 |
补偿阀堵M28C100.1-5 |
1 |
|
|
25 |
13099827 |
工作联阀体M28C104.1-1 |
1 |
|
|
26 |
12983263 |
前端盖M28C104.1-6 |
1 |
|
|
27 |
12983219 |
后端盖M28C104.1-8 |
1 |
|
|
28 |
A210204000318 |
螺钉M4×10GB70.1 |
4 |
|
|
29 |
A210204000162 |
螺钉 M8×25GB70.1 |
8 |
|

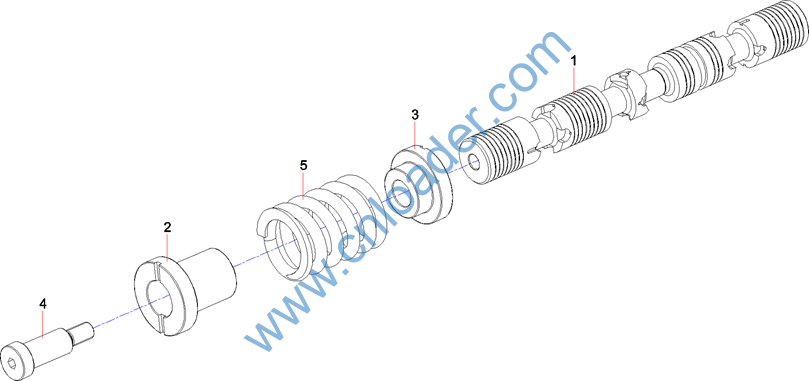

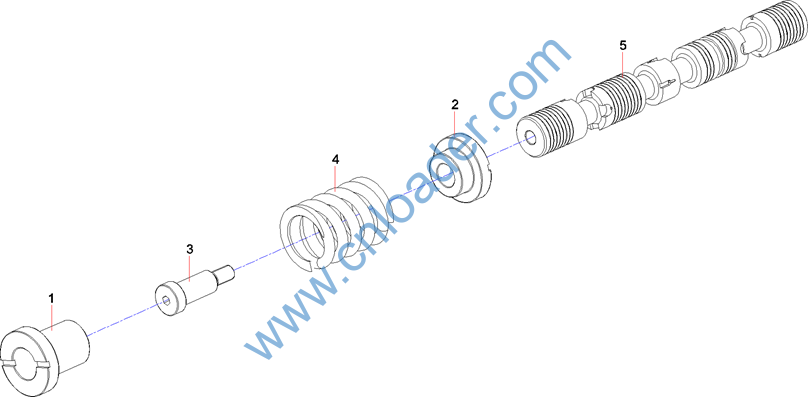

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13225272 |
卷扬阀杆M28C104.1-2 |
1 |
|
|
2 |
12986560 |
长弹簧座M28C104.1-3 |
1 |
|
|
3 |
12986569 |
短弹簧座M28C104.1-4 |
1 |
|
|
4 |
12986577 |
连接杆M28C104.1-5 |
1 |
|
|
5 |
12981268 |
复位弹簧M28C104.1-7 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13869833 |
变幅阀杆组件M28C104.2.1 |
1 |
|
|
2 |
A210401000017 |
垫圈 |
8 |
|
|
3 |
A210609000097 |
O形圈12.5×1.8GB3452.1 |
1 |
|
|
4 |
A210609000042 |
O形圈 |
2 |
|
|
5 |
A31C203870265 |
O形圈38.7×2.65GB3452.1 |
1 |
|
|
6 |
A210609000051 |
O形圈 |
1 |
|
|
7 |
A210609000138 |
O形圈42.5×3.55GB3452.1 |
1 |
|
|
8 |
60209459 |
溢流阀CYF12-02-00 |
1 |
|
|
9 |
60246790 |
O形圈23.6×2.65GB3452.1 N70 |
1 |
|
|
10 |
60246791 |
O形圈26.57×3.53AS568-215 N70 |
1 |
|
|
11 |
60246792 |
O形圈15×2.65GB3452.1 N70 |
1 |
|
|
12 |
60255752 |
钢球GCr155G10+4GB308.1 |
1 |
|
|
13 |
60267000 |
O形圈7.1×1.8GB3452.1 N70 |
3 |
|
|
14 |
60277823 |
电磁换向阀PPCD04-001-a-a-25-24-D-N-0 |
2 |
|
|
15 |
A210609000065 |
O形圈50×2.65GB3452.1 |
1 |
|
|
16 |
A31C200500100 |
O形圈 |
4 |
|
|
17 |
A229900002606 |
堵头 |
1 |
|
|
18 |
A229900010656 |
球涨式堵头5×5.5JB9157 |
1 |
|
|
19 |
12616957 |
φ0_5阻尼M28A001.3-3 |
1 |
|
|
20 |
11259982 |
插装堵M28A001.4-5 |
1 |
|
|
21 |
11987646 |
单向阀弹簧M28A001.5-10 |
1 |
|
|
22 |
13066945 |
梭阀座M28C100.1-3 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
13066915 |
补偿阀芯M28C100.1-4 |
1 |
|
|
24 |
13066918 |
补偿阀堵M28C100.1-5 |
1 |
|
|
25 |
13099827 |
工作联阀体M28C104.1-1 |
1 |
|
|
26 |
12983263 |
前端盖M28C104.1-6 |
1 |
|
|
27 |
13087231 |
后端盖二M28C107.2-2 |
1 |
|
|
28 |
A210204000318 |
螺钉M4×10GB70.1 |
4 |
|
|
29 |
A210204000162 |
螺钉 M8×25GB70.1 |
8 |
|

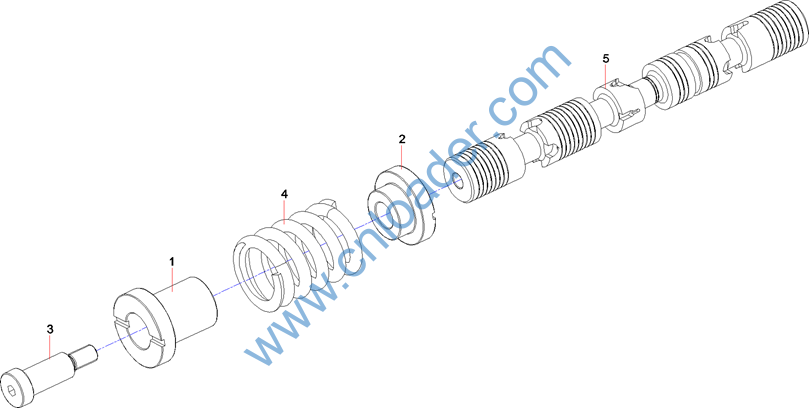

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
12986560 |
长弹簧座M28C104.1-3 |
1 |
|
|
2 |
12986569 |
短弹簧座M28C104.1-4 |
1 |
|
|
3 |
12986577 |
连接杆M28C104.1-5 |
1 |
|
|
4 |
12981268 |
复位弹簧M28C104.1-7 |
1 |
|
|
5 |
13087138 |
变幅阀杆M28C107.2-1 |
1 |
|

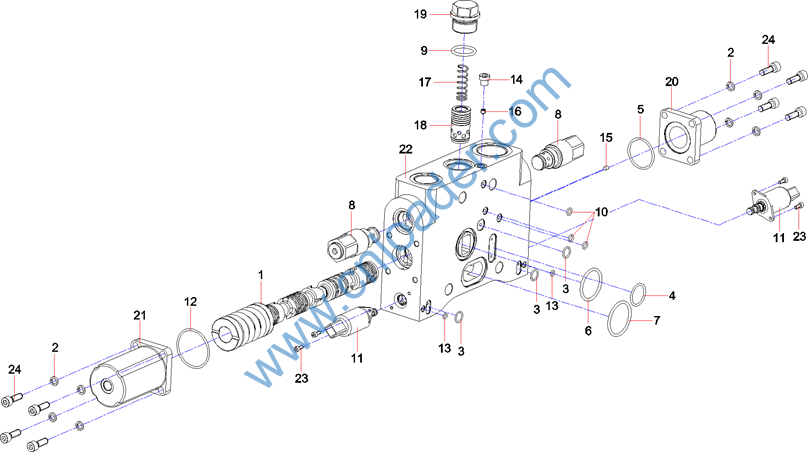

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
13869860 |
伸缩阀杆组件 |
1 |
|
|
2 |
A210401000017 |
垫圈 |
8 |
|
|
3 |
A210609000097 |
O形圈12.5×1.8GB3452.1 |
3 |
|
|
4 |
A210609000042 |
O形圈 |
1 |
|
|
5 |
A31C203870265 |
O形圈38.7×2.65GB3452.1 |
1 |
|
|
6 |
A210609000051 |
O形圈 |
1 |
|
|
7 |
A210609000138 |
O形圈42.5×3.55GB3452.1 |
1 |
|
|
8 |
60209459 |
溢流阀CYF12-02-00 |
2 |
|
|
9 |
60246791 |
O形圈26.57×3.53AS568-215 N70 |
1 |
|
|
10 |
60267000 |
O形圈7.1×1.8GB3452.1 N70 |
3 |
|
|
11 |
60277823 |
电磁换向阀PPCD04-001-a-a-25-24-D-N-0 |
2 |
|
|
12 |
A210609000065 |
O形圈50×2.65GB3452.1 |
1 |
|
|
13 |
A31C200500100 |
O形圈 |
2 |
|
|
14 |
A229900002606 |
堵头 |
1 |
|
|
15 |
A229900010656 |
球涨式堵头5×5.5JB9157 |
1 |
|
|
16 |
12616957 |
φ0_5阻尼M28A001.3-3 |
1 |
|
|
17 |
11987646 |
单向阀弹簧M28A001.5-10 |
1 |
|
|
18 |
13066915 |
补偿阀芯M28C100.1-4 |
1 |
|
|
19 |
13066918 |
补偿阀堵M28C100.1-5 |
1 |
|
|
20 |
12983263 |
前端盖M28C104.1-6 |
1 |
|
|
21 |
12983219 |
后端盖M28C104.1-8 |
1 |
|
|
22 |
13225275 |
伸缩阀体 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
A210204000318 |
螺钉M4×10GB70.1 |
4 |
|
|
24 |
A210204000162 |
螺钉 M8×25GB70.1 |
8 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
12986560 |
长弹簧座M28C104.1-3 |
1 |
|
|
2 |
12986569 |
短弹簧座M28C104.1-4 |
1 |
|
|
3 |
12986577 |
连接杆M28C104.1-5 |
1 |
|
|
4 |
12981268 |
复位弹簧M28C104.1-7 |
1 |
|
|
5 |
13225276 |
伸缩阀杆 |
1 |
|

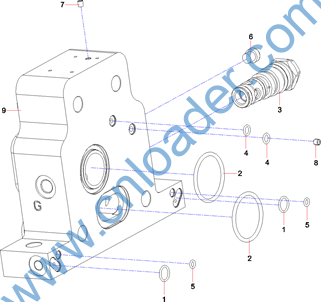

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
A210609000097 |
O形圈12.5×1.8GB3452.1 |
2 |
|
|
2 |
A210609000138 |
O形圈42.5×3.55GB3452.1 |
2 |
|
|
3 |
60148462 |
溢流阀YYF20S-01/03.20 |
1 |
|
|
4 |
60267000 |
O形圈7.1×1.8GB3452.1 N70 |
2 |
|
|
5 |
A31C200500100 |
O形圈 |
2 |
|
|
6 |
A229900002606 |
堵头 |
1 |
|
|
7 |
A229900010656 |
球涨式堵头5×5.5JB9157 |
1 |
|
|
8 |
12616957 |
φ0_5阻尼M28A001.3-3 |
1 |
|
|
9 |
13099837 |
进回油一阀体M28C104.4-2 |
1 |
|

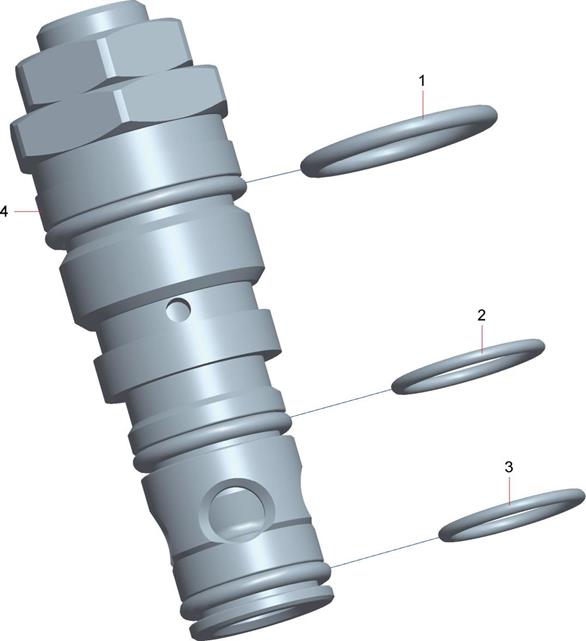

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
A210609000032 |
O形圈23.6×2.65GB3452.1 |
1 |
|
|
2 |
A210609000163 |
O形圈19×1.8GB3452.1 |
1 |
|
|
3 |
21032352 |
O形圈 |
1 |
|
|
4 |
60024952 |
主溢流阀 |
1 |
|

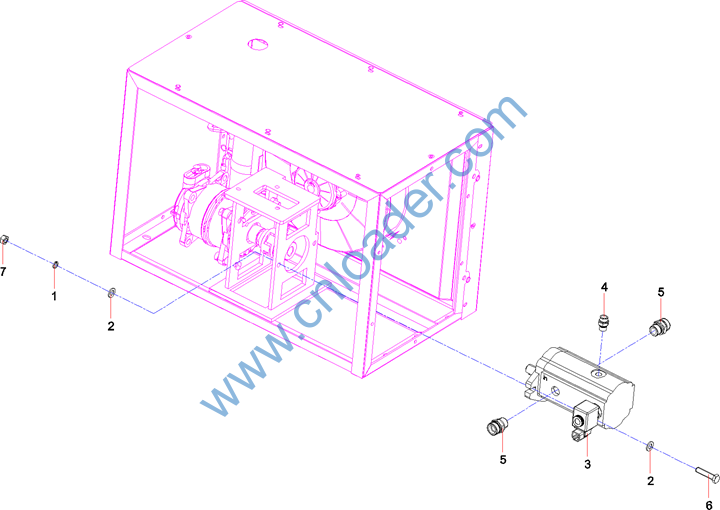

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
B210780000004 |
对开法兰 |
2 |
|
|
2 |
A229900002544 |
端直通接头 |
2 |
|
|
3 |
A210204000025 |
螺钉M12×50GB70.1 |
4 |
|
|
4 |
A210111000243 |
螺栓 |
4 |
|
|
5 |
A210401000004 |
垫圈 |
4 |
|
|
6 |
11567284 |
SPES-W00-MDB1F11液压轴向柱塞马达总 |
1 |
|
|
7 |
A210609000117 |
O形圈 |
1 |
|
|
8 |
B210780000636 |
直角组合接头 |
1 |
|
|
9 |
B210780000036 |
端直通接头 |
1 |
|
|
10 |
13666526 |
钢管总成 |
1 |
|
|
11 |
B210780001392 |
管接头WEE15LMOR3C |
1 |
|
|
12 |
13594621 |
卷扬平衡阀 |
1 |
|
|
13 |
B210780000060 |
法兰接头 |
1 |
|
|
14 |
A210204000024 |
螺钉M12×45GB70.1 |
4 |
|
|
15 |
A229900006484 |
端直通接头GESM33-SM42 |
1 |
|
|
16 |
13065061 |
过渡块 |
1 |
|
|
17 |
A210204000023 |
螺钉 |
4 |
|

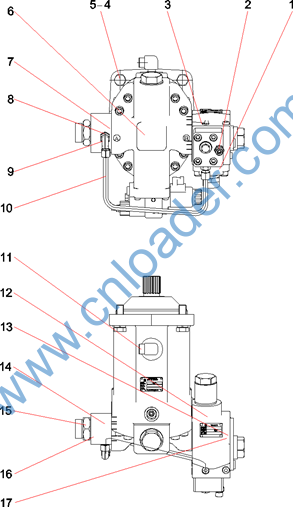

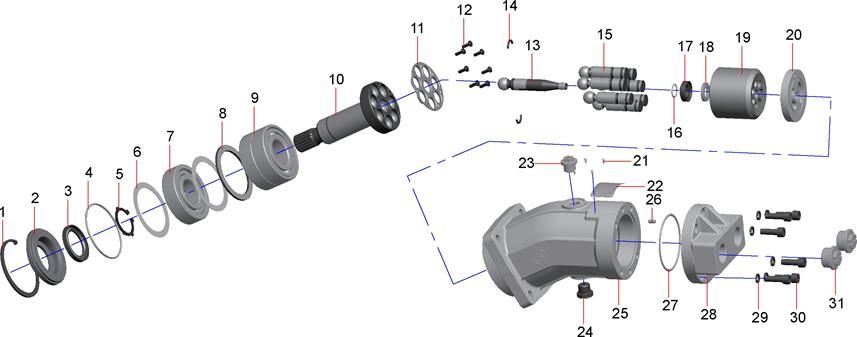

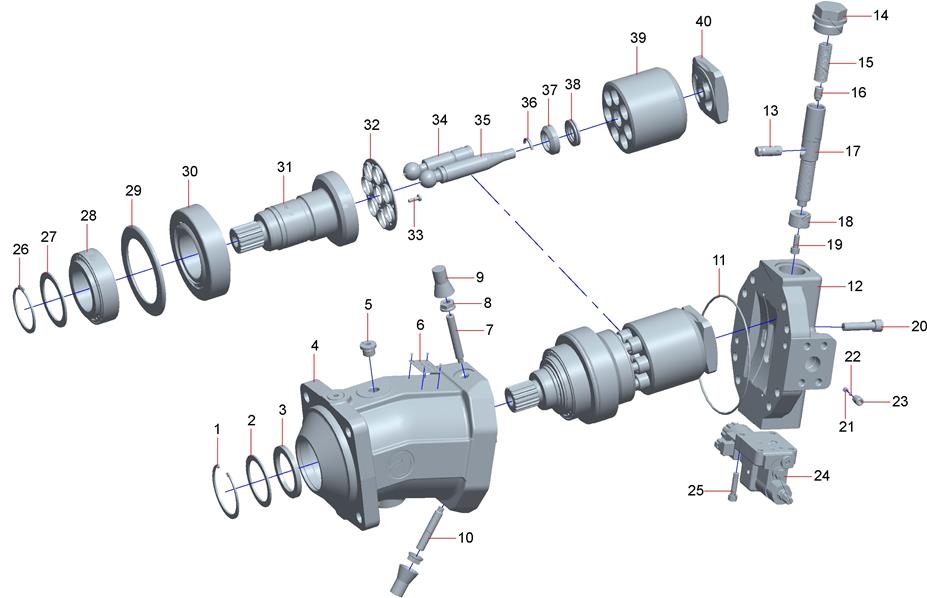

序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
A210416000023 |
挡圈 |
1 |
|
|
2 |
11578411 |
垫圈 |
1 |
|
|
3 |
60068929 |
BABSL油封 |
1 |
|
|
4 |
11578410 |
壳体 |
1 |
|
|
5 |
24001961 |
螺塞VSTI18×1.5EDA3C |
3 |
|
|
6 |
11494166 |
铭牌 |
1 |
|
|
7 |
60084926 |
螺钉M12×80(GB79) |
1 |
|
|
8 |
60069546 |
密封锁紧螺母M12 BOLLHOFF |
2 |
|
|
9 |
11578409 |
塑料螺保护帽 |
2 |
|
|
10 |
60084925 |
螺钉M12×70(GB79) |
1 |
|
|
11 |
B230101000718 |
O形圈170×3.0DIN3771 |
1 |
|
|
12 |
11578413 |
端盖 |
1 |
|
|
13 |
11578417 |
拨杆 |
1 |
|
|
14 |
11578420 |
密封螺套 |
1 |
|
|
15 |
11578419 |
回位弹簧 |
1 |
|
|
16 |
11578418 |
锁紧螺钉 |
1 |
|
|
17 |
11578414 |
变量活塞 |
1 |
|
|
18 |
11578415 |
活塞环 |
1 |
|
|
19 |
21053797 |
螺钉M8×20GB70.1 12.9级 |
1 |
|
|
20 |
A210204000351 |
螺钉M12×50GB70.1 12.9级 |
8 |
|
|
21 |
12028371 |
挡块 |
2 |
|
|
22 |
60084919 |
钢球φ5G100BGB308 |
2 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
11578421 |
单向阀套 |
2 |
|
|
24 |
11578445 |
控制阀组件 |
1 |
|
|
25 |
60083521 |
螺钉M8×30GB79 |
1 |
|
|
26 |
A210414000065 |
挡圈65GB894.1 |
1 |
|
|
27 |
11578424 |
轴承挡圈 |
1 |
|
|
28 |
60084827 |
轴承4T-33113 |
1 |
|
|
29 |
11578426 |
轴承垫圈 |
1 |
|
|
30 |
60084828 |
轴承ETA-T7FC070ST |
1 |
|
|
31 |
11578423 |
主轴 |
1 |
|
|
32 |
11578428 |
回程盘 |
1 |
|
|
33 |
60068688 |
螺钉M5×16GB2672 10.9级 |
14 |
|
|
34 |
11578433 |
柱塞分组件 |
7 |
|
|
35 |
11578429 |
中心杆 |
1 |
|
|
36 |
11578405 |
挡圈 |
2 |
|
|
37 |
11578407 |
弹簧座 |
1 |
|
|
38 |
11578408 |
碟形弹簧 |
4 |
|
|
39 |
11578437 |
缸体分组件 |
1 |
|
|
40 |
11578440 |
配流盘分组件 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|

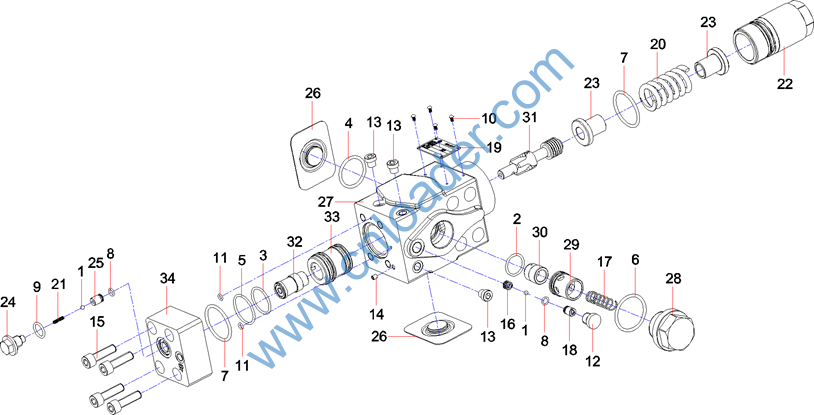

1 |
A210661000016 |
钢球φ5GB308 |
2 |
|
|
2 |
A210609000032 |
O形圈23.6×2.65GB3452.1 |
1 |
|
|
3 |
A210609000046 |
O形圈 |
1 |
|
|
4 |
21021015 |
O形圈34.5×3.55GB3452.1 |
1 |
|
|
5 |
A210609000117 |
O形圈 |
1 |
|
|
6 |
A210609000311 |
O形圈41.2×3.55GB3452.1 |
1 |
|
|
7 |
A210609000138 |
O形圈42.5×3.55GB3452.1 |
2 |
|
|
8 |
60267000 |
O形圈7.1×1.8GB3452.1 N70 |
2 |
|
|
9 |
A210609000120 |
O形圈16×2.65GB3452.1 |
1 |
|
|
10 |
A210510000007 |
铆钉 |
4 |
|
|
11 |
A31C200500100 |
O形圈 |
2 |
|
|
12 |
A229900002547 |
堵头 |
1 |
|
|
13 |
A229900002606 |
堵头 |
3 |
|
|
14 |
A229900010656 |
球涨式堵头5×5.5JB9157 |
1 |
|
|
15 |
A210204000163 |
螺钉M10×35GB70.1 |
4 |
|
|
16 |
11259973 |
梭阀座M28A001.4-4 |
1 |
|
|
17 |
11987646 |
单向阀弹簧M28A001.5-10 |
1 |
|
|
18 |
11259970 |
合流阀梭阀堵M28A002.5-2 |
1 |
|
|
19 |
13429053 |
铭牌M28C106-3 |
1 |
|
|
20 |
13257374 |
平衡阀弹簧P22Q001-4 |
1 |
|
|
21 |
11846856 |
复位弹簧P22Q001-13 |
1 |
|
|
22 |
13400476 |
弹簧套筒P22Q002-5P22Q002-5 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
23 |
13400535 |
弹簧座P22Q002-6 |
2 |
|
|
24 |
13400471 |
复位单向阀盖P22Q002-7 |
1 |
|
|
25 |
13400466 |
复位单向阀座P22Q002-8 |
1 |
|
|
26 |
13772343 |
D25防尘盖板P22Q002-9 |
2 |
|
|
27 |
13560457 |
平衡阀阀体P22Q003-1 |
1 |
|
|
28 |
13568043 |
单向阀堵P22Q003-2 |
1 |
|
|
29 |
13565899 |
单向阀套P22Q003-3 |
1 |
|
|
30 |
13565971 |
单向阀芯P22Q003-4 |
1 |
|
|
31 |
13568081 |
阀芯P22Q003-5 |
1 |
|
|
32 |
13594458 |
活塞P22Q003-6 |
1 |
|
|
33 |
13594462 |
阀套P22Q003-7 |
1 |
|
|
34 |
13568083 |
端盖 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|

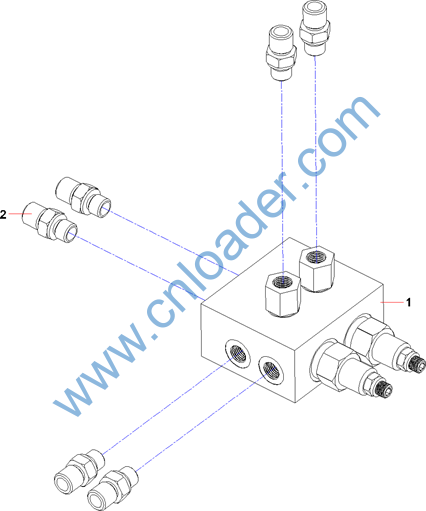

1 |
60033553 |
双联液控换向阀BHCV2B |
1 |
|
|
2 |
A229900002495 |
端直通接头 |
6 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
14012666 |
空调控制模块 |
1 |
|
|
2 |
B230103000365 |
胶管 |
2 |
|
|
3 |
21008728 |
直通变径接头GRLM26-LM30 |
2 |
|
|
4 |
B230103001394 |
胶管2SN20-DKOL-500Q/SY1102 |
1 |
|
|
5 |
24001352 |
直通接头 |
1 |
|
|
6 |
13141294 |
钢管总成 |
1 |
|
|
7 |
12416820 |
钢管总成 |
1 |
|
|
8 |
13141297 |
钢管总成 |
1 |
|
|
9 |
A229900002420 |
单联管夹 |
6 |
|
|
10 |
B210780001026 |
端直通接头 |
1 |
|
|
11 |
11550766 |
液压轴向柱塞马达总成 |
1 |
|
|
12 |
A229900002815 |
端直角可调向接头WEELM27-LM30 |
2 |
|
|
13 |
B230103001377 |
胶管 |
2 |
|
|
14 |
A229900002415 |
单联管夹 |
2 |
|
|
15 |
24004634 |
直通接头 |
1 |
|
|
16 |
B230103000452 |
胶管2SN8-DKOL-650Q/SY1102 |
1 |
|
|
17 |
B210780000636 |
直角组合接头 |
1 |
|
|
18 |
B210780001286 |
端直通接头 |
1 |
|
|
19 |
B230103000475 |
胶管 |
1 |
|
|
20 |
B230103000448 |
胶管 |
1 |
|
|
21 |
B230103000473 |
胶管 |
1 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
22 |
12428694 |
法兰总成 |
1 |
|
|
23 |
A210609000046 |
O形圈 |
1 |
|
|
24 |
A210204000011 |
螺钉 |
4 |
|
|
25 |
12416812 |
钢管总成 |
1 |
|
|
26 |
24001406 |
直角接头 |
1 |
|
|
27 |
B210780000028 |
直角组合接头 |
1 |
|
|
28 |
13140183 |
回转缓冲阀总成 |
1 |
|
|
29 |
A210111000011 |
螺栓 |
3 |
|
|
30 |
A210401000001 |
垫圈 |
3 |
|
|
31 |
B210780000647 |
直通隔板式接头 |
1 |
|
|
32 |
12416880 |
钢管总成 |
1 |
|
|
33 |
12416875 |
钢管总成 |
1 |
|
|
34 |
B210780001321 |
直角接头 |
1 |
|
|
35 |
12393903 |
回转控制块总成A1103.4.5.8 |
1 |
|
|
36 |
A210111000079 |
螺栓 |
3 |
|
|
37 |
A210401000016 |
垫圈 |
3 |
|
|
38 |
B210780001310 |
直角组合接头 |
2 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
A210401000001 |
垫圈 |
2 |
|
|
2 |
A210405000011 |
垫圈 |
4 |
|
|
3 |
60333703 |
齿轮马达JCMD-311RK/2650 |
1 |
|
|
4 |
B210780000036 |
端直通接头 |
1 |
|
|
5 |
B210780000131 |
端直通接头 |
2 |
|
|
6 |
A210111000028 |
螺栓 |
2 |
|
|
7 |
A210319000001 |
螺母M10GB889.1 |
2 |
|
序号 |
代码 |
名称 |
数量 |
备注 |
|
1 |
A210416000023 |
挡圈 |
1 |
|
|
2 |
11579264 |
密封盖 |
1 |
|
|
3 |
60068928 |
BABSL油封 |
1 |
|
|
4 |
24004514 |
O形圈 |
1 |
|
|
5 |
11579278 |
轴用弹性挡圈 |
1 |
|
|
6 |
11579269 |
主轴调整垫片 |
4 |
|
|
7 |
B221500000148 |
滚动轴承 |
3 |
|
|
8 |
11579275 |
轴承垫圈 |
1 |
|
|
9 |
60087524 |
滚动轴承 |
2 |
|
|
10 |
11579274 |
主轴 |
1 |
|
|
11 |
11579276 |
回程盘 |
1 |
|
|
12 |
60068698 |
螺钉 |
7 |
|
|
13 |
11579277 |
中心杆 |
1 |
|
|
14 |
11579268 |
挡圈 |
2 |
|
|
15 |
11579282 |
柱塞分组件 |
7 |
|
|
16 |
11579267 |
弹簧调整垫片 |
1 |
|
|
17 |
11579265 |
弹簧座 |
1 |
|
|
18 |
11579266 |
碟形弹簧 |
4 |
|
|
19 |
11579286 |
缸体分组件M6F28.4.1 |
1 |
|
|
20 |
11579289 |
配流盘分组件 |
1 |
|
|
21 |
A210510000010 |
铆钉 |
4 |
|
|
22 |
11494166 |
铭牌 |
1 |
