序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
12457629 |
挡泥板组焊(右) |
1 |
|
|
2 |
12225799 |
右前灯支架 |
1 |
|
|
3 |
A210111000023 |
螺钉M10×30GB5783 |
2 |
|
|
4 |
A210401000001 |
垫圈10GB93 |
2 |
|
|
5 |
A210404000003 |
垫圈10GB96.1 |
4 |
|
|
6 |
A210307000017 |
螺母M10GB6170 |
2 |
|
|
7 |
10477981 |
支板 |
1 |
|
|
8 |
A210111000091 |
螺栓M8×30GB5783 |
6 |
|
|
9 |
A210401000017 |
垫圈8GB93 |
6 |
|
|
10 |
A210404000005 |
垫圈8GB96.1 |
12 |
|
|
11 |
A210307000012 |
螺母M8GB6170 |
6 |
|
|
12 |
12462196 |
封边(右) |
1 |
|
|
13 |
A210210000017 |
螺钉 |
13 |
|
|
14 |
A210401000016 |
垫圈6GB93 |
13 |
|
|
15 |
A210404000009 |
垫圈 |
13 |
|

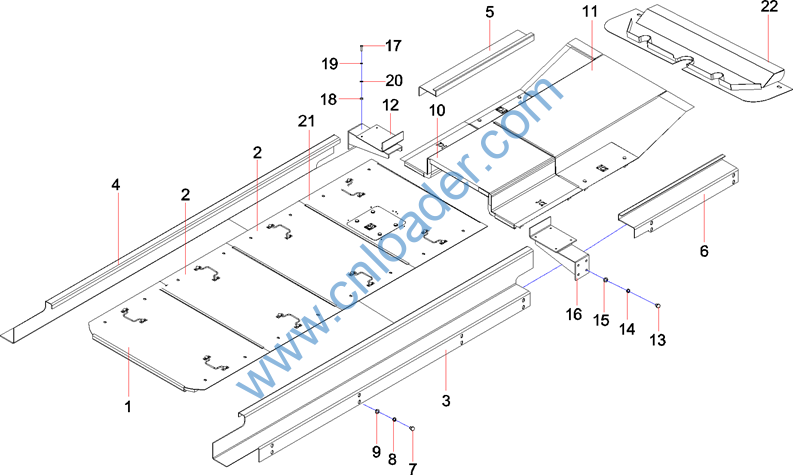

序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
10719147 |
盖板(一)RSC45C.3.4.1 |
1 |
|
|
2 |
10719146 |
盖板(二)RSC45C.3.4.2 |
2 |
|
|
3 |
10762082 |
盖板支板(一) |
1 |
|
|
4 |
10762083 |
盖板支板(二) |
1 |
|
|
5 |
11027922 |
支板（三） |
1 |
|
|
6 |
11027877 |
支板（四） |
1 |
|
|
7 |
A210111000227 |
螺栓M16×30GB5783 |
32 |
|
|
8 |
A210401000004 |
垫圈16GB93 |
32 |
|
|
9 |
A210405000003 |
垫圈16GB97.1 |
32 |
|
|
10 |
10437780 |
盖板(三)RSC45.3C.4.3 |
1 |
|
|
11 |
12613084 |
盖板(四) |
1 |
|
|
12 |
10902059 |
托链安装架右 |
1 |
|
|
13 |
A210204000020 |
螺钉M12×25GB70.1 |
8 |
|
|
14 |
A210401000002 |
垫圈12GB93 |
8 |
|
|
15 |
A210405000001 |
垫圈12GB97.1 |
8 |
|
|
16 |
10902060 |
托链安装架左 |
1 |
|
|
17 |
A210111000090 |
螺栓M8×25GB5783 |
4 |
|
|
18 |
A210307000012 |
螺母M8GB6170 |
4 |
|
|
19 |
A210401000017 |
垫圈8GB93 |
4 |
|
|
20 |
A210405000007 |
垫圈8GB97.1 |
4 |
|
|
21 |
11338703 |
盖板(五) |
1 |
|
|
22 |
12759700 |
盖板六RSC45C.3.4.9 |
1 |
|

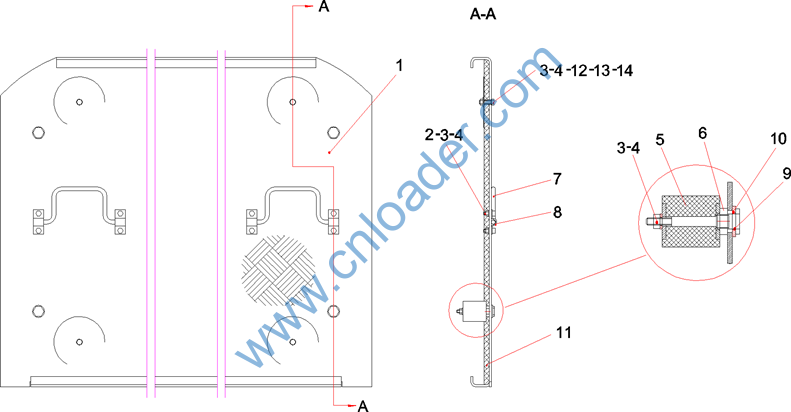

序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
10719141 |
折板(一) |
1 |
|
|
2 |
A210204000130 |
螺钉M6×16GB70.1 |
8 |
|
|
3 |
A210405000006 |
垫圈6GB97.1 |
28 |
|
|
4 |
A210307000016 |
螺母M6GB6170 |
16 |
|
|
5 |
A810502000239 |
弹性柱 |
4 |
|
|
6 |
A210309000016 |
螺母M12GB6172.1 |
4 |
|
|
7 |
A820301014172 |
拉手 |
2 |
|
|
8 |
A820101313322 |
拉手座 |
4 |
|
|
9 |
A820301014341 |
螺栓 |
4 |
|
|
10 |
A210405000001 |
垫圈12GB97.1 |
4 |
|
|
11 |
10719142 |
吸音隔热棉 |
1 |
|
|
12 |
A210111000081 |
螺栓 |
4 |
|
|
13 |
12014413 |
垫片 |
4 |
|
|
14 |
A210404000009 |
垫圈 |
4 |
|

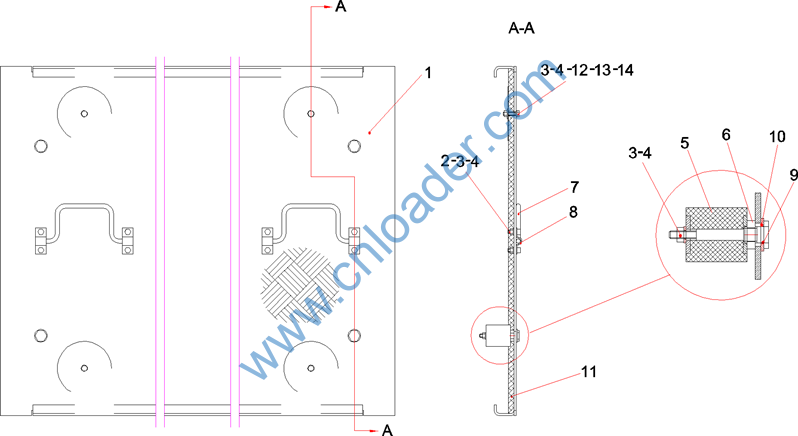

序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
10719143 |
折板(二) |
1 |
|
|
2 |
A210204000130 |
螺钉M6×16GB70.1 |
8 |
|
|
3 |
A210405000006 |
垫圈6GB97.1 |
28 |
|
|
4 |
A210307000016 |
螺母M6GB6170 |
16 |
|
|
5 |
A810502000239 |
弹性柱 |
4 |
|
|
6 |
A210309000016 |
螺母M12GB6172.1 |
4 |
|
|
7 |
A820301014172 |
拉手 |
2 |
|
|
8 |
A820101313322 |
拉手座 |
4 |
|
|
9 |
A820301014341 |
螺栓 |
4 |
|
|
10 |
A210405000001 |
垫圈12GB97.1 |
4 |
|
|
11 |
10719144 |
吸音隔热棉 |
1 |
|
|
12 |
A210111000081 |
螺栓 |
4 |
|
|
13 |
12014413 |
垫片 |
4 |
|
|
14 |
A210404000009 |
垫圈 |
4 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
A810502000239 |
弹性柱 |
4 |
|
|
2 |
A820301014341 |
螺栓 |
4 |
|
|
3 |
A210405000001 |
垫圈12GB97.1 |
4 |
|
|
4 |
A210309000016 |
螺母M12GB6172.1 |
4 |
|
|
5 |
10437779 |
吸音隔热海绵 |
1 |
|
|
6 |
10273343 |
面板(三)焊接 |
1 |
|
|
7 |
A229900003988 |
不锈钢检修盖提扣 |
2 |
|
|
8 |
A210601000027 |
螺钉M3×10GB819.1 |
8 |
|
|
9 |
A314140000314 |
螺母M3GB6170 |
8 |
|
|
10 |
A210405000027 |
垫圈3GB97.1 |
8 |
|
|
11 |
A210405000006 |
垫圈6GB97.1 |
8 |
|
|
12 |
A210307000016 |
螺母M6GB6170 |
8 |
|
|
13 |
A210210000027 |
螺钉 |
8 |
|
|
14 |
12014413 |
垫片 |
8 |
|
|
15 |
A210404000009 |
垫圈 |
8 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|
1 |
A810502000239 |
弹性柱 |
4 |
|
|
2 |
A820301014341 |
螺栓 |
4 |
|
|
3 |
A210405000001 |
垫圈12GB97.1 |
4 |
|
|
4 |
A210309000016 |
螺母M12GB6172.1 |
4 |
|
|
5 |
10437783 |
吸音隔热海绵 |
1 |
|
|
6 |
12613080 |
盖板(四)焊接 |
1 |
|
|
7 |
A229900003988 |
不锈钢检修盖提扣 |
2 |
|
|
8 |
A210203000039 |
螺钉M4×10GB68 |
8 |
|
|
9 |
A210307000014 |
螺母 |
8 |
|
|
10 |
A210405000004 |
垫圈 |
8 |
|
|
11 |
A210405000006 |
垫圈6GB97.1 |
8 |
|
|
12 |
A210307000016 |
螺母M6GB6170 |
8 |
|
|
13 |
A210210000027 |
螺钉 |
8 |
|
|
14 |
12014413 |
垫片 |
8 |
|
|
15 |
A210404000009 |
垫圈 |
8 |
