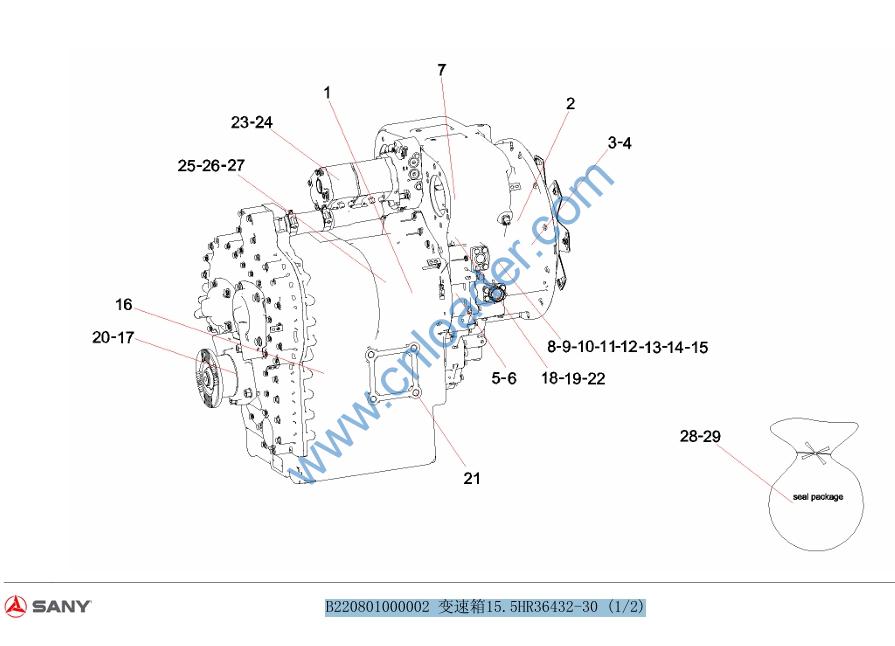

B220801000002 gearbox 15.5HR36432-30 (1/2)

B220801000002 gearbox 15.5HR36432-30 (1/2)

1 60138966 Transmission housing assembly Dana 1
2 60138967 variant and rear cover assembly Dana 1
3 60140031 Turboshaft Dana 1
4 60138822 Power input gear set Dana 1
5 60139513 Wheel hub assembly Dana 1
6 60138447 Drive plate assembly Dana 1
7 60139867 Drive pump support assembly Dana 1
8 60139839 Front wheel drive 2 3 4-speed transmission shaft Dana 1
9 60138844 First-stage transmission gear set Dana 1
10 60139838 Forward clutch shaft Dana 1
11 60139893 Three-stage transmission clutch shaft Dana 1
12 60138840 three-speed gear set Dana 1
13 60139319 Reverse gear shaft assembly Dana 1
14 60138916 First stage transmission clutch assembly 268983 Dana 1
15 60138934 3 4th speed clutch shaft assembly Dana 1
16 60139145 Idler shaft assembly Dana 1
17 60139925 Output shaft assembly Dana 1
18 60138682 Pressure regulating valve and feed pump assembly Dana 1
19 60138721 Electric regulating valve assembly Dana 1
20 60139923 Output end flange assembly Dana 1
21 60138442 Carrying cover assembly Dana 1
22 60138738 Pressure regulating valve Dana 1

23 60138654 Liquid filling pump Dana 1
24 60138719 Liquid filling pump regulating valve Dana 1
25 60138733 Control valve box cover assembly Dana 1
26 60138722 Electronic control valve assembly Dana 1
27 60138891Double filter Dana 1
28 60140275 Seal Pack Dana 1
29 60140286 Converter seal package Dana 1

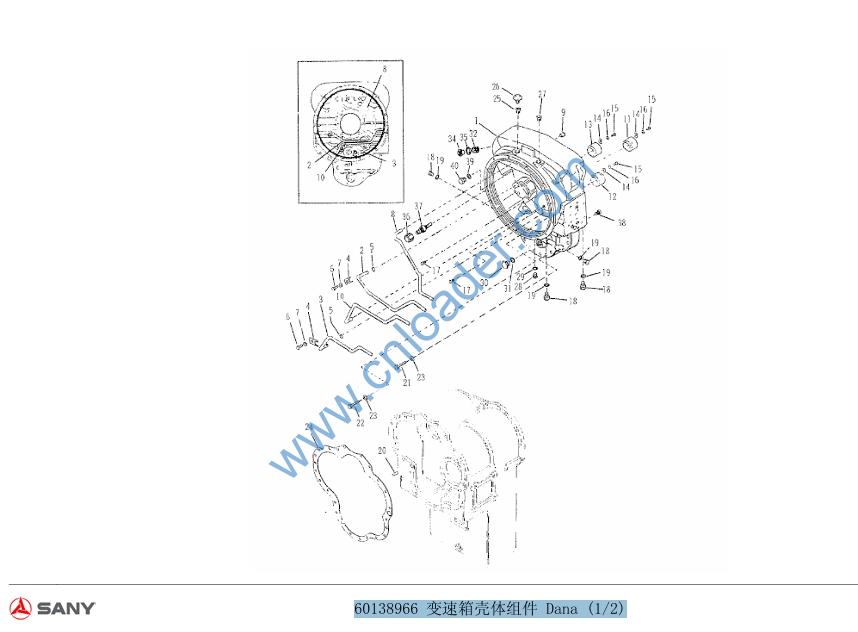

60138966 Transmission housing assembly Dana (1/2)

1 60099583 Torque converter housing DANA 1
2 60099675 Forward gear oil pipe DANA 1
3 60099692 Fourth gear oil pipe DANA 1
4 60099728 Tubing clamp DANA 3
5 60099742 O-ring DANA 3
6 60099632 Fixing screw DANA 3
7 60099698 Locking washer DANA 3
8 60099645 Control valve oil supply pipe DANA 1
9 60099727 Oil pipe bushing DANA 1
10 60099683 Third gear oil pipe DANA 1
11 60099584 Torque converter housing bushing (reverse and second gear shaft) DAN 1
12 60099586 Torque converter housing bushing (fourth gear shaft) DANA 1
13 60099585 Torque converter housing bushing (forward gear shaft) DANA 3
14 60099607 Washer DANA 3
15 60099632 Fixing screw DANA 3
16 60099698 Locking Washer DANA 3
17 60099508 DANA 5
18 60099780 Inspection hole plug DANA 5
19 60099750 O-ring DANA 5
20 60099617 Positioning pin DANA 2
21 60099587 Torque converter housing to gearbox housing fixing screw DAN 14
22 60099635 Back cover fixing screw DANA 9

23 60099700 Locking Washer DANA 23
24 60099588 Torque converter housing to gearbox housing gasket DANA 1
25 60121044 Bushing DANA 1
26 60099702 Ventilator DANA 1
27 60099497 Oil filler hole plug DANA 1
28 60099680 Lubricating oil return plug DANA 1
29 60099752 O-ring DANA 1
30 60099492Gese DANA 1
31 60099630 Cover plug seal DANA 1
32 60099695 Speed sensor bushing DANA 1
33 60099589 thin gasket DANA 1
34 60099666 screw plug DANA 1
35 60099743 O-ring DANA 1
40 60099571 Mounting pin DANA 1

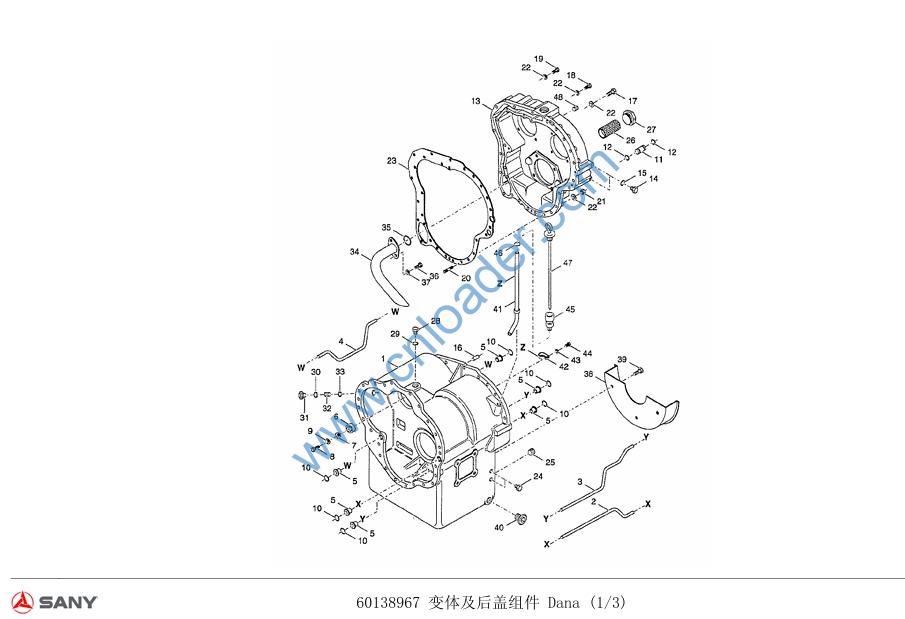

1 B229900002896 Shell 1
2 60099717 First gear clutch oil pipe DANA 1
3 60099722 First gear shaft rear bearing lubricating oil pipe DANA 1
4 60099682 Third gear oil pipe DANA 1
5 60099727 Oil pipe bushing DANA 6
6 60099697 LOCKING BUSHING DANA 1
7 60099607 Washer DANA 1
8 60099632 Fixing screw DANA 1
9 60099698 Locking washer DANA 1
10 60099744 O-ring DANA 6
11 60099779 First gear clutch oil pipe and lubricating oil pipe transition pipe DAN 2
12 60099747 O-ring DANA 4
13 60099634 back cover DANA 1
14 60099571 Mounting pin DANA 2
15 60099751 O-ring DANA 2
16 60099617 Positioning pin DANA 2
17 60099637 Back cover fixing screw DANA 16
18 60099636 Back cover fixing screw DANA 5
19 60099635 Back cover fixing screw DANA 3
20 60121041 stud bolt DANA 4
21 60099640 Stud bolts and nuts from rear cover to housing DANA 4
22 60099700 LOCK WASHER DANA 28

23 60099638 Gasket from back cover to shell DANA 1
24 60099781 Oil level inspection hole plug DANA 2
25 60099669 Oil drain plug DANA 1
26 60099660 filter assembly DANA 1
27 60099661 Filter assembly plug DANA 1
28 60099571 Mounting pin DANA 2
29 60099751 O-ring DANA 2
30 60099743 O-ring DANA 1
31 60099666 screw plug DANA 1
32 60099695 Speed sensor bushing DANA 1
33 60099589 thin gasket DANA 1
34 60099777 Suction pipe assembly DANA 1
35 60099745 O-ring DANA 1
36 60099662 Screw DANA 2
37 60099699 Locking washer DANA 2
38 60099597Baffle DANA 1
39 60099598 Baffle screw DANA 3
40 60099726 Oil dipstick hole plug DANA 1
41 60099501 Dipstick tube DANA 1
42 60099659 Oil gauge tube clamp DANA 1
43 60099699 Locking washer DANA 2
44 60099662 Screw DANA 2

45 60099502 量油计塞 DANA 1
46 60099752 O形圈 DANA 1
