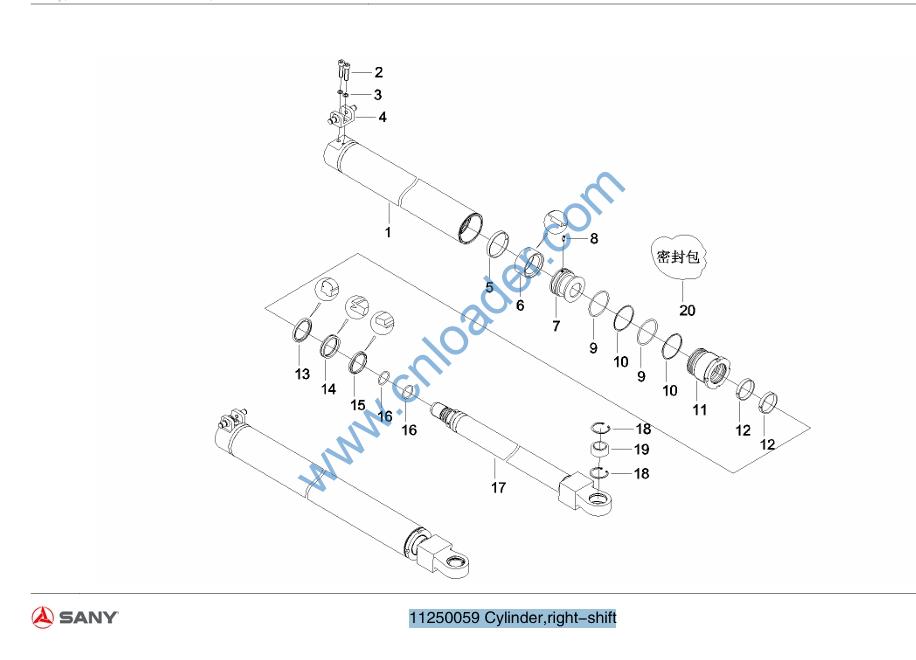

11250059 Cylinder,right-shift

11250059 Cylinder,right-shift

1 11250060 Cyliner barrel GP 1
2 A210204000008 Screw 2
3 A210401000001 Washer 2
4 10710101 Set,seat,support 1
5 B230101001681 Ring, guide 1
6 B230101001573 Seal ring, MD 1
7 10096745 Piston 1
8 A210208000017 Screw 1
9 A210609000134 O-ring 2
10 10250780 Ring, retainer 2
11 10096737 Sleeve, guide 1
12 B230101001494 Ring, guide 2
13 B230101001497 Seal, GS-ring 1
14 B230101002121 Seal, MPS-ring 1
15 B230101001682 PW-ring, dustproof 1
16 A210609000272 O-ring 2
17 10710088 Piston rod GP 1
18 A210416000039 Ring, retainer 2
19 A221500000035 Bearing, joint 1
20 11259569 Package for process sealing parts 1

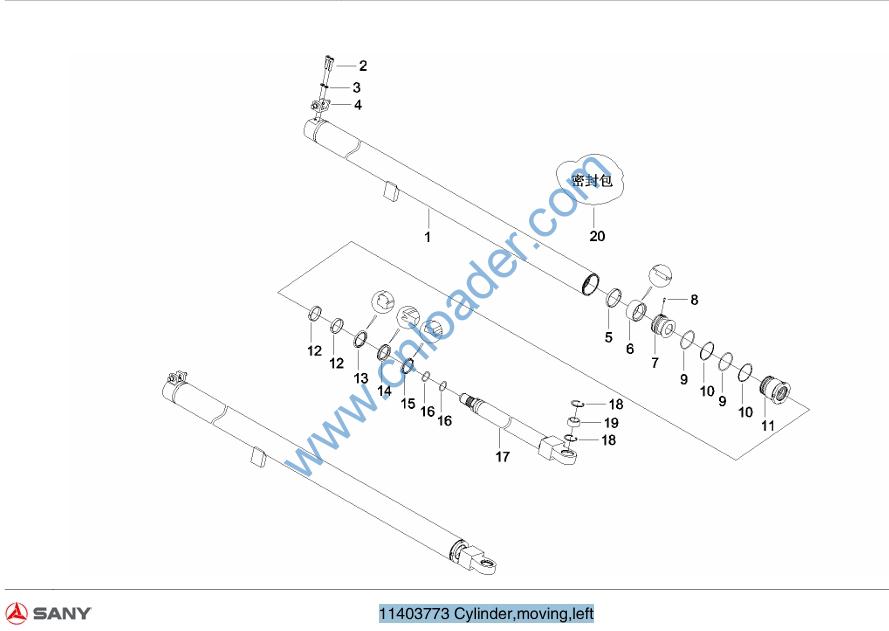

11403773 Cylinder,moving,left

1 11403774 Cyliner barrel GP 1
2 A210204000008 Screw 2
3 A210401000001 Washer 2
4 10710101 Set,seat,support 1
5 B230101001681 Ring, guide 1
6 B230101001573 Seal ring, MD 1
7 10096745 Piston 1
8 A210208000017 Screw 1
9 A210609000134 O-ring 2
10 10250780 Ring, retainer 2
11 10096737 Sleeve, guide 1
12 B230101001494 Ring, guide 2
13 B230101001497 Seal, GS-ring 1
14 B230101002121 Seal, MPS-ring 1
15 B230101001682 PW-ring, dustproof 1
16 A210609000272 O-ring 2
17 10710088 Piston rod GP 1
18 A210416000039 Ring, retainer 2
19 A221500000035 Bearing, joint 1
20 11259569 Package for process sealing parts

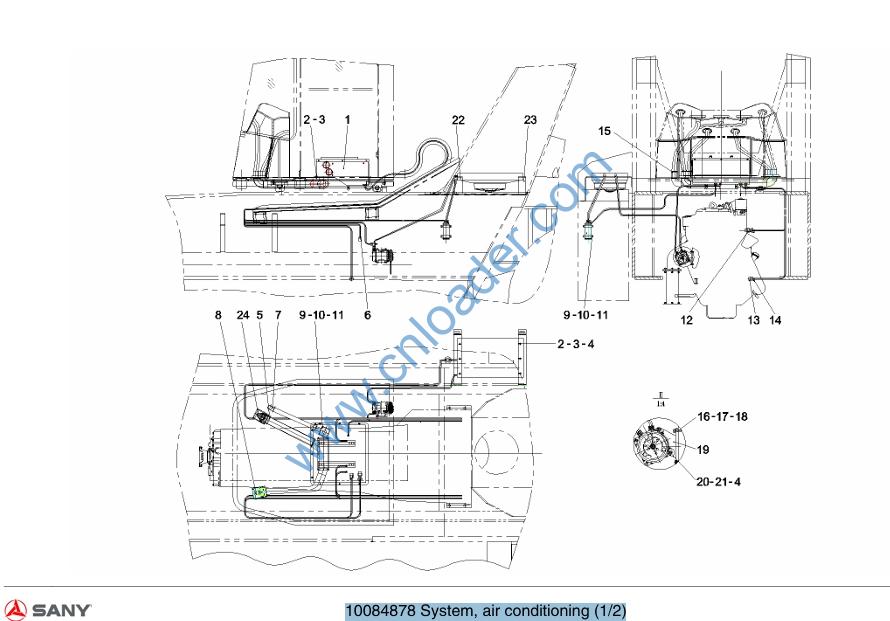

10084878 System, air conditioning (1/2)

1 60119231 Assembly, air conditioner 1
2 A210204000181 Screw 15
3 A210401000001 Washer 20
4 A210307000017 Nut 15
5 21004569 Ear, anchor, T-shaped 4
6 A230103000012 Hose, vapor 11
7 11815375 Duct, air, defrosting 1
8 11621235 Cover, guide wind 1
9 A210111000081 Bolt 14
10 A210405000006 Washer 28
11 A210307000016 Nut 14
12 A820599000956 Nipple 1
13 A820205002290 Nipple 1
14 A210855000007 Hoop 6
15 A210855000011 Hoop 10
16 A210401000017 Washer 4
17 A210405000007 Washer 4
18 A210111000090 Bolt 4
19 11448954 Support, air compressor 1
20 A210111000027 Bolt 4
21 A210405000011 Washer 20
22 11783411 Support, left 1

23 11783412 Support, right 1
24 11906229 Cover, guide wind 1

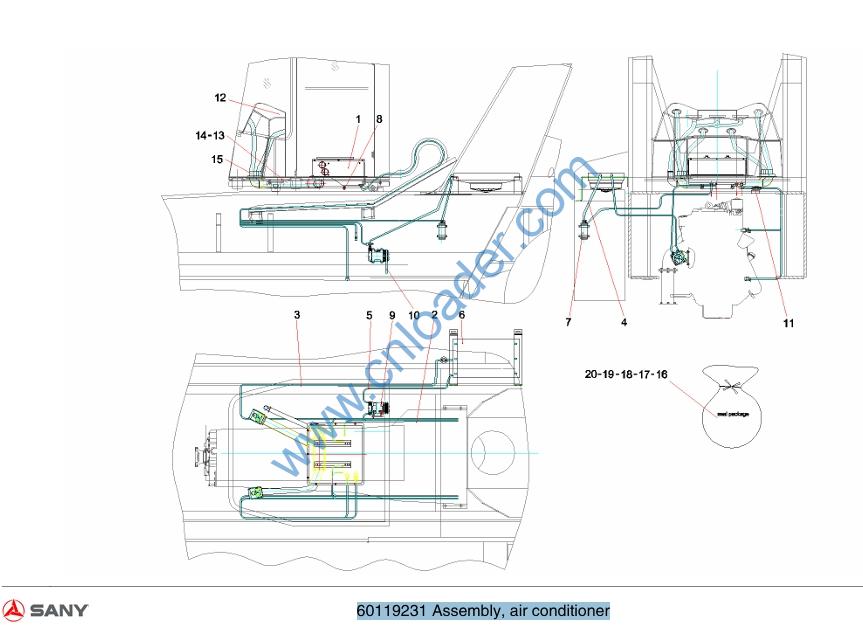

60119231 Assembly, air conditioner

1 60137530 GP, evaporator 1
2 60137511 Pipe, low pressure 1
3 60137517 Pipe, high pressure 1
4 60137512 Pipe, high pressure 1
5 60137514 Pipe, high pressure 1
6 60137523 Assembly, condenser 1
7 60137525 Dryer, stored liquid 1
8 60100916 Valve, lip 1
9 60031711 Compressor 1
10 B230106000073 Belt,pump,water 1
11 60100917 Valve, warm water, electric 1
12 60137554 Panel, control 1
13 60100918 Pipe,air 1
14 60100852 Pipe,air 1
15 60137528 Components, transitional air channel 1
16 60100866 O-ring 6
17 60100867 O-ring 2
18 60100870 O-ring 4
19 60100869 O-ring 2
20 60100868 O-ring 2

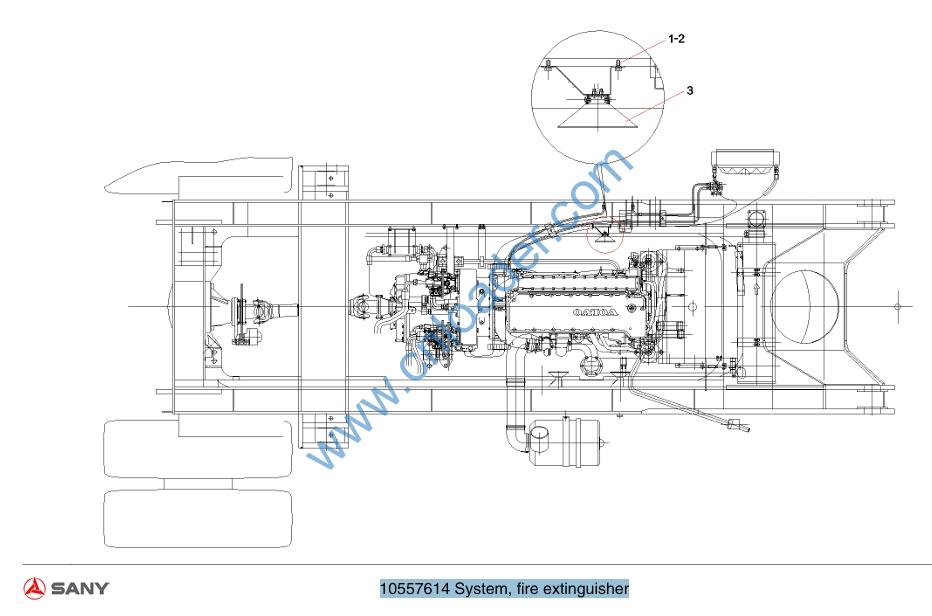

10557614 System, fire extinguisher

1 24000529 Bolt 8
2 A210401000017 Washer 8
3 60009847 Device, fire extinguisher, dry powder, superfine, pressureless
