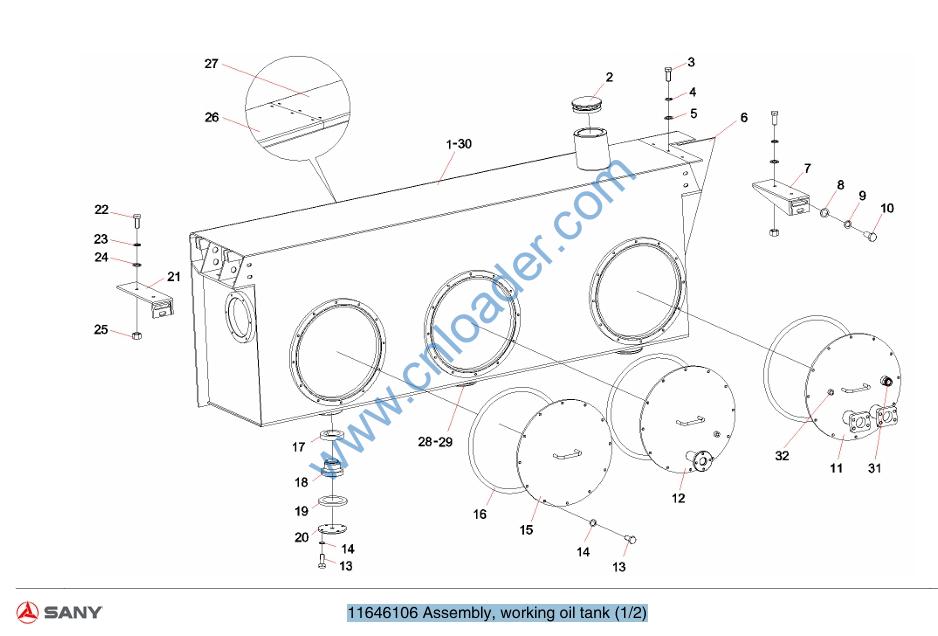

11646106 Assembly, working oil tank (1/2)

11646106 Assembly, working oil tank (1/2)

1 12091027 Body, working oil tank 1
2 A222100000264 Cleaner, air 1
3 A210111000089 Bolt 21
4 A210404000005 Washer 21
5 A210401000017 Washer 21
6 A820101312819 Cover,front,left 1
7 10187941 Support, rear, fuel tank 1
8 A210491000118 Washer 6
9 A210401000004 Washer 6
10 A210111000112 Bolt 6
11 12378374 Plate, cover, oil-suction tube 1
12 10835443 Plate, cover, oil returm 1
13 A210111000018 Bolt 46
14 A210401000001 Washer 46
15 10121195 Assembly, manhole cover plate 1
16 A210609000295 O-ring 3
17 A210434000015 Washer 1
18 21051814 Plug 1
19 A210609000082 O-ring 1
20 10774636 Plate, cover, oil washing hole 1
21 10187917 Support, front, fuel tank 1
22 A210111000040 Bolt 8

23 A210404000004 Washer 8
24 A210401000002 Washer 8
25 A210307000001 Nut 4
26 10043048 Pedal 1
27 10043025 Pedal 1
28 A210405000011 Washer 6
29 10465351 Support, pedal 2
30 60030671 Gauge, liquid level&temperature 1
31 B210780000112 Nut 1
32 B210780000091 Plug 1

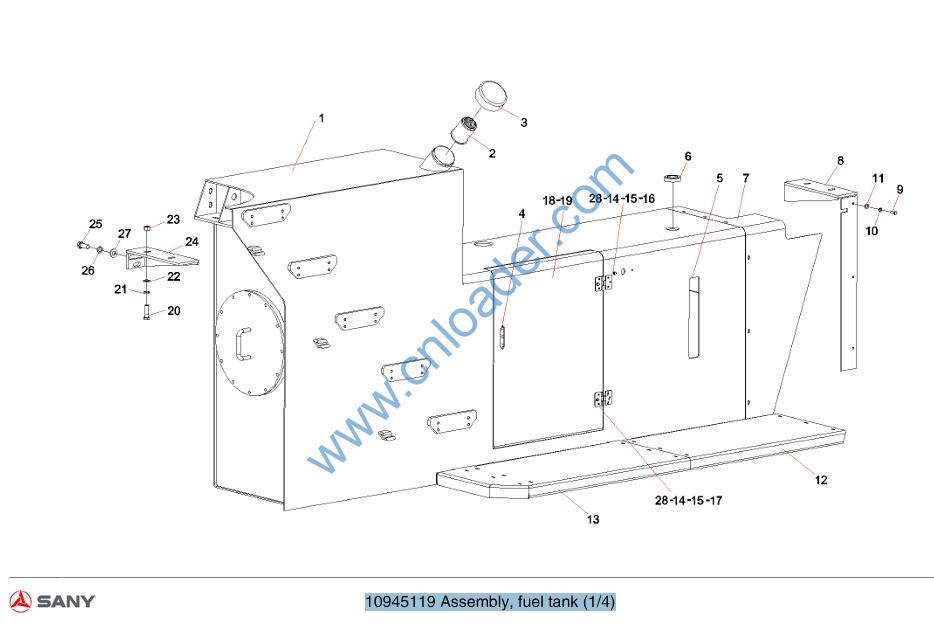

10945119 Assembly, fuel tank (1/4)

1 10945118 Body, fuel tank 1
2 A229900000886 Strainer 1
3 A290000002193 Cap AS, filter, fuel tank 1
4 A222200000036 Lock, door 1
5 60030670 Gauge, liquid level&temperature 1
6 A222100000265 Cleaner, air 1
7 A820101312813 Cap, front, right 1
8 12378350 Support, rear, fuel tank 1
9 A210111000089 Bolt 6
10 A210401000017 Washer 21
11 A210404000005 Washer 36
12 10043086 Pedal 1
13 10043085 Pedal 1
14 A210401000016 Washer 14
15 A210405000006 Washer 14
16 A210307000016 Nut 2
17 A210891000015 Hinge 2
18 10043103 Door,battery box 1
19 A820101313331 Plate, pressure, battery 1
20 A210111000040 Bolt 8
21 A210401000002 Washer 8
22 A210404000004 Washer 8

23 A210307000001 Nut 4
24 10187917 Support, front, fuel tank 1
25 A210111000112 Bolt 6
26 A210401000004 Washer 6
27 A210491000118 Washer 6
28 A210111000080 Bolt 14

19 A820101313331 Plate, pressure, battery 1
29 A210401000001 Washer 66
30 A210405000011 Washer 18
31 A820301014173 Bolt, compressed, battery 2
32 A210111000018 Bolt 60
33 10465351 Support, pedal 2
34 10774636 Plate, cover, oil washing hole 2
35 A210609000082 O-ring 3
36 21051814 Plug 2
37 A210434000015 Washer 2
38 10121195 Assembly, manhole cover plate 2
39 A210609000295 O-ring 3

40 10835466 Plate, cover 1
41 A810102000050 Assembly, cover plate, oil returm 1
42 A222100000366 Filter, oil-suction 1
43 10835468 Components, oil-suction cover plate 1
44 A210609000174 O-ring 1

10679877 Mechanism,cab moving (1/2)

1 11250059 Cylinder,right-shift 1
2 A210414000107 Ring, retaining 4
3 10856971 Roller 2 4
4 A210111000026 Bolt 6
5 A210405000011 Washer 23
6 A210401000001 Washer 44
7 A210307000017 Nut 12
8 10976003 Component, guide wheel 2
9 10679843 Pallet 1
10 10940028 Assembly, sound insulation plate 1
11 A810402990076 Seat, mounting, front wheel 2
12 A210111000203 Bolt 32
13 A210401000002 Washer 32
14 A210405000001 Washer 56
15 A210307000031 Nut 24
16 60100351 Absorber, shock 6
17 A210111000018 Bolt 24
18 A210110000045 Bolt 6
19 A210405000003 Washer 6
20 A210401000004 Washer 6
21 A810402990075 Seat,mounting,rear wheel 2
22 A820101314487 Baffle, shaft end 4

23 A210401000016 Washer 8
24 A210111000079 Bolt 8
25 A820301014294 Shaft, 3 4
26 10649834 Roller 4
27 10218356 Plate, anti-overturning 4
28 A210204000162 Screw 8
29 10866236 Set,connection,right 1
30 11434520 Set,connection 2
31 10676118 Plate,baffle,right 1
32 10676117 Bolt 2
33 10120851 Ring seat GP,ear,front 2
34 10866238 Kit,connecting,left 1
35 10676121 Baffle,left 1
36 11403773 Cylinder,moving,left 1
