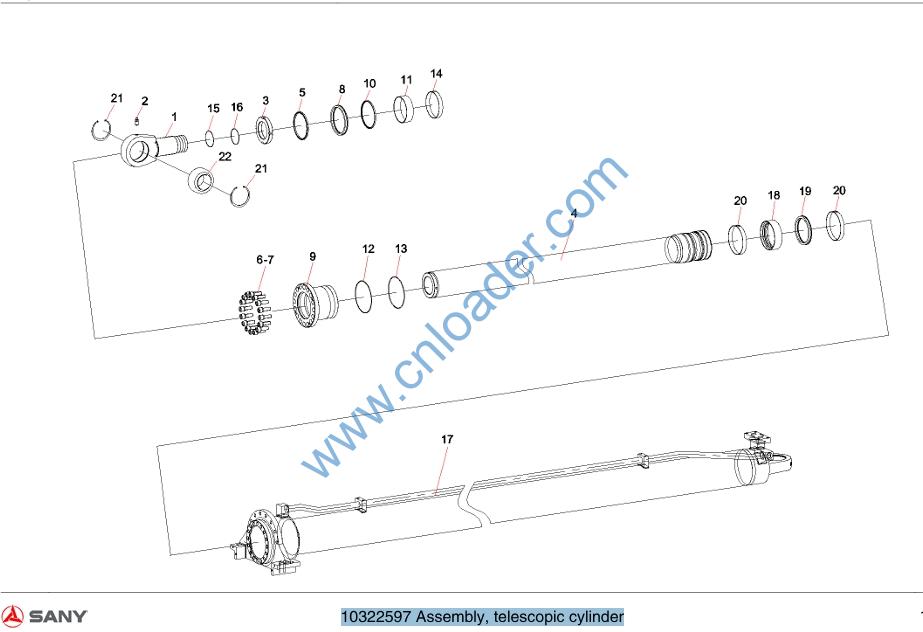

10322597 Assembly, telescopic cylinder

10322597 Assembly, telescopic cylinder

1 10424843 Ring, ear 1
2 B210770000034 Connector, pressure measuring 1
3 10424844 Nut, lock 1
4 10424868 Assembly, piston rod 1
5 B230101000428 Ring, dustproof 1
6 A210204000317 Screw 16
7 A210401000006 Washer 16
8 B230101000425 Seal, BS 1
9 10424842 Sleeve, guide 1
10 A880806030016 Seal, GS 1
11 60002004 Ring, guide, UP 1
12 A210609000260 O-ring 2
13 10250757 Ring, retainer 2
14 B230101000594 Ring, guide 2
15 A880802010064 O-ring 3
16 10424845 Ring, retaining 3
17 10424858 Assembly, cylinder barrel 1
18 B230101000514 Seal, ZW-ring 1
19 B230101000298 Seal, B7 1
20 B230101000904 Ring, guide 2
21 A210416000035 Ring, retainer 4
22 A221500000141 Bearing, joint 2

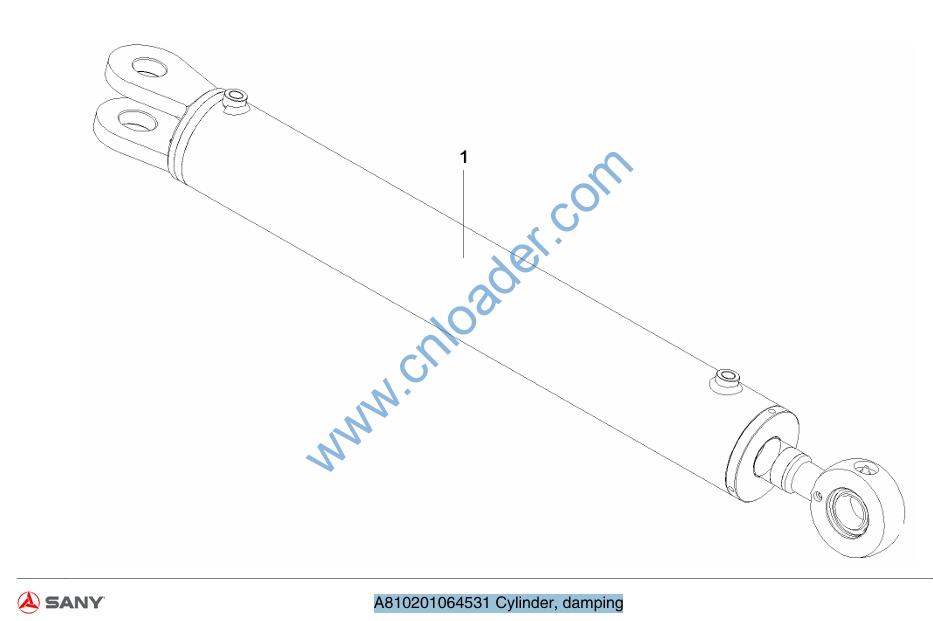

A810201064531 Cylinder, damping

10202942

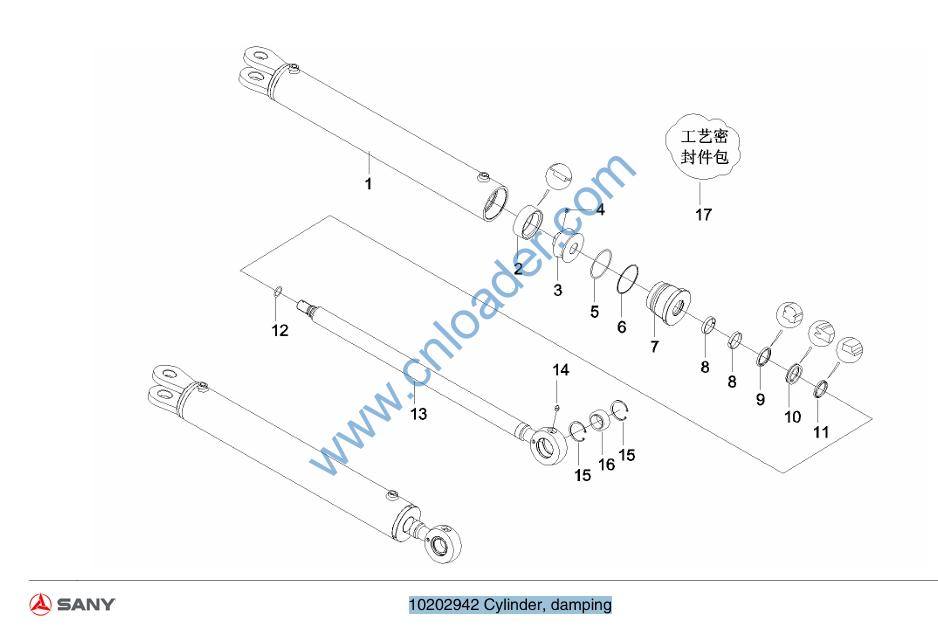

10202942 Cylinder, damping

1 10202945 Assembly, cylinder barrel 1
2 B230101001155 Seal, MD-ring 1
3 10202940 Piston 1
4 24004294 Screw 1
5 A210609000087 O-ring 1
6 10201417 Ring, retaining 1
7 10202939 Sleeve, guide 1
8 60013716 Ring, guide, UP 2
9 A880806030136 Ring, seal, GS-type 1
10 B230101001951 Ring, seal 1
11 B230101001948 Ring, dustproof, PW 1
12 A210609000044 O-ring 1
13 10202948 Assembly, piston rod 1
14 A210804000002 Cup, oil 1
15 A210416000037 Ring, retainer 2
16 A210612000023 Bearing, joint 1
17 10347377 Package, sealing parts, industrial art 1
