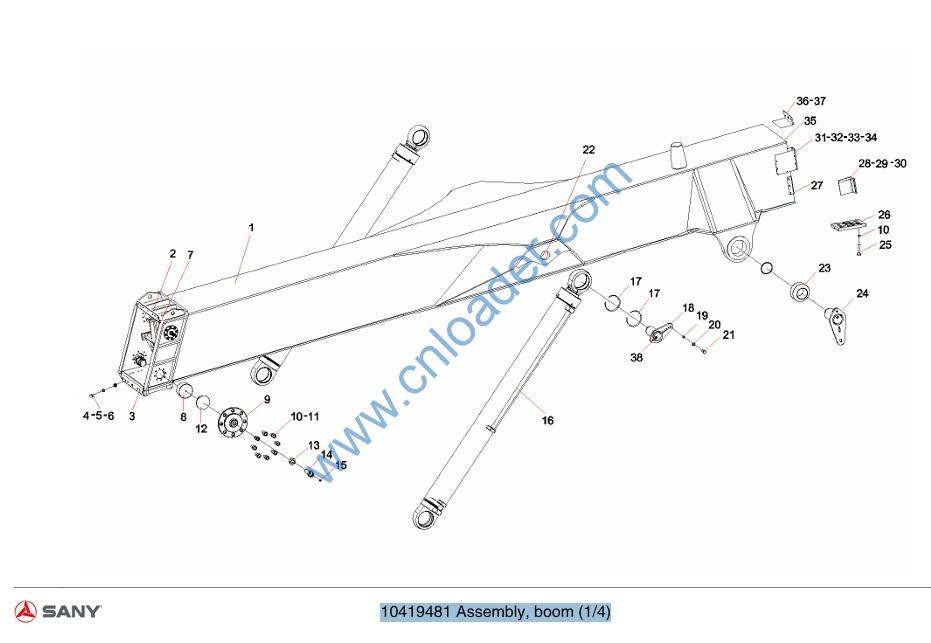

10419481 Assembly, boom (1/4)

10419481 Assembly, boom (1/4)

1 10201903 Section, basic, boom 1
2 A820101032859 Baffle, upper 1
3 A820101032860 Baffle, lower 1
4 A210110000285 Bolt 14
5 A210401000002 Washer 20
6 A210307000001 Nut 14
7 A820301017302 Bolt, oil cup, 2 16
8 A820499000044 Block, side-sliding 6
9 A820201000711 Support, retaining 6
10 A210401000004 Washer 98
11 A210204000203 Screw 48
12 A820101312402 Gasket, side-sliding block 6
13 A229900007632 Nut 6
14 A820301017301 Bolt, oil cup, 1 6
15 A210804000001 Cup, oil 22
16 10201648 Cyliner, pitching 2
17 A210416000022 Ring, retaining 4
18 10201907 Assemly, shaft, pitching cylinder 2
19 A210491000122 Washer 8
20 A210401000008 Washer 8
21 A210111000292 Bolt 8
22 10859971 Bearing, sliding 8

23 10859963 Bearing, sliding 2
24 10201926 Assembly, rear shaft 2
25 A210111000112 Bolt 32
26 11272687 Set,block,slide,lower 4
27 10089451 Support 1
28 A820101341776 Cover, rainproof, sensor 1
29 A210210000010 Screw 3
30 A210401000016 Washer 3
31 A820101337402 Plate, mounting, displacement sensor 1
32 A210111000125 Bolt 14
33 A210405000011 Washer 6
34 A210401000001 Washer 20
35 11044952 Sleeve, eccentric 2
36 A820101312406 Baffle, rear 2
37 A210111000227 Bolt 12
38 A210804000002 Cup, oil 4

39 A210401000006 Washer 12
40 10419475 Plate, pressure 1
41 10419425 Support, sliding, telescopic cylinder 1
42 10322597 Assembly, telescopic cylinder 1
43 A820301020692 Shaft, telescopic cylinder 1
44 A820102010496 Gasket, adjusting, telescopic cylinder 4
45 A810312100021 Frame, connecting, telescopic cylinder 1
46 A820101312408 Baffle, shaft end 2
47 A210111000038 Bolt 6
48 A820101312407 Baffle, shaft end 2
49 A210111000107 Bolt 4
50 A820301020670 Shaft, connecting 2
51 10419476 Baffle, lower sliding block 4
52 10419340 Components, lower sliding block, cylinder 2
53 24002346 Bolt 4
54 11865288 Shaft, telescopic cylinder 1
55 11447999 Plate, pressure, coupling shaft 2
56 A810410990265 Support, hose slot 1
57 A210204000165 Screw 8
58 A210111000089 Bolt 36
59 A210401000017 Washer 36
60 A210307000012 Nut 36

61 A820101312460 Groove, drag-chain 1
62 11448585 Section,telescopic, arm 1
63 A810303990183 Components, sliding block, upper 4
64 A820101312400 Plate, backup, adjusting, sliding block, 2 8
65 B229900003376 Chain, drag 1
66 A819700002194 Slot, hose 1
67 A210612000006 Bearing, joint 2
68 A810312110031 Shaft, pin 2
69 10859964 Bearing, sliding 2
70 A810201064531 Cylinder, damping 2
71 11307173 Plate, back-up, nylon 4
72 11447998 Shaft, coupling 1
73 A210204000158 Screw 10
74 11446526 Bearer, front, telescopic cylinder 1
75 11447997 Pin, clip 2
76 A210111000062 Bolt 8

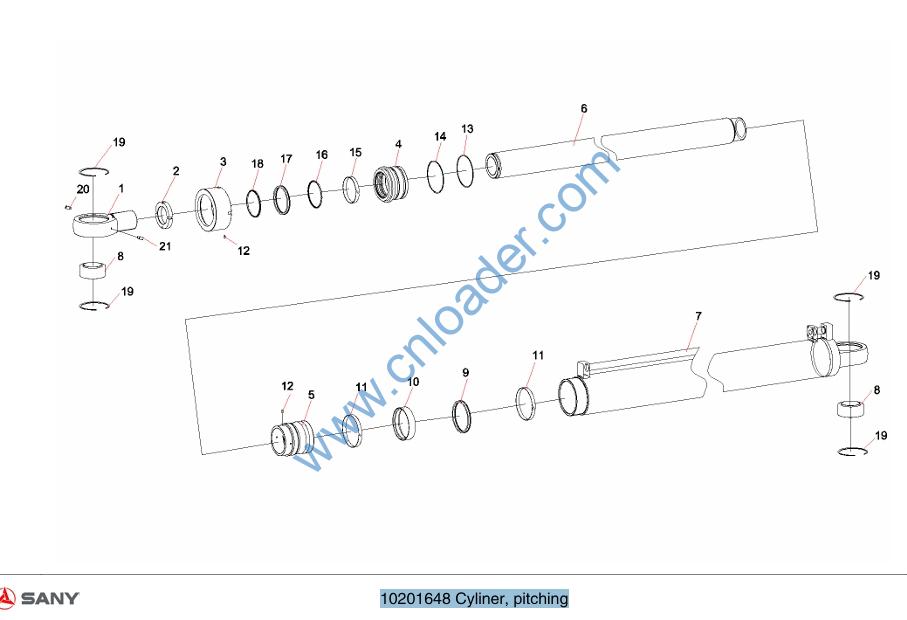

10201648 Cyliner, pitching

1 10201646 Ring, ear 1
2 10032541 Nut 1
3 10032542 Nut 1
4 10032544 Sleeve, guide 1
5 10032545 Piston 1
6 10032549 Piston rod AS 1
7 10201638 Components, cylinder barrel 1
8 A221500000265 Bearing, joint 2
9 B230101002113 Seal, UNP-ring 1
10 B230101001567 Seal, MD-ring 1
11 B230101000903 Ring, guide 2
12 A210208000007 Screw 2
13 A210609000186 O-ring 2
14 10194909 Ring, retaining 2
15 B230101001964 Ring, guide 2
16 A880806030018 Seal, GS 1
17 B230101001441 Seal, B3-ring 1
18 B230101000513 A1-ring, dustproof 1
19 A210416000050 Ring, retaining 4
20 A210804000002 Cup, oil 2
21 B210399000003 Plug, screw 2
