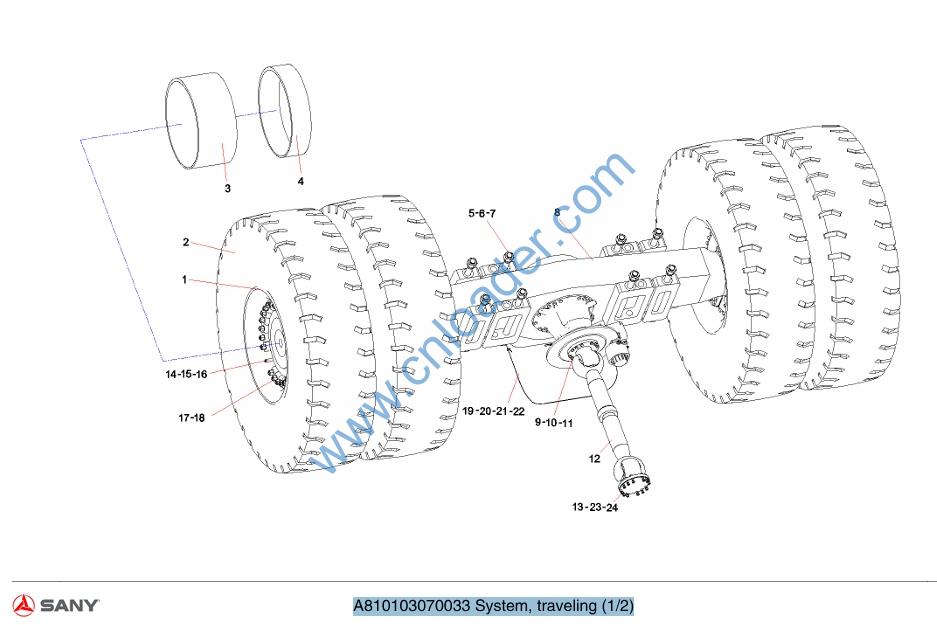

A810103070033 System, traveling (1/2)

A810103070033 System, traveling (1/2)

1 A229900002057 Rim 4
2 A210881000093 Tyre 4
3 60112798 Ring, lock 2
4 A820202003264 Ring, sleeve, middle 2
5 A820204000388 Nut 8
6 A829900001442 Bolt 8
7 A210401000012 Washer 8
8 B220600000011 Axle, driving 1
9 A829900001445 Bolt, transmission shaft, (front) 12
10 A229900007628 Nut 24
11 A210401000001 Washer 12
12 A229900002058 Axle,drive 1
13 A829900001448 Bolt, transmission shaft, (rear) 12
14 A820101313646 Plate, lock, fixed, air pipe 4
15 A210401000002 Washer 4
16 A210111000038 Bolt 4
17 10175223 Plate, pressure 48
18 10075010 Nut, hub 48
19 A210111000348 Bolt 3
20 A210405000007 Washer 3
21 A210401000017 Washer 3
22 11346189 Plate, oilproof 1

23 11342781 Plate, sensor 2
24 11342780 Support, speed sensor 1

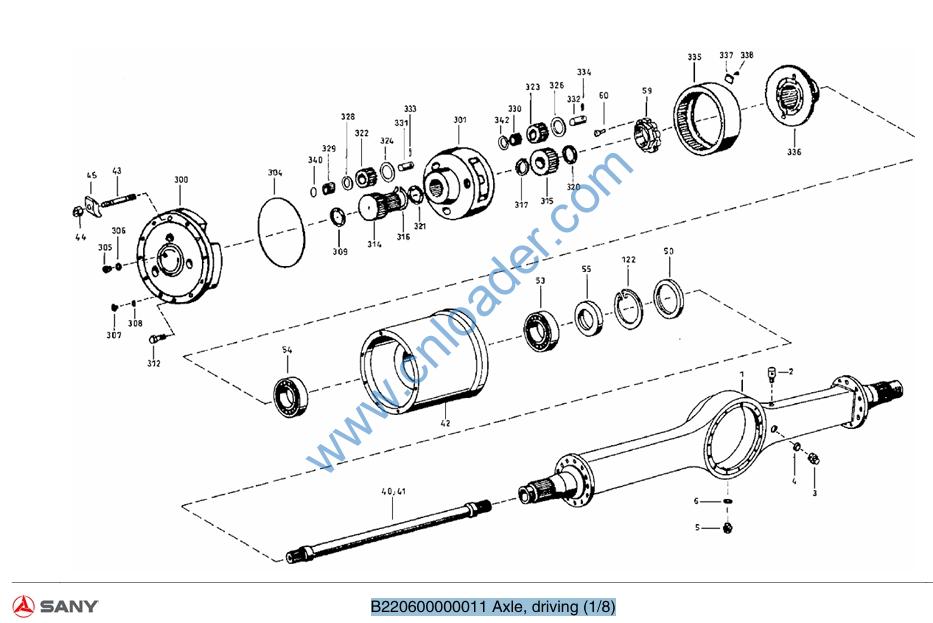

B220600000011 Axle, driving (1/8)

1 60121013 Shell, shaft 1
2 60061416 Plug, ventilating 1
5 60099157 Plug, screw 1
6 60099263 Ring, seal 1
40 60099180 Axle, driving 2
42 60054025 Hub 2
43 B229900002716 Stud 48
50 60099258 Ring, seal 4
53 60099167 Bearing, roller, tapered 2
54 60099167 Bearing, roller, tapered 2
55 60099195 Sleeve, separating 2
59 60099179 nut 2
60 60099214 Screw, hexagon, inner 2
122 60121071 Ring, retaining, elastic 2
300 60099175 Chamber, planet gear 2
301 60120996 Bracket, planet gear 2
304 60099253 O-Ring 2
305 60099157 Plug, screw 1
306 60099263 Ring, seal 1
307 60099155 Plug, screw 2
308 60121015 Ring, seal 2
309 60099231 Ring, thrust 2

312 60099219 Bolt, hexagon 44
314 60099171 Gear, central 2
315 60099172 Gear, central 2
316 60099199 Ring, retaining, elastic 2
317 60121005 Ring, retaining, elastic 2
320 60099233 Ring, thrust 2
321 60099231 Ring, thrust 2
322 60099174 Gear, planet 10
323 60099173 Gear, planet 6
324 60099230 Washer, thrusting 20
326 60099232 Washer, thrust 12
329 60099163 Bearing, needle 10
330 60099162 Bearing, needle 6
331 60099235 Pin, planet 10
332 60099236 Pin, planet 6
333 60099226 Pin, lock 10
334 60099225 Pin, lock 6
335 60099183 Ring, gear 2
336 60121003 Support, toothed ring 2
337 60099178 Frame, fixed 6
338 60099210 Bolt, hexagon 12
340 60099252 O-ring 10

250 60062647 Disc, friction plate, brake 16
251 60062646 Blade, steel, brake 16
252 60121008 Piston 4
253 60099227 Bushing 4
254 60099215 Bolt, hexagon 4
255 60099241 Bearer, brake 2
256 60099206 Bolt, screw 48
257 60099251 O-Ring 2
258 60099257 Seal, oil, piston 2
259 60099256 Seal, oil, piston 2
260 60099240 Housing, axle 2
261 60099239 Housing, axle 2
262 60099254 O-Ring 2
263 60099250 O-Ring 2
264 60099249 O-Ring 2
265 60099248 O-Ring 6
266 60099218 Screw, hexagon, inner 52
267 60099217 Bolt, hexagon 8
269 60099211 Bolt, hexagon 32
271 60062648 Seal, mirror surface 2
272 60099156 Plug, screw 2
273 60099262 Ring, seal 2

274 60099154 Plug, screw 2
275 60099260 Ring, seal 2
278 60099198 Hole, air outlet 2
279 60099260 Ring, seal 2
280 60099160 Valve, exhaust 2
281 60099228 Pipe 16
282 60099193 Screw, flange 16
283 60099185 Spring, compressed 16
