SY215C9 hydraulic excavator SANY SV



零件代码 PART NUMBER

名称 PART NAME

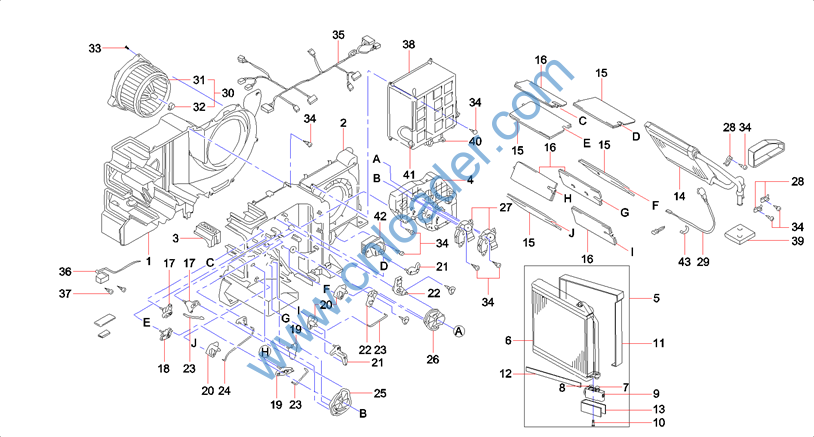

60153212

冷却机组外壳

Housing, main, rear

60153213

冷却机组外壳

Housing, main, front

60153195

Acuators

60153196

Acuators

60153202

带部件蒸发器总成

Evaporator AS

60153218

蒸发器分总成

Evaporator

60153192

O型环

O-ring

60153193

O型环

O-ring

60153197

膨胀阀

Valve, expansion

60153215

螺栓

Bolt

60153203

隔热密封垫

Seal, insulation

60153205

隔热密封垫

Seal, insulation

60153204

隔热密封垫

Seal, insulation

60153242

加热器芯分总成

Core, heater

60049962

门分总成

Damper

60153216

门分总成

Damper

60049956

连杆分总成

Linkage, cam

60049957

连杆分总成

Linkage, cam

60049958

连杆分总成

Linkage, cam

60049959

连杆分总成

Linkage, cam








零件代码 PART NUMBER

名称 PART NAME

60049941

Linkage, lever

60049960

连杆分总成

Linkage, cam

60049963

Linkage, lever

60049964

Linkage, lever

60049943

Acuators

60049944

Acuators

60049947

伺服电机总成

Motor AS, servo

60049955

夹具

Clamp

60033039

水温传感器

Sensor, coolant temperature

60153199

鼓风电机

Motor AS

60049951

风扇叶

Fan

60049954

夹具

Clamp

60049950

带垫圈自攻螺钉

Screw, self tapping with washer

60049965

自攻螺钉

Screw, self-tapping

60049948

空调机电束总成

Harness AS, blower housing

60049966

防结霜传感器

Sensor, anti-frost

60049949

带垫圈螺钉

Screw, with washer

60049942

盒分总成

Cover

60049953

隔热密封垫

Seal, insulation

60049945

带附件伺服电机总成

Motor AS, servo








零件代码 PART NUMBER

名称 PART NAME

60153240

内气传感器    Sensor, fresh air temperature

60049968

调速电阻    Transistor AS

60049952

感温包零件支架    Bracket








零件代码 PART NUMBER

名称 PART NAME

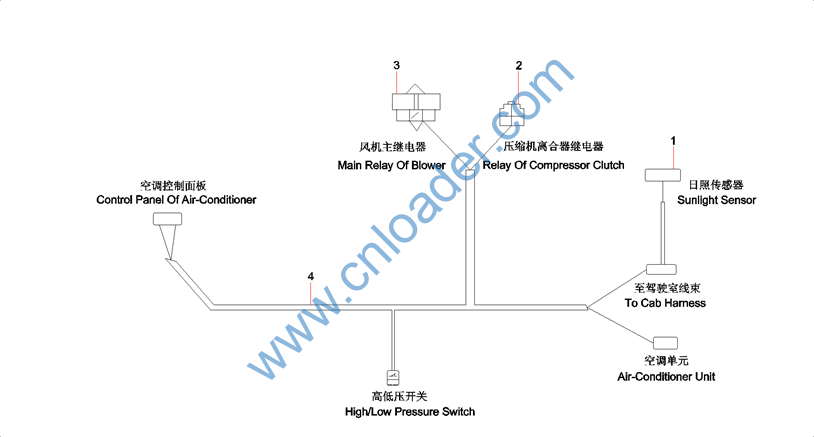

B240600000334

日照传感器

Sensor, sunlight

B240700000473

继电器

Relay

B240700000472

继电器

Relay

10448933

空调连接线

Harness, air conditioner








零件代码 PART NUMBER

名称 PART NAME

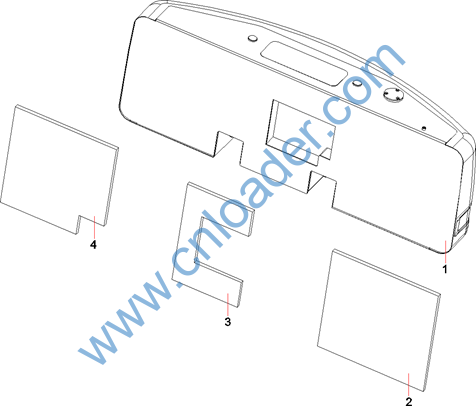

13623383

配重主体    Counterweight AS

13466550

配重降噪海绵    Foam, counterweight pc3

13466564

配重降噪海绵    Foam, counterweight pc2

13466567

配重降噪海绵    Foam, counterweight pc1








零件代码 PART NUMBER

名称 PART NAME

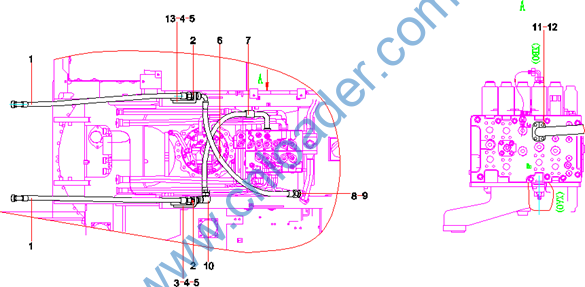

60335963

胶管

Rubber Hose

21003018

直通隔板式接头

Fitting, bulkhead connector

14003931

支撑板

supporting board

A210111000208

螺栓

Bolt

60238781

垫圈14GB97.1 达克锈

Washer

B230103001578

胶管

Rubber Hose

60289958

胶管

Rubber Hose

A820205001334

G1-M42接头

Connector

B230101000050

O形圈

O-ring

B210780001241

直角组合接头

Fitting, Elbow

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

14105544

右支撑

supporting board








零件代码 PART NUMBER

名称 PART NAME

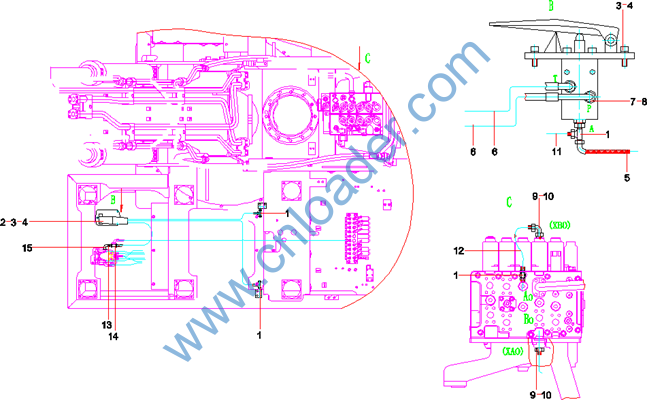

B210780000170

管接头

Fitting

B220402000338

脚踏阀

Foot-Operated Valve JRCVP-A-1

A210204000132

螺钉

Screw

24000632

垫圈6GB97.1 达克锈

washer

B230103002658

胶管

Hose AS

B230103001359

胶管

Hy hose 1SN6-DKOL-DKOL90-

A820205000940

接头

Fitting

B230101000047

O形圈

O-Ring-10.8

A820205000946

接头

Fitting

B230101000049

O形圈

O-ring

B230103000815

胶管

Hose AS

B230103000977

胶管

Hose AS

B210780001045

管接头

Fitting

B220400000169

三通梭阀

Valve, shuttle, tee

B210780000418

管接头

Fitting








零件代码 PART NUMBER

名称 PART NAME

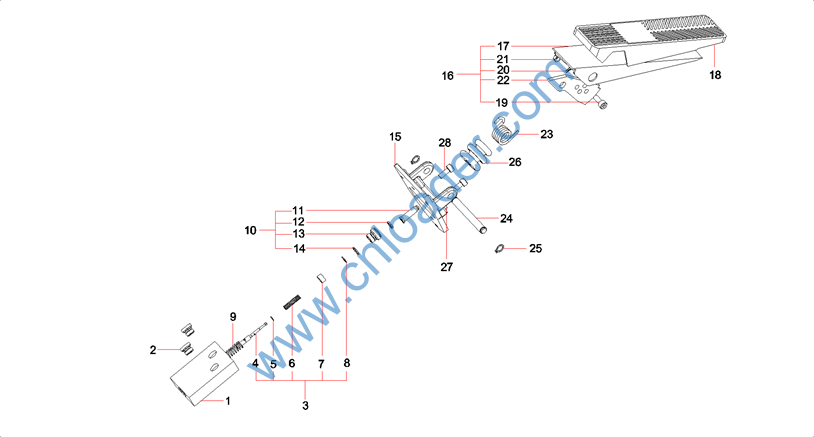

60209583

阀体

Body, valve

60209584

堵头

Plug

60209585

阀芯组件

Spool AS, valve

60209586

阀芯

Spool, valve

60082153

弹簧座

Seat, spring

60209587

弹簧

Spring

60082154

弹簧座

Seat, spring

60082140

挡环

Ring, retaining

60209588

弹簧

Spring

60209589

插销组件

Pin GP

60209590

推杆组件

Plunger GP

60209591

油封

Seal, oil

60209592

密封圈

Ring, seal

60038815

O形圈

O-ring

60209593

Plate

60209594

踏板组件

Pedal GP

60209595

踏板

Pedal

60209596

踏板面

Panel, pedal

A210204000220

螺钉M8×20GB70.1 10.9级

Screw

A210405000007

垫圈

Washer








零件代码 PART NUMBER

名称 PART NAME

A210307000055

螺母M8GB6170 10级

Nut

60209597

连接轴

Shaft, connecting

60209598

弹簧

Spring

60209599

定位销

Dowel

60209600

卡簧

Spring, snap

60209601

波纹套

Sheath, corrugated

A210207000001

螺钉

Screw

23002134

螺钉

Screw
