A210491000121 |
垫圈 Washer |
|
A210111000197 |
Bolt |
|
B220401001302 |
Valve, pilot |
|
B230103000982 |
Hose AS |
|
60170604 |
Valve, travel |
|
B230103002263 |
Hose AS |
|
A831211120000 |
Hose AS |
|
B230103001375 |
Hose AS |
|
11602341 |
Gasket, rubber |
|
11602348 |
Gasket, rubber |
|
B230103000985 |
Hose AS |
|
11243372 |
Plate, pressure |
|
A210111000342 |
Bolt |
|
24000511 |
Washer |
|
11243374 |
Plate, pressure |
|
11243400 |
Plate, pressure |
|
B230103003282 |
Hose AS |
|
B230103003202 |
Hose AS |
|

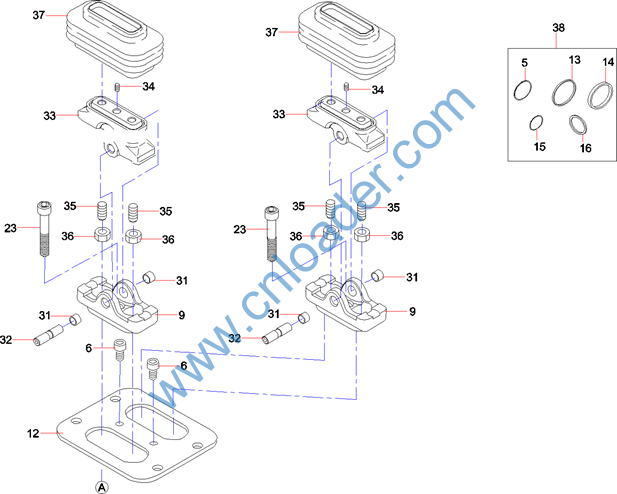

B229900001613 |
Joystick , left |
|
A210264000022 |
Screw, self-tapping |
|
11050165 |
Handle, grip |
|
A210308000006 |
Nut |
|
A210307000002 |
Nut |
|
A229900006446 |
Joystick, rubber cover |
|
A229900001028 |
Joystick, rubber cover |
|
A229900001027 |
Plate |
|
B229900001614 |
Joystick, right |
|
60086354 |
Clamp |
|
11602359 |
Gasket, rubber |
|
60128281 |
Hose AS |
|
60116344 |
Insert, switch |
|
变更或见其他配置 |
Washer |
|
A241200000875 |
Switch |
|
A229900006438 |
Insert, switch |
|
24000512 |
Washer |
|
B230103002001 |
Hose AS |
|
B230103002658 |
Hose AS |
|
21020054 |
Hose AS |
|
B230103004256 |
Hose AS |
|
A820199000360 |
Block, PT |
|
21005186 |
Bolt |
|
A820601990304 |
Flange |
|
A820601990336 |
Grommet |
|
A210111000079 |
Bolt |
|
24000632 |
washer |
|
B210780000418 |
Fitting |
|
B210780000024 |
Fitting, Elbow |
|
A820205000894 |
Fitting |
|
B230101000047 |
O-Ring-10.8 |
|
A820205000839 |
Fitting |
|
A820205000940 |
Fitting |
|
A831211095000 |
Hose AS |
|
A820205000946 |
Fitting |
|
B230101000049 |
O-ring |
|
60020078 |
过滤接头 Fitting, screen |
|
11243401 |
胶套 Sleeve, rubber |
|
60008879 |
Pin, roll |
|
60008604 |
Nut, adjusting |
|
60008809 |
Plate, circular |
|
60008602 |
Shaft |
|
60008603 |
Ring, seal |
|
60008595 |
Plug |
|
B230101000363 |
O-ring |
|
60008599 |
Rod |
|
60008811 |
PLATE |
|
60008758 |
Seat, spring |
|
60008775 |
Spring |
|
60008597 |
Washer |
|
60008774 |
Spring, large |
|
60008760 |
SPOOL |
|
60008795 |
Housing |
|
60008799 |
O-RING |
|
60008810 |
Plate, connecting |
|
60008786 |
Bolt, socket head |
|
60008598 |
Washer, seal |
|
60008806 |
Sleeve |
|
60331163 |
手动先导阀维修包 Kit, seal |
|
60237073 |
Screw |
|
60237074 |
Mount, lower |
|
60237075 |
Plate |
|
60237078 |
Screw, socket head |
|
60008690 |
Sleeve, shaft |
|
60008585 |
Shaft |
|
60008591 |
Mount, upper |
|
60237082 |
Screw, set |
|
60008592 |
Screw, adjusting |
|
60038480 |
Nut |
|
60237083 |
Cover, rubber |
|
60331164 |
Kit, seal |
|
60237072 |
Valve |
|
60008728 |
Screw, set |
|
60163768 |
Plug |
|
60008754 |
Cover |
|
60163771 |
Ring, dust |
|
60038720 |
O-ring |
|
60273527 |
Rod |
|
60008756 |
Seat, spring |
|
60038563 |
Screw, socket head |
|
60008803 |
Piston |
|
60237077 |
Ball, steel |
|
60008766 |
Spring |
|
60008767 |
Spring |
|

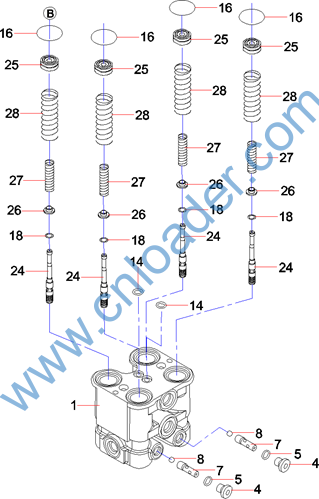

60273523 |
Valve, travel, pilot |
|
60273524 |
Plug |
|
60221657 |
O-ring |
|
60273525 |
Spool, cartridge |
|
60273526 |
Ball, steel |
|
60038727 |
O-ring |
|
60038820 |
O-ring |
|
60008597 |
Washer |
|
60273528 |
Spool |
|
60237080 |
Seat, spring |
|
60008589 |
Washer |
|
60008594 |
Spring, small |
|
60038221 |
Spring, large |
