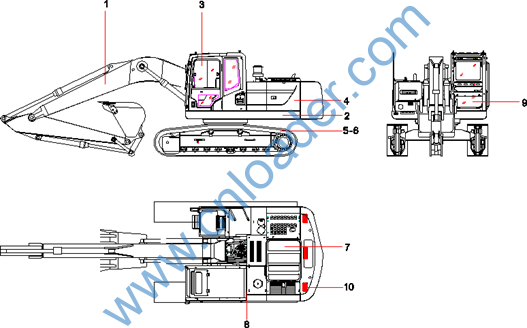

SY215C9 hydraulic excavator SANY AS






序号 INDEX

零件代码 PART NUMBER

1

13971705

work device

2

13971804

Superstructure assembly

3

13971988

Cab

4

13658380

General assembly of covering parts

5

13892750

Undercarriage system

6

变更或见其他配置

lengthening undercarriages

7

13971884

Power system

8

13971634

electrical system

9

13972392

Attached accessories

10

13972408

coating

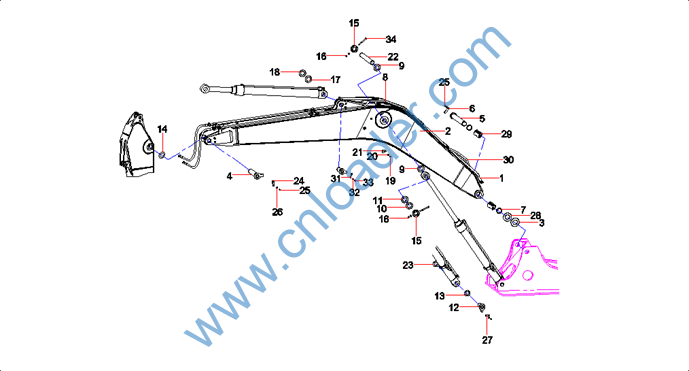

零件代码 PART NUMBER

13969700

Work Device Hydraulic Tube

13969905

boom SY225.3.2

11041901

Gasket

A810312110019

Pin

11856384

Pin

11324336

Plate

60055872

O-ring

11777805

Lines GP, greasing

11169582

Gasket

11041905

Gasket

11112320

Gasket

A810312110017

Pin

11112311

Gasket

A820102010387

Gasket

A820202002009

Lock ring

A210307000029

Nut

A820102010381

Gasket

A820102010382

Gasket

A210111000263

Bolt

24000514

Washer








零件代码 PART NUMBER

A820101322531

Bracket, lamp

A820301020461

Pin SY200B.3-37

11041902

Gasket

11308781

Plate

A210111000212

Bolt

24000642

Washer

11272926

Plate

11112327

Gasket

11307308

Bushing

14105939

Work device Tube

A820101119187

Plate

24000639

Washer

A210111000202

Bolt

A210110000352

Bolt-M20×180








A810312110015

Pin

A210111000202

Bolt

24000639

Washer

A820101119187

Plate

A810312110021

Pin

B229900000686

Grease nipple

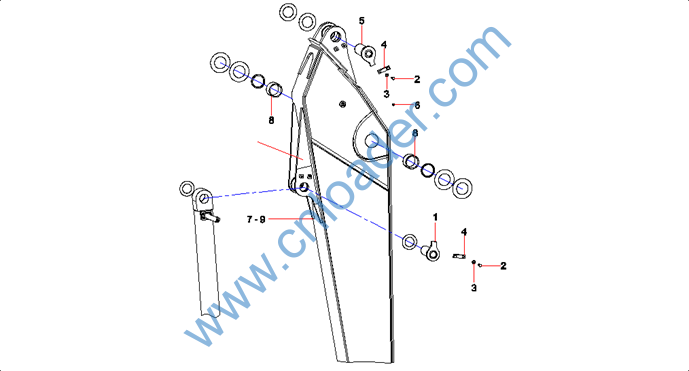

变更或见其他配置

Arm

11216201

Bushing

14024777

Arm SY215C.3.3M
