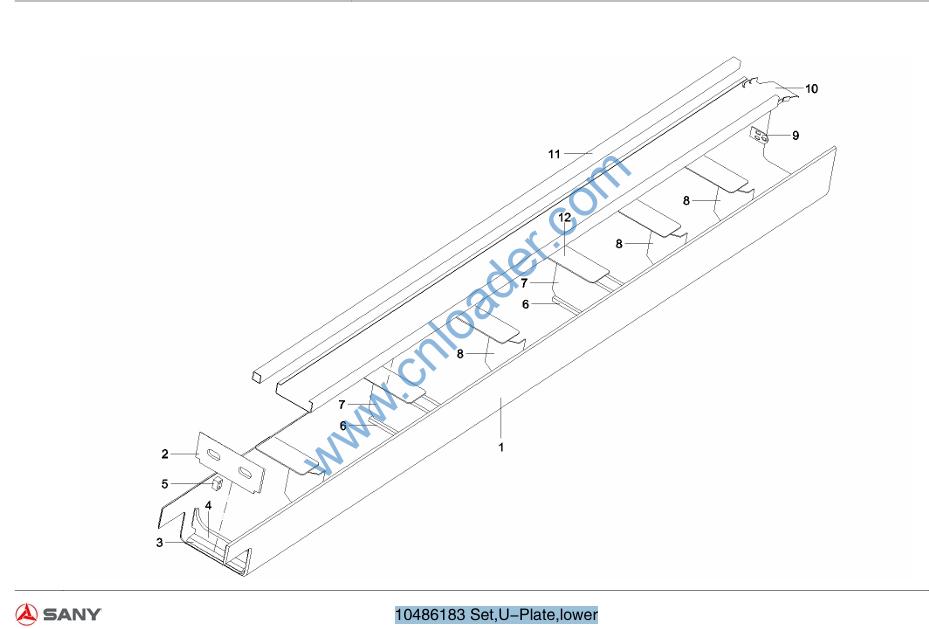

10486183 Set,U-Plate,lower

10486183 Set,U-Plate,lower

1 A820101328401 U-Plate,lower 1
2 A820101328392 Plate,vertical,reinforcement 1
3 A820101328393 Plate,cross,reinforcement 1
4 A820101328394 Plate,reinforcement (1) 1
5 B210852000002 Clamp, duplex 1
6 A820101328399 Plate,cross,support 2
7 A820101328398 Plate,vertical,support 4
8 A820101328395 Plate,support 4
9 A820101334142 Plate,clamp,tube,hydraulic 1
10 A820101328407 Groove,support 1
11 A820206012583 Steel,square 1
12 11307216 Plate,transitional,welding 6

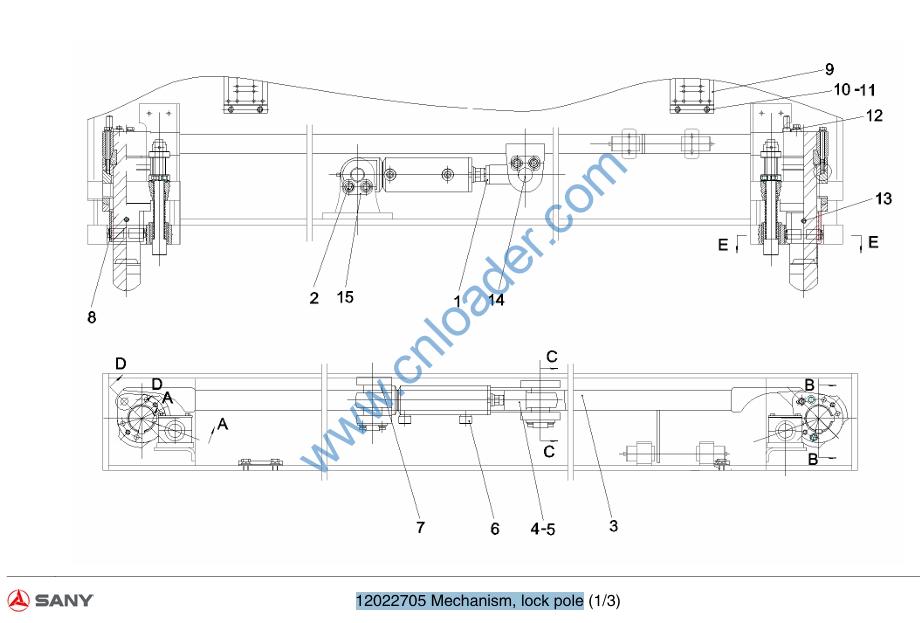

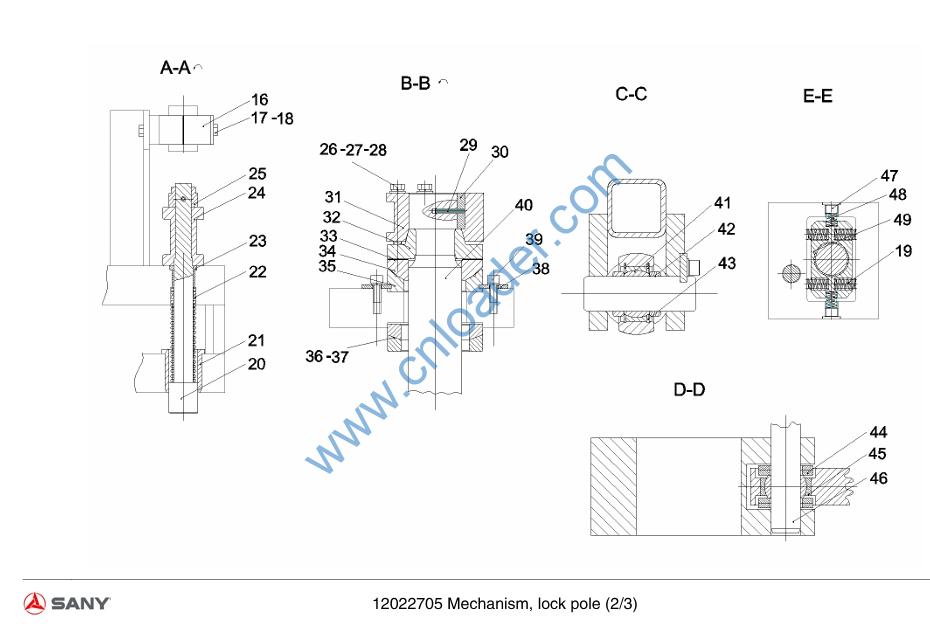

12022705 Mechanism, lock pole

1 12102259 Nut 1
2 A210204000162 Screw 4
3 12022671 Rod, connecting 1
4 A210205000002 Screw 1
5 12507423 Connector, piston rod 1
6 11330566 Cylinder, twistlock 1
7 12088144 Ring, retaining 2
8 A221500000219 Bearing, sliding 2
9 10023645 Plate, terminal 2
10 A210204000130 Screw 8
11 A210401000016 Washer 8
12 A210501000009 Pin 2
13 A210804000001 Cup, oil 2
14 11172032 Pin, twistlock cylinder 2
15 11478611 Plate, lock 2

16 B210840000016 Clamp, single pipe 2
17 60111064 Nut 4
18 A210204000139 Screw 4
19 A820209010088 Spring 8
20 10261833 Bar, crown 2
21 10486682 Bushing, lower 2
22 10262659 Spring 2
23 10920435 Bushing, upper 2
24 10261863 Lock, turntable 2
25 10261868 Nut 2
26 A210405000007 Washer 12
27 A210401000017 Washer 32
28 A210108000097 Bolt 8
29 A210507000012 Pin 2
30 A820103010873 Key 2
31 10993972 Turntable 2
32 A820301021047 Lock, bayonet 4
33 10018050 Pad, adjusting 2
34 A820208000247 Bearing, ball, upper, (1) 2
35 A820208000248 Bearing, ball, upper, (2) 2
36 A820208000249 Bearing, ball, lower 2
37 A820208000250 Bearing, ball, lower 2

38 10042829 Baffle, bearing 4
39 A210111000089 Bolt 8
40 A820302020060 Shaft, pin, lock pole 2
41 A221500000035 Bearing, joint 1
42 11482652 Ring, retainer 2
43 A210416000039 Ring, retainer 2
44 A210407000004 Washer 8
45 A210612000026 Bearing, joint 2
46 A820301015798 Shaft, pin 2
47 A210333000003 Plug, screw 4
48 A820209010110 Spring 4
49 A820101328330 Sleeve, protective 2
