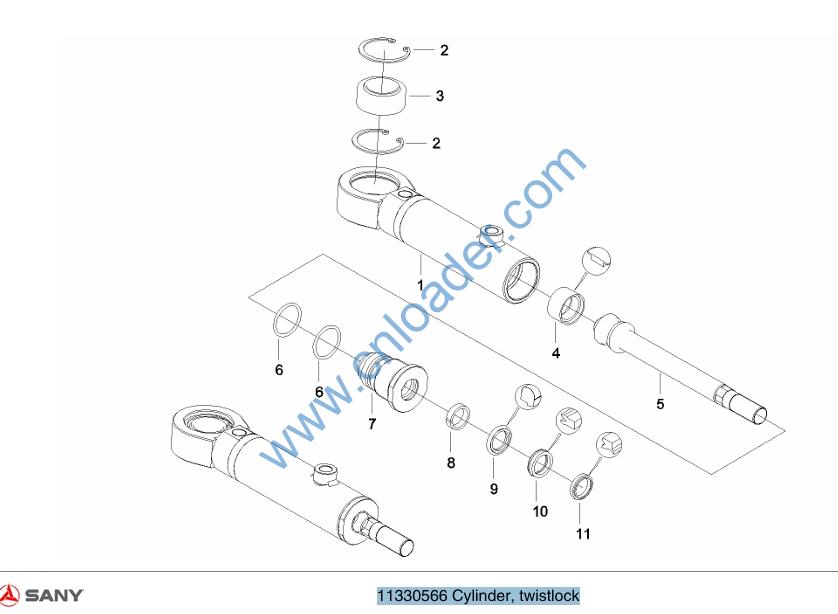

11330566 Cylinder, twistlock

11330566 Cylinder, twistlock

1 11330568 Assembly, cyliner barrel 1
2 A210416000039 Ring, retainer 2
3 A221500000035 Bearing, joint 1
4 B230101002025 Ring, seal, MD-type 1
5 10221590 Rod, piston 1
6 A210608000122 O-ring 2
7 10221589 Sleeve, guide 1
8 B210435000003 Belt, guide 1
9 B230101000988 Seal, ring 1
10 B230101000498 Ring, seal, B3 1
11 B230101001050 Ring, dustproof, AY 1

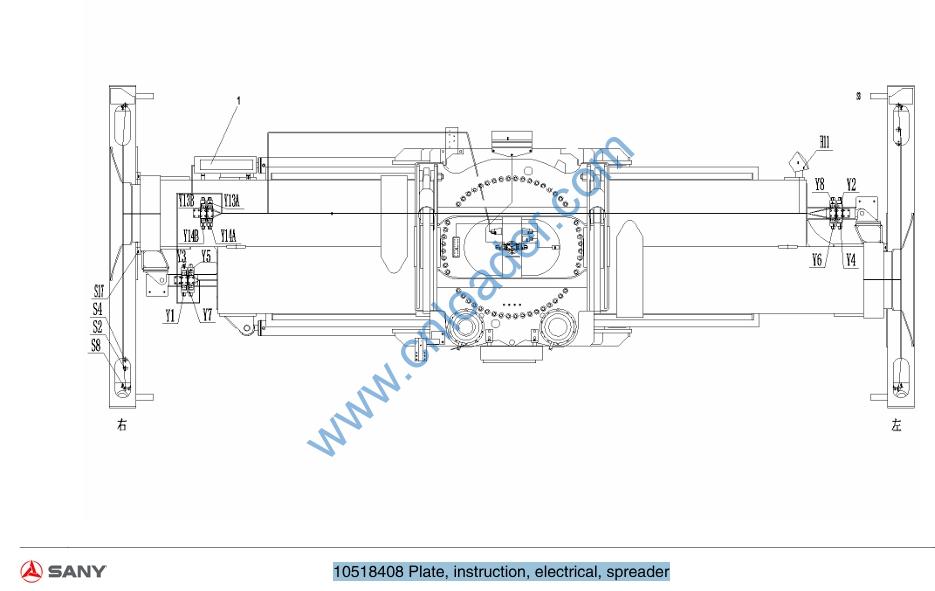

10518408 Plate, instruction, electrical, spreader

10451446

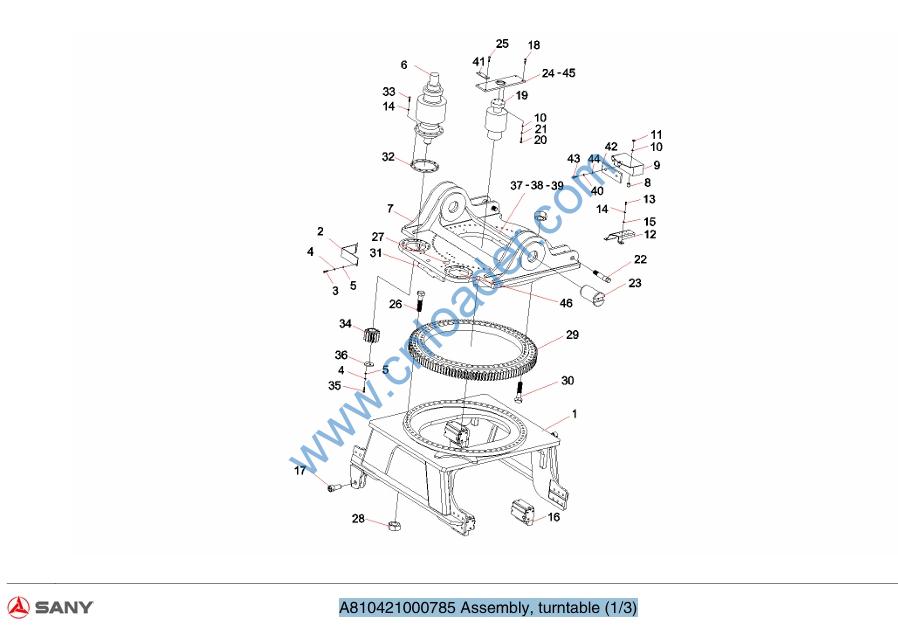

A810421000785 Assembly, turntable (1/3)

1 A810421000787 Turntable, lower 1
2 A820101328023 Baffle, gear, reductor 2
3 A210111000011 Bolt 12
4 A210401000001 Washer 22
5 A210405000011 Washer 22
6 B220800000230 Reductor 2
7 A810422001181 Upper rotary platform 1
8 A810421000802 Stud, damper 4
9 A810497000955 Cover, indicator lamp 1
10 A210405000007 Washer 10
11 A210307000012 Nut 6
12 A820101328024 Support, pipeline 1
13 A210111000101 Bolt 3
14 A210401000002 Washer 23
15 A210405000001 Washer 23
16 A810314000009 Assembly, sliding block 4
17 A810421000799 Assembly, pin shaft 2
18 A210111000023 Bolt 4
19 A229900005468 Joint, slewing 1
20 A210111000323 Bolt 4
21 A210401000017 Washer 4
22 A810421000800 Assembly, pin shaft 2

23 A810421000801 Assembly,shaft,pin (4) 2
24 A820101328029 Plate, connecting, slewing joint 1
25 A210111000027 Bolt 4
26 A210110000213 Bolt 51
27 10956911 Bolt 9
28 A229900007632 Nut 116
29 B229900001917 Bearing,slewing 1
30 A210110000302 Bolt 56
31 A819700001094 Assembly,pipeline,oil,lubrication 1
32 10265981 Ring, nut 2
33 A210110000011 Bolt 20
34 A820210000292 Gear, small 2
35 A210111000026 Bolt 6
36 A820101328535 Plate, pressure 2
37 10023645 Plate, terminal 1
38 A210204000129 Screw 8
39 A210401000016 Washer 8
40 A210405000007 Washer 10
41 10023667 Seat, rope-fastening 1
42 11041944 Pad,buffer,cover,lamp,indicator 1
43 A210111000090 Bolt 2
44 A210307000012 Nut 6

45 11117006 Stopper, slewing joint 1
46 60011464 Reduction Gear 1

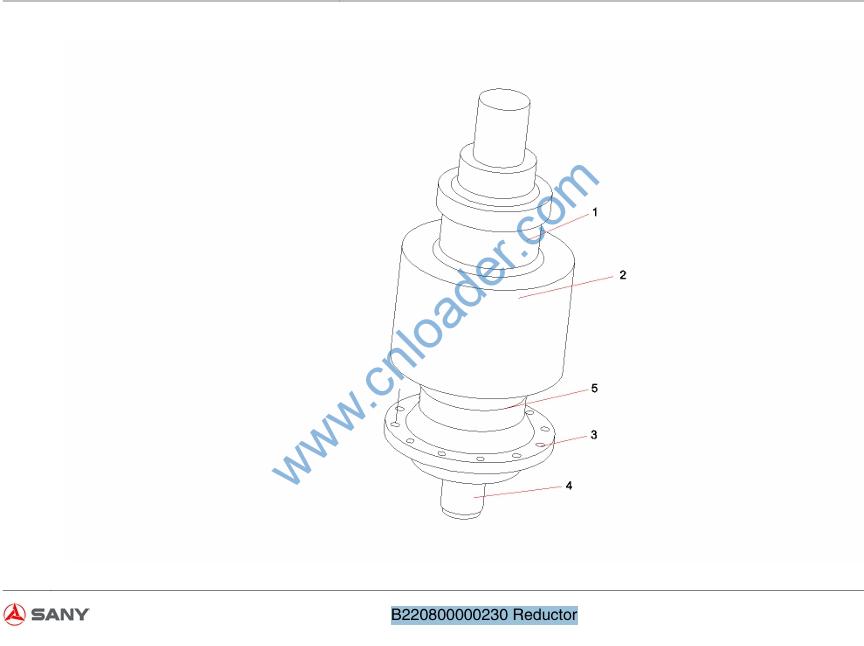

B220800000230 Reductor

1 60138923 Assembly, brake 1
2 60138817 Gear, transmission 1
3 60139466 Flange, connecting 1
4 60139924 Assembly, output shaft 1
5 60138818 Gear, transmission 1

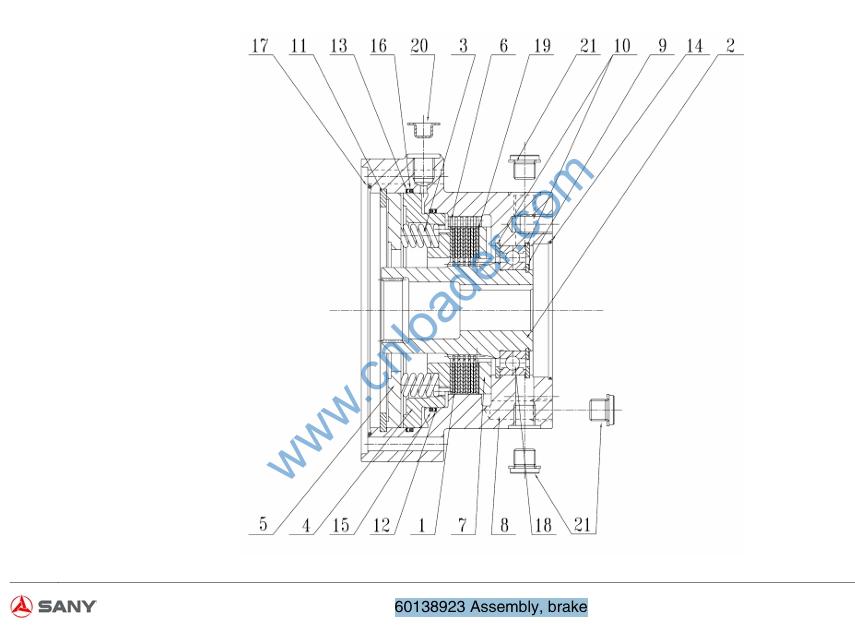

60138923 Assembly, brake

1 60120550 Disc, friction 5
2 60120590 Coupling 1
3 60120618 Spring 14
4 60120596 Brake, piston 1
5 60120628 Baffle, bottom 1
6 60120553 Disc, brake 6
7 60120589 Key, spline 1
8 60120729 Body, shell 1
9 60120833 Ring, snap, outer 1
10 60120780 Ring, snap, inner 2
11 B230101001487 Seal, oil 1
12 B230101001489 Seal, oil 1
13 B230101001490 Seal, oil 1
14 60120871 O-ring 1
15 60120873 O-ring 1
16 60120874 O-ring 1
17 60120875 O-ring 1
18 60120583 Bearing, ball 1
19 60120650 Pad, adjusting 1
20 60120659 Plug 1
21 60120660 Plug 3

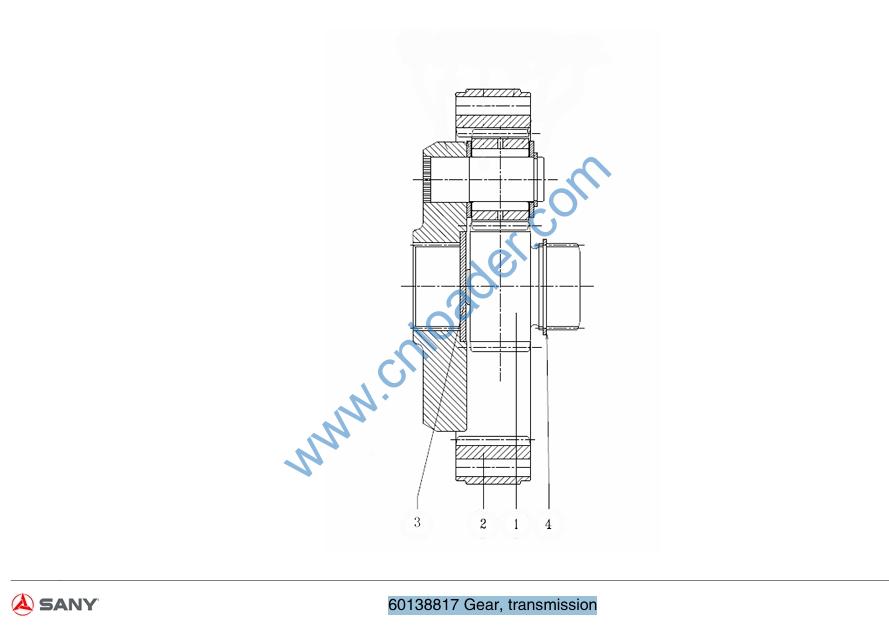

60138817 Gear, transmission

1 60120593 Gear, sun 1
2 60120591 Gear, circular 1
3 60120612 Bracket, planetary, set 1
4 60120832 Ring, snap, outer 1

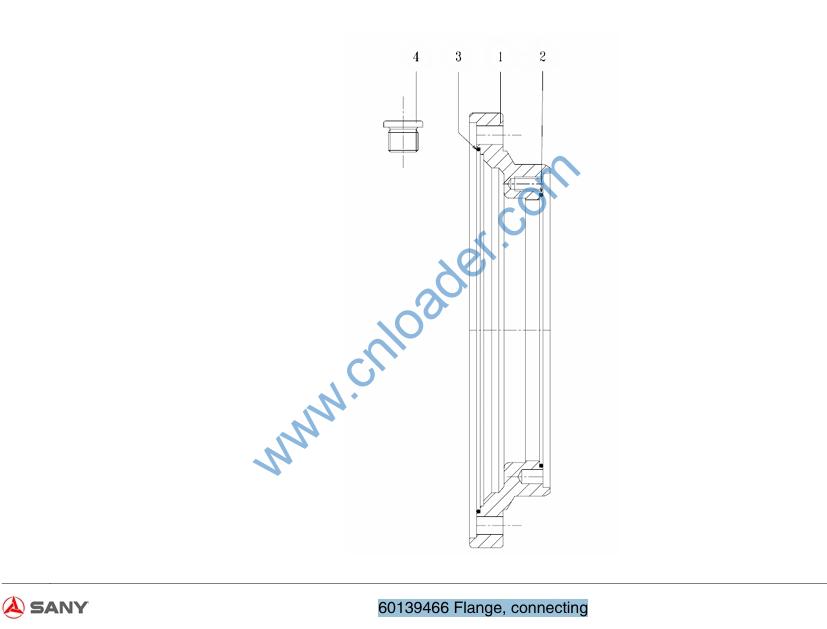

60139466 Flange, connecting

1 60120734 Flange, connecting 1
2 60120875 O-ring 1
3 60120876 O-ring 1
4 60120661 Plug 2
