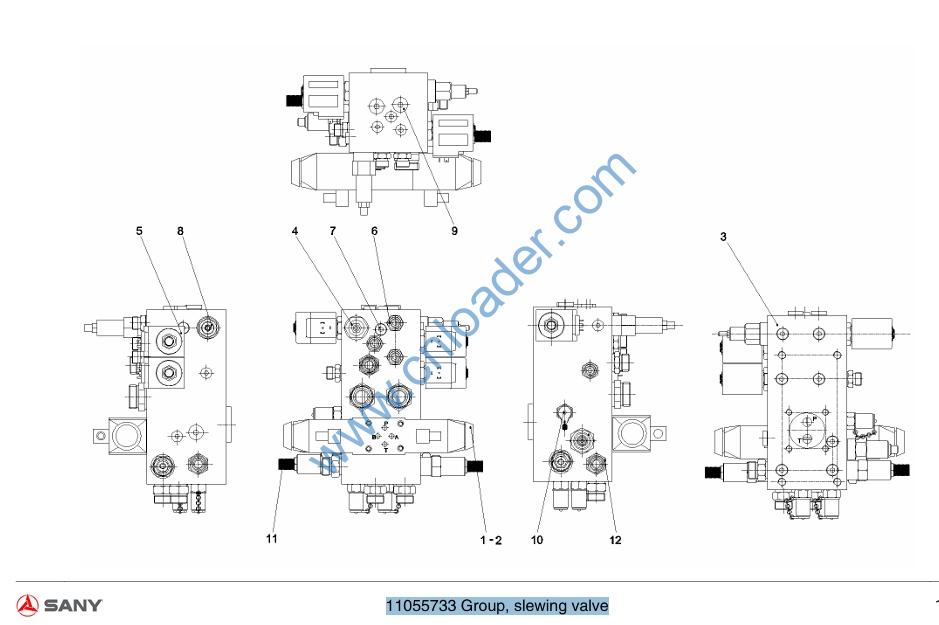

11055733 Group, slewing valve

11055733 Group, slewing valve

1 B220400000323 Valve, reversal, electromagnetic 3
2 A820601020466 Cover, waterproof 1
3 11053618 Block, slewing valve 3
4 B220401000492 Valve, throttle 1
5 B220400000023 Valve, reversing, electromagnetic 15
6 B210780000036 Connector, pipe 4
7 B210399000003 Plug, screw 1
8 B220401000546 Valve, trottle, one-way 4
9 B210780000201 Plug, screw 3
10 B210770000084 Connector, pressure measuring 4
11 B220401000105 Valve, overflow 3
12 B210780000040 Connector, pipe 1

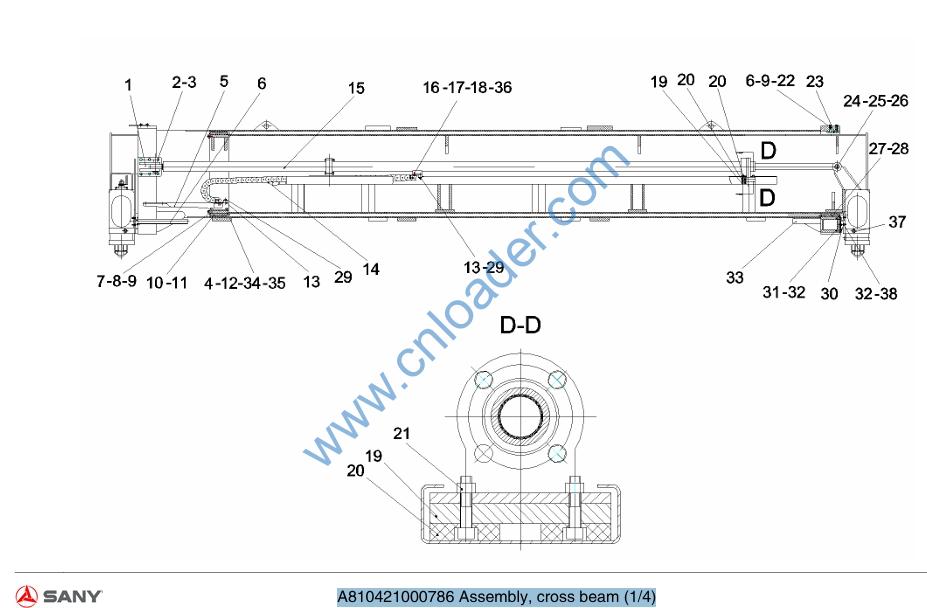

A810421000786 Assembly, cross beam (1/4)

1 12085525 Bearer, telescopic cylinder 2
2 A210111000042 Bolt 12
3 A210404000004 Washer 12
4 A210319000006 Nut 20
5 A820101328208 Plate, drag-chain 2
6 12255876 Components, right support 1
7 A210405000011 Washer 52
8 A210111000197 Bolt 40
9 A210401000001 Washer 52
10 A820101328209 Plate, sliding block 12
11 12058087 Block, sliding 20
12 A210111000037 Bolt 8
13 B210852000002 Clamp, duplex 2
14 B229900005701 Drag-chain, telescopic, imported 2
15 11839805 Cylinder,extension 2
16 A210201000005 Screw 16
17 A210401000016 Washer 20
18 A210204000130 Screw 4
19 12058078 Bearer lower Slide Block SDJ450.2-8A 4
20 A820101350991 Cushion 2
21 A210204000359 Screw 32
22 A210111000030 Bolt 12

23 A820101328311 Plate, back-up, upper 2
24 A820301015792 Pin, connecting, telescopic cylinder 4
25 A210405000014 Washer 4
26 A210501000009 Pin 4
27 A820101328314 Plate, sliding block, 2 2
28 12058081 Block, sliding, lower 4
29 A210111000093 Bolt 4
30 10030816 Components, buffer pad 2
31 A210204000146 Screw 4
32 A210401000017 Washer 16
33 12255848 Components, left support 1
34 A210401000002 Washer 40
35 A210405000001 Washer 40
36 A210307000016 Nut 4
37 A210804000001 Cup, oil 4
38 A210111000089 Bolt 8

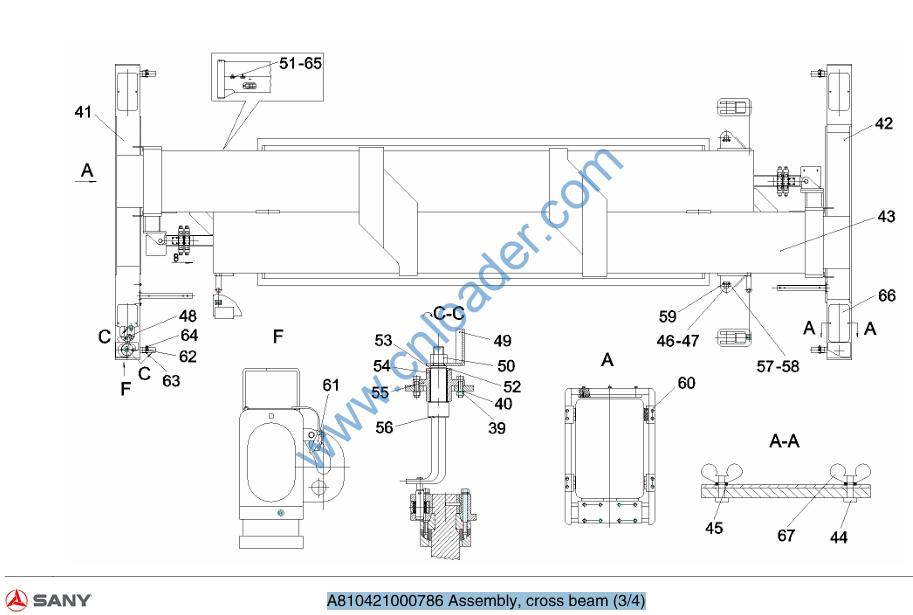

A810421000786 Assembly, cross beam (3/4)

39 A210319000004 Nut 12
40 A210405000007 Washer 16
41 A810303000170 Beam, telescopic 1
42 A810303000171 Beam, telescopic 1
43 A810421000972 Body, cross beam 1
44 A210111000323 Bolt 8
45 A210405000007 Washer 16
46 A820301015793 Shaft, pin, cross shifting 2
47 A820202004467 Ring, retaining 2
48 12022705 Mechanism, lock pole 2
49 A820101328319 Board, indicator, steering 2
50 A229900007631 Nut 2
51 10833253 Stud, damper 2
52 24000670 Washer 2
53 A210414000006 Ring, retainer 2
54 A221500000240 Bearing 2
55 A820202004470 Seat, sleeve, steering 2
56 A810406000348 Shaft, steering 2
57 A210111000080 Bolt 4
58 A210401000016 Washer 20
59 A820101339664 Plate, lock 2
60 12024633 Plate, sliding block 8

61 10759366 Baffle 4
62 10762009 Spring, torsion 4
63 10759532 Shaft, pin 4
64 A210491000014 Pin 4
65 10833167 Support, electric control cabinet 2
66 A210322000003 Nut 8
67 11907988 Plate, cover 4
