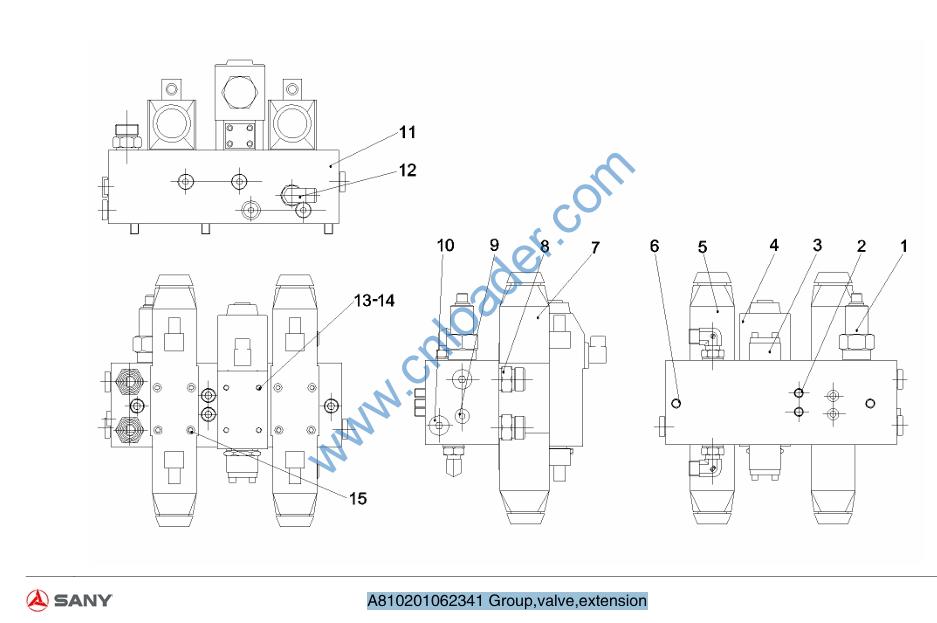

A810201062341 Group,valve,extension

A810201062341 Group,valve,extension

1 B220401000105 Valve, overflow 1
2 A210609000092 O-ring 2
3 A220401000153 Valve, throttle, one-way, double 1
4 B220400000026 Valve, reversal, electromagnetic 1
5 B220400000323 Valve, reversal, electromagnetic 1
6 A210204000151 Screw 4
7 B220402000363 Valve, reversal, electromagnetic 1
8 B210780000040 Connector, pipe 2
9 B210399000003 Plug, screw 6
10 B210780000201 Plug, screw 3
11 A820302010290 Block,valve,extension 1
12 B210780001444 Connector, pipe 2
13 A210204000125 Screw 4
14 A820601020466 Cover, waterproof 8
15 A210204000168 Screw 8

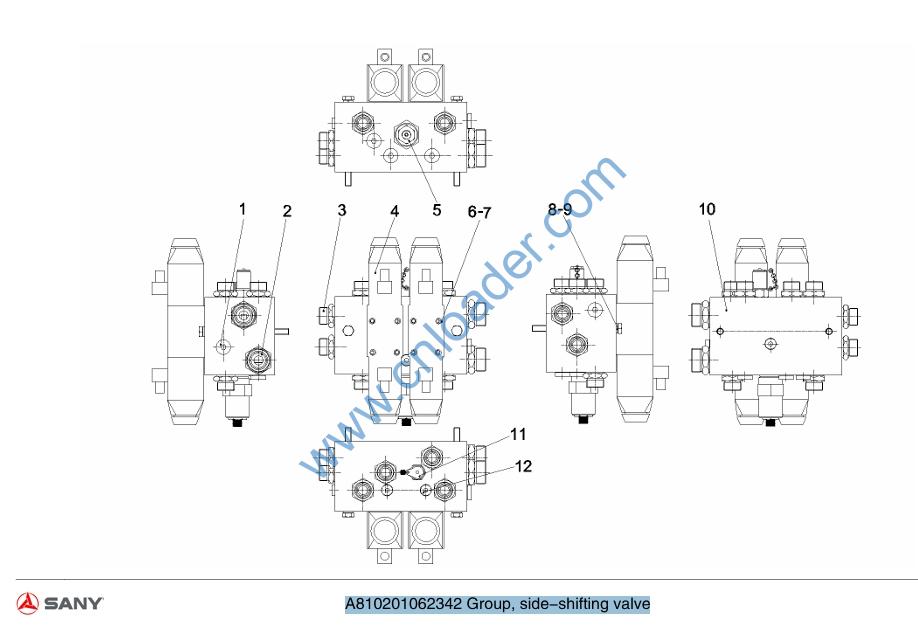

A810201062342 Group, side-shifting valve

1 B210780000201 Plug, screw 2
2 B210780000712 Connector, pipe 2
3 B210780000040 Connector, pipe 8
4 B220400000323 Valve, reversal, electromagnetic 2
5 B220401000105 Valve, overflow 1
6 A210204000168 Screw 8
7 A820601020466 Cover, waterproof 8
8 A210110000367 Bolt 2
9 A210401000017 Washer 2
10 A820302010289 Block, side-shifting valve 1
11 B210770000084 Connector, pressure measuring 2
12 B210399000003 Plug, screw 4

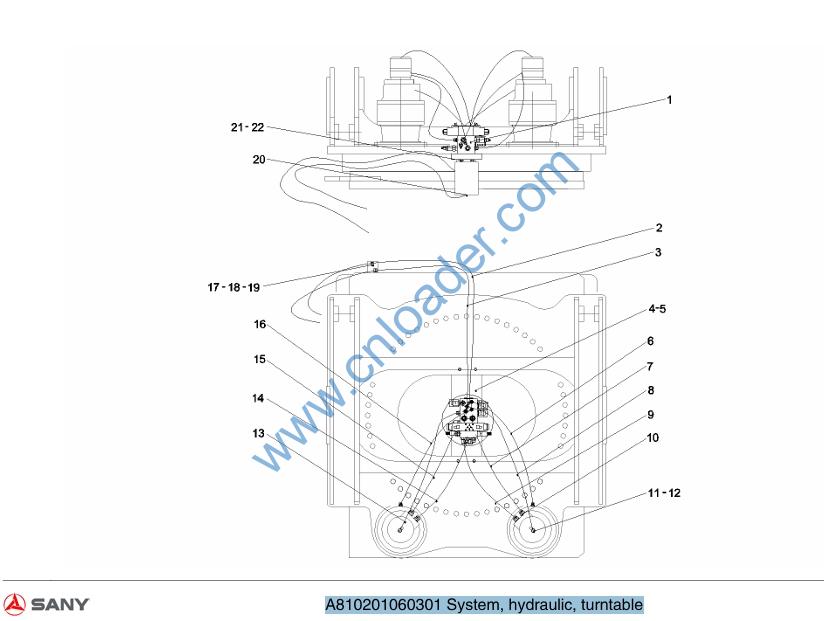

A810201060301 System, hydraulic, turntable

1 11055733 Group, slewing valve 1
2 B230103004299 Hose, rubber 1
3 B230103007871 Hose, rubber 1
4 A210111000024 Bolt 8
5 A210401000001 Washer 8
6 B230103001015 Hose, rubber 1
7 B230103004807 Hose, rubber 1
8 B230103000855 Hose, rubber 1
9 B230103005247 Hose, rubber 1
10 B210780000043 Connector, pipe 4
11 B210780000733 Connector, pipe 4
12 B210780000636 Connector, pipe 2
13 B230103005080 Hose, rubber 1
14 B230103005377 Hose, rubber 1
15 B230103000354 Hose, rubber 1
16 B230103004913 Hose, rubber 1
17 A210204000139 Screw 8
18 A210401000016 Washer 8
19 60165339 Body, pipe clamp 4
20 B210780000049 Connector, pipe 2
21 A210111000323 Bolt 4
22 A210401000017 Washer 4
