SY335C9I2KH hydraulic excavator SANY SQF



零件代码 PART NUMBER

名称 PART NAME

12855229

右门安装架

right door frame SY335C9H.1.6.3.1

12196084

风钩

Rod, door

12677408

右门

Door AS,left rear

A210405000001

垫圈

Washer

A210307000001

螺母

Nut

A210111000202

螺栓

Bolt

A810502019056

定位螺钉

Setscrew

12855223

橡胶垫板

Rubber Liner Plates

12669836

垫片

washer

12669838

锁卡板

door-shaft seal

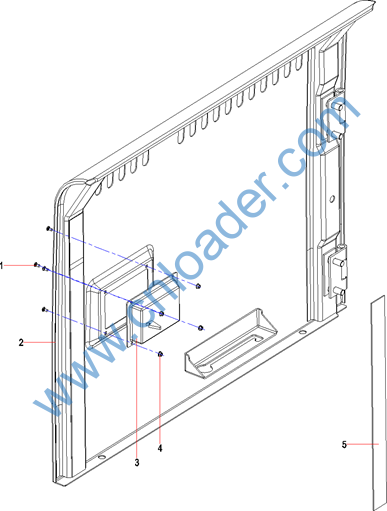

零件代码 PART NUMBER

名称 PART NAME

11817247

固定卡座

Fixed Clamp

A222200000012

门锁

Lock, door NBS504

12735024

橡胶垫板

Gasket, rubber

11817218

防松螺母

check nut

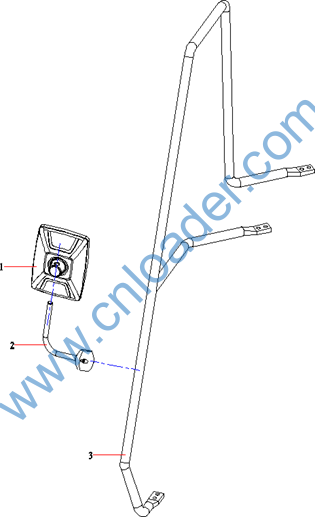

零件代码 PART NUMBER

名称 PART NAME

60228208

后视镜    rearview mirror

12046539

右下后视镜支架组件    Bracket, mirror

11475138

扶手主体    Handrail AS

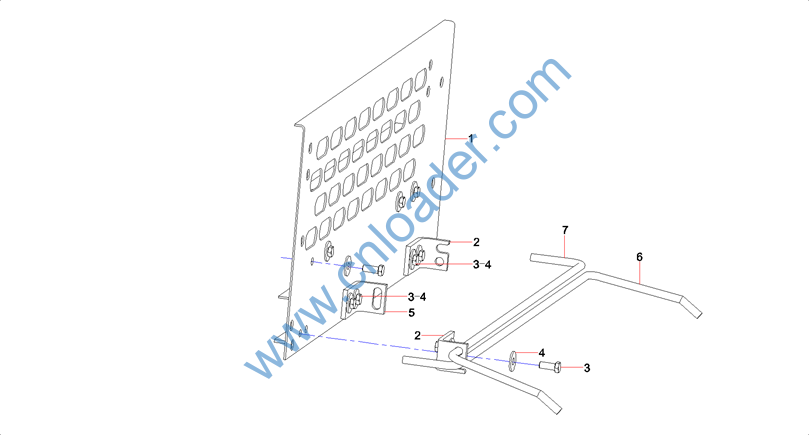

零件代码 PART NUMBER

名称 PART NAME

10055956

右上后盖板

Right upper rear cover plate

A820101342714

支架

Bracket

A210111000202

螺栓

Bolt

A210491000121

垫圈

Washer

A820101342715

防摆套

Antiswing sleeve

A820301021326

前部弹簧

spring, torsionalSY310C1.1.6.1-7

A820301021327

后部弹簧

Spring, torsionalSY310C1.1.6.1-8

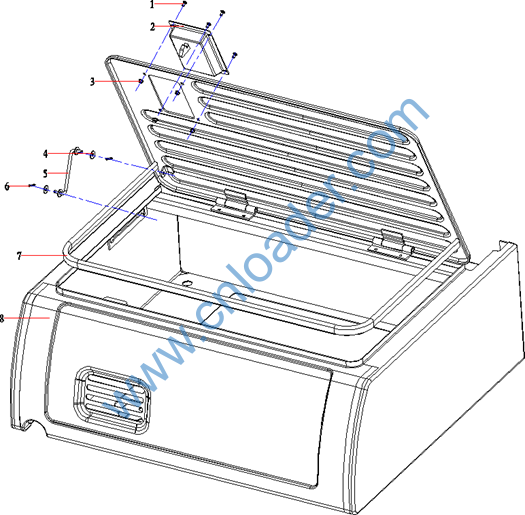

零件代码 PART NUMBER

名称 PART NAME

11817247

固定卡座

Fixed Clamp

60196657

箱柜锁

door lock

11817218

防松螺母

check nut

60238783

垫圈6GB96.1 达克锈

Washer

11938430

支杆

Lever

A210491000007

Pin, Cotter

11597462

密封条

Sealing strip

12909451

工具箱主体

Tool Box Main Body

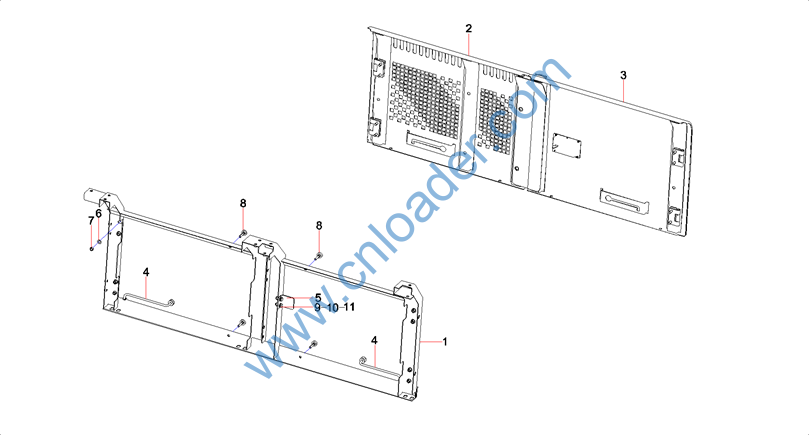

零件代码 PART NUMBER

名称 PART NAME

12697697

左门安装架

Left door mounting frame

12677108

doorⅠ SY365C8I2KS.1.6.25.2

13852760

左前门

Left front door

12196084

风钩

Rod, door

12669838

锁卡板

door-shaft seal

A210405000001

垫圈

Washer

A210307000001

螺母

Nut

A810502019056

定位螺钉

Setscrew

12669836

垫片

washer

12669837

垫片

washer

A210111000038

螺栓

Bolt

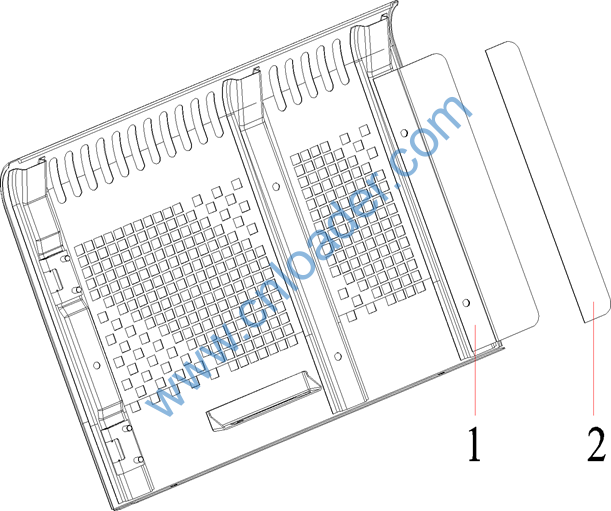

零件代码 PART NUMBER

名称 PART NAME

变更或见其他配置

门板    door plateSY365C8I2KS.1.6.25.2-

变更或见其他配置

橡胶垫板    Rubber Liner Plates

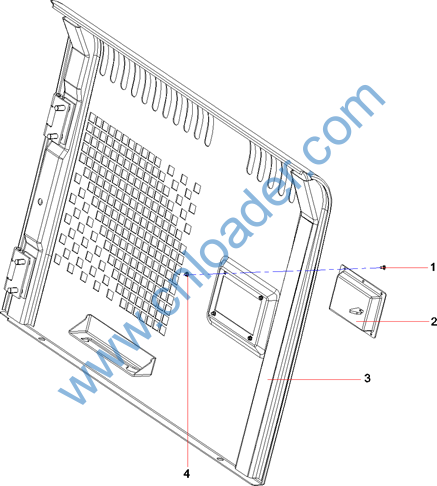

零件代码 PART NUMBER

名称 PART NAME

11817247

固定卡座

Fixed Clamp

13852759

左前门板

door plate SY305C9I2K.1.6.12.3-1

A222200000012

门锁

Lock, door NBS504

11817218

防松螺母

check nut

12735024

橡胶垫板

Gasket, rubber
