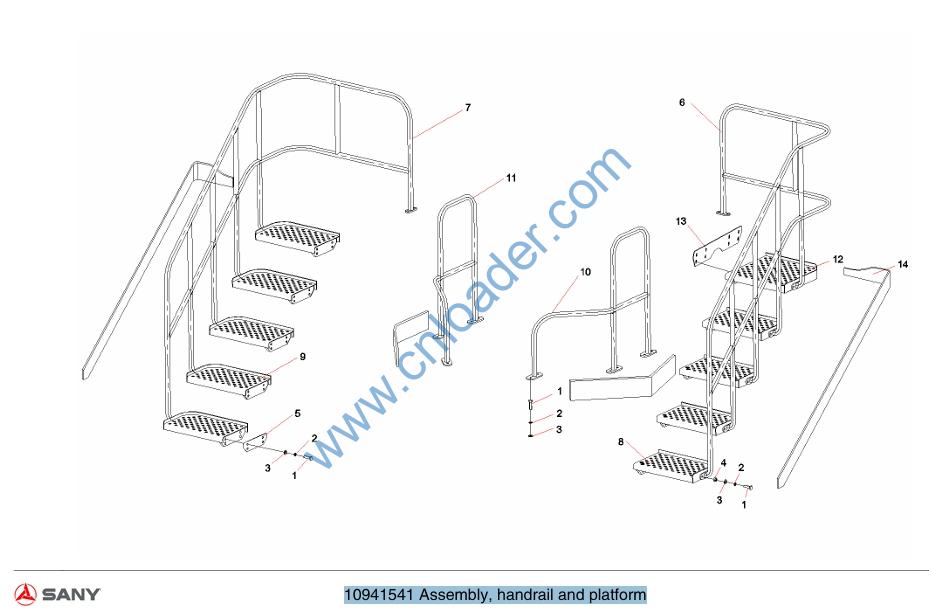

10941541 Assembly, handrail and platform

10941541 Assembly, handrail and platform

1 A210111000025 Bolt 76
2 A210401000001 Washer 76
3 A210405000011 Washer 112
4 A210307000017 Nut 36
5 10941204 Pad, adjusting 9
6 11576798 Handrail,rear (left side) 1
7 10939948 Handrail, rear, right 1
8 10940334 Pedal, left 4
9 10940336 Pedal, right 5
10 10047961 Handrail, front, (left) 1
11 10047963 Handrail, front, (right) 1
12 11576799 Pedal,left 2 1
13 11636335 Pad, adjusting 1
14 11751979 Skirting GP,ladders with handrail and Platform 1

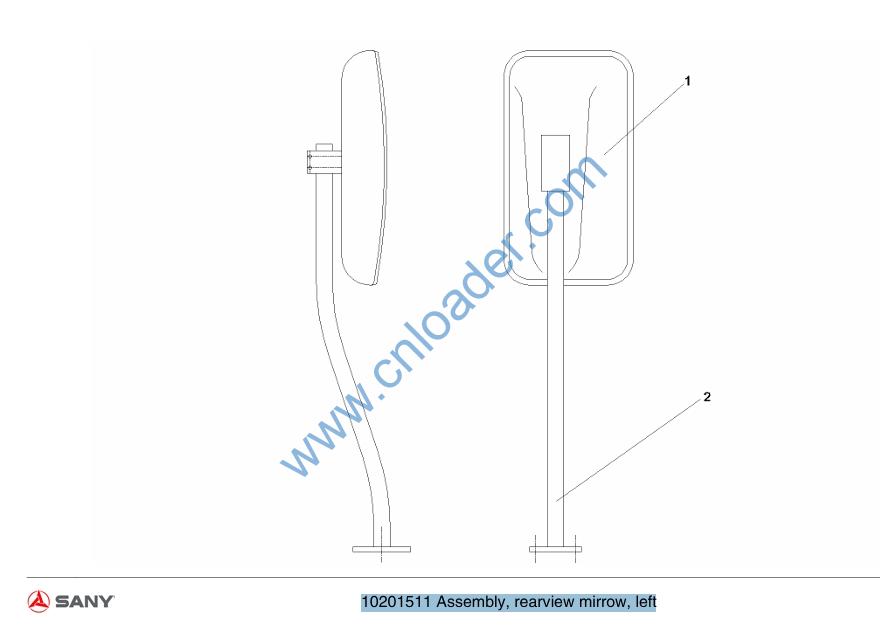

10201511 Assembly, rearview mirrow, left

1 A229900002196 Mirror, rearview 1
2 10182062 Rod, support 1

1 A229900002197 Mirror, rear-view 1
2 10182062 Rod, support 1

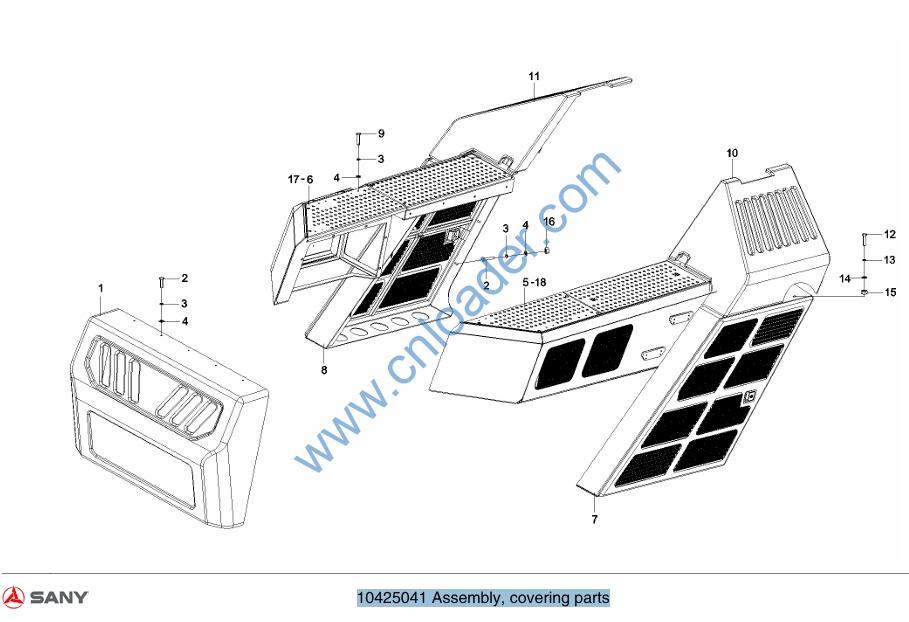

10425041 Assembly, covering parts

1 11596425 Parts, covering, front face 1
2 A210111000018 Bolt 5
3 A210401000001 Washer 31
4 A210404000003 Washer 41
5 11576739 Platform, left 1
6 10044547 Platform, right 1
7 10425013 Door, left 1
8 10425030 Door, right 1
9 A210111000025 Bolt 31
10 10495320 Body, shield, lug, left 1
11 10495319 Cover, lug, right 1
12 A210111000093 Bolt 10
13 A210401000017 Washer 19
14 A210404000005 Washer 28
15 A210307000012 Nut 10
16 A210307000017 Nut 16
17 11474961 Pad, adjuting, movable 15

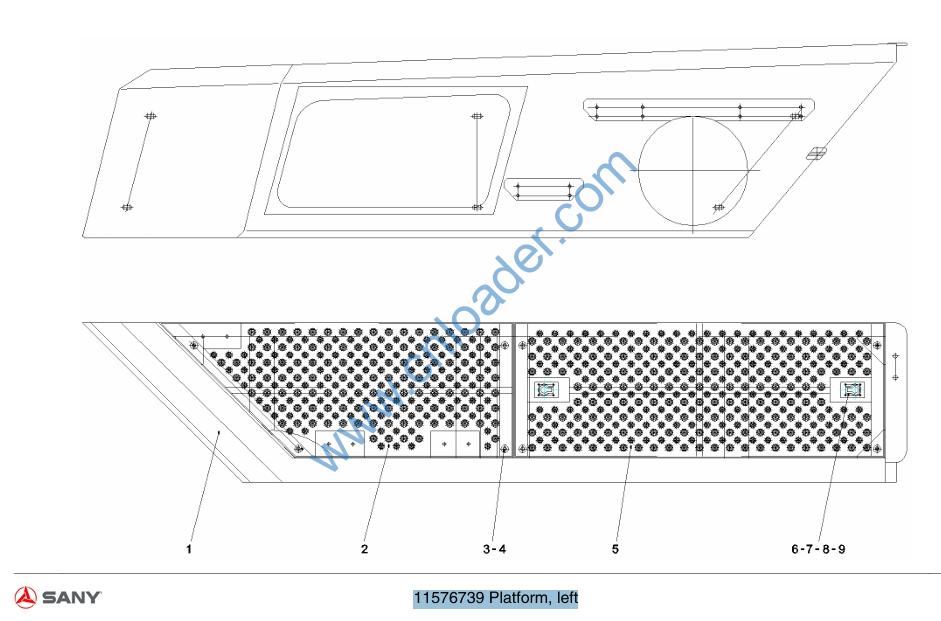

11576739 Platform, left

1 11576765 Body, platform, left 1
2 10407019 Plate, cover, front, left platform 1
3 A210204000147 Screw 8
4 A210401000017 Washer 8
5 10407020 Plate, cover, rear, left platform 1
6 A229900003988 Buckle, mension, access cover, stainless steel 2
7 A210211000054 Screw 8
8 A314140000314 Nut 8
9 A210405000027 Washer 8

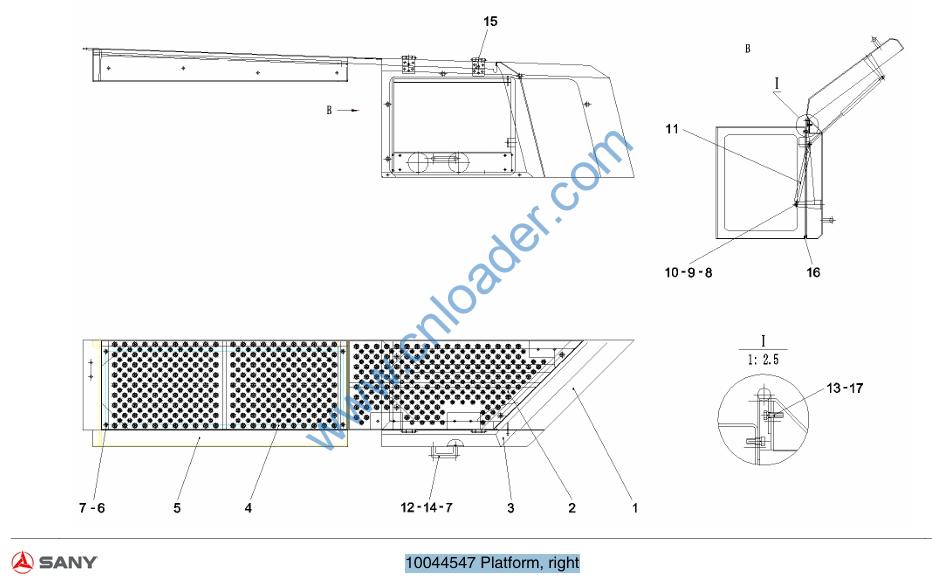

10044547 Platform, right

1 11791800 Body, right platform, right 1
2 10407017 Plate, cover, front, right platform 1
3 10044485 Door 1
4 10407016 Plate, cover 1
5 10349190 Body, right platform, (left) 1
6 A210204000147 Screw 8
7 A210401000017 Washer 8
8 A210508000040 Shaft, pin 2
9 A210405000007 Washer 2
10 A210491000014 Pin 2
11 A229900004029 Spring, air 1
12 A229900002456 Handle, aluminum 1
13 A210401000016 Washer 8
14 A210111000089 Bolt 2
15 10788090 Hinge, reproduced 2
16 11360286 Pad, elastic 2
17 A210111000080 Bolt 12
