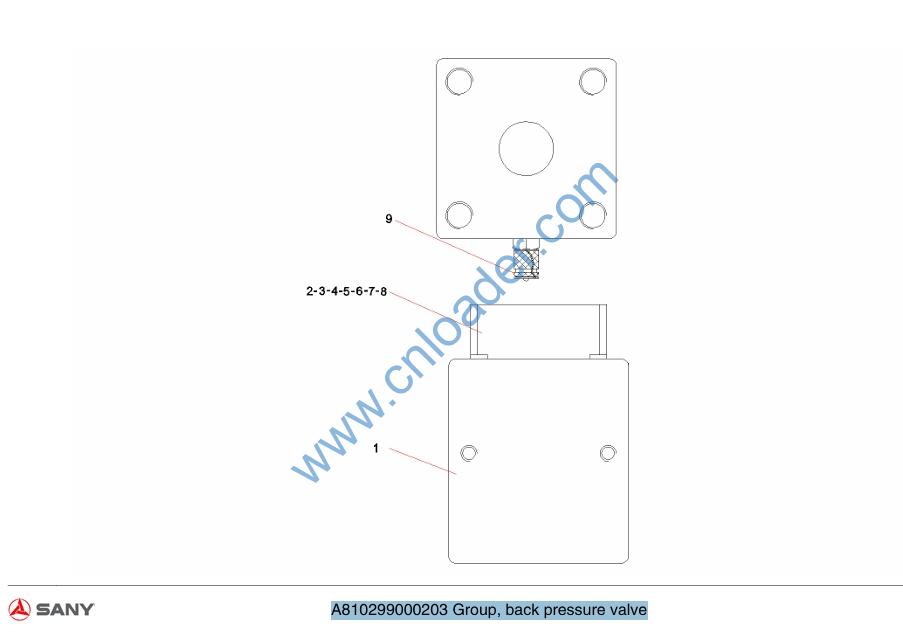

A810299000203 Group, back pressure valve

A810299000203 Group, back pressure valve

1 A820199003187 Block, back pressure valve 1
2 A210204000165 Screw 4
3 A210401000004 Washer 4
4 10675203 Plate, cover, standard 1
5 A210609000067 O-ring 1
6 B220400000033 Valve, cartridge 1
7 A210609000085 O-ring 1
8 B210399000003 Plug, screw 1
9 B210770000084 Connector, pressure measuring 1

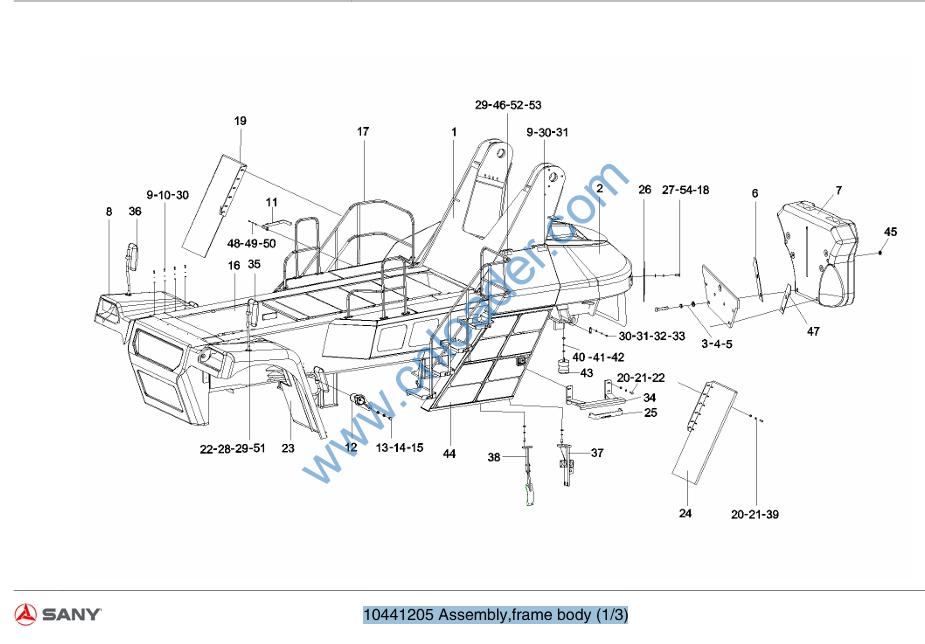

10441205 Assembly,frame body (1/3)

1 11088330 Weldment,group,frame body 1
2 12071117 System, counterweight, upper 1
3 A210401000012 Washer 4
4 A820102010533 Washer 4
5 A210111000451 Bolt 4
6 A820101338054 Plate, backup 2
7 10042916 Counterweight, (2) 1
8 11756770 Plate, mudguard, front, (right) 1
9 A210111000038 Bolt 24
10 A210404000004 Washer 24
11 11849040 Support 1
12 10201907 Assemly, shaft, pitching cylinder 2
13 A210111000292 Bolt 4
14 A210401000008 Washer 4
15 A210404000007 Washer 4
16 10627616 Cover plate GP 1
17 10941541 Assembly, handrail and platform 1
18 A210405000006 Washer 8
19 12009348 Dashboard, rear, right 1
20 A210404000008 Washer 24
21 A210401000004 Washer 24
22 A210111000090 Bolt 8

23 11756760 Plate, mudguard, front, (left) 1
24 12009257 Dashboard, rear, left 1
25 10136225 Support, oil-water separator 1
26 11006387 Plate, mounting, tail lamp 2
27 A210210000017 Screw 8
28 A210405000007 Washer 8
29 A210401000017 Washer 12
30 A210401000002 Washer 30
31 A210405000001 Washer 12
32 A210111000039 Bolt 4
33 10106057 Block, retaining 2
34 10246102 Support, oil-radiation, hydraulic 2
35 10201511 Assembly, rearview mirrow, left 1
36 10182064 Assembly, rearview mirrow, right 1
37 11196780 Seat, clamp, exhaust pipe 2
38 10165028 Seat, clamp, exhaust pipe 2
39 A210111000112 Bolt 24
40 A210307000029 Nut 2
41 A210405000008 Washer 2
42 A210401000006 Washer 2
43 A222000000066 Absorber, shock 2
44 10425041 Assembly, covering parts 1

45 10480997 Sleeve, mounting 9
46 10545244 Plate, coupling 4
47 10761321 Plate, backup 2
48 A210404000003 Washer 2
49 A210401000001 Washer 2
50 A210111000018 Bolt 4
51 A210307000012 Nut 12
52 A210111000093 Bolt 4
53 A210404000005 Washer 4
54 A210401000016 Washer 8

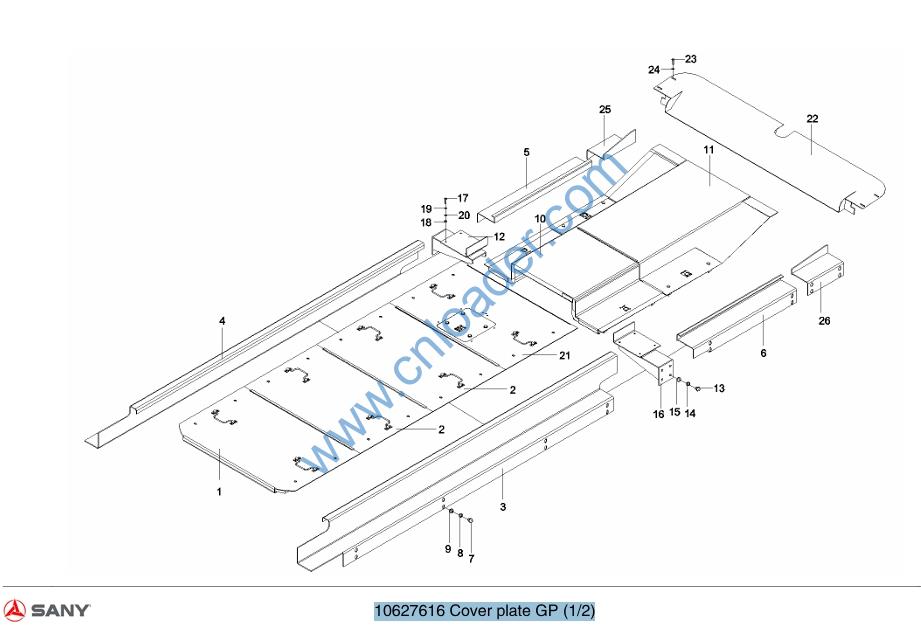

10627616 Cover plate GP (1/2)

1 10719147 Plate, cover 1
2 10719146 Plate, cover 2
3 10762082 Board, supporting, cover plate, 1 1
4 10762083 Board, supporting, cover plate, 2 1
5 11027922 Plate, support 1
6 11027877 Plate, support 1
7 A210111000227 Bolt 32
8 A210401000004 Washer 32
9 A210405000003 Washer 32
10 10437780 Plate, cover 1
11 10437784 Plate, cover 1
12 10902059 Rack, mounting, carrier, right 1
13 A210204000020 Screw 8
14 A210401000002 Washer 8
15 A210405000001 Washer 8
16 10902060 Rack, mounting, carrier, left 1
17 A210111000090 Bolt 4
18 A210307000012 Nut 4
19 A210401000017 Washer 4
20 A210405000007 Washer 4
21 11338703 Plate, cover 1
22 11888890 Cover Plate 5 1

23 A210111000078 Bolt 4
24 A210405000006 Washer 4
25 11621027 Plate, support 1
26 11621032 Plate, support 1
