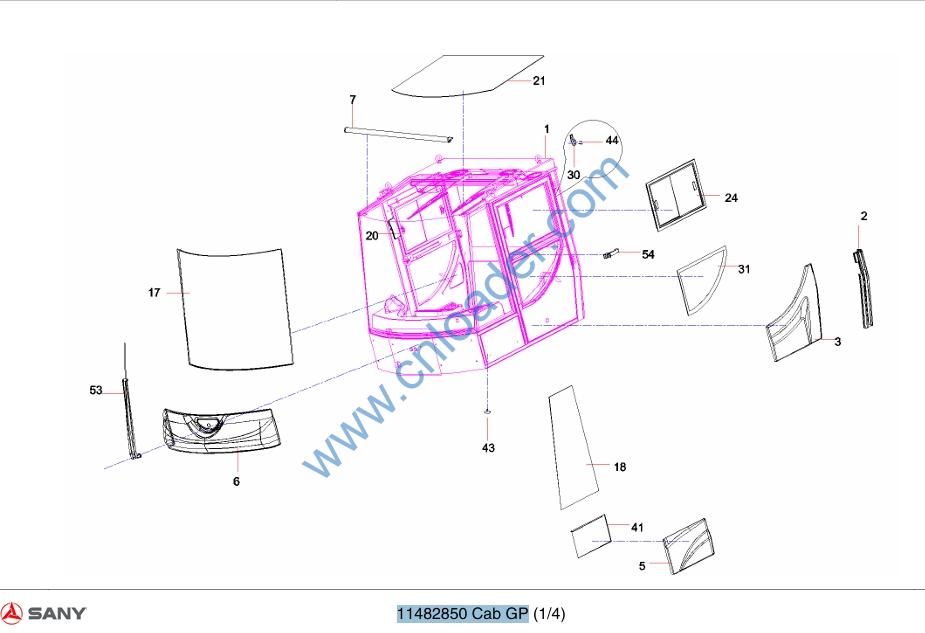

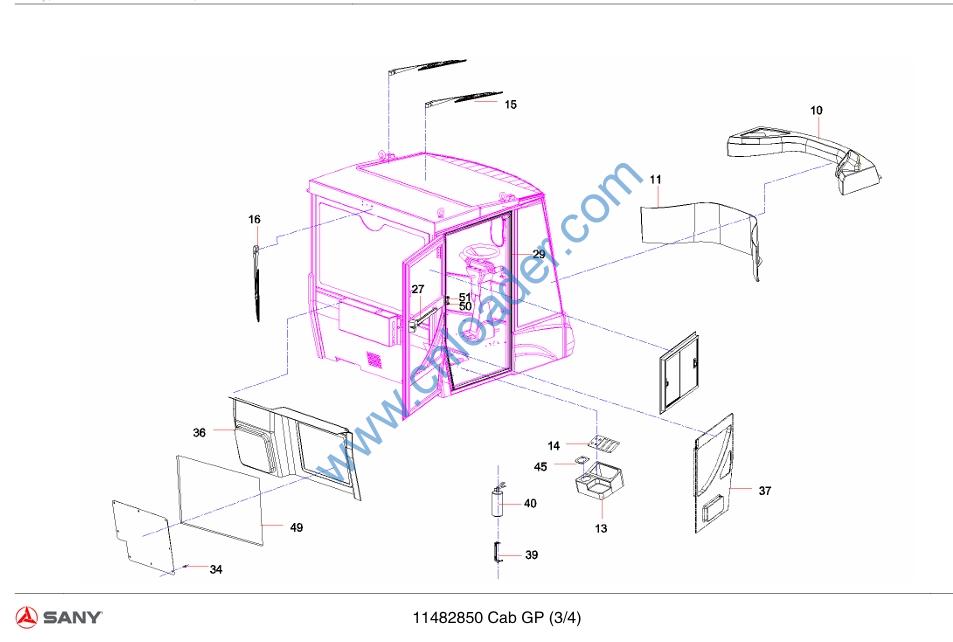

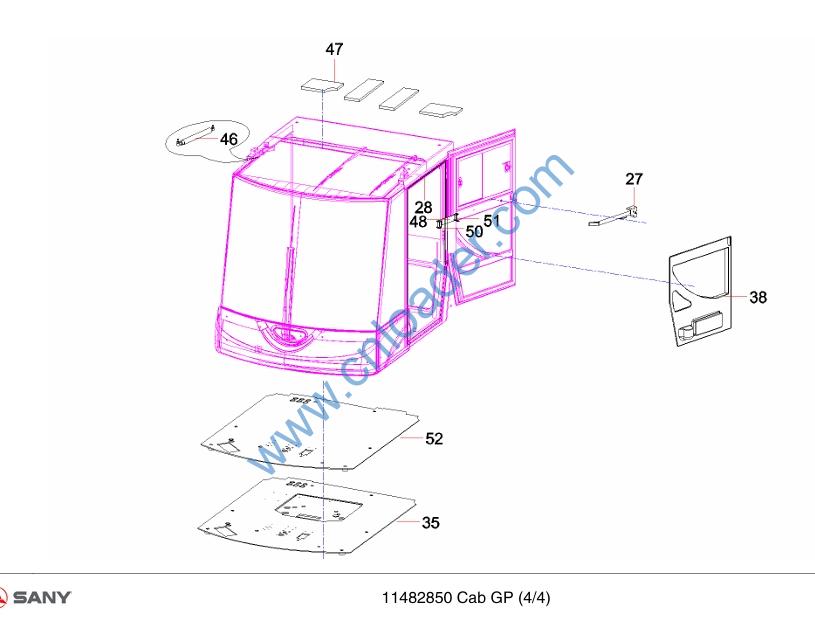

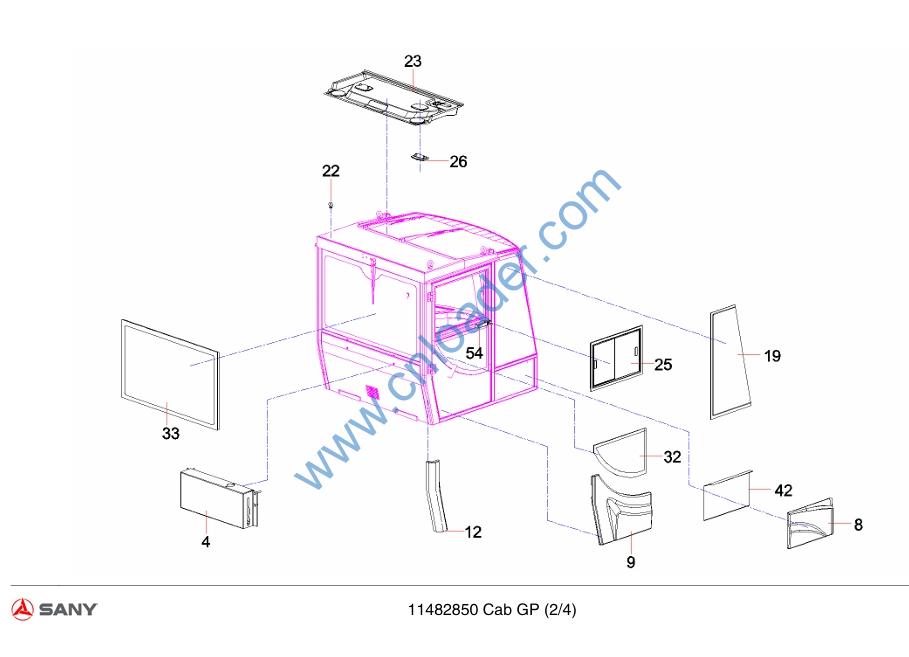

11482850 Cab GP

11482850 Cab GP

1 11507974 Preassembly, cab, reach stacker 1
2 10073345 Parts, covering, outside 1
3 10073347 Parts, covering, outside 1
5 10073348 Parts, covering, outside 1
6 10073350 Parts, covering, outside 1
7 A229900007320 Curtain, sunshield 1
17 10211530 Glass, front window 1
18 10211567 Glass, window, left 1
20 A229900004406 Mirror, rearview, inner 1
21 11475740 Glass, top window 1
24 10260234 Window, sliding, horizontal 1
30 A229900005559 Hook, hat & coat 2
31 10211575 Glass, lower, left door 1
41 11079915 Plate, side, left 1
43 60014124 Pintle, fixed 15
44 A210299000037 Screw, self tapping 4
53 A229900003376 Assembly, wiper, front window 1
54 60061748 Handle, door 2

4 10902844 Washer, windscreen, automobile 1
8 10073358 Parts, covering, outside 1
9 10073359 Parts, covering, outside 1
12 10073360 Parts, covering, outside 1
19 10211596 Glass, side window, right 1
22 A210491000001 Screw 4
23 11470344 Parts, decorating, top 1
25 10260237 Window, sliding, horizontal 1
26 A241100000498 Lamp, roof, auman 2
32 10211578 Glass, lower, right door 1
33 10211580 Glass, rear window 1
42 11079916 Plate, side, right 1
54 60061748 Handle, door 2

10 11175597 Console, instrument 1
11 11079913 Plate, wall, instrument console 1
13 11040455 Seat, operation handle 1
14 11081454 Panel 1
15 60069682 Assembly, wiper, top window 1
16 A229900002144 Assemlby, wiper, rear window 1
27 60028231 Lock, door 1
29 10134884 Strip, rubber, left door 1
34 A210211000010 Screw 8
36 10227673 Parts, decorating, back plate 1
37 11214259 Plate, decorating, right door 1
39 59001251 Support, iron, extinguisher, 1Kg 2
40 59001329 Extinguisher, dry powder 2
45 11157309 Plate, cover 1
49 A490000000007 Sponge, sound absorbing 2
50 A210501000002 Pin 4
51 A31907100070B Shaft, pin 4

27 60028231 Lock, door 1
28 10134881 Strip, rubber, right door 1
35 60014123 Leather, floor 3
38 11214158 Plate, decorating, left door 1
46 A290000000354 Spring, air 2
47 60014125 Sponge, heat insulation 4
48 11262101 Belt, locating, door 2
50 A210501000002 Pin 4
51 A31907100070B Shaft, pin 4
52 60014126 Material, composite, acoustic insulation 3
