Body,container reach stacker,RSC45C2 SANY AVD

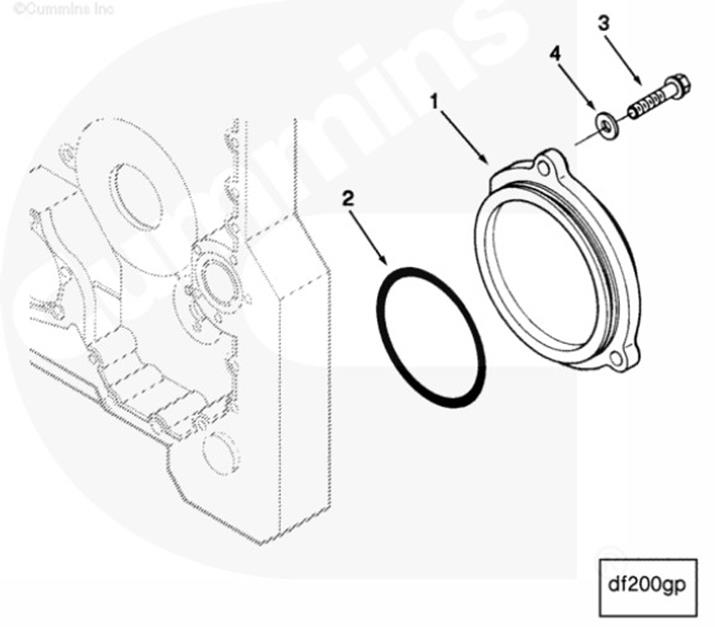

Part No.

Description

60139486

Bolt

60139237

Cover Plate

60139358

Gasket, housing, heater

60139503

Bolt

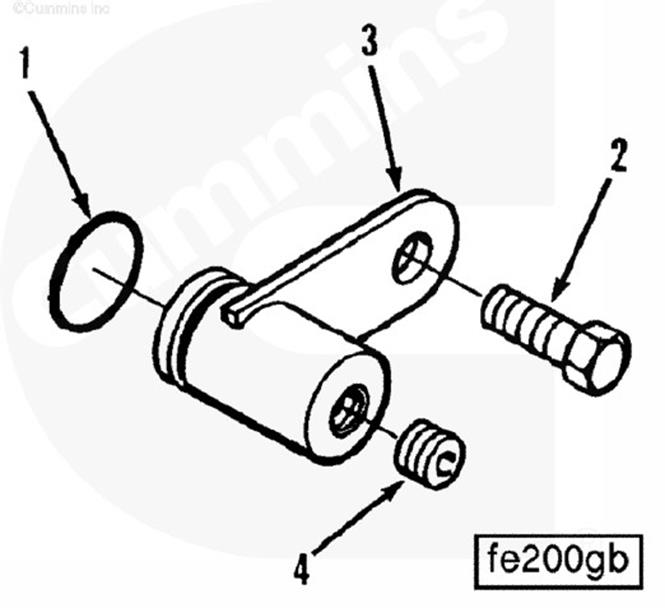

Part No.

Description

60140236

O-seal ring

60139487

Bolt

60140032

Connection Air Intake

60100169

Plug, pipe

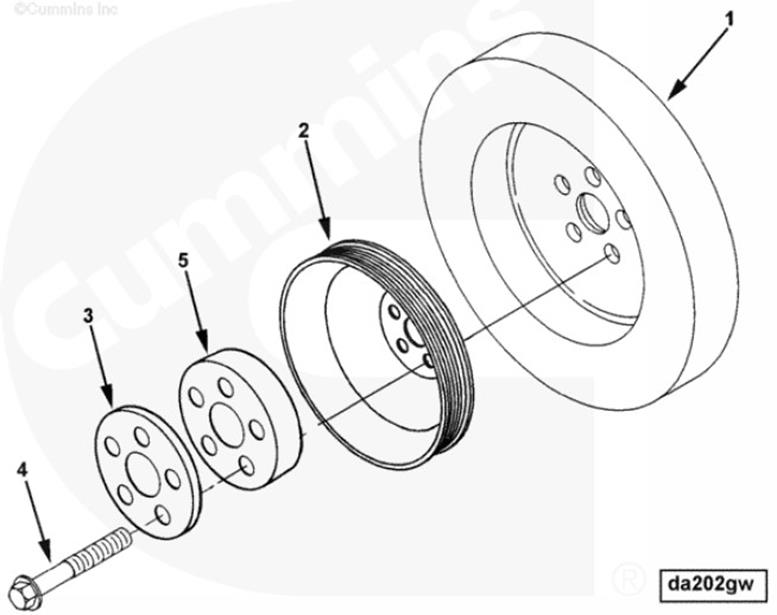

Part No.

Description

60100215

Damper, air throttle

60139854

Pulley, Crankshaft

60138520

Plate Clamping

60139501

Bolt

60138521

Plate Clamping








Part No.

Description

60138983

Plug, housing, gear

60140240

O-seal ring

60139905

Screw Hex Flange Head Cap

60139765

Gasket, flat

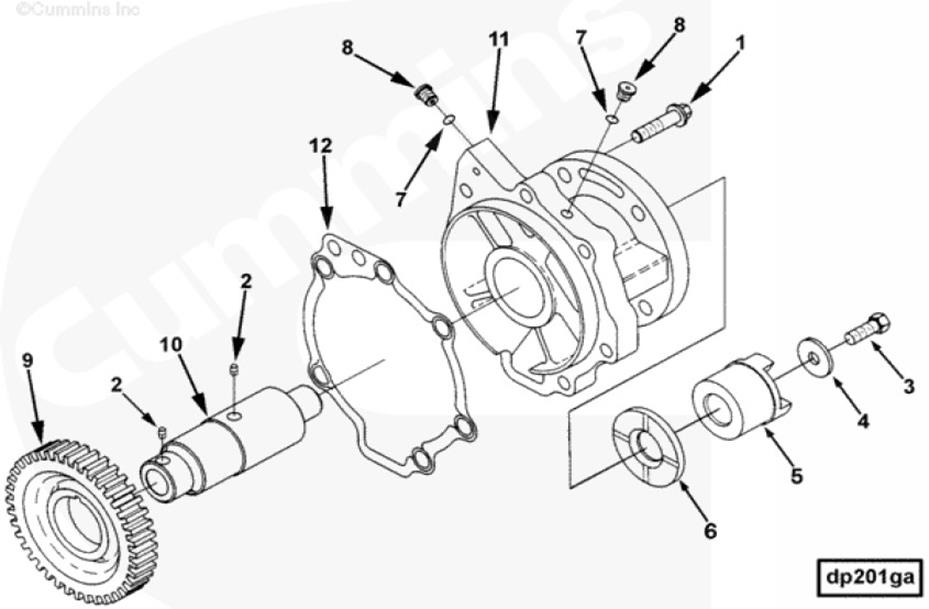

Part No.

Description

60139907

Screw Hex Flange Head Cap

60138958

Pin Groove

60139479

Bolt

60139769

Gasket, flat

60138952

Hub Jaw Coupling

60138802

Thrust Bearing

60140213

O-seal ring

60139554

Plug, screw

60100197

Gear

60100230

Shaft

60139472

Support, drive, accessory

60139373

Gasket, support, drive, Acc










Part No.

Description

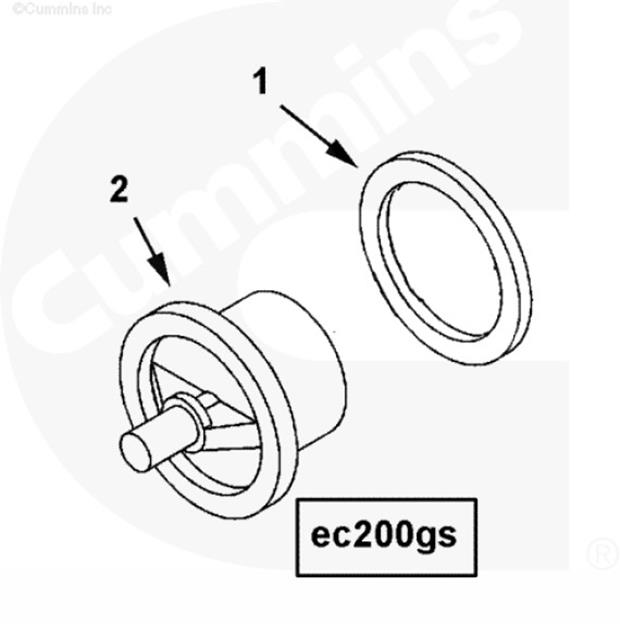

60139397

Seal Thermostat

60100216

Thermostat

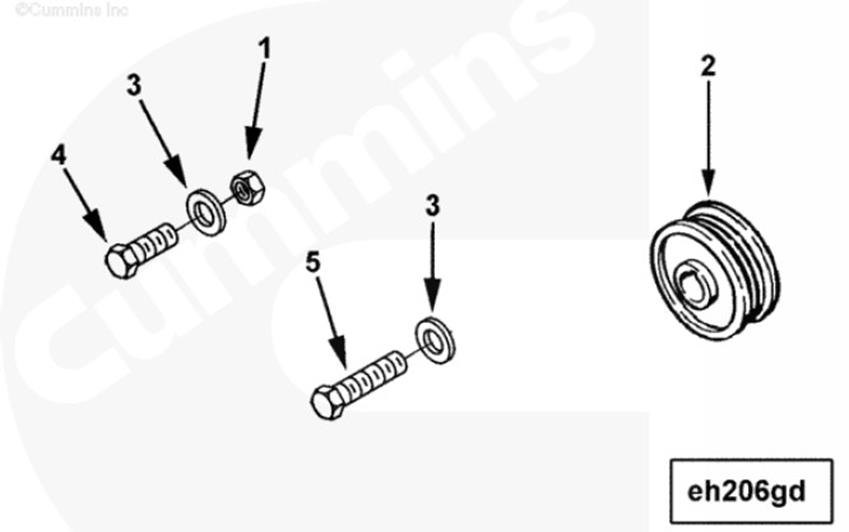

Part No.

Description

60139953

Nut, locking

60138984

Charger set Pulley

60139778

Gasket, flat

60139505

Bolt

60139507

Bolt

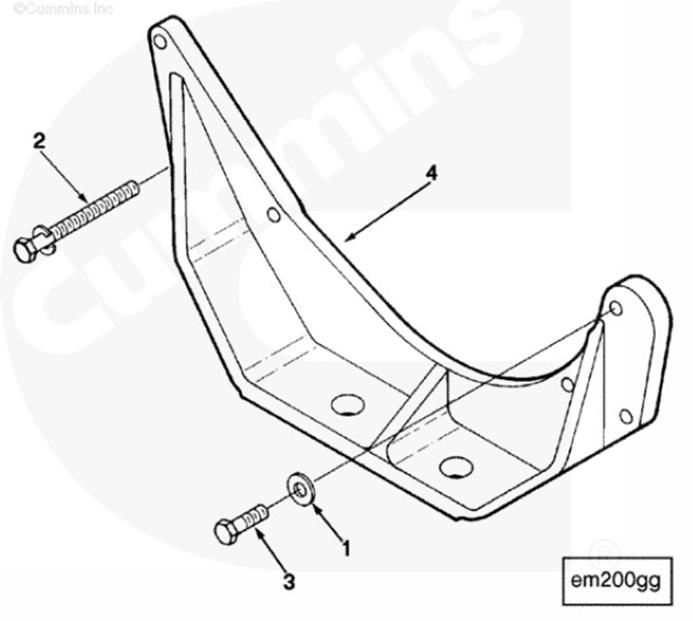

Part No.

Description

60139770

Gasket, flat

60139282

Screw Captive Washer Cap

60139502

Bolt

60139837

Support Front Engine
