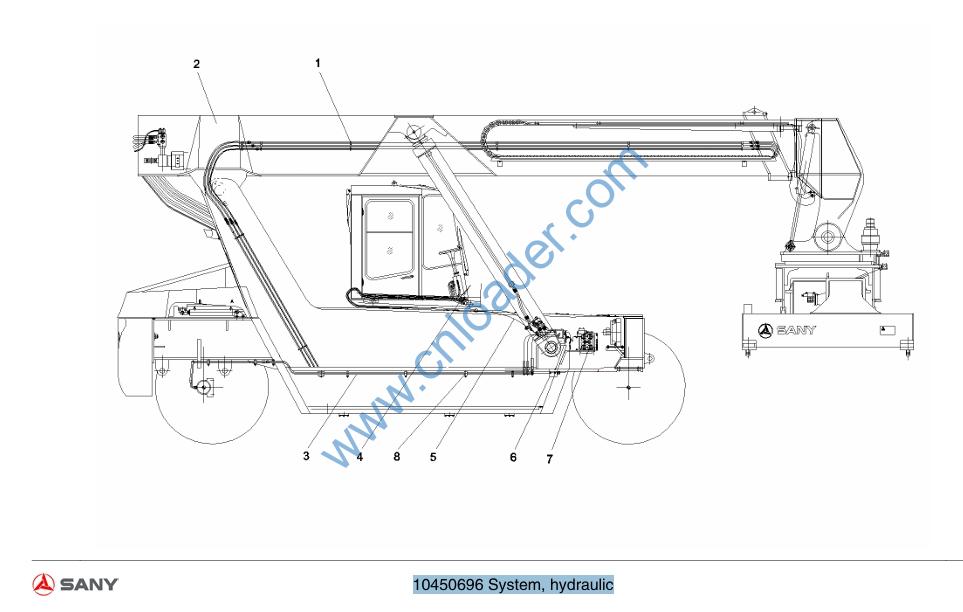

10450696 System, hydraulic

10450696 System, hydraulic

1 10032938 Layout, clamp, boom 1
2 11155390 Layout, boom 1
3 10450139 System, steering 1
4 10397319 System, brake, radiator 1
5 10432886 Layout,moveable 1
6 10427001 System, control 1
7 10450647 Layout, pipeline, frame 1
8 12364911 Layout, assemblying, pipe clamp, frame 1

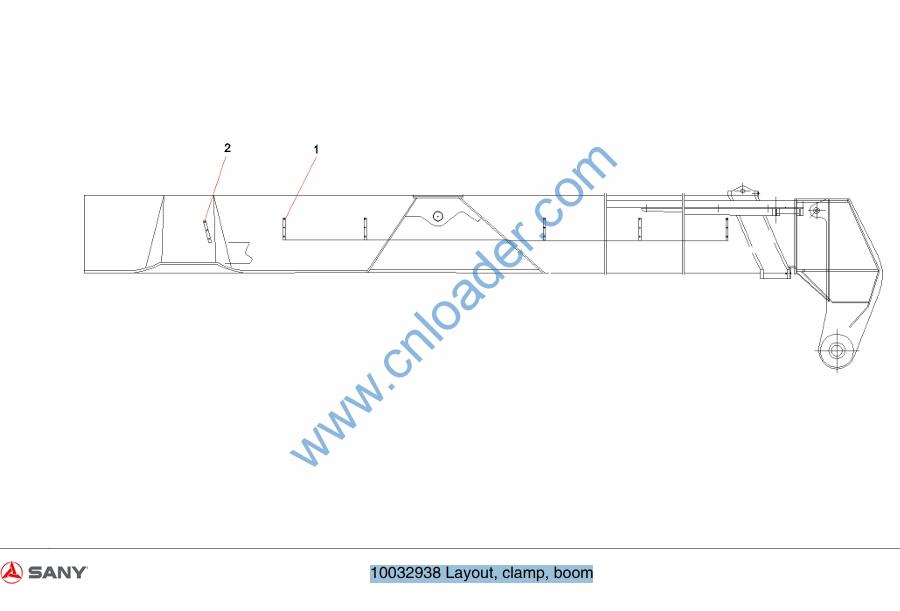

10032938 Layout, clamp, boom

1 A810422002592 Combination pipe fixture 5
2 A810422002593 Clamp, combined, rubber hose 1

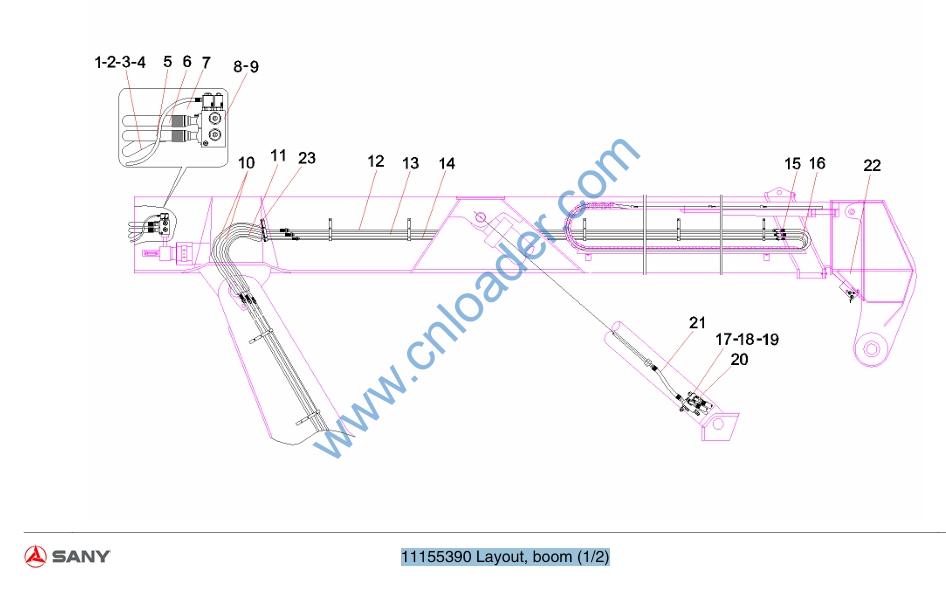

11155390 Layout, boom (1/2)

1 B230103004966 Hose, rubber 1
2 A210204000354 Screw 28
3 B210780000244 Flange, split 14
4 B230101000215 O-ring 7
5 B230103004967 Hose, rubber 1
6 B230103004968 Hose, rubber 1
7 B230103003409 Hose, rubber 1
8 A810299000205 Valve-body,cylinder,extension 1
9 A210204000337 Screw 8
10 B230103005881 Hose, rubber 2
11 B230103002747 Hose, rubber 1
12 A810312990137 Assembly, steel pipe 1
13 A810312019055 Assembly, steel pipe 1
14 A810312019056 Assembly, steel pipe 1
15 B230103004767 Hose, rubber 2
16 B230103004768 Hose, rubber 1
17 A810201062373 Block, valve, right, pitching cylinder 1
18 A210204000025 Screw 8
19 A210609000121 O-ring 2
20 A810201062372 Block, valve, left, pitching cylinder 1
21 60016784 Hose, rubber 2
22 A810201060300 System, hydraulic, antiswing 1

12344078

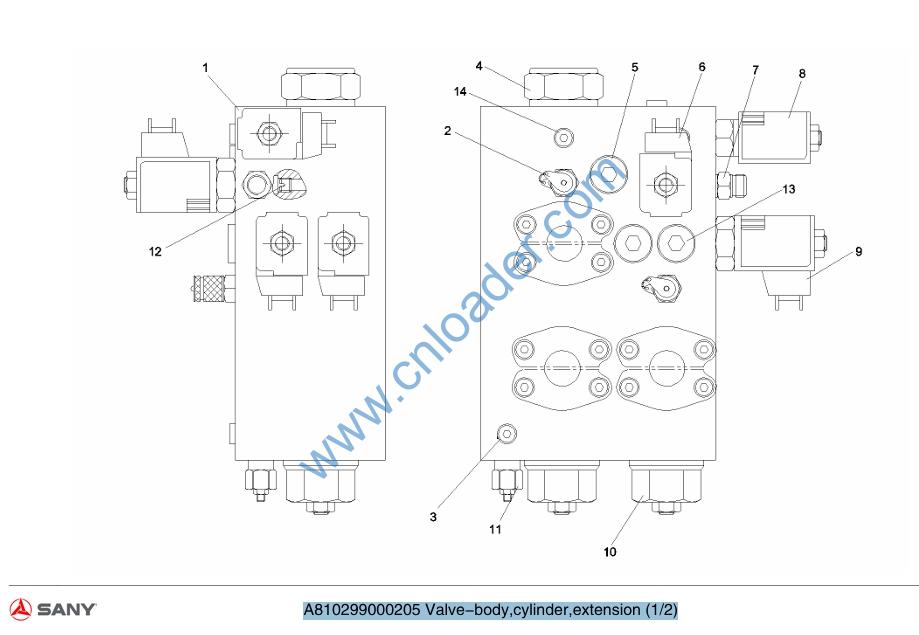

A810299000205 Valve-body,cylinder,extension (1/2)

1 A820199003191 Block,valve,cylinder,extension 1
2 B210770000003 Connector, pressure measuring 2
3 B210399000003 Plug, screw 5
4 B220401000544 Valve, logic 1
5 B210780001384 Plug, screw 5
6 B220401000541 Valve, reversing, electromagnetic 1
7 B210780000036 Connector, pipe 1
8 B220401000497 Valve, reversal, electromagnetic 1
9 B220401000537 Valve, reversal, electromagnetic 2
10 B220401000533 Valve, balance 2
11 B220401000546 Valve, trottle, one-way 1
12 12217657 Plug, screw, damping 1
13 B210399000005 Plug, screw 1
14 B210780000201 Plug, screw 1

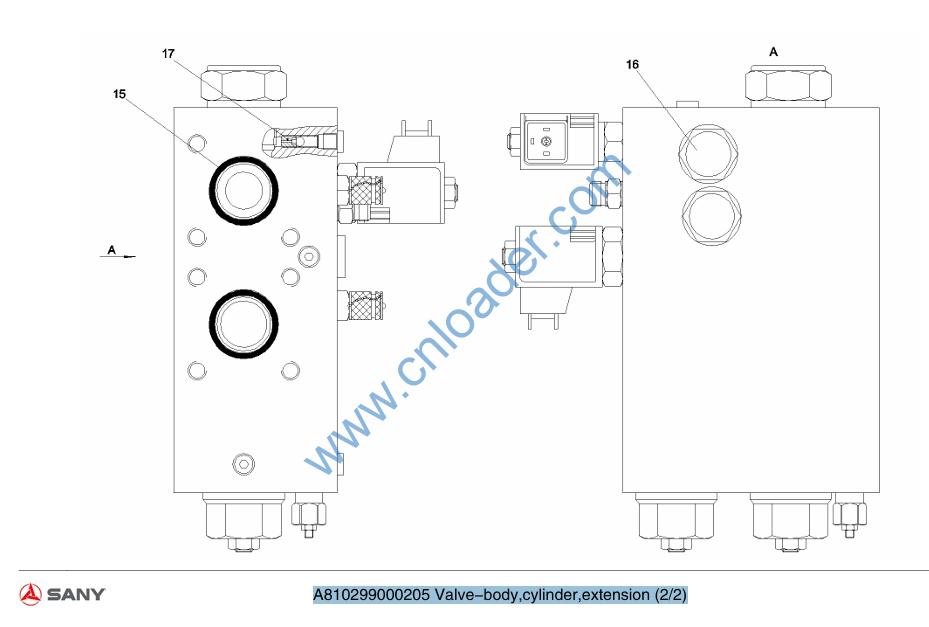

A810299000205 Valve-body,cylinder,extension (2/2)

15 A210609000121 O-ring 2
16 B220401000540 Valve, check 2
17 12217584 Plug, screw, damping 1
