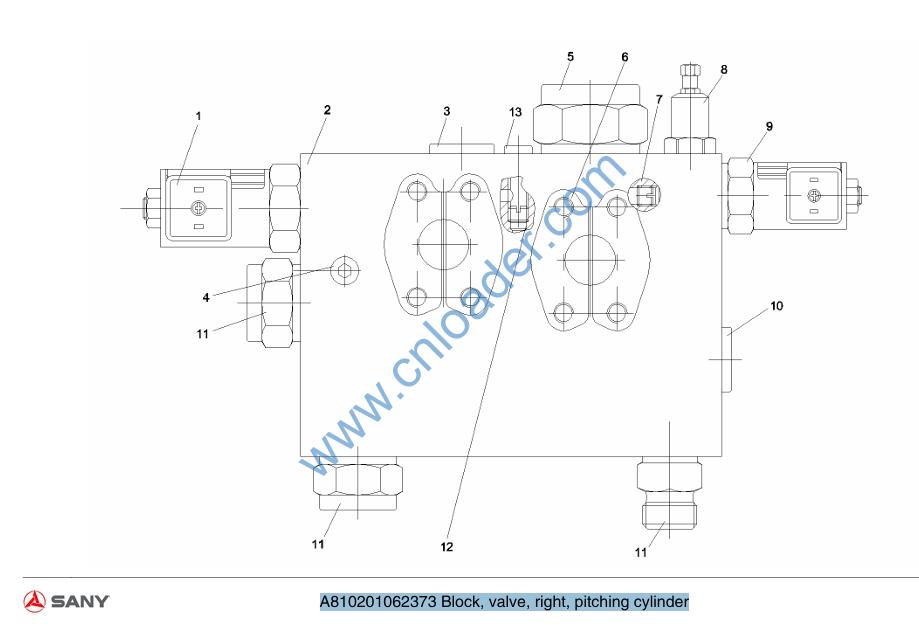

A810201062373 Block, valve, right, pitching cylinder

A810201062373 Block, valve, right, pitching cylinder

1 B220401000542 Valve, reversing, electromagnetic 1
2 A829900002298 Body, valve, right 1
3 B210780000799 Plug, screw 1
4 B210399000003 Plug, screw 6
5 B220401000544 Valve, logic 1
6 12066238 Plug, damping 1
7 B220402000035 Valve, overflow, check 1
8 B220401000541 Valve, reversing, electromagnetic 1
9 B210780000896 Plug 1
10 B210780000899 Connector, pipe 1
11 B220401000540 Valve, check 2
12 12217584 Plug, screw, damping 1
13 B210780000201 Plug, screw 2

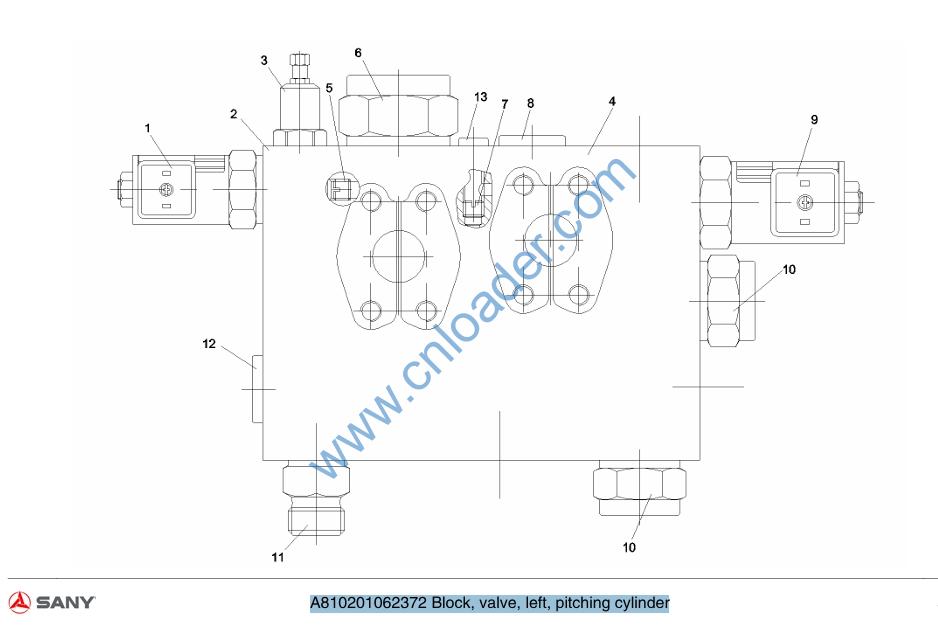

A810201062372 Block, valve, left, pitching cylinder

1 B220401000541 Valve, reversing, electromagnetic 1
2 A829900002297 Body, valve, left 1
3 B220402000035 Valve, overflow, check 1
4 B210399000003 Plug, screw 5
5 12066238 Plug, damping 1
6 B220401000544 Valve, logic 1
7 12217584 Plug, screw, damping 1
8 B210780000799 Plug, screw 1
9 B220401000542 Valve, reversing, electromagnetic 1
10 B220401000540 Valve, check 2
11 B210780000899 Connector, pipe 1
12 B210780000896 Plug 1
13 B210780000201 Plug, screw 2

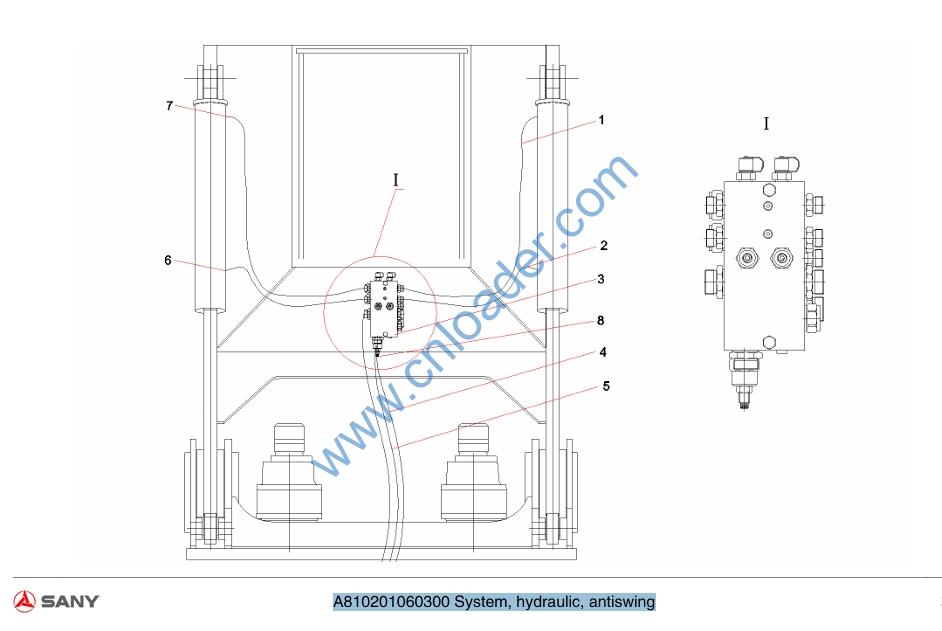

A810201060300 System, hydraulic, antiswing

1 B230103000335 Hose, rubber 2
2 A832511054000 Hose, rubber 2
3 A810201062339 Group, antiswing valve 1
4 B230103005623 Hose, rubber 2
5 B230103000098 Hose, rubber 1
6 B210780000042 Connector, pipe 5
7 B210780000025 Connector, pipe 2
8 B210780000421 Connector, pipe 2

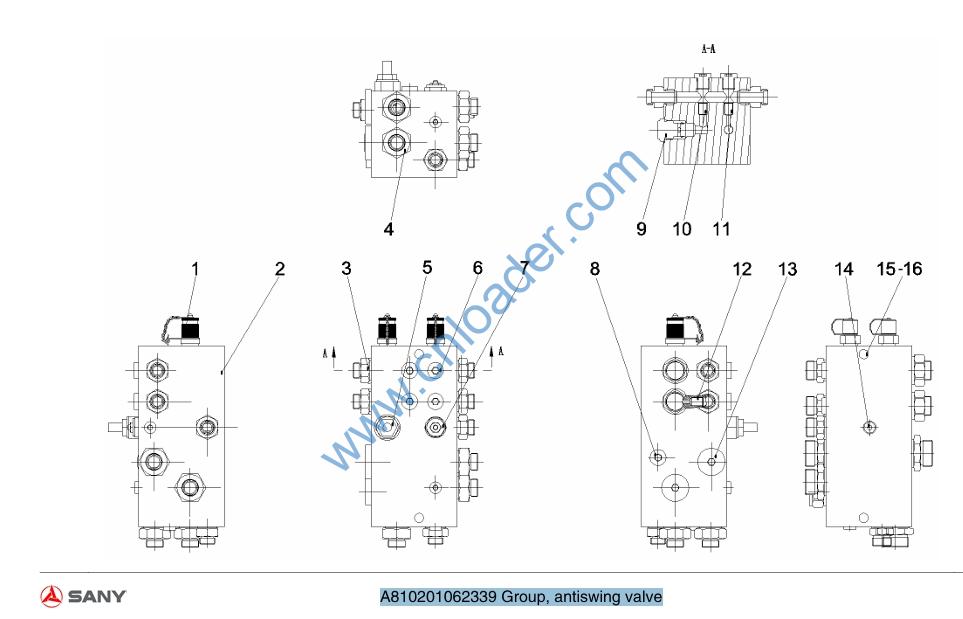

A810201062339 Group, antiswing valve

1 B210770000084 Connector, pressure measuring 2
2 10629048 Block, damping valve, universal 1
3 B210780000042 Connector, pipe 6
4 B210780000421 Connector, pipe 4
5 B220401000105 Valve, overflow 1
6 B210780000201 Plug, screw 4
7 B220401000536 Valve, pressure reducing 1
8 B210399000001 Plug, screw 1
9 B220401000045 Valve, one-way 2
10 12066238 Plug, damping 1
11 12187261 Plug, screw, damping 1
12 12217657 Plug, screw, damping 1
13 B210780001397 Plug 2
14 B210399000003 Plug, screw 4
15 A210204000443 Screw 2
16 A210401000001 Washer 2
