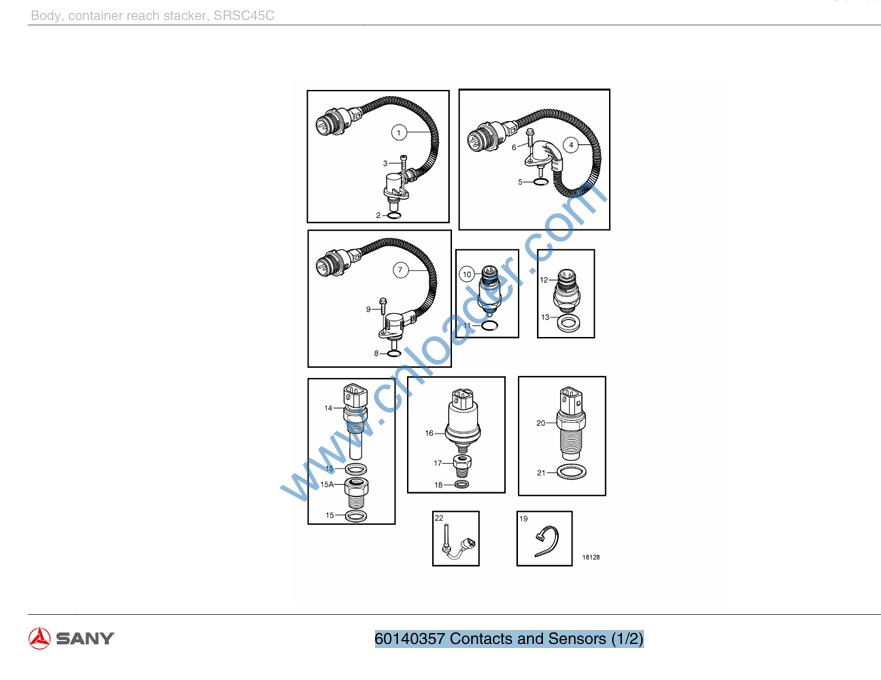

60140357 Contacts and Sensors (1/2)

60140357 Contacts and Sensors (1/2)

1 60081229 Tachometer sensor 1
2 60092722 O-ring 1
3 60094392 Bolt 1
4 60129948 Sensor 1
5 60132391 O-ring 1
6 60094292 Bolt,flange 2
7 60094821 Sensor,water temperature 1
8 60092704 O-ring 1
9 60094286 Bolt, flange 1
10 B240600000351 Sensor,pressure,oil 1
11 60132389 O-ring 1
12 B249900001343 Monitor,pressure,fuel 1
13 60094273 Washer 1
14 60100236 Temperature sensor 1
15 60085707 Washer 2
16 60100235 Sensor 1
17 60132097 Reductionnipple,oil 1
18 60085706 Washer 1
19 60094352 Clip 1
20 60100238 Sensor,speed 1
21 60130879 Washer 1
22 60132613 Levelsensor 1

60131409

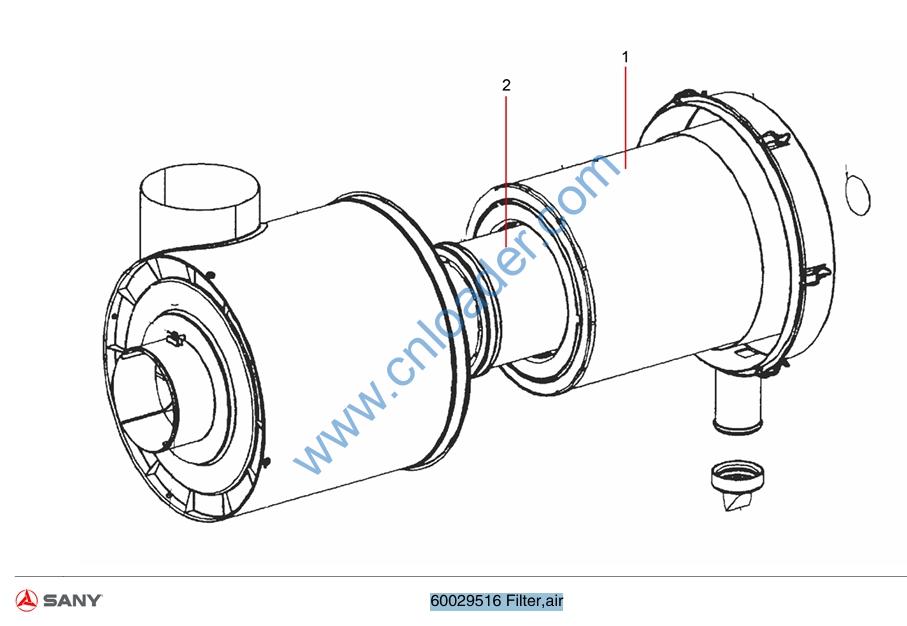

60029516 Filter,air

1 B222100000643 Element, filter, primary, filter, air 1
2 B222100000644 Core, filter, safety, filter, air 1

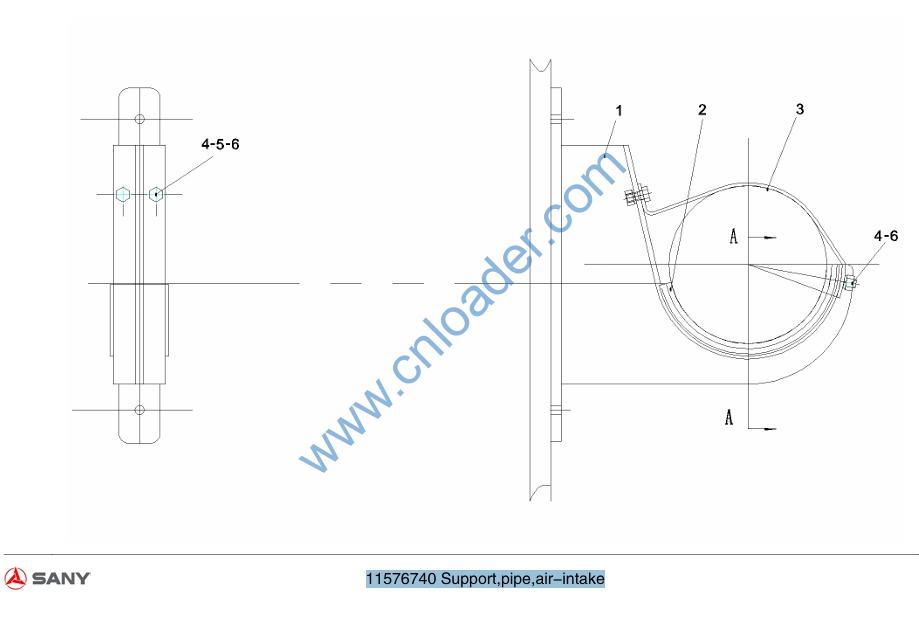

11576740 Support,pipe,air-intake

1 11578012 Welding,support,pipe,air-intake 1
2 11577832 Pad,rubber 1
3 11578451 Strip,trim 1
4 A210307000012 Nut 4
5 A210111000323 Bolt 2
6 A210401000017 Washer 4

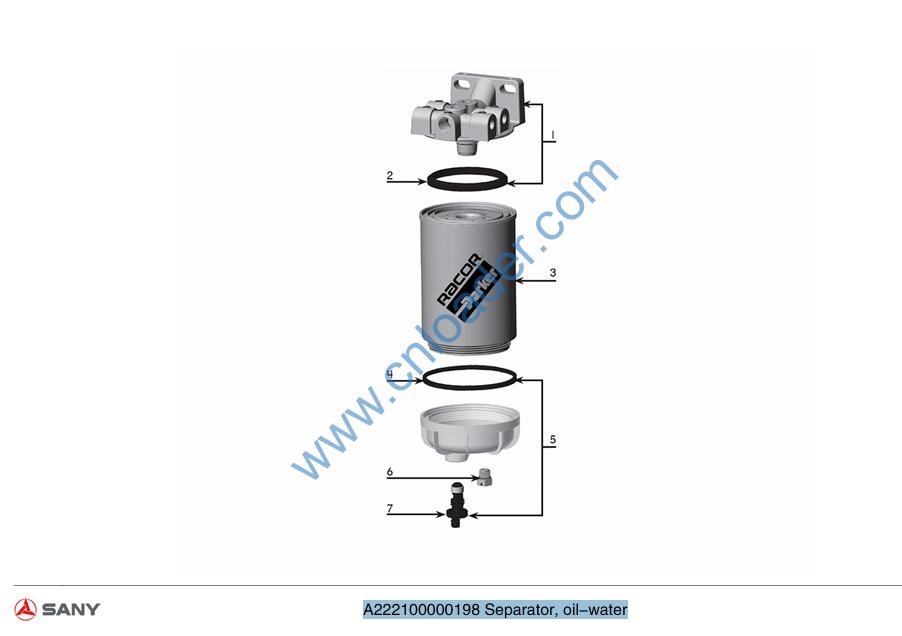

A222100000198 Separator, oil-water

1 60136480 Seat, filter 1
2 60136487 Ring, seal 1
3 A222100000207 Element, filter, oil-water separator 1
4 60136488 Ring, seal 1
5 B229900001161 Cup, water connecting 1
6 60136472 Plug 1
7 60136467 Valve, drain 1

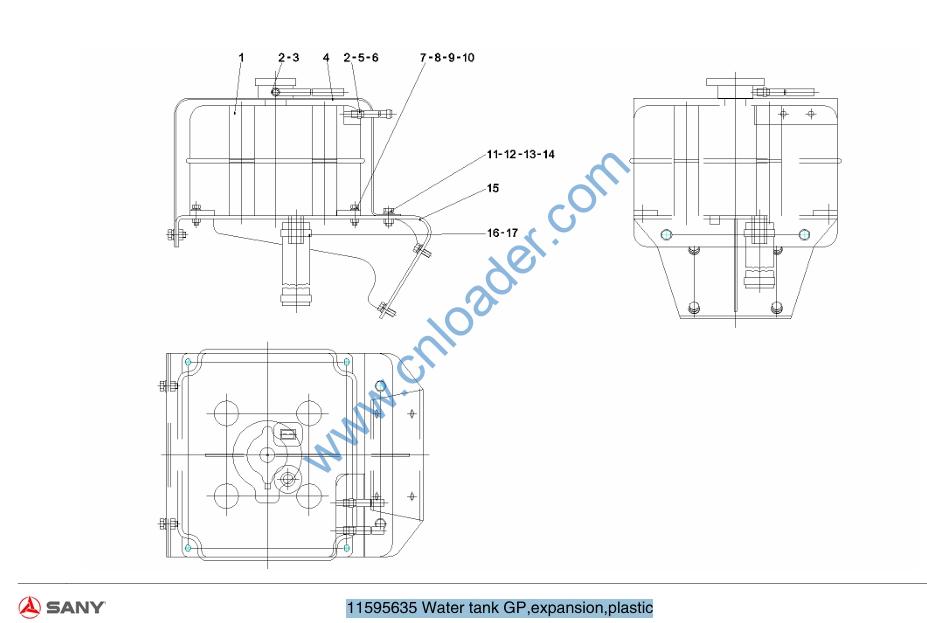

11595635 Water tank GP,expansion,plastic

1 60056775 Tank, expansion, plastic 1
2 A210855000003 Hoop 5
3 11595298 Hose, rubber 1
4 11595235 Cover, protective 1
5 11595253 Hose, rubber 1
6 11595261 Hose, rubber 1
7 A210111000081 Bolt 4
8 A210405000006 Washer 4
9 A210401000016 Washer 4
10 A210307000016 Nut 4
11 A210111000089 Bolt 8
12 A210401000017 Washer 8
13 A210405000007 Washer 8
14 A210307000012 Nut 4
15 11595177 Support, expansion water tank 1
16 A229900002838 Hoop 2
17 11595292 Hose, rubber 1
