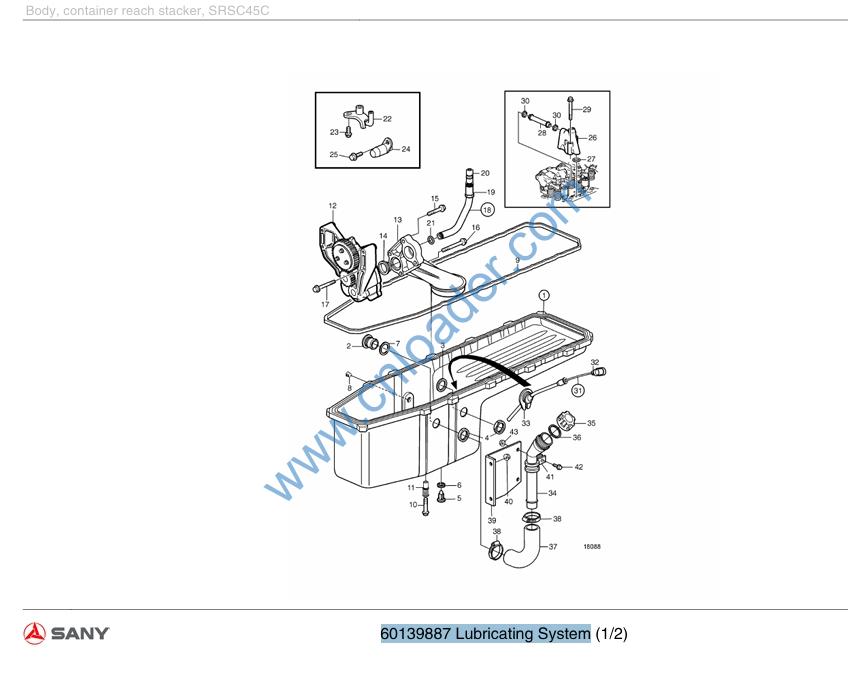

60139887 Lubricating System
1 60130109 Oilpan 1
2 60131584 Hoseconnection 1
3 60132450 Sealingring 1
4 60131649 Nut 2
5 60130624 Magneticplug 1
6 B230101001206 Ring,seal 1
7 60132450 Sealingring 1
8 60130988 Plug 1
9 60132540 Rubbermoulding 1
10 60131818 Screw 14
11 60132958 Sleeve 14
12 60130245 Oilpump 1
13 60094523 Tube，breathing 1
14 60132449 Sealingring 1
15 60066472 Threaded stud,mud guard 3
16 60092454 Flange 1
17 60131797 Screw 4
18 60131494 Oilfeedpipe 1
19 60131622 Nut 1
20 60130071 Ferrule 1
21 60094490 Ring,seal 1
22 60129875 Jet 6
23 60092391 Screw 6
24 60129877 Nozzle,transmission 1
25 60131057 Screw 1
26 60130137 Intermediatesection 1
27 60131634 Sealingring 1
28 60094159 Outlet pipe 1
29 60131055 Flangescrew 2
30 60088051 Ring,seal 2
31 60130009 Oildipstick 1
32 60132383 O-ring 1
33 60129866 Tube 1
34 60094319 Oil filler pipe 1
35 60131407 Oilfillercap 1
36 B230101001205 Ring,seal,oil filler 1
37 B229900005158 Hose 1
38 60094351 Lathedog 2
39 60132199 Bracket 1
40 60131086 Flangelocknut. 2
41 60131268 Clamp 2
42 60094286 Bolt, flange 2
43 60010662 Bolt 2

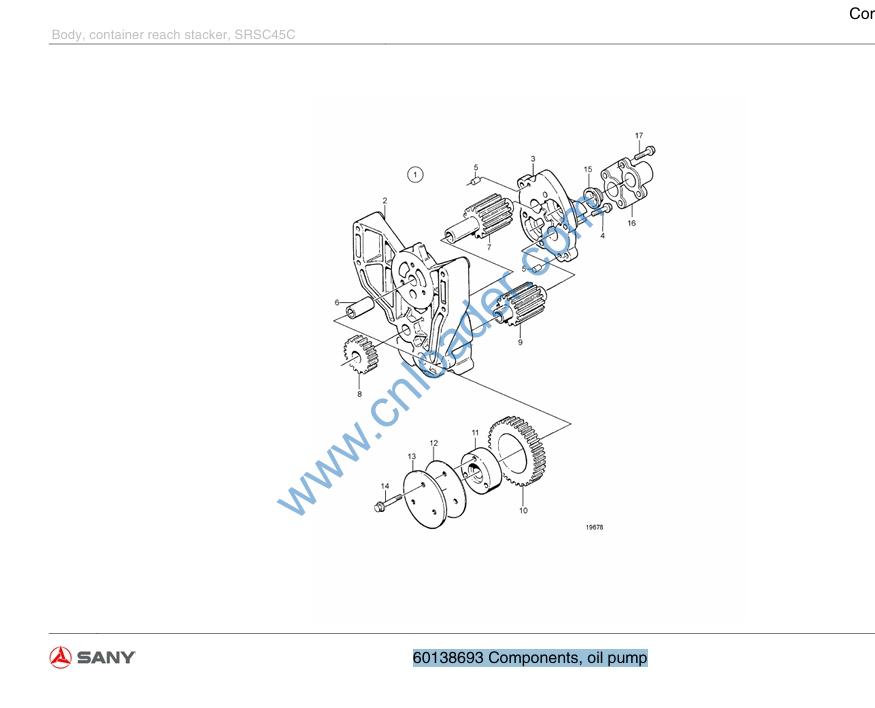

60138693 Components, oil pump
1 60130245 Oilpump 1
2 60130175 Oilpumphousing 1
3 60129776 Cover 1
4 60066472 Threaded stud,mud guard 2
5 60132031 Pin 2
6 60132019 Pin 1
7 60130610 Shaft,withgear 1
8 60130416 Gear 1
9 60130611 Shaft,withgear 1
10 60130446 Idlergear 1
11 60131599 Hub 1
12 60130396 Bearingshield 1
13 60132264 Thrustwasher 1
14 60131063 Flangescrew 3
15 60132449 Sealingring 1
16 60129998 Connectionplate 1
17 60066472 Threaded stud,mud guard 2

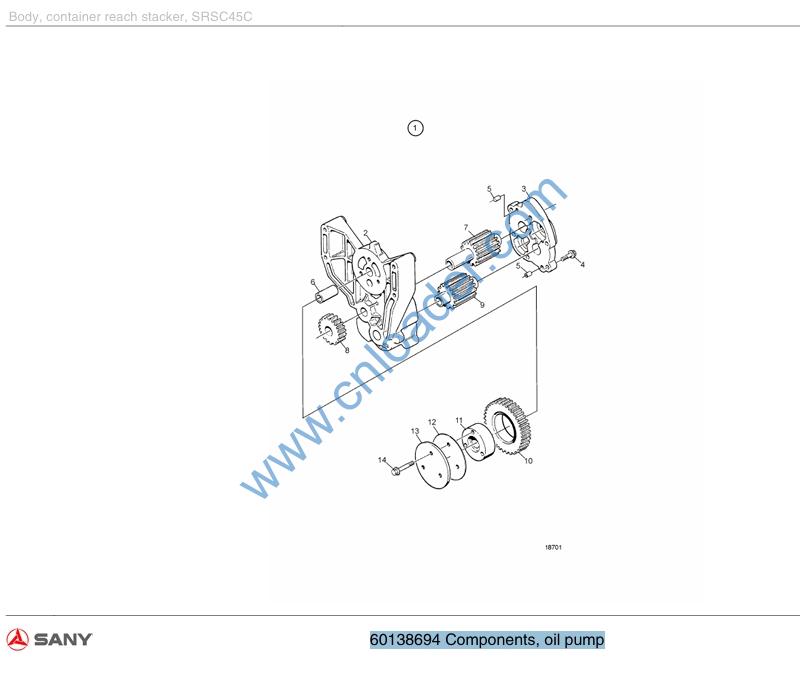

60138694 Components, oil pump
1 60130245 Oilpump 1
2 60130176 Oilpumphousing 1
3 60129777 Cover 1
4 60094288 Bolt,flange 2
5 60132031 Pin 2
6 60132020 Pin 1
7 60130612 Shaft,withgear 1
8 60130417 Gear 1
9 60130613 Shaft,withgear 1
10 60130447 Idlergear 1
11 60131600 Hub 1
12 60130397 Bearingshield 1
13 60132265 Thrustwasher 1
14 60131063 Flangescrew 3

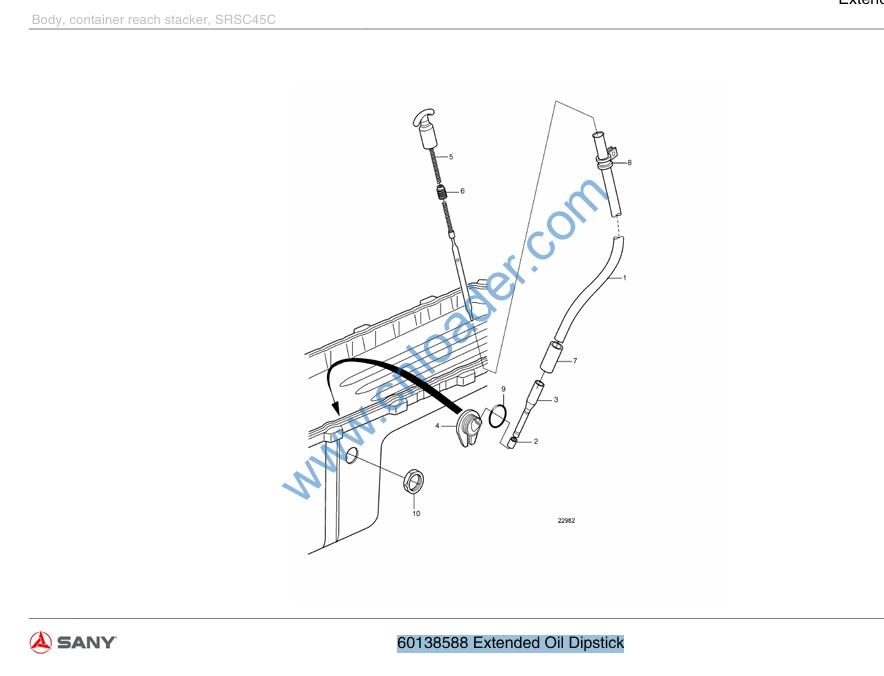

60138588 Extended Oil Dipstick
1 60132589 Plasticpipe 1
2 60130912 Spacer 1
3 60129863 Tube 1
4 60129921 Grommet 1
5 60130006 Dipstick 1
6 60130100 Rubberseal 1
7 60132499 Hose 1
8 60092371 Clamp，fixed 1
9 60132450 Sealingring 1
10 60131649 Nut 1

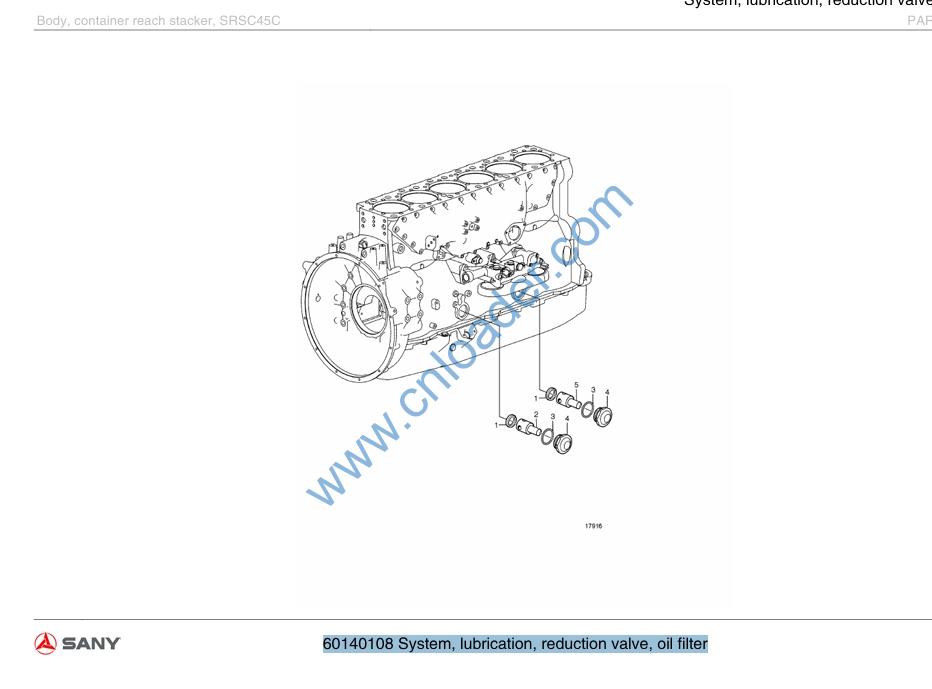

60140108 System, lubrication, reduction valve, oil filter
1
2
3
4
5
Part No.
60132452
60130304
60094496
60129785
System, lubrication, reduction valve, oil filter
PARTS BOOK
Description
Sealingring
Reducingvalve
Ring,seal
Cover
Reducingvalve
60140108 System, lubrication, reduction valve, oil filter
Qty.
2
1
2
2
1
60130300
1 60132452 Sealingring 2
2 60130302 Reducingvalve 1
3 60094496 Ring,seal 2
4 60129785 Cover 2
5 60130303 Reducingvalve 1
60139888 Lubricating System
60138864 Unit, engine oil filter
