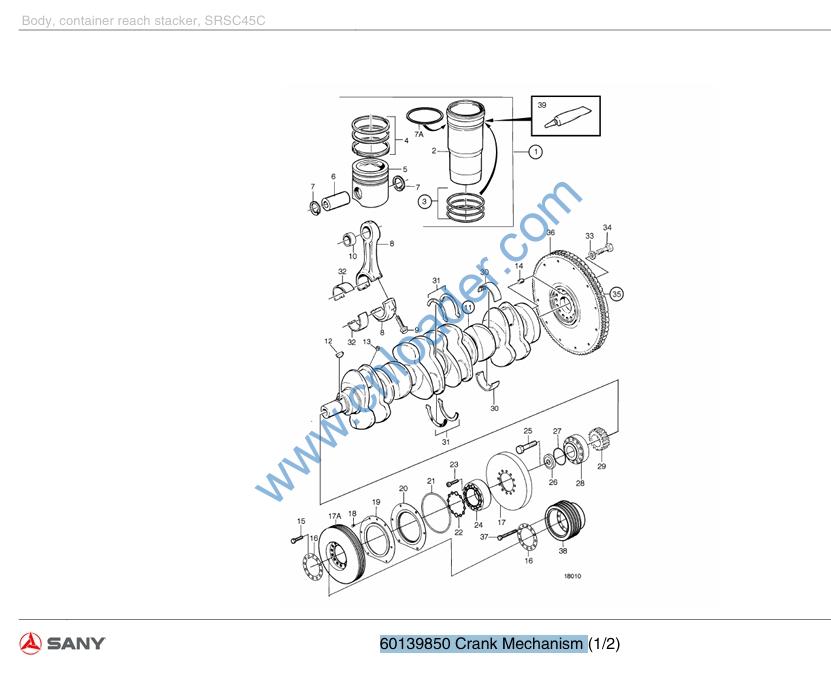

60139850 Crank Mechanism

60139850 Crank Mechanism

1 60131237 Kit, cylinder sleeve 6
2 60131875 Cylinderliner 6
3 60131839 Sealingringkit 6
4 60131388 Components, piston ring 6
5 60131375 Piston 6
6 60100214 Pin, piston 6
7 60130524 Lockring 12
8 60131560 Rod, connecting 6
9 60131714 Screw 12
10 60130603 Bushing 6
11 60131916 Crankshaft 1
12 60130548 Woodruffkey 1
13 60131001 Plug 6
14 60132037 Pin 1
15 60131820 Screw 10
16 60094124 Disc,fixed 1
17 60094136 Disc, damping 1
18 60094286 Bolt, flange 6
19 60131090 Cover, dustproof 1
20 60132446 Sealingring 1
21 B230101001202 O-ring 1
22 B230101001203 Ring,seal 1

23 60131597 Screw, allen head 2
24 60130606 Flange, companion 1
25 60131715 Screw 1
26 60130875 Washer 1
27 B230101001204 O-ring 1
28 60129844 Hub 1
29 60094209 Gear 1
30 60086188 Main bearing kit 1
31 60100227 Washer, thrust 6
32 60138786 Kit, bearing, big end 14
33 60085905 Washer 14
34 60088006 Bolt 14
35 60139167 Flywheel 1
36 60130443 Ring, gear 1
37 60139587 Hexagon screw 10
38 60139328 Pulley 1
39 B420300000066 Sealant 1
40 60100203 Gasket, thin 6
41 60131301 Pulley 1

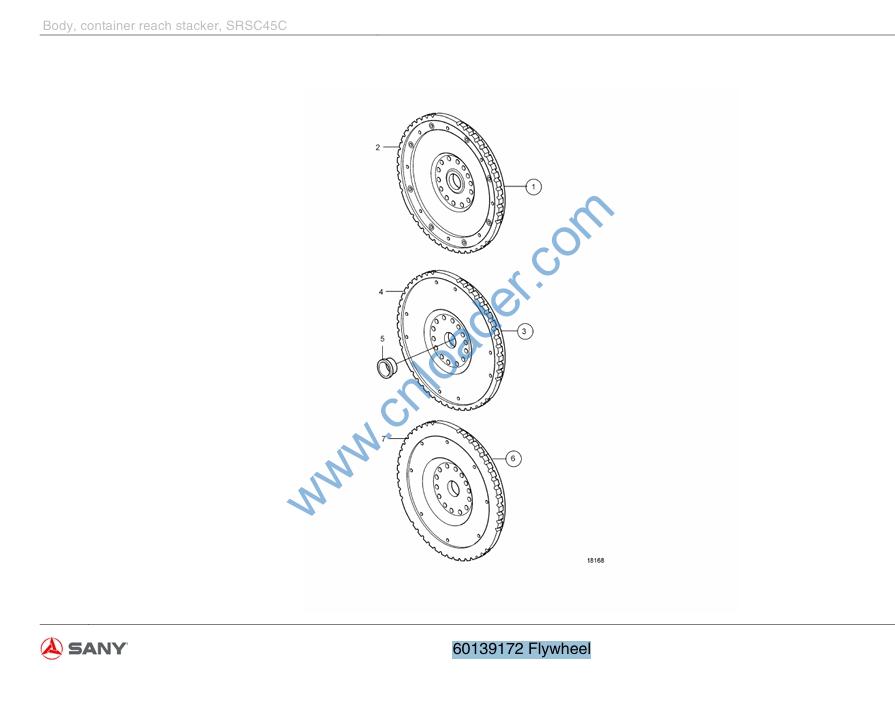

60139172 Flywheel

1 60131114 Flywhee 1
2 60130443 Ring, gear 1
3 60131112 Flywheel 1
4 60130443 Ring, gear 1
5 60130579 Bushing 1
6 60131113 Flywheel 1
7 60130443 Ring, gear 1

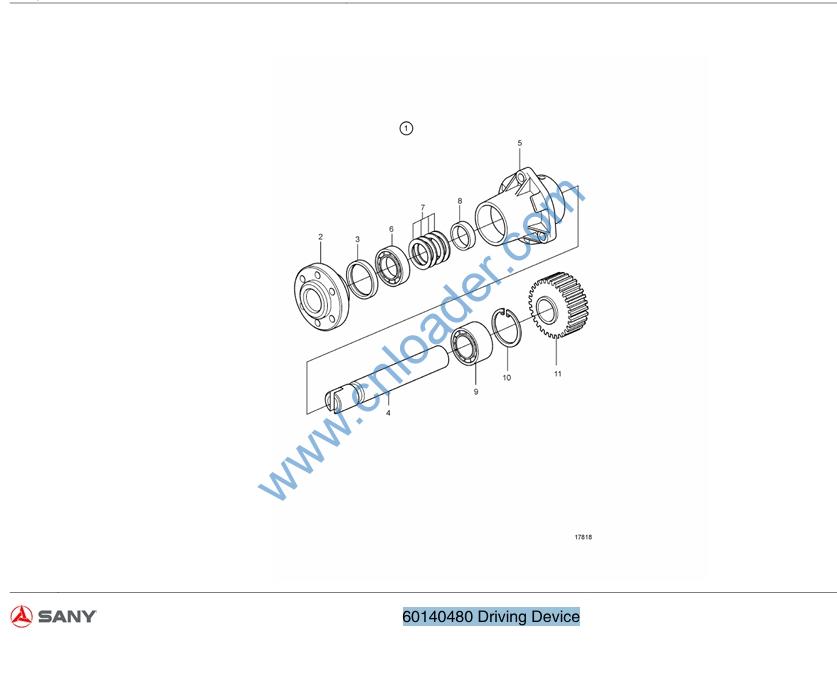

60140480 Driving Device

1 60130044 Driveoutlet 1
2 60129845 Hub 1
3 60087389 Sealing ring 1
4 60132276 Shaft 1
5 60130390 Bearinghousing 1
6 60085749 Bearing,spherical 1
7 60087902 Spring 4
8 60130898 Spacer 1
9 60130382 Ballbearing 1
10 60094109 Ring,baffle 1
11 60130415 Gear 1

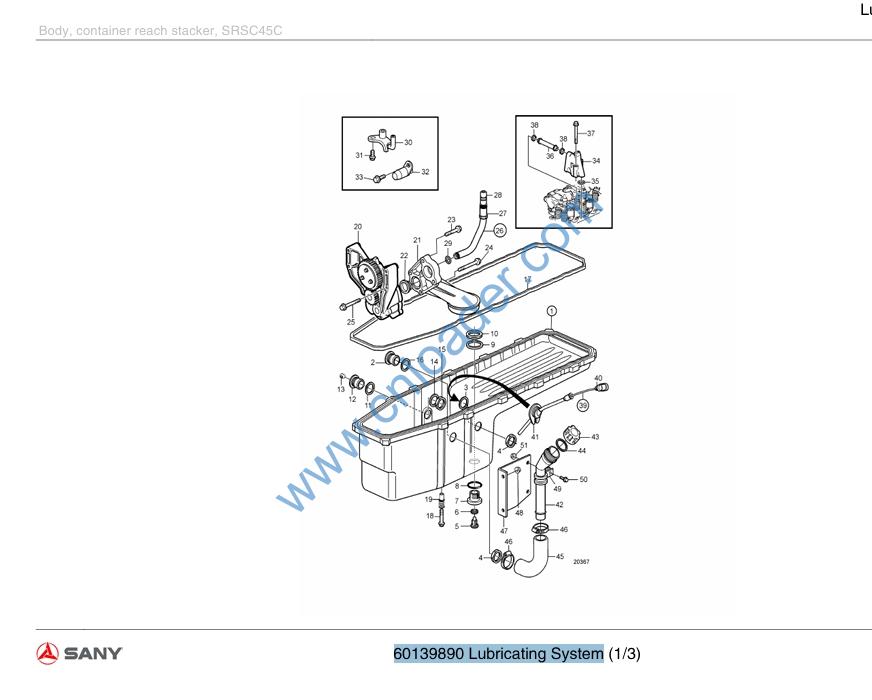

60139890 Lubricating System

1 B229900005155 Pan,oil 1
2 60131584 Hoseconnection 1
3 60132450 Sealingring 1
4 60131649 Nut 2
5 60094806 Screw,oil sump 1
6 60094790 Washer 1
7 60132943 Sleeve 1
8 60132388 O-ring 1
9 60130831 Washer 1
10 60131620 Nut 14
11 60092705 O-ring 14
12 60132944 Sleeve 1
13 60130988 Plug 1
14 60130848 Washer 1
15 60131621 Nut 3
16 60132450 Sealingring 1
17 B230105000005 Belt,seal 4
18 60131052 Flangescrew 1
19 60132939 Springsleeve 1
20 60130245 Oilpump 1
21 60094523 Tube,breathing 1
22 60132449 Sealingring 6

23 60066472 Threaded stud,mud guard 6
24 60092454 Flange 1
25 60131797 Screw 1
26 60091454 Oil feed pipe 1
27 60131634 Sealingring 1
28 60094159 Outlet pipe 1
29 60094490 Ring,seal 2
30 60129875 Jet 2
31 60092391 Screw 1
32 60094585 Nozzle, transmission 1
33 60131057 Screw 1
34 60130137 Intermediatesection 1
35 60131634 Sealingring 1
36 60094159 Outlet pipe 1
37 60131055 Flangescrew 1
38 60088051 Ring,seal 2
39 60130007 Oildipstick 1
40 60132383 O-ring 2
41 60138609 Tube 2
42 60139360 Oil filler pipe 2
43 60131406 Oilfillercap. 2
44 B230101001205 Ring,seal,oil filler 2

45 B229900005158 Hose 2
46 60094351 Lathedog 2
47 60132199 Bracket 2
48 60131086 Flangelocknut. 2
49 60131268 Clamp 2
50 60094286 Bolt, flange 2
51 60139160 Flange nut 2
