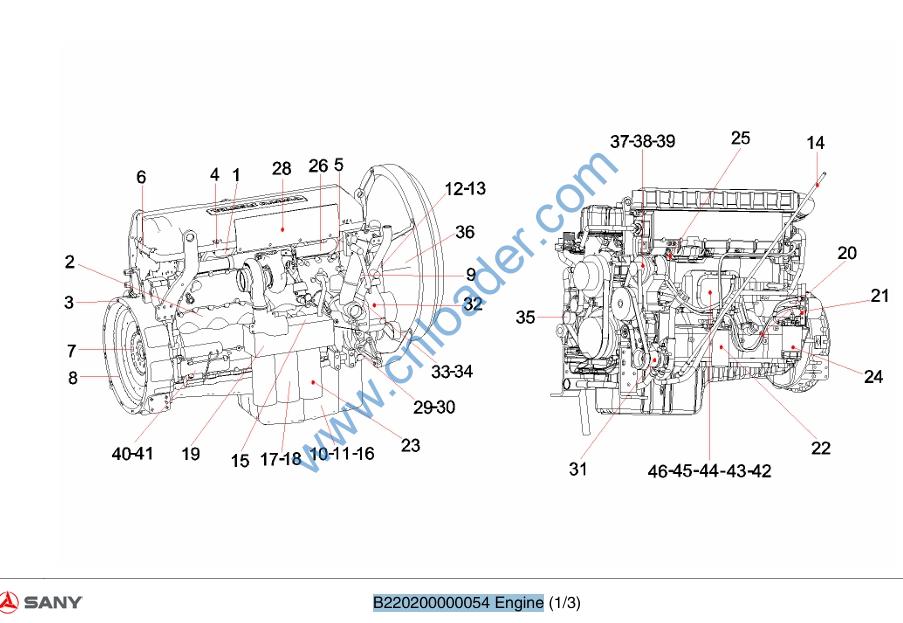

B220200000054 Engine

B220200000054 Engine

1 60139830 Cylinder head 1
2 60139806 Cylinder block 1
3 60139179 Shell, flywheel 1
4 60139819 Air valve Ass. 1
5 60139128 Gear, timing 1
6 60139979 Camshaft 1
7 60139850 Crank Mechanism 1
8 60139172 Flywheel 1
9 60140480 Driving Device 1
10 60139890 Lubricating System 1
11 60139887 Lubricating System 1
12 60138693 Components, oil pump 1
13 60138694 Components, oil pump 1
14 60138588 Extended Oil Dipstick 1
15 60140108 System, lubrication, reduction valve, oil filter 1
16 60139888 Lubricating System 1
17 60138864 Unit, engine oil filter 1
18 60140111 Components, oil filter seat 1
19 60138618 Cooler, oil, engine 1
20 60138492 System, oil supply 1
21 60138695 Components, oil pump 1
22 60138883 Fuel Filter 1

23 60138890 Fuel Filter Twin 1
24 60138905 Separator, oil-water 1
25 60138559 Unit injector 1
26 60140298 Exhaust Pipe 1
28 60140304 Heat Shield for Exhaust Manifold and Valve cover 1
29 60138892 Water Pump Thermostat Housing and Water Filter 1
30 60138893 Water Pump Thermostat Housing and Water Filter 1
31 60138700 Pump, water, water cooler, low mounted 1
32 60138701 Pump, water, water cooler, high mounted 1
33 60138714 Water Pump Components 1
34 60138715 Water Pump Components 1
35 60139764 Belt Transmission and Belt Tensioner Device 1
36 60139212 Components, fan 1
37 60138780 Alternator Twin Mounted 1
38 60138762 Alternator, AC 1
39 60138765 Alternator, AC, single mounted 1
40 60138741 Starter motor 1
41 60138743 Starter Motor Components 1
42 60138603 Preheater 1
43 60140425 Control unit and Connector 1
44 60140399 Control Panel DCU 1
45 60140407 System, electric control 1

60140357

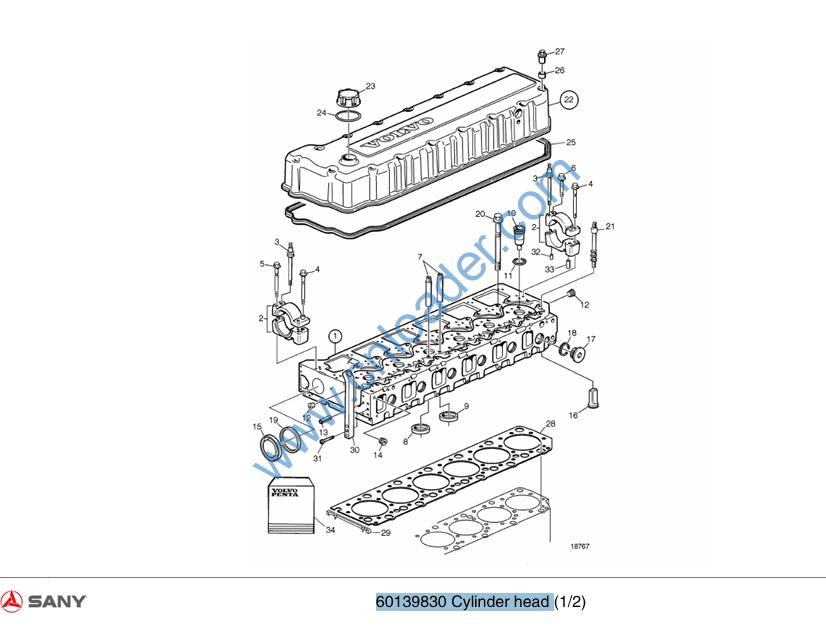

60139830 Cylinder head

1 60131903 Cylinderhead 1
2 60131905 Bearinghousing,front 1
3 60090688 Stud 7
4 60087349 Bolt 14
5 60131605 Screw 1
6 60090691 Bolt,Cam shaft 6
7 60085913 Pipe, guide, valve 24
8 60131024 Seat, valve 12
9 60131022 Seat, valve 12
10 60132970 Coppersleevekit 6
11 60132378 O-ring 6
12 60130998 Plug 2
13 60132031 Pin 1
14 60130997 Plug 1
15 60094389 Plug,screw 1
16 60129874 Nozzle 6
17 60130983 Plug 12
18 60092706 O-ring 12
19 60085955 Ring,seal 1
20 60131604 Screw 38
21 60090690 Bolt,double-ended 9
22 60130293 Cover, valve 1

23 60131405 Cap, oil filler 1
24 60100206 Gasket 1
25 60132535 Sealingstrip 1
26 60081212 Bushing 16
27 60094378 Nut 16
28 60100222 Cyl.head.gasket kit, cylinder head 1
29 60132537 Sealingstrip 1
30 60130893 Shackle 1
31 60089703 Bolt, fixed, steel plate seat 3
32 60132035 Pin 14
33 60132956 Sleeve 14
34 60132999 De-carbonizingkit 1
