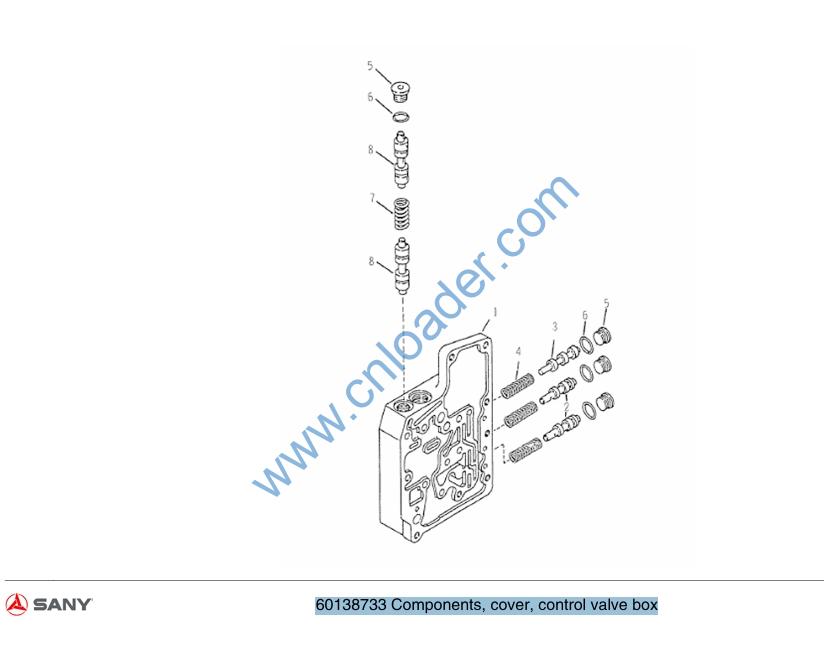

60138733 Components, cover, control valve box

60138733 Components, cover, control valve box

1 60099646 Shell, control valve 1
2 60099525 Core, valve, speed stage 2
3 60099526 Core, valve, speed stage 1
4 60099696 Spring, valve core, speed stage 3
5 60099495 Plug, pipe 4
6 60099752 O-ring 4
7 60099623 Spring, steering valve core 1
8 60099522 Core, steering valve 2

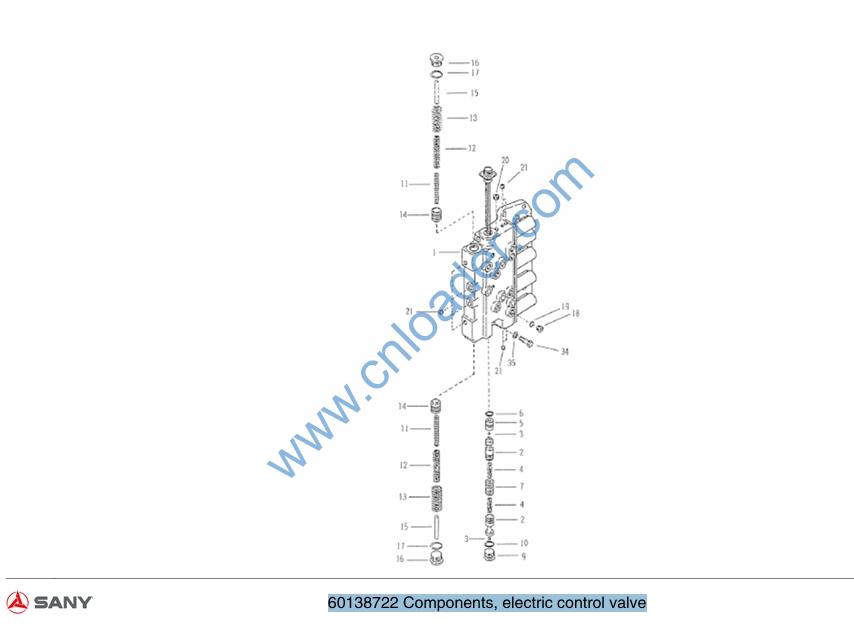

60138722 Components, electric control valve

1 60099523 Cover, control valve 1
2 60099519 Assembly, pressure regulating valve core 2
3 60099714 Ball, stop, pressure plate 2
4 60121020 Spring 2
5 60099520 Block, brake, pressure regulating valve 1
6 60099761 O-ring, brake block, pressure regulating valve 1
7 60099521 Block, brake, pressure regulating valve 1
8 60099612 Pin, cylindrical, pressure regulating valve 1
9 60099495 Plug, pipe 2
10 60099752 O-ring 1
11 60099709 Spring, inner, pressure accumulator 1
12 60099711 Spring, mid, pressure accumulator 2
13 60099710 Spring, outer, pressure accumulator 2
14 60099529 Core, valve, pressure accumulator 2
15 60099708 Pin, stop, valve core, pressure accumulator 2
16 60099496 Plug, pipe 2
17 60099764 O-ring, pipe plug 2
18 60099780 Plug, hole, checking 8
19 60099750 O-ring 8
20 60099494 Plug, pipe 1
21 60099506 Plug 10

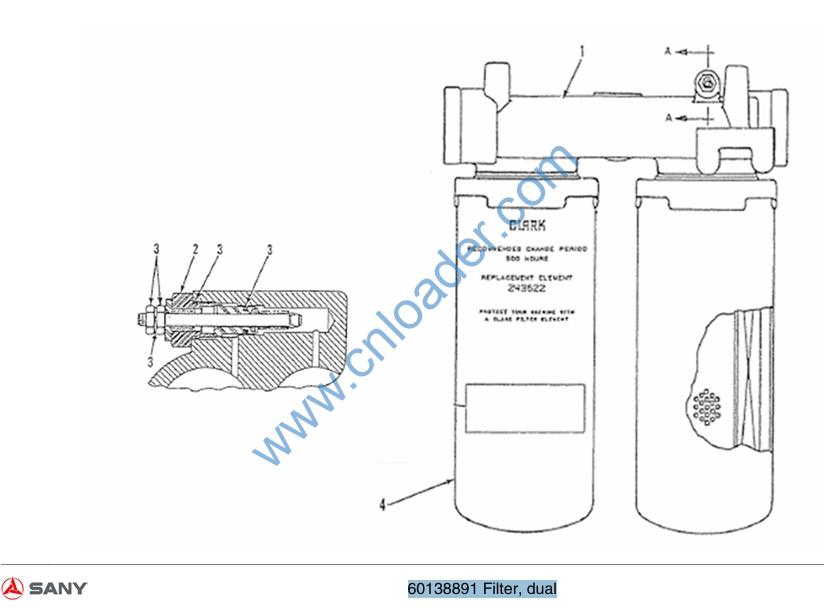

60138891 Filter, dual

1 B229900000101 Assembly, oil filter head, torque converter 1
2 60121021 Indicator, electrical 1
3 60108685 Package, sealing ring, static gun 1
4 B222100000106 Element, filter 1

1 60121028 Washer 1
2 60099744 O-ring 3
3 60121049 O-ring 2
4 60121026 Washer 1
5 60121040 Piston 9
6 60021238 Ring, seal, piston ring 6
7 60099768 Ring, seal, outer, clutch piston 2
8 60121027 Washer 1
9 60121062 Ring, seal 2
10 60121064 Ring, seal 1
11 60121052 O-ring 2
12 60121022 Gasket 2
13 60121023 Gasket 2
14 60121024 Gasket 2
15 60121025 Gasket 2
16 60121059 Ring, seal 1
17 60020025 Seal, oil, output flange 1
18 60099741 O-ring 1
19 60099588 Pad, sealing, torque converter shell body to gearbox shell body 1
20 60121046 O-ring 1
21 60099763 Ring, seal, outer, 3nd gear clutch piston 4
22 60099638 Pad, sealing, rear cover to shell body 1

23 60099745 O-ring 1
24 60099776 O-ring, bearing end cap 2
25 60099731 Gasket, thin, end cap, bearing 2
26 60099732 Gasket, thin, end cap, bearing 2
27 60099733 Gasket, thin, end cap, bearing 2
28 60099734 Gasket, thin, end cap, bearing 2
29 60099743 O-ring 2
30 60021234 Ring, piston 2
31 60099743 O-ring 2
32 60021234 Ring, piston 2
33 60121053 O-ring 1
34 60099742 O-ring 1
35 60099765 O-ring, end cover, rear bearing 1

1 60099744 O-ring 7
2 60099588 Pad, sealing, torque converter shell body to gearbox shell body 1
3 60099773 Seal,oil, turbine shaft 1
4 60099760 Seal, oil, guide wheel seat 1
5 60121017 Oil 1
6 60099758 Ring, sealing, oil retainer disc 1
7 60099755 O-ring, hub, pump impeller 1
8 60099753 O-ring, pump impeller cover to pump impeller 1
9 60099754 O-ring, bearing cover, pump impeller cover 1
10 60099591 Bushing 1
11 60121054 O-ring 1
12 60099770 O-ring, connecting parts 1
13 60121029 Washer 2
14 60121037 Washer 1
15 60121034 Washer 1
16 60099667 Pad, liner, sealing plate 2
17 60121072 Washer 1
18 60121048 O-ring 5
19 60099748 O-ring 5
20 60099747 O-ring 5
21 60121045 O-ring 1
22 60121033 Washer 1

23 60121032 Washer 1
24 60121068 Seal, oil 2
25 60121052 O-ring 3
26 60121050 O-ring 2
27 60099742 O-ring 3
28 60099756 Seal, oil, drive shaft, pump 1
29 60099757 Ring, sealing, shaft, pump 2
30 60099761 O-ring, brake block, pressure regulating valve 1
31 60099764 O-ring, pipe plug 1
32 60121036 Washer 1
33 60121066 Seal, oil 2
34 60121067 Seal, oil 2
36 60121065 Seal, oil 1
37 60121035 Washer 1
38 60121030 Washer 1
39 60121031 Washer 1
40 60099743 O-ring 2
41 60121073 Ring, oil seal, piston 2
42 60121058 Ring, oil seal, piston 1
43 60121055 O-ring 1
44 60121057 Ring, oil seal, piston 1
45 60099774 O-ring,from coil to nut 8

46 60121049 O-ring 1
47 60121038 Washer 1
48 60099752 O-ring 1
49 60099752 O-ring 1
50 60099630 Pad, sealing, cover plug 1
51 60121060 Ring, seal 1
52 60099592 Bush, connecting cover, permanent pump 1
53 60121047 O-ring 1
54 60121056 O-ring 1
55 60121061 Ring, seal 1
56 60121051 O-ring 1
57 60121016 Ring 1
58 60121063 Ring, seal 1
59 60099590 Gasket 1
