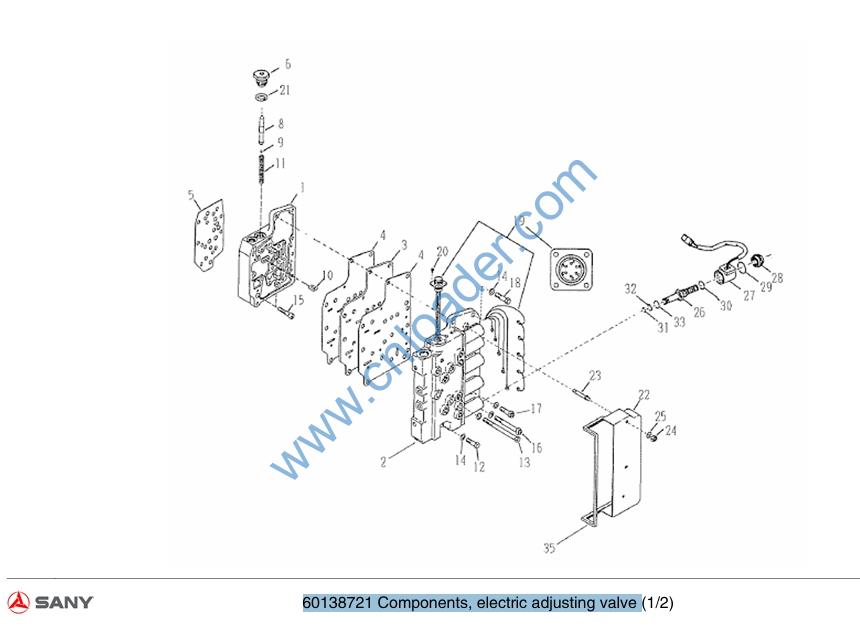

60138721 Components, electric adjusting valve

60138721 Components, electric adjusting valve

1 60099647 Assembly, shell, control valve 1
2 60099524 Assembly, cover, control valve 1
3 60099504 Plate, sealing 1
4 60099667 Pad, liner, sealing plate 2
5 60099648 Pad, sealing, control valve 1
6 60099496 Plug, pipe 1
8 60099528 Assembly, valve core, throw-out of gear valve 1
9 60099507 Plug 1
10 60099527 Plate, stop, valve core, throw-out of gear valve 1
11 60099703 Spring, valve core, throw-out of gear valve 1
12 60099663 Screw 1
13 60099665 Screw 5
14 60099699 Washer, lock 14
15 60099649 Screw, shell, control valve to torque converter 2
16 60099644 Screw, shell, control valve cover to torque converter 2
17 60099723 Screw, oil pump to shell body 4
18 60099664 Screw 2
19 60099628 Plate, cover 1
20 60099629 Screw,cover plate 4
21 60099764 O-ring, pipe plug 1
22 60099624 Cover, dustproof 1
23 60121042 Stud 3

24 60099627 Nut, stud, dustproof cover 3
25 60099625 Washer, dustproof cover 3
26 60099531 Core, iron, electromagnetic valve 5
27 60099778 Coil, electromagnetic valve 5
28 60099605 Nut, electromagnetic valve 5
29 60099774 O-ring,from coil to nut 5
30 60099498 Clamp 5
31 60099498 Clamp 5
32 60099498 Clamp 5
33 60099498 Clamp 5

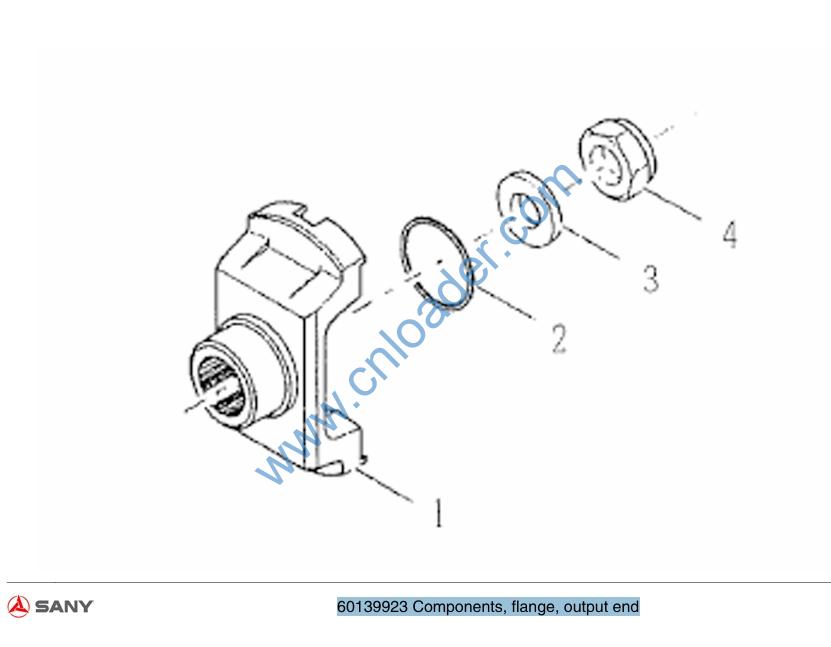

60139923 Components, flange, output end

1 60099690 Flange, output shaft 1
2 60099741 O-ring 1
3 60099606 Washer 1
4 60099618 Nut, idler shaft 1

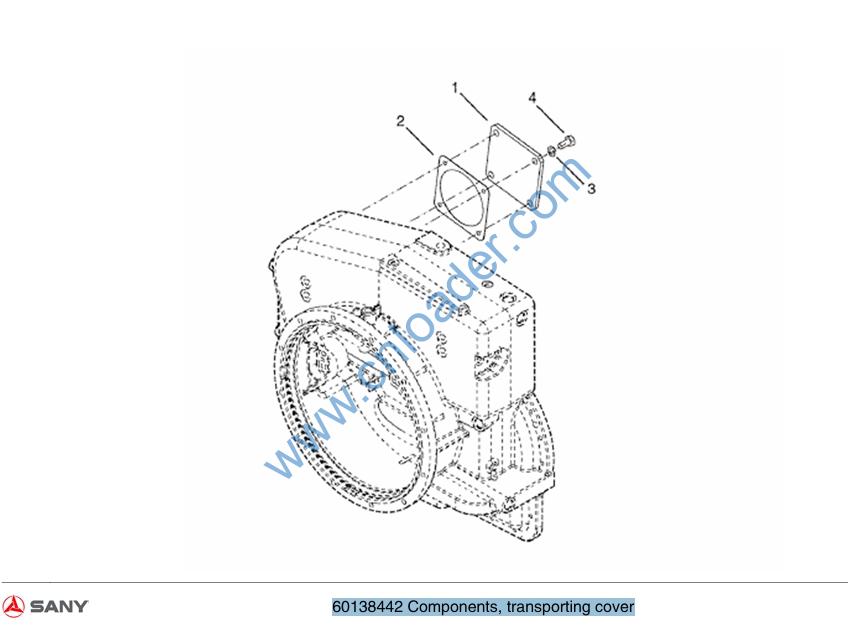

60138442 Components, transporting cover

1 60099514 Cover, connecting, permanent pump 1
2 60099592 Bush, connecting cover, permanent pump 1
3 60099701 Washer, lock 4
4 60099593 Screw, connecting cover, permanent pump 4

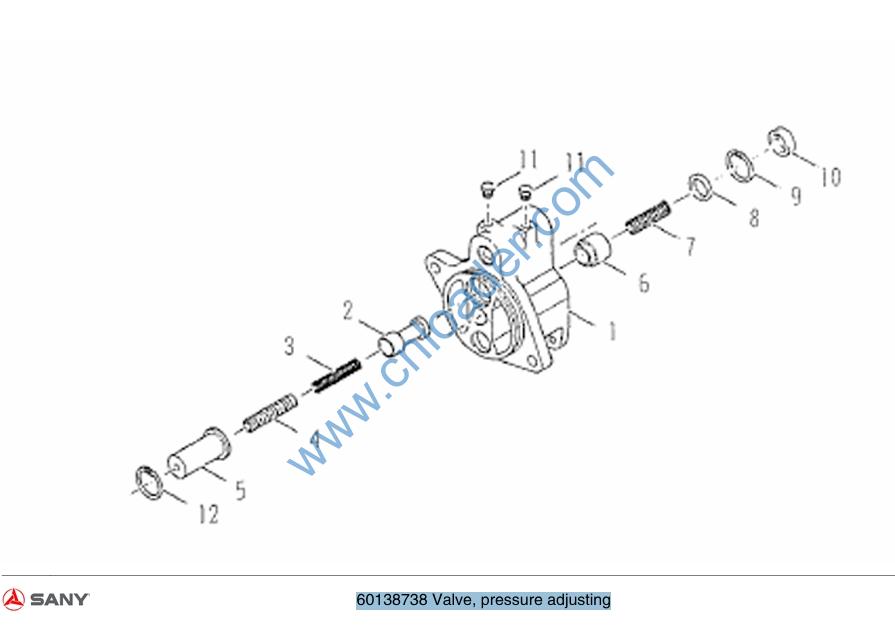

60138738 Valve, pressure adjusting

1 60099517 Body, pressure regulating valve 1
2 60099518 Core, pressure regulating valve 1
3 60099609 Spring, inner, pressure regulating valve core 1
4 60099610 Spring, outer, pressure regulating valve core 1
5 60099608 Sleeve, protective, spring, pressure regulating valve core 1
6 60099568 Piston, safety valve 1
7 60099569 Spring, piston, safety valve 1
8 60099570 Seat, spring, safety valve piston 1
9 60099643 Ring, clamping 1
10 60099756 Seal, oil, drive shaft, pump 1
11 60099509 Plug 2
12 60099616 Ring, positioning 1

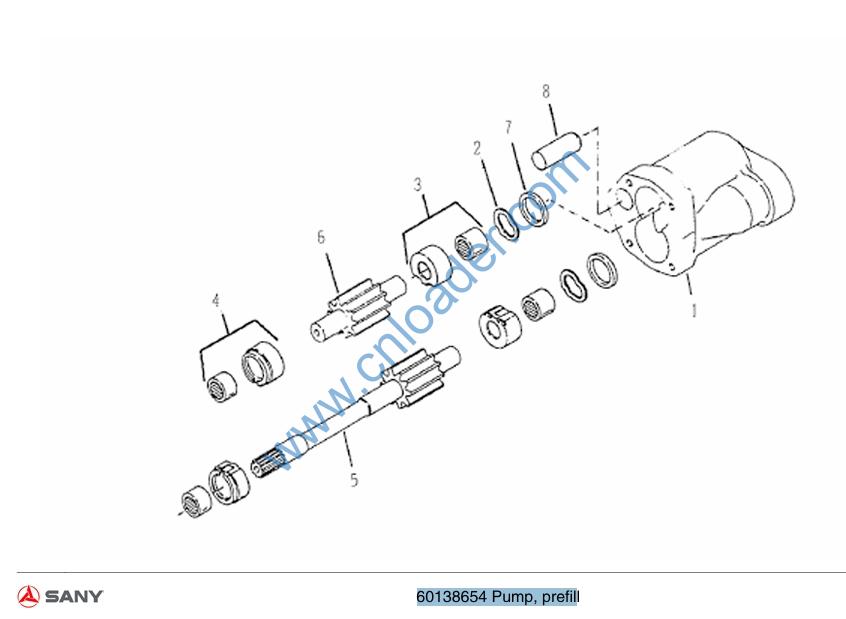

60138654 Pump, prefil

1 60099513 Body, pump 1
2 60099505 Spring, disc 2
3 60099554 Assembly, thrust plate and bearing 2
4 60099553 Assembly, thrust plate and bearing 2
5 60099581 Assembly, drive axle, pump 1
6 60099573 Assembly, driven shaft, pump 1
7 60099757 Ring, sealing, shaft, pump 2

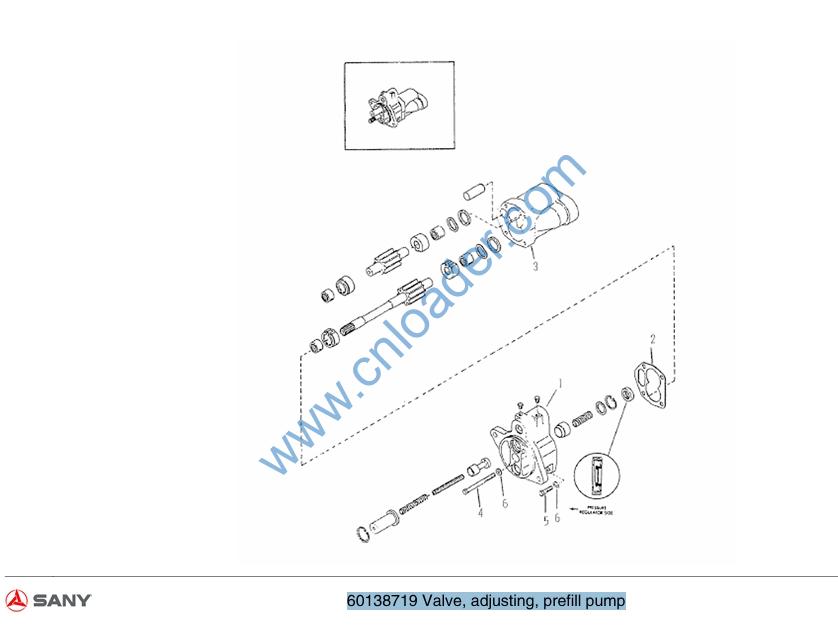

60138719 Valve, adjusting, prefill pump

1 60099530 Assembly, pressure adjusting valve 1
2 60099590 Gasket 1
3 60099516 Assembly, auxiliary pump 1
4 60099614 Screw, pressure regulating valve to auxiliary pump 2
5 60099674 Screw, flat head 2
6 60099699 Washer, lock 3
