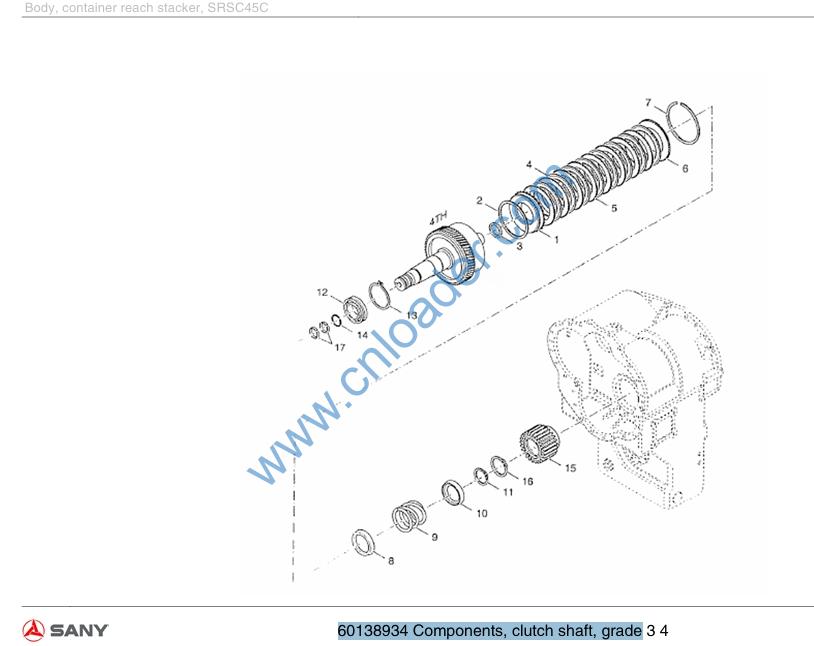

60138934 Components, clutch shaft, grade

60138934 Components, clutch shaft, grade

1 60099762 Assembly, 2nd gear clutch piston and seals 1
2 60099763 Ring, seal, outer, 3nd gear clutch piston 1
3 60021238 Ring, seal, piston ring 1
4 60099654 Plate, friction, inner, clutch 6
5 60099655 Plate, friction, outer, clutch 6
6 60099622 Disc, pressure, friction plate, 2nd gear clutch 1
7 60099712 Ring, clamp, pressure disc 1
8 60099670 Seat, disc spring 1
9 60099651 Spring, disc, return, clutch piston 1
10 60099596 Ring, clamp, spring seat 1
11 60099671 Seat, disc spring 1
12 60099544 Bearing, front, gear 4 1
13 60099694 Ring, snap, front bearing, gear 4 1
14 60099693 Ring, locating, front bearing, gear 4 1
15 60099567 Hub, 4th gear clutch 1
16 60099691 Ring, locating, hub, gear 4 clutch 1
17 60099769 Seal, oil, clutch shaft 2

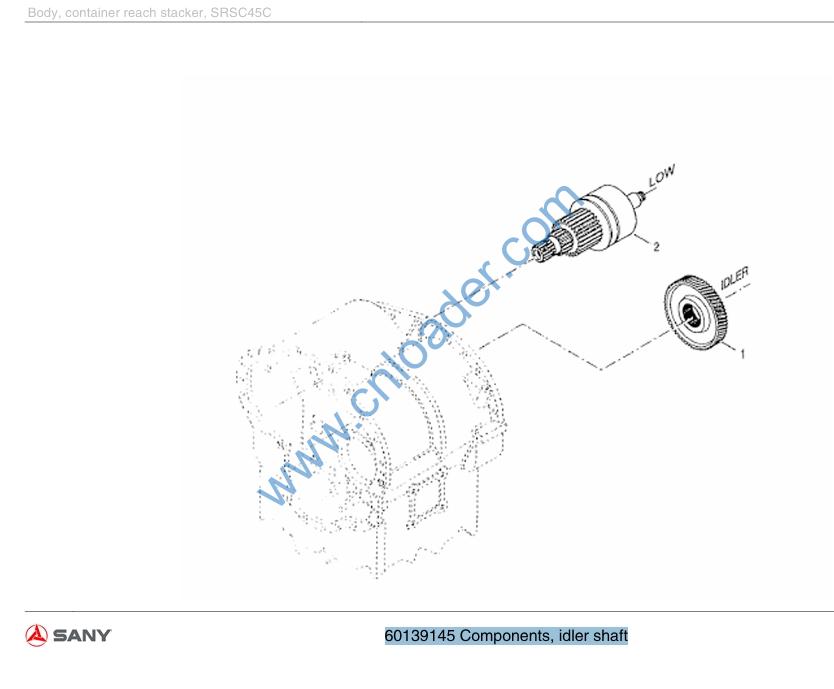

60139145 Components, idler shaft

1 60099556 Gear, idler 1
2 60099720 Shaft GP,first gear clutch 1

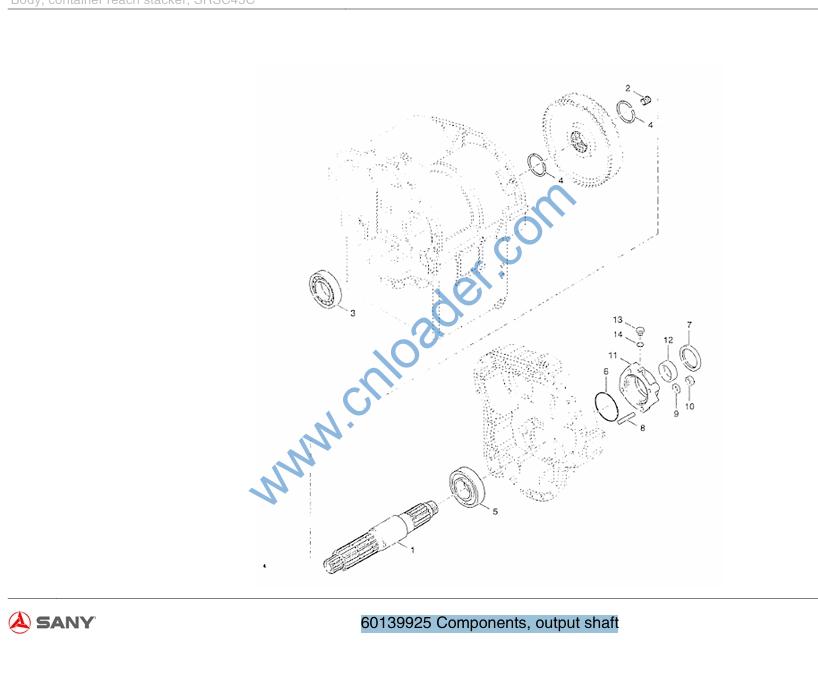

60139925 Components, output shaft

1 60099688 Shaft, output 1
2 60099541 Bearing, guide, output shaft 1
3 60099543 Bearing, front, output shaft 1
4 60099687 Ring, locating, output gear 2
5 60099542 Bearing, rear, output shaft 1
6 60099765 O-ring, end cover, rear bearing 1
7 60020025 Seal, oil, output flange 1
8 60099736 Stud, end cap, bearing 4
9 60099739 Washer, lock, stud, bearing end cap 4
10 60099738 Nut, stud, bearing end cap 4
11 60099641 Cover, end, rear bearing 1
12 60099689 Ring, spacer, flange, output shaft 1
13 60099666 Plug, screw 1
14 60099743 O-ring 1

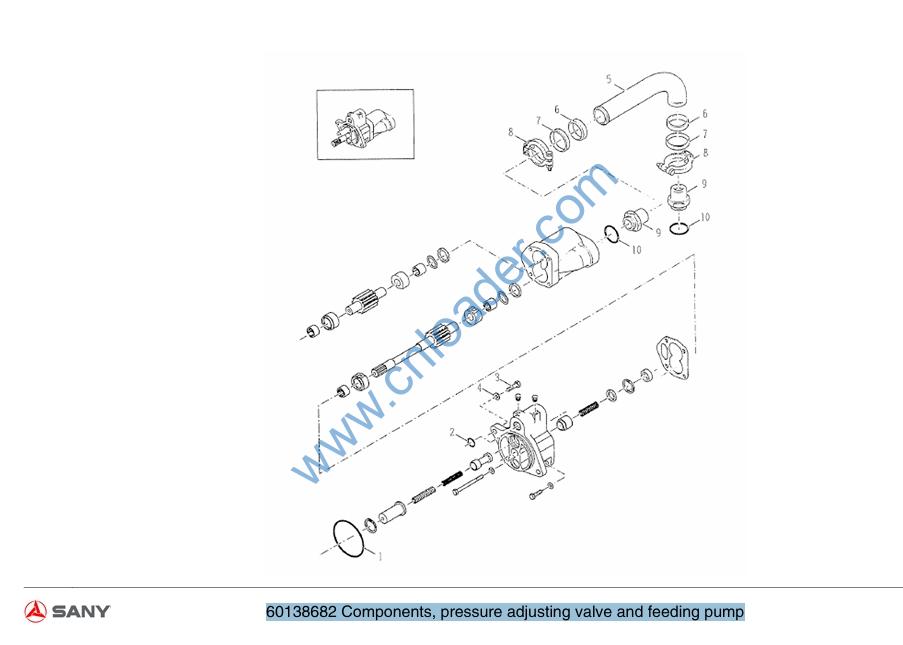

60138682 Components, pressure adjusting valve and feeding pump

1 60099776 O-ring, bearing end cap 1
2 60099744 O-ring 1
3 60099613 Screw, pressure regulating valve to torque converter shell body 2
4 60099701 Washer, lock 2
5 60121043 Tube, intake 1
6 60099591 Bushing 2
7 60099493 Ring,fixed 2
8 60099572 Ear, anchor 2
9 60099658 Parts, connecting 2
10 60099770 O-ring, connecting parts 2
