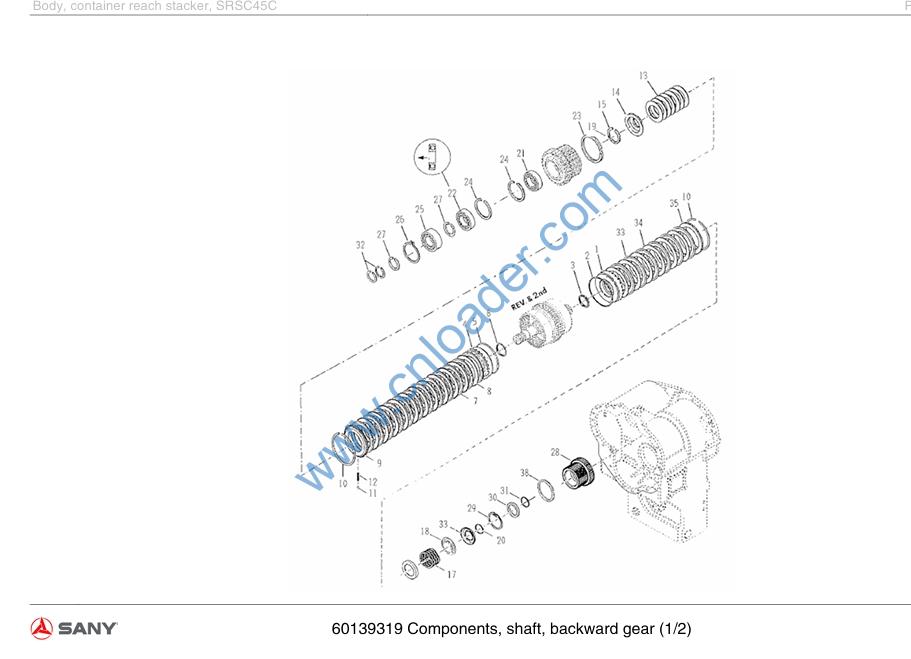

60139319 Components, shaft, backward gear

60139319 Components, shaft, backward gear

1 60099762 Assembly, 2nd gear clutch piston and seals 1
2 60099763 Ring, seal, outer, 3nd gear clutch piston 1
3 60021238 Ring, seal, piston ring 1
4 60099771 Assembly, forward gear clutch piston and seals 1
5 60099768 Ring, seal, outer, clutch piston 1
6 60021238 Ring, seal, piston ring 1
7 60099654 Plate, friction, inner, clutch 12
8 60099655 Plate, friction, outer, clutch 11
9 60099653 Disc, pressure, friction plate, clutch 1
10 60099712 Ring, clamp, pressure disc 2
11 60099714 Ball, stop, pressure plate 1
12 60099713 Spring, stop, pressure plate 1
13 60099615 Assembly, disc spring 1
14 60099595 Seat, spring 1
15 60099596 Ring, clamp, spring seat 1
17 60099651 Spring, disc, return, clutch piston 1
18 60099671 Seat, disc spring 1
19 60099670 Seat, disc spring 1
20 60099596 Ring, clamp, spring seat 1
21 60099536 Bearing, driving gear, clutch 1
22 60099535 Bearing, driving gear, clutch 1
23 60099766 Ring, oil seal, clutch hub 1

24 60099657 Ring, locating, driving gear, clutch 1
25 60099534 Bearing, front, backward gear and 2nd gear shaft 1
26 60099678 Ring, snap, front bearing 1
27 60099677 Ring, locating, front bearing 2
28 60099565 Hub, 2nd clutch 1
29 60099621 Ring, snap, locating, 2nd gear clutch hub 1
30 60099620 Seat, locating ring, 2nd gear clutch hub 1
31 60099619 Ring, locating, 2nd gear clutch hub 1
32 60099769 Seal, oil, clutch shaft 3
33 60099654 Plate, friction, inner, clutch 12
34 60099655 Plate, friction, outer, clutch 11
35 60099622 Disc, pressure, friction plate, 2nd gear clutch 1

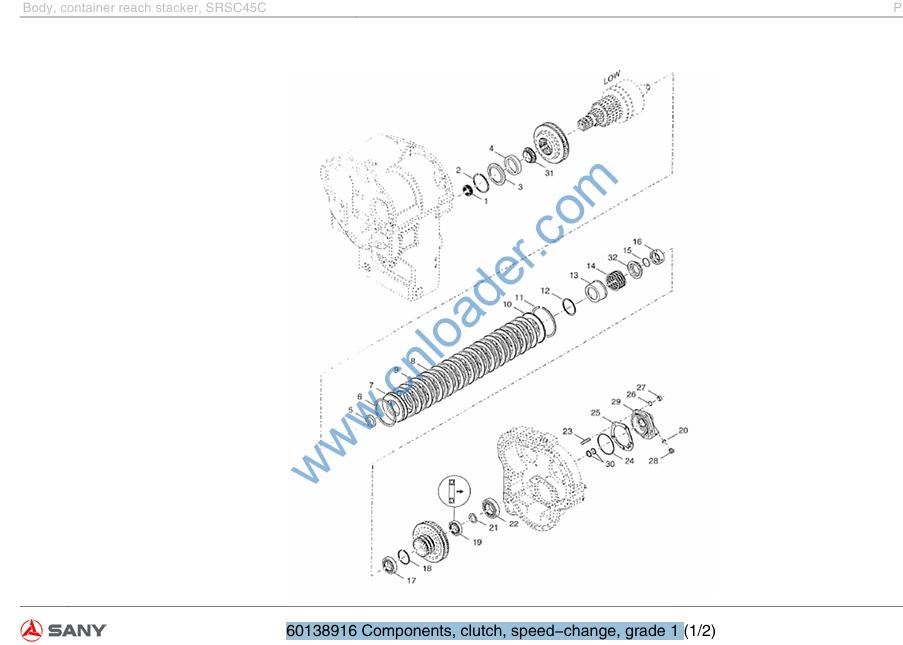

60138916 Components, clutch, speed-change, grade 1

1 60099548 Bearing, guide, 1st gear clutch shaft 1
2 60099719 Ring, snap, front bearing, first gear clutch shaft 1
3 60099718 Ring, spacer, front bearing, first gear clutch shaft 1
4 60099551 Ring, outer, front cone-shape bearing, first gear clutch shaft 1
5 60021238 Ring, seal, piston ring 1
6 60099763 Ring, seal, outer, 3nd gear clutch piston 1
7 60099775 Assembly, first gear clutch piston and seal ring 1
8 60099654 Plate, friction, inner, clutch 10
9 60099655 Plate, friction, outer, clutch 10
10 60099622 Disc, pressure, friction plate, 2nd gear clutch 1
11 60099712 Ring, clamp, pressure disc 1
13 60099672 Seat, disc spring 1
14 60099651 Spring, disc, return, clutch piston 1
15 60099594 Ring, spacer, spring 1
16 60099715 Ring, spacer, 1st gear 1
17 60099539 Bearing, 3rd gear 1
18 60099684 Ring, locating, bearing, 3rd gear 1
19 60099540 Bearing, 3rd gear 1
20 60099750 O-ring 2
21 60099716 Washer, thrust, first gear bearing 1
22 60099549 Assembly, rear bearing, first gear clutch shaft 1
23 60099737 Stud, end cap, bearing 4

24
25
26
27
28
29
30
31
32
Part No.
60099776
60099731
60099700
60099640
60099780
60099721
60099769
60099550
Description
O-ring, bearing end cap
Gasket, thin, end cap, bearing
Washer, lock
Nut, stud, rear cover to shell body
Plug, hole, checking
Cover, end, rear bearing, first gear shaft
Seal, oil, clutch shaft
Bearing, front, cone-shape, first gear clutch shaft
Seat, spring, clutch
Components, clutch, speed-change, grade 1
PARTS BOOK
Qty.
1
1
4
4
2
1
2
1
1
