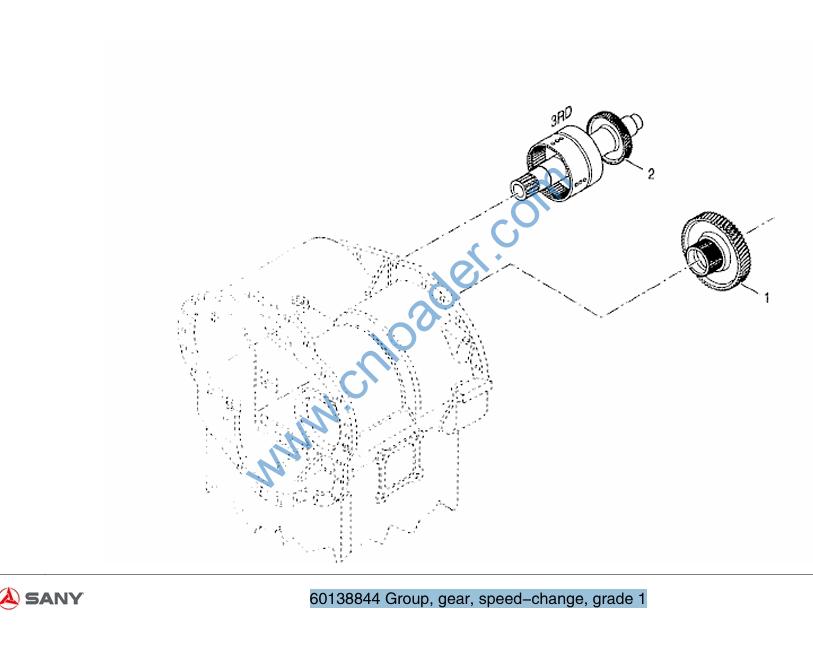

60138844 Group, gear, speed-change, grade 1

60138844 Group, gear, speed-change, grade 1

1 60099559 Gear, 1st gear 1
2 60099681 Assembly, clutch drum, 3rd gear shaft 1

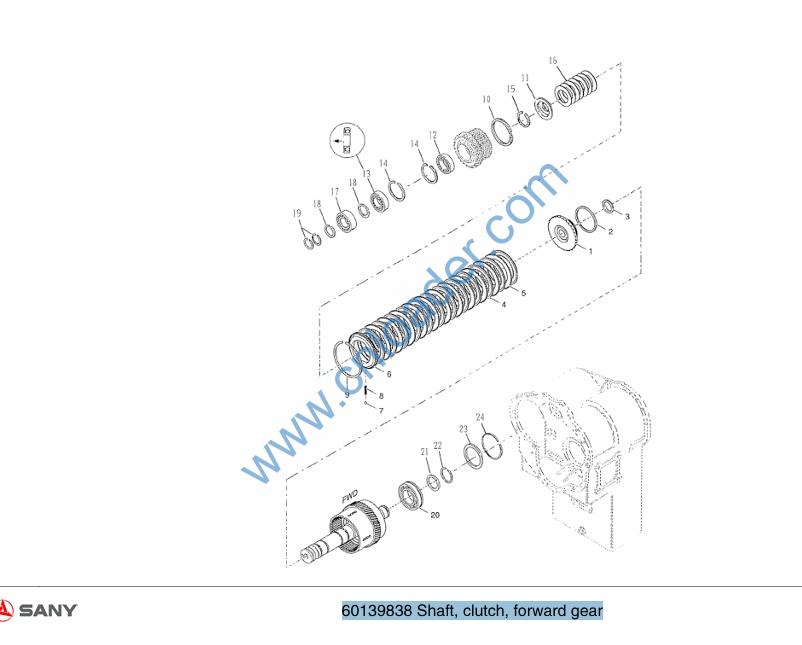

60139838 Shaft, clutch, forward gear

1 60099771 Assembly, forward gear clutch piston and seals 1
2 60099768 Ring, seal, outer, clutch piston 1
3 60021238 Ring, seal, piston ring 1
4 60099654 Plate, friction, inner, clutch 12
5 60099655 Plate, friction, outer, clutch 11
6 60099653 Disc, pressure, friction plate, clutch 1
7 60099714 Ball, stop, pressure plate 1
8 60099713 Spring, stop, pressure plate 1
9 60099712 Ring, clamp, pressure disc 1
10 60099766 Ring, oil seal, clutch hub 1
11 60099595 Seat, spring 1
12 60099536 Bearing, driving gear, clutch 1
13 60099535 Bearing, driving gear, clutch 1
14 60099657 Ring, locating, driving gear, clutch 1
15 60099596 Ring, clamp, spring seat 1
16 60099615 Assembly, disc spring 1
17 60099537 Bearing, front, forward gear shaft 1
18 60099677 Ring, locating, front bearing 2
19 60099769 Seal, oil, clutch shaft 2
20 60121018 Bearing 1
21 60099642 Spring, clamp, rear bearing 1
22 60099676 Ring, spacer, rear bearing, forward gear shaft 1

1 60099767 Assembly, clutch piston and seals 1
2 60021234 Ring, piston 1
3 60021238 Ring, seal, piston ring 1
4 60021228 Blade, steel 12
5 60099656 Plate, friction, outer, clutch 12
6 60099652 Disc, pressure, friction plate, clutch 1
7 60021237 Ring, snap, pressure plate 1
8 60099672 Seat, disc spring 1
9 60099651 Spring, disc, return, clutch piston 1
10 60099650 Seat, spring, clutch 1
11 60099594 Ring, spacer, spring 1
12 60099539 Bearing, 3rd gear 1
13 60099540 Bearing, 3rd gear 1
14 60099684 Ring, locating, bearing, 3rd gear 2
15 60099685 Ring, spacer, bearing, 3rd gear 1
16 60099772 Ring, seal, rubber, piston, 3rd gear shaft 1
17 60121018 Bearing 1
18 60099742 O-ring 1
19 60099686 Cover, end, rear bearing, 3rd gear shaft 1
20 60099676 Ring, spacer, rear bearing, forward gear shaft 1
21 60121053 O-ring 1
22 60099780 Plug, hole, checking 1

23 60099750 O-ring 1
24 60099735 Stud, end cap, bearing 4
25 60099739 Washer, lock, stud, bearing end cap 4
26 60099738 Nut, stud, bearing end cap 4

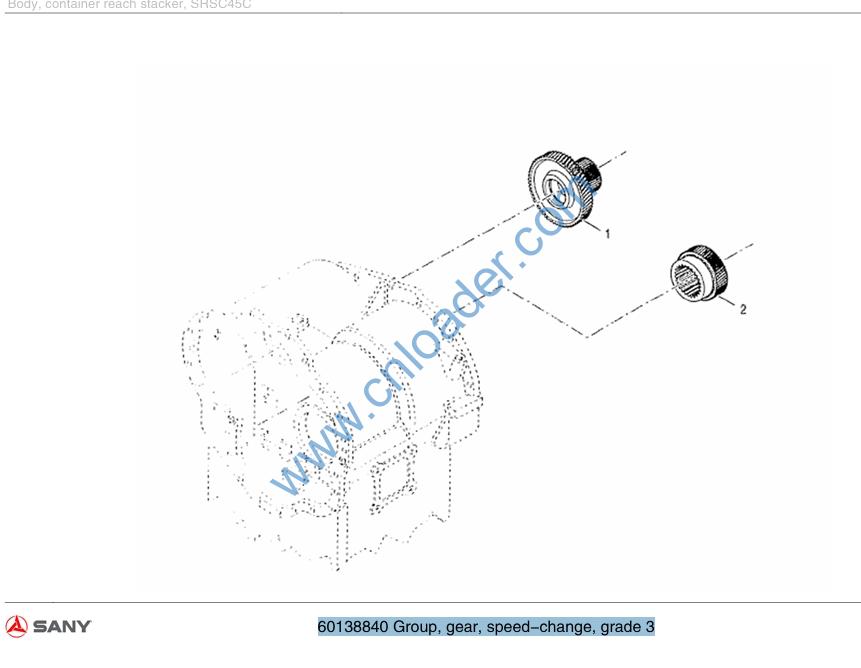

60138840 Group, gear, speed-change, grade 3

1 60099557 Gear, 3rd gear 1
2 60099558 Gear, driving, 3rd gear 1
