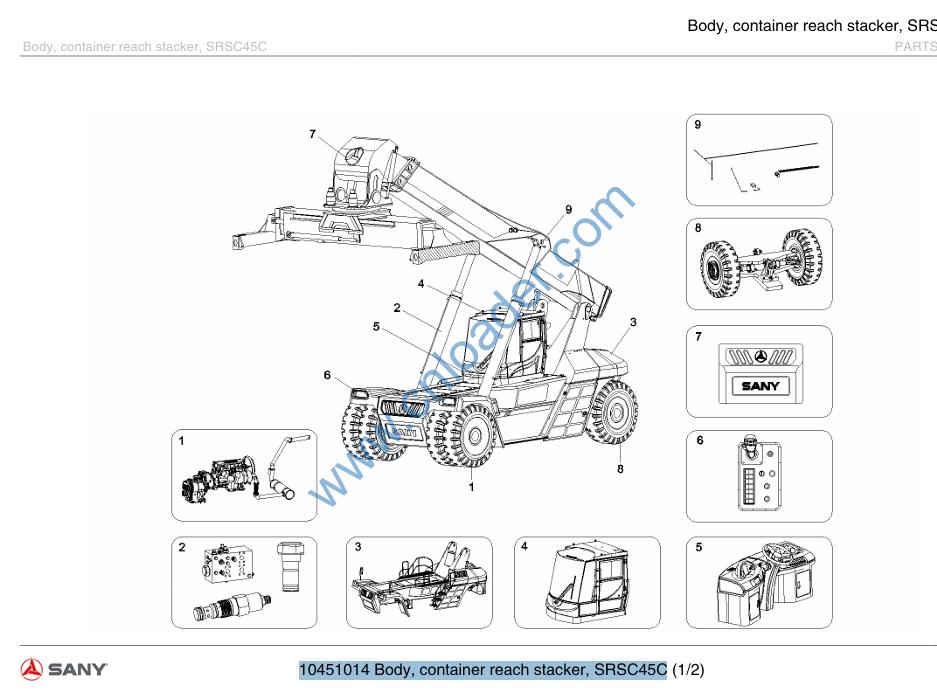

10451014 Body, container reach stacker, SRSC45C

10451014 Body, container reach stacker, SRSC45C

1 11144429 System,power 1
2 10450696 System, hydraulic 1
3 10441205 Assembly,frame body 1
4 11482850 Cab GP 1
5 10422631 Assembly, operating console 1
6 10259957 System, electrical 1
7 10117173 Assembly, nameplate 1
8 10424819 Axle, steering 1
9 10697674 System, lubrication 1

A810312000280
10419481
A810103070033
11646106
10945119
10679877
10084878
Description
Assembly, spreader
Assembly, boom
System, traveling
Assembly, working oil tank
Assembly, fuel tank
Mechanism,cab moving
System, air conditioning
System, fire extinguishe

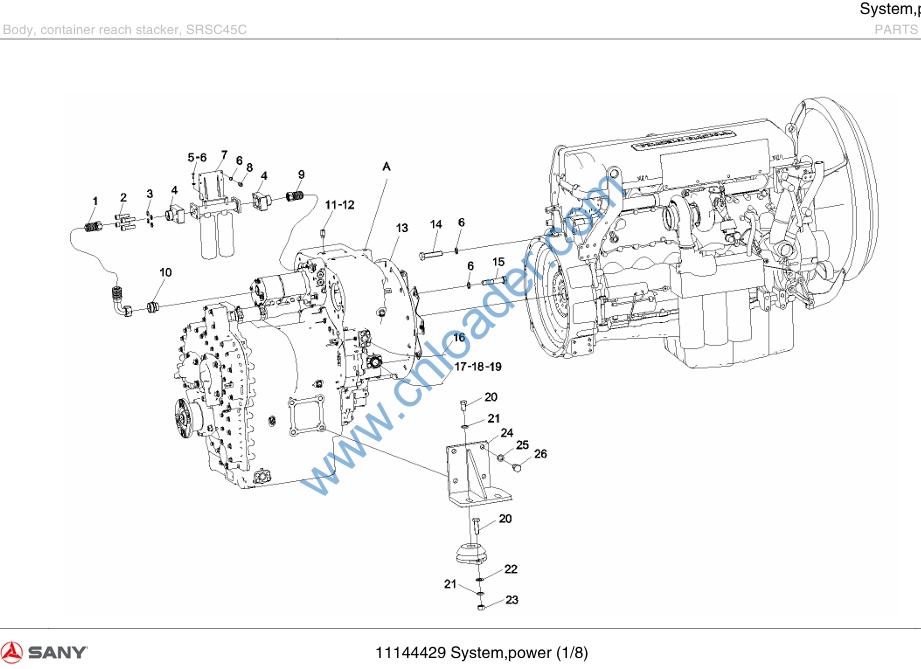

11144429 System,power

1 B230103003567 Hose, rubber 1
2 A229900005971 Bolt 16
3 A210401000003 Washer 8
4 A820205001462 Connector, oil outlet pipe 2
5 A829900001449 Bolt 4
6 A210401000001 Washer 53
7 A810102060047 Support, oil filter 1
8 A210204000161 Screw 20
9 B230103004784 Hose, rubber 1
10 B210780000671 Connector, pipe 4
11 A210434000006 Washer 1
12 A820205001862 Joint, pressure sensor 1
13 B220801000002 Gearbox 1
14 A210111000120 Bolt 12
15 A210113000266 Bolt 8
16 60032045 Hose, rubber 1
17 60013088 Hose, rubber 1
18 A210434000015 Washer 2
19 B210780000030 Connector, pipe 1
20 A210110000058 Bolt 12
21 A210401000005 Washer 12
22 A210402000044 Washer 12

23 A210307000004 Nut 12
24 A810103041008 Supporting, transmission case 2
25 A210401000006 Washer 12
26 A829900001453 Bolt 8

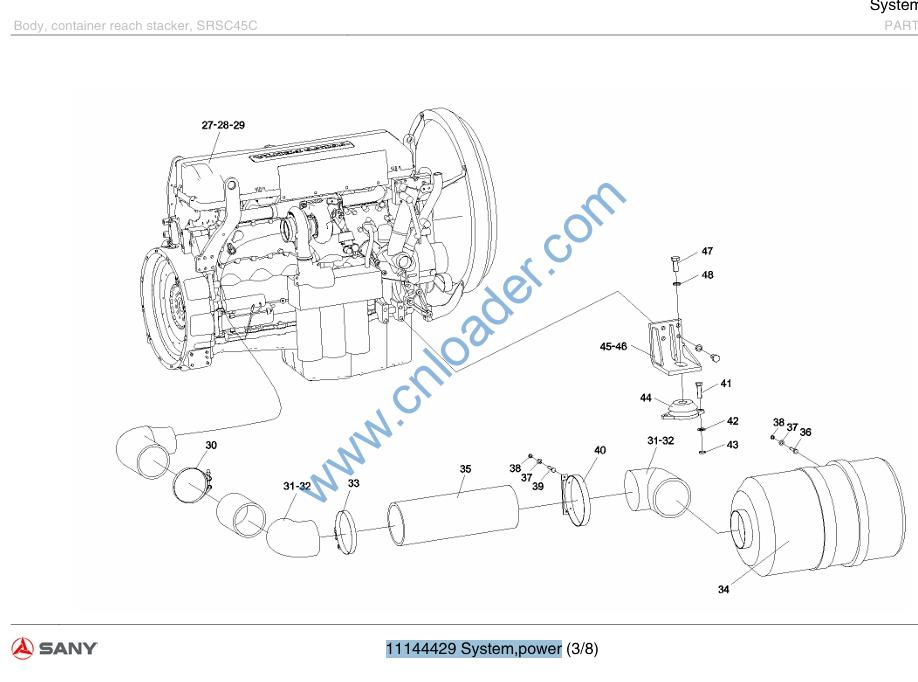

11144429 System,power

27 10659775 Hose, rubber,reducing 1
28 A229900002263 Anchor ear, T-type 1
29 B220200000054 Engine 1
30 23005190 Ear, anchor, T-shaped 1
31 B230103005004 Hose, rubber, connecting 2
32 B240600000220 Sensor 2
33 A229900006719 Ear, anchor, T-shaped 4
34 60029516 Filter,air 1
35 11576734 Pipe, connecting 1
36 A210111000091 Bolt 2
37 A210401000017 Washer 13
38 A210405000007 Washer 13
39 A210111000089 Bolt 4
40 11576740 Support,pipe,air-intake 1
41 A210111000224 Bolt 2
42 A210401000007 Washer 2
43 A820102010510 Washer 2
44 60100352 Absorber, shock 2
45 10185387 Support, right, engine 1
46 10185414 Support, left, engine 1
47 A210111000243 Bolt 8
48 A210401000004 Washer 20

49 A810102071156 Pipe,exhaust 1
50 A820603000140 Pad,seal 2
51 A210111000040 Bolt 32
52 A210401000002 Washer 40
53 A210307000001 Nut 32
54 B229900001197 Hose,metal,exhaust 1
55 12225230 Exhaust tube ⅠRSC45.1D.3 1
56 A829900001456 Clamp, exhaust pipe 2
57 60137876 Silencer 1
58 10186111 Clamp, fixing, muffler 2
59 10204867 Pipe,exhaust 1
60 10808146 Fixing, engine oil pipe, gearbox 1
61 A820603000141 Pad, sealing 1
62 A820603000236 Pad, sealing, tail tube 1
63 11144406 Pipe,tail,exhaust 1
64 A210111000027 Bolt 13
65 A210405000011 Washer 28
66 A210307000017 Nut 13

67 10223499 Seat, clamp, oil pipe, torque converter 1
68 11087280 Hose,rubber,fuel 1
69 11055423 Seat, clamp, oil pipe, torque converter 1
70 A210204000020 Screw 8
71 11087279 Hose,rubber,fuel 1
72 11087278 Nipple,pipe 1
73 11087284 Nipple,pipe 1
74 A810102099096 Connection,three-way 1
75 10413007 Pipe,water,upper,water tank 1
76 A210111000011 Bolt 2
77 11087283 Hose,rubber,fuel 1
78 11087282 Nipple,pipe 1
79 A220400000129 Valve, ball 1
80 B210780000228 Connector, pipe 1
81 B210780000829 Connector, pipe 1
82 B210780000037 Connector, pipe 1
83 A222100000198 Separator, oil-water 1
84 11087281 Nipple,pipe 1

85 B230101000244 O-ring 2
86 A210855000003 Hoop 10
87 A820606011124 Hose, vapor 2
88 10413010 Hose,rubber,water,upper 1
89 A220201000060 Radiator 1
90 A229900003104 Anchor ear, T-type 4
91 10733478 Rod,support (1) 2
92 A820302010400 Nut, rotating, left 2
93 A820202005885 Rod, adjusting 2
94 10031160 Plate, pressure 2
95 A210308000007 Nut 2
96 10733315 Rod,support 2 2
97 11595635 Water tank GP,expansion,plastic 1
98 A229900002838 Hoop 4
99 10490665 Plate,rubber 1
100 A210111000090 Bolt 2
101 10819431 Guard,wind 1
102 10221781 Hose, rubber 1
103 11056785 Support, exhaust pipe 1
104 A820606010610 Pad,damping,tank,water 2
105 10470991 Plate, dustprrof 1
106 A210111000283 Bolt 4

107 A210307000040 Nut 4
108 A210405000003 Washer 12
109 10468012 Plate,rubber 1
110 12259577 SRSC45F.1-10 1
