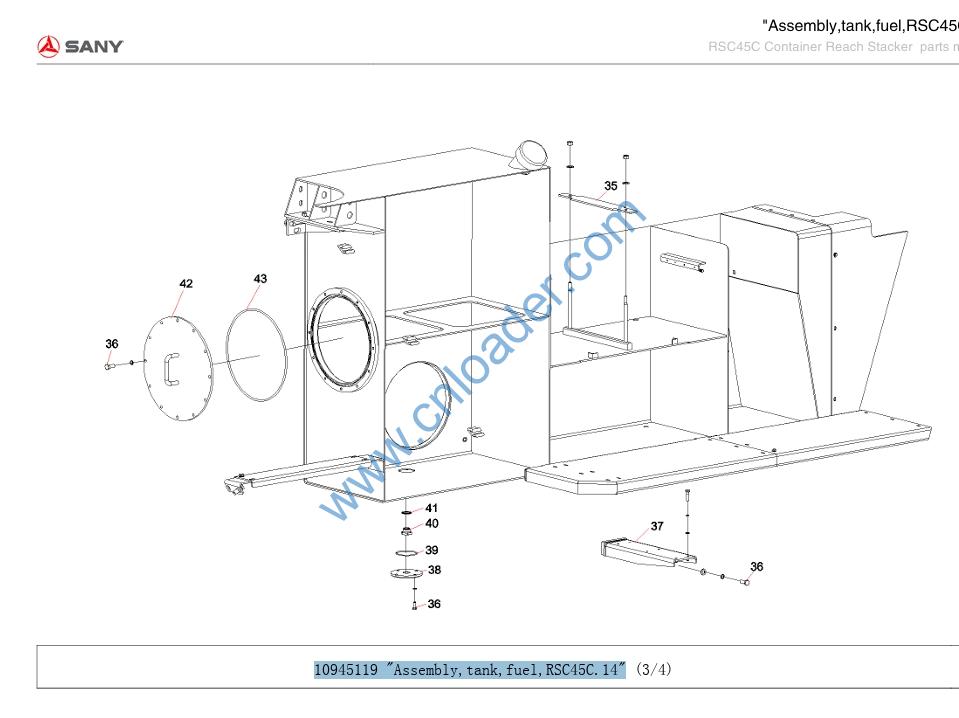

10945119 “Assembly,tank,fuel,RSC45C.14”

10945119 “Assembly,tank,fuel,RSC45C.14”

35 A820301014173 Fastening threaded rod of battery 2
36 A210111000018 Bolt 60
37 10465351 “Braket,pedal,RSC45MⅡ.5.2” 2
38 10774636 Plate,cover,oil hole,washing,RSC45MⅡ4-3 2
39 A210609000082 O-ring 3
40 21051814 M30×2QC385 2
41 A210434000015 Washer 2
42 10121195 Manhole cover plate assembly 2
43 A210609000295 O-ring 3

44 10835466 “Plate, cover,RSC45MⅡ.5.3” 1
45 A810102000050 Oil return cover plate assembly 1
46 A222100000366 Oil suction filter 1
47 10835468 RSC45MⅡ.5.4 1
48 A210609000174 O-ring 1

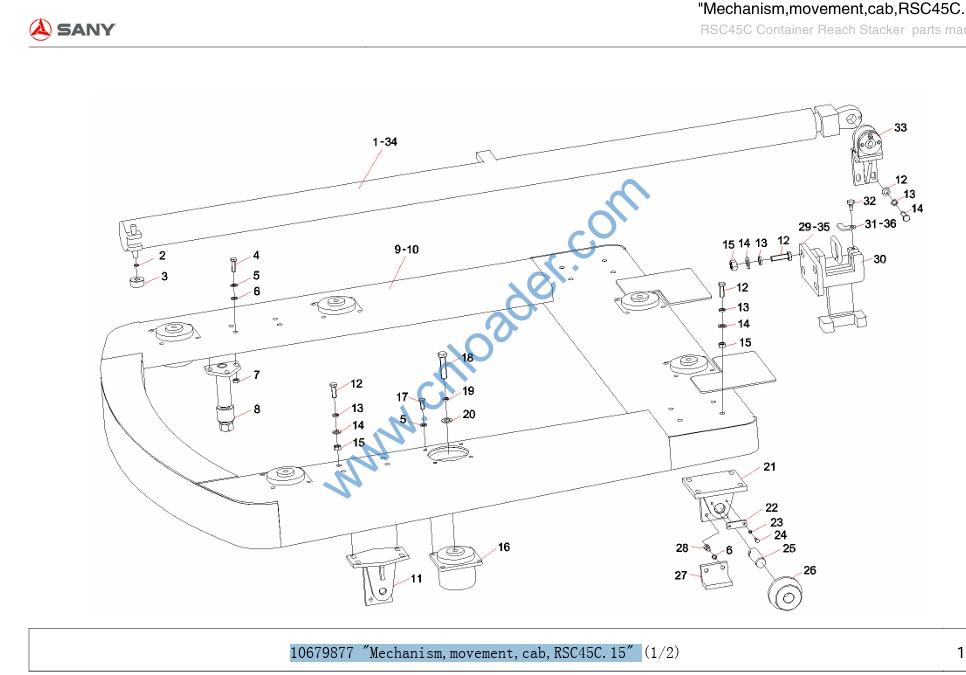

10679877 “Mechanism,movement,cab,RSC45C.15”

1 11244986 “Cylinder,moving,right,RSC45C.15.3A” 1
2 10856971 “Roller II,RSC45C.15-1A” 2
3 A210414000107 Retainer Ring 2
4 A210111000026 Bolt 6
5 A210405000011 Plain washer 48
6 A210401000001 Spring washer 90
7 A210307000017 Nut 26
8 10976003 “Component,guide wheel,RSC45C.15.12” 2
9 10679843 “Pallet,RSC45C.15.2” 1
10 10940028 Assembly,board,acoustic celotex 1
11 A810402990076 Front wheel installation seat 2
12 A210111000203 Bolt 28
13 A210401000002 Washer12GB93 28
14 A210405000001 Plain washer 52
15 A210307000031 Nut 20
16 A222000000026 Shock absorber 6
17 A210111000018 Bolt 62
18 A210110000281 Bolt 6
19 A210405000003 Plain washer 6
20 A210401000004 Washer16GB93 6
21 A810402990075 Seat, installation, rear wheel 2
22 A820101314487 Shaft End Baffle 4

23 A210401000016 Spring washer 8
24 A210111000079 Bolt 8
25 A820301014294 Shaft (3) 4
26 10649834 “Roller,RSC45.15-9A” 4
27 10218356 Anti-overturn plate 4
28 A210204000162 Screw 8
29 10866236 Component,connecting rod,right 1
30 11244869 Connecting component 1
31 10676118 “Plate,right,RSC45C.15-3” 1
32 10676117 “Bolt,RSC45C.15-2” 1
33 10120851 Front ring seat assembly 1
34 10679764 “Cylinder,moving,left” 0
35 10866238 “Plate,left” 0
36 10676121 “Component,connecting rod,left” 0

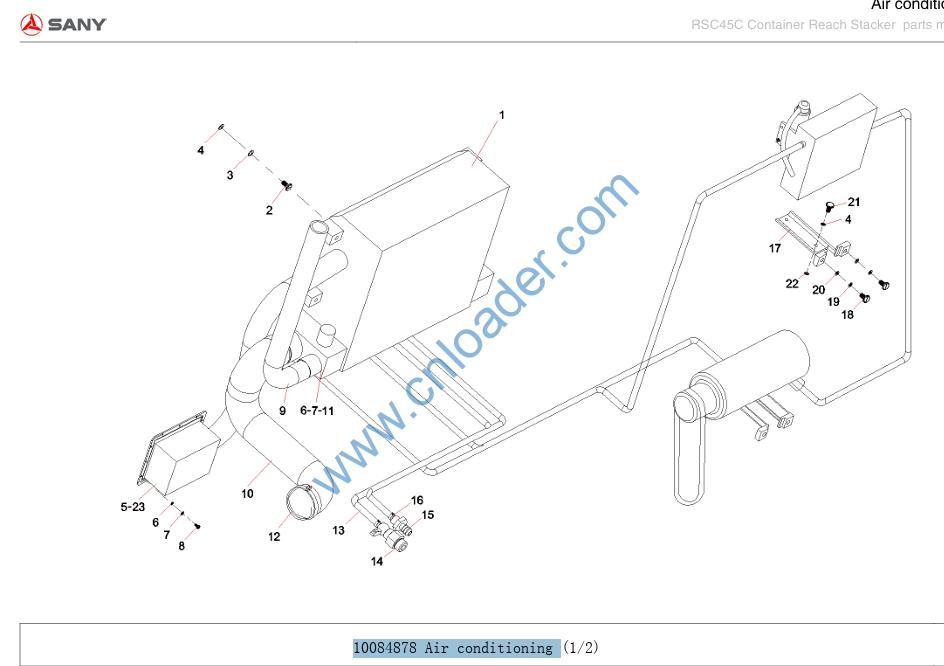

10084878 Air conditioning

1 A221600000088 A/C assembly 1
2 A210204000181 Screw 1
3 A210401000001 Spring washer 1
4 A210405000011 Plain washer 1
5 A810505030009 Filter element hood 1
6 A210405000005 Plain washer 1
7 A210401000015 Spring washer 1
8 A210210000006 Screw 1
9 10268020 “Duct, air, defrosting,RSC45.16A.1” 1
10 10688185 “Pipe,air,main,RSC45.16A.2A” 1
11 A210210000002 Screw 1
12 A210855000024 Throat collar 1
13 A230103000012 Steam rubber hose 1
14 A820599000956 Joint 1
15 A820205002290 Joint 1
16 A210891000005 Throat clamp 1
17 A820403000915 Air compressor bracket 1
18 A210111000090 Bolt 1
19 A210401000017 Spring washer 1
20 A210405000007 Plain washer 1
21 A210111000027 Bolt 1
22 A210307000017 Nut 1

A210855000012

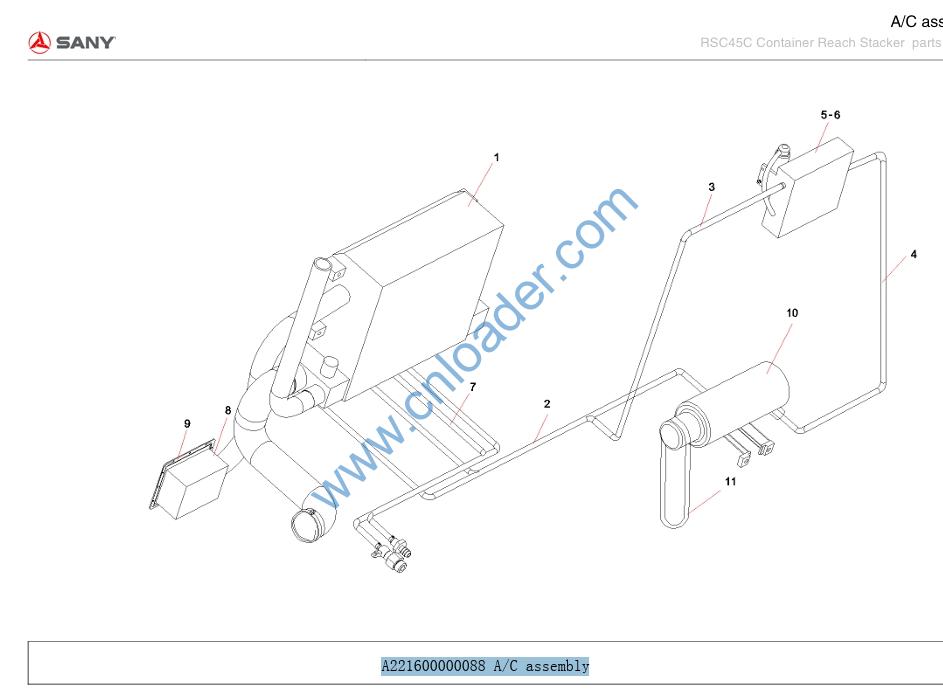

A221600000088 A/C assembly

1 A221600000090 Main engine of air conditioner KGT4601-0 1
2 60030740 Refrigerant hose component 1
3 60030741 Refrigerant hose component 1
4 60030742 Refrigerant hose component 1
5 60005671 Condenser 1
6 A229900001682 Liquid Reservoir Assembly 1
7 60030608 drainage rubber hose 2
8 60030607 corrugated air duct tube 1
9 A222100000278 Fresh air filter core X-TJ1010 1
10 60031711 Compressor 1
11 A230106000297 Belt 1

1 24000529 Bolt M8×20GB5783 dacrotizing 8
2 A210401000017 Spring washer 8
3 60009847 “Extinguisher, fire, powder,ZFCW-0.3C”
