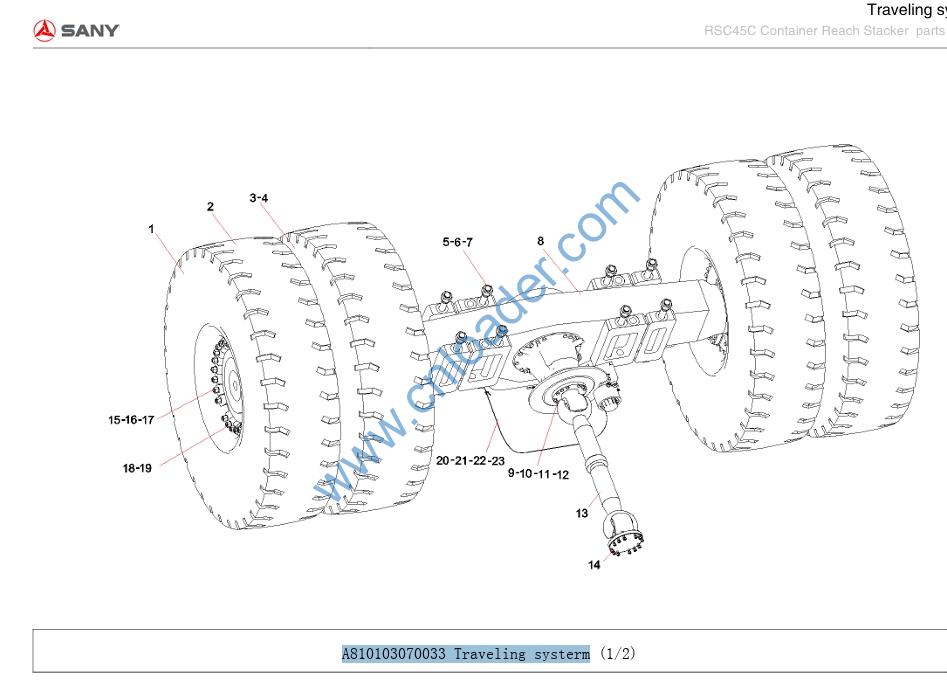

A810103070033 Traveling systerm

A810103070033 Traveling systerm

1 A229900002057 Wheel rim 4
2 A210881000093 Tire 4
3 10180646 Open end sleeve ring 2
4 A820202003264 Intermediate sleeve ring 2
5 A820204000388 Nut 8
6 A829900001442 Bolt 8
7 A210401000012 Spring washer 8
8 B220600000011 Drive bridge 1
9 A829900001445 Transmission shaft bolt (front) 12
10 A210307000036 Nut 24
11 A820102010508 Washer 12
12 A210401000001 Spring washer 12
13 A229900002058 Transmission Shaft 1
14 A829900001448 Transmission shaft bolt (rear) 12
15 A820101313646 Fixed lock plate of air tube 4
16 A210401000002 Washer12GB93 4
17 A210111000038 Bolt 4
18 10175223 Board 48
19 10075010 hub nut 48
20 A210111000348 Bolt 3
21 A210405000007 Plain washer 3
22 A210401000017 Spring washer 3

10912728

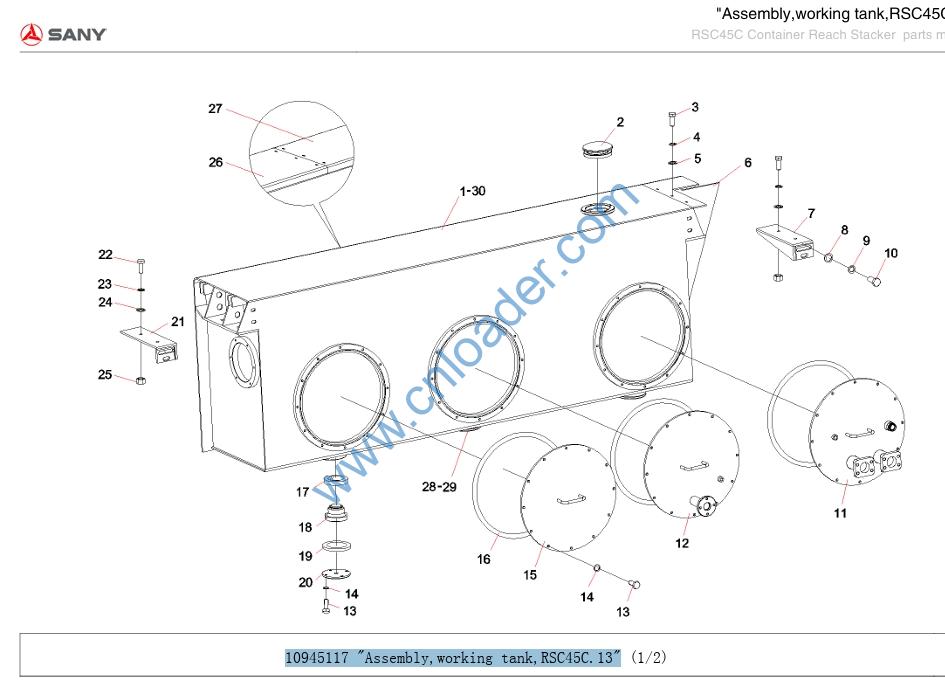

10945117 “Assembly,working tank,RSC45C.13”

1 10945116 Working oil tank body 1
2 A222100000264 Air cleaner 1
3 A210111000089 Bolt 21
4 A210404000005 Plain washer 21
5 A210401000017 Spring washer 21
6 A820101312819 Left front cover 1
7 10187941 Oil tank rear support 1
8 A210111000112 Bolt 6
9 A210401000004 Washer16GB93 6
10 A210491000118 High-strength steel washer 6
11 10835451 Assembly, cover plate, suction, oil 1
12 10835443 “Plate,cover,return oil,RSC45MⅡ.4.3” 1
13 A210111000018 Bolt 46
14 A210401000001 Spring washer 46
15 10121195 Manhole cover plate assembly 1
16 A210609000295 O-ring 3
17 A210434000015 Washer 1
18 21051814 M30×2QC385 1
19 A210609000082 O-ring 1
20 10774636 Plate,cover,oil hole,washing,RSC45MⅡ4-3 1
21 10187917 Oil tank front support 1
22 A210111000040 Bolt 8

23 A210404000004 Washer 8
24 A210401000002 Washer12GB93 8
25 A210307000001 Nut 4
26 10043048 Pedal (II)RSC45MⅡ.4-2 1
27 10043025 Pedal (I)RSC45MⅡ.4-1 1
28 A210405000011 Plain washer 6
29 10465351 “Braket,pedal,RSC45MⅡ.5.2” 2
30 60030671 Cross Slot Screw Rotator 1

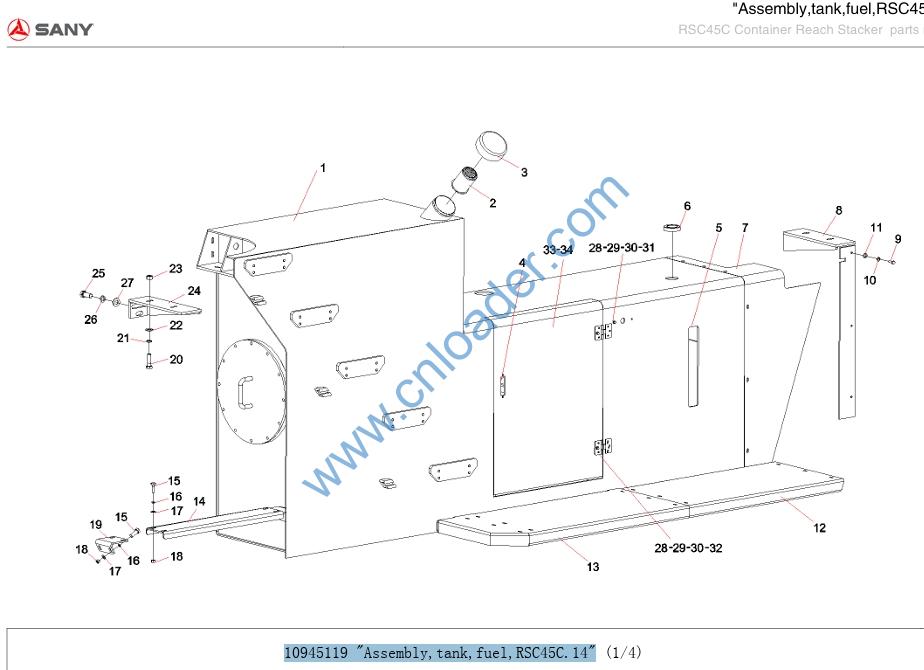

10945119 “Assembly,tank,fuel,RSC45C.14”

1 10945118 Fuel tank 1
2 A229900000886 Filter screen 1
3 A290000002193 Lock cover of fuel tank 1
4 A222200000036 Door lock 1
5 60030670 Steel Sheet 1
6 A222100000265 Air cleaner 1
7 A820101312813 Right front cover 1
8 10187941 Oil tank rear support 1
9 A210111000089 Bolt 21
10 A210401000017 Spring washer 21
11 A210404000005 Plain washer 21
12 10043086 Pedal (I)RSC45MⅡ.5-1 1
13 10043085 Pedal (II)RSC45MⅡ.5-2 1
14 10465508 “Bracket,A/C radiator,RSC45MⅡ.5-3” 1
15 A210111000025 Bolt 6
16 A210401000001 Spring washer 66
17 A210405000011 Plain washer 18
18 A210307000017 Nut 6
19 10805009 “Supporting board,RSC45MⅡ.5-4” 1
20 A210111000040 Bolt 8
21 A210401000002 Washer12GB93 8
22 A210404000004 Washer 8

23 A210307000001 Nut 4
24 10187917 Oil tank front support 1
25 A210111000112 Bolt 6
26 A210401000004 Washer16GB93 6
27 A210491000118 High-strength steel washer 6
28 A210111000080 Bolt 14
29 A210401000016 Spring washer 14
30 A210405000006 Plain washer 14
31 A210307000016 Nut 2
32 A210891000015 Iron hinges 2
33 10043103 Battery box door 1
34 A820101313331 Battery pressure plate 1
