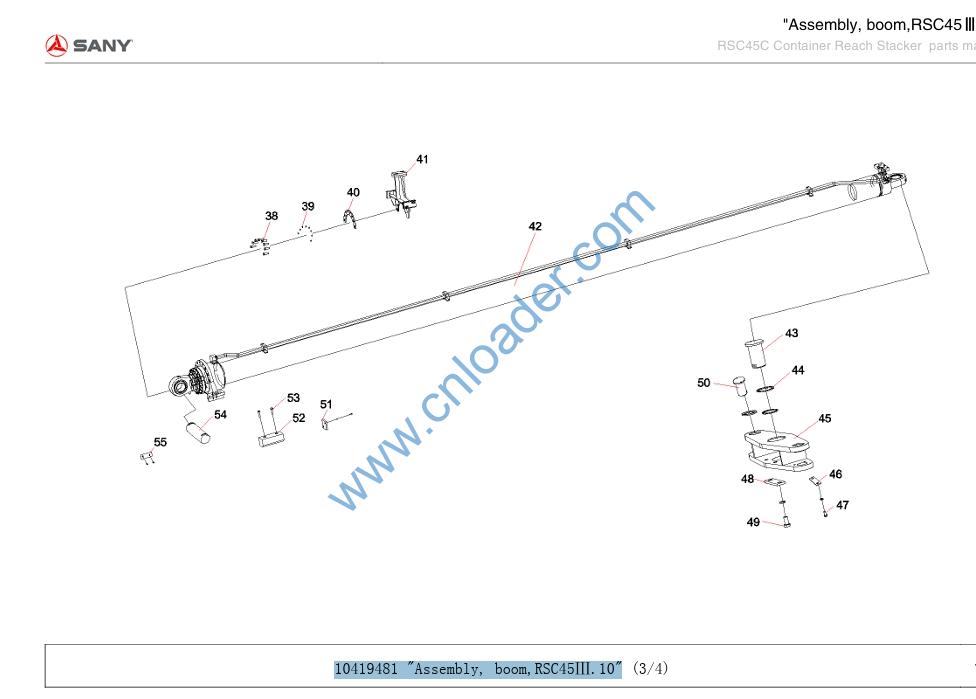

10419481 “Assembly, boom,RSC45Ⅲ.10”

10419481 “Assembly, boom,RSC45Ⅲ.10”

38 A210111000062 Bolt 8
39 A210401000006 Spring washer 10
40 10419475 “Plate,cover,RSC45Ⅲ.10-28” 1
41 10419425 Bracket, slide, oil cylinder, eapansion 1
42 10322597 “Assembly, oil Cylinder, expansion” 1
43 A820301020692 Telescopic oil cylinder shaft 1
44 A820102010496 Adjusting shim of telescopic oil cyd. 2
45 A810312100021 Connecting bracket, telescopic oil cyd. 1
46 A820101312408 Shaft End Baffle 2
47 A210111000038 Bolt 6
48 A820101312407 Shaft End Baffle 1
49 A210111000107 Bolt 2
50 A820301020670 Connecting Shaft 2
51 10419476 Baffle, block, slide,lower,RSC45Ⅲ.10-27 4
52 10419340 Assembly,slide block,lower,oil cylinder 2
53 24002346 Bolt M12×50GB5783 dacrotizing 4
54 10419474 “Pin,lock,RSC45Ⅲ.10-29” 1
55 10435131 “Plate,clamp,RSC45Ⅲ.10-30” 2

56 A810410990265 Hose slot bracket 1
57 A210204000165 Screw 8
58 A210111000089 Bolt 36
59 A210401000017 Spring washer 36
60 A210307000012 Nut 36
61 A820101312460 Drag-chain groove 1
62 10419472 “Section, extension, boom,RSC45Ⅲ.10.4” 1
63 A810303990183 Assembly slide block upper RSC45.10.14 4
64 A820101312400 Adjusting shim (2) of slide block 8
65 B229900003376 Drag-chain (with connectors) 1
66 A819700002194 Hose slot 1
67 A210612000006 Joint bearing 2
68 A810312110031 Pin shaft 2
69 10859964 “Bearing,slide,RSC45.10-33” 2
71 11307173 Nylon Plate 4

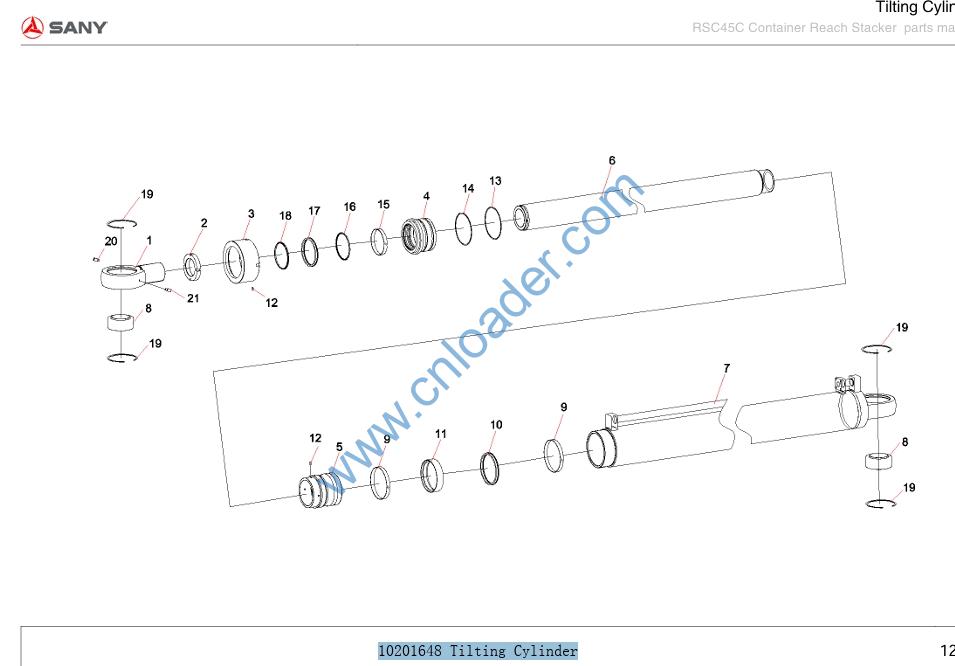

10201648 Tilting Cylinder

1 10201646 “Earring, RSC45.10.12B-1” 1
2 10032541 “Nut,RSC45.10.12A-2” 1
3 10032542 “Nut,RSC45.10.12A-3” 1
4 10032544 “Sleeve, guide,RSC45.10.12A-4” 1
5 10032545 Piston 1
6 10032549 Piston Rod Component 1
7 10201638 Components, cylinder drum,RSC45.10.12B.2 1
8 B230101000295 B8-type seal ring 1
9 B230101001567 CRMD-type seal ring 1
10 B230101000903 Guide ring 225×230×25 2
11 A210208000007 Screw M10×20 2
12 A210609000186 O-ring 2
13 10194909 “Ring, retainer,RSC45.10.12A-6” 2
14 B230101001964 Guide ring 2
15 A880806030018 CRGS-type seal ring 1
16 B230101001441 B3-type seal ring 1
17 B230101000513 Dust Ring 1
18 A210416000050 Retainer Ring 4
19 A210804000002 Oil nipple 2
20 B210399000003 Screw plug 2
21 60025306 Joint bearing 2

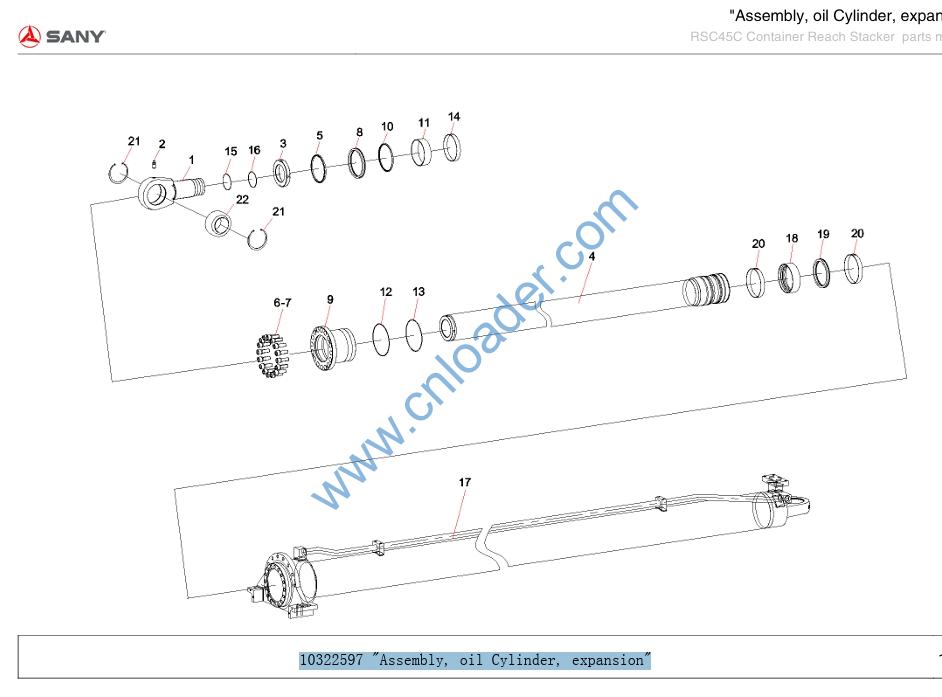

10322597 “Assembly, oil Cylinder, expansion”

1 10424843 “Earring,ZXRSC45.10A.10-2” 1
2 B210770000034 Pressure measuring connector 1
3 10424844 “Nut,lock,ZXRSC45.10A.10-3” 1
4 10424868 “Assembly,pistol,ZXRSC45.10A.10.2” 1
5 B230101000428 Dust Ring 1
6 A210204000317 Screw 16
7 A210401000006 Spring washer 16
8 B230101000425 BS-type seal ring 1
9 10424842 “Sleeve, guide,ZXRSC45.10A.10-1” 1
10 A880806030016 CRGS-type seal ring 1
11 60002004 Guide ring 1
12 A210609000260 O-ring 2
13 10250757 “Ring, retainer,ZX_DQ200×5.3” 2
14 B230101000594 Guide ring 160×165×25 2
15 A880802010064 O-ring 3
16 10424845 “Ring, retainer,ZXRSC45.10A.10-4” 3
17 10424858 “Assembly,cyinder drum,ZXRSC45.10A.10.1” 1
18 B230101000514 ZW-type seal ring 1
19 B230101000298 B7-type seal ring 1
20 B230101000904 Guide Ring GP7501800C380-175×180× 2
21 A210416000035 Retainer ring 4
22 A221500000141 Knuckle spindle GE90ET 2
