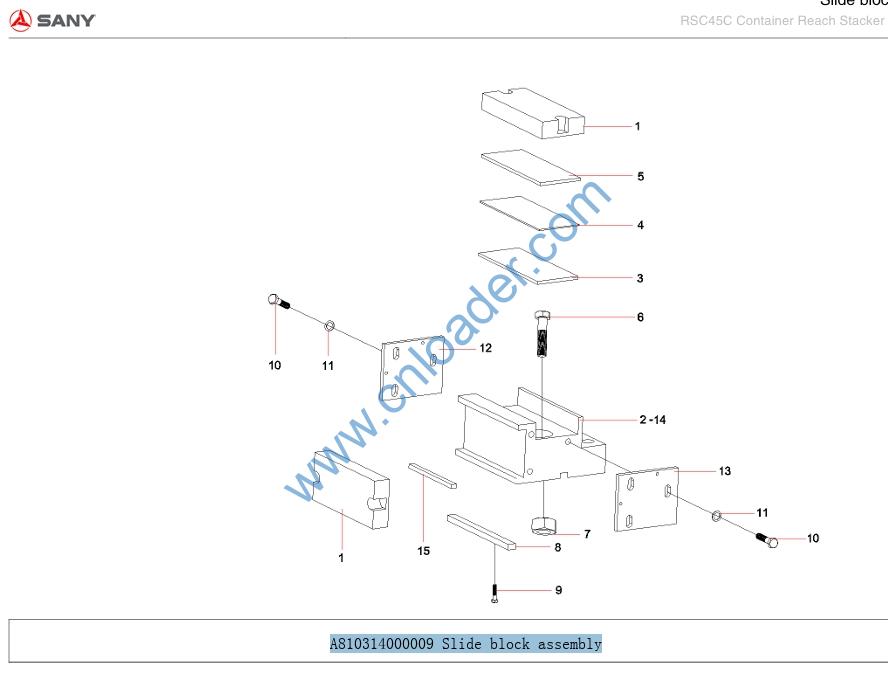

A810314000009 Slide block assembly

A810314000009 Slide block assembly

1 A820699000681 Slide Block 2
2 A820101328184 Main part support 1
3 A820101328185 Cushion 3
4 A820101331192 Cushion 1
5 A820101339720 Spacer 1
6 A210110000233 Bolt 6
7 A229900007631 Nut M20 Grade 10 Shibilao Hexagon flange 6
8 A820101328187 Straight Key 1
9 A210204000220 Screw 2
10 A210204000337 Screw 6
11 A210405000001 Plain washer 6
12 10180747 End baffle component 1
13 10182627 End baffle component 1
14 10971562 Key 1 1
15 10971566 Key 2 1

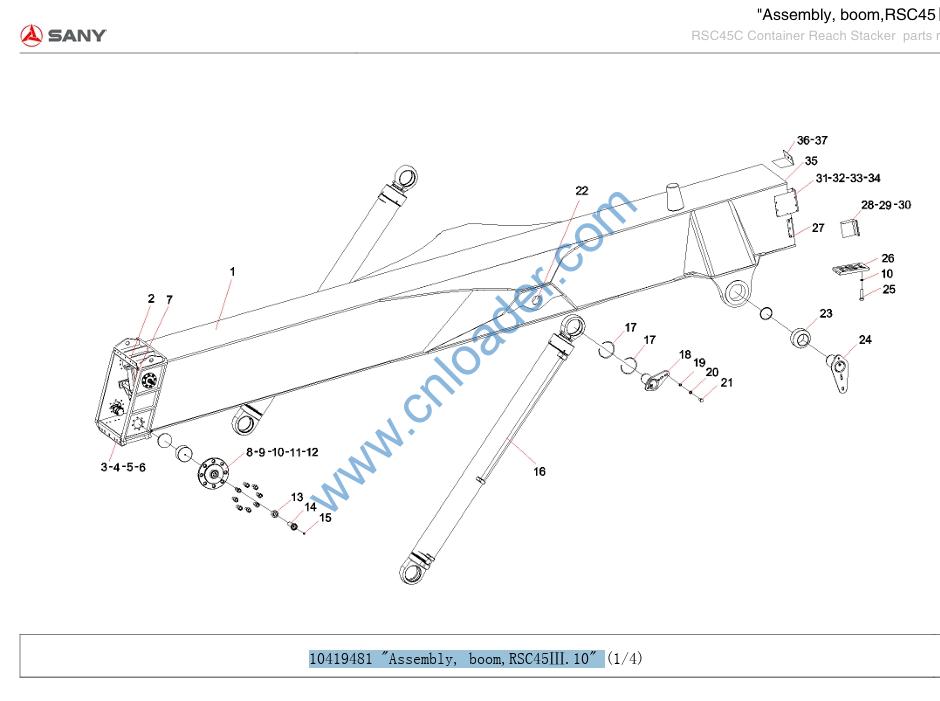

10419481 “Assembly, boom,RSC45Ⅲ.10”

1 10201903 Base section of boom 1
2 A820101032859 Upper baffle 1
3 A820101032860 Lower baffle 1
4 A210110000285 Bolt 14
5 A210401000002 Washer12GB93 20
6 A210307000001 Nut 14
7 A820301017302 Oil nipple bolt (2) 16
8 A820499000044 Side slide block 6
9 A820201000711 Hold bracket 6
10 A210401000004 Washer16GB93 94
11 A210204000198 Screw 54
12 A820101312402 Side sliding block gasket 6
13 A229900007632 Nut M24 Grade 10 Shibilao hexagonal flan 6
14 A820301017301 Oil nipple bolt (1) 6
15 A210804000001 Oil nipple 22
16 10201648 Tilting Cylinder 2
17 A210416000022 Retainer ring 4
18 10201907 Shaft assembly of pitching cylinder 2
19 A210491000122 High-strength steel washer 14
20 A210401000008 Spring washer 20
21 A210111000292 Bolt 14
22 10859971 Rolling bearing 1

23 10859963 “Bearing, slide,RSC45.10-32” 2
24 10201926 Rear shaft assembly 2
25 A210111000112 Bolt 32
26 11272687 “Component,slide,lower,RSC45.10.15A” 4
27 10089451 Carriage 1
28 A820101341776 Sensor waterproof cover 1
29 A210210000010 Screw 3
30 A210401000016 Spring washer 3
31 A820101337402 Mounting plate for displacement sensor 1
32 A210111000125 Bolt 14
33 A210405000011 Plain washer 6
34 A210401000001 Spring washer 20
35 11044952 “Sleeve,eccentric,RSC45Ⅲ.10-31” 2
36 A820101312406 Rear baffle 2
37 A210111000227 Bolt 12
