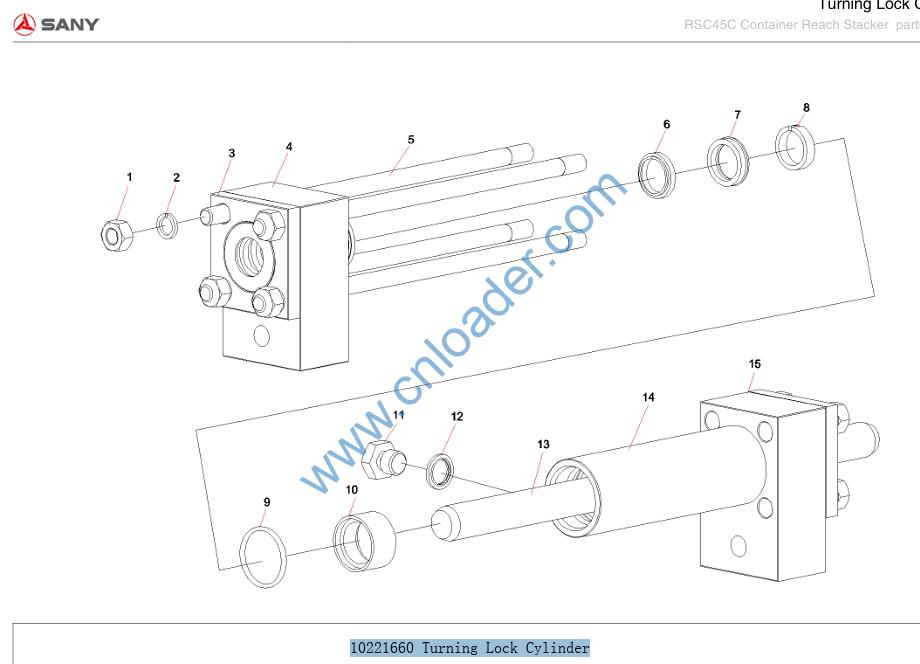

10221660 Turning Lock Cylinder

10221660 Turning Lock Cylinder

1 A210307000017 Nut 8
2 A210401000001 Spring washer 8
3 10221659 Board 2
4 10221658 Right end cover 1
5 10221655 Coupling bar 4
6 B230101001050 Dust Ring 2
7 B230101000498 B3-type seal ring 2
8 B210435000003 Guiding Belt 2
9 A210608000122 O-ring 4
10 B230101002025 CRM-type seal ring 1
11 A210434000007 Washer 2
12 10041691 Screw Plug 2
13 10221654 Piston Rod 1
14 10221657 Cylinder Sleeve 1
15 10221656 Left end cover 1

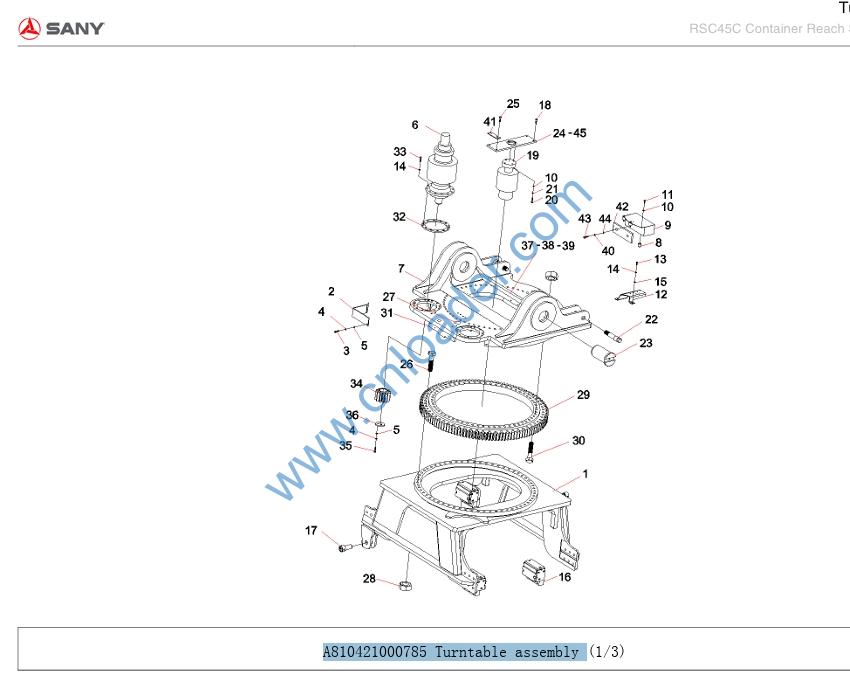

A810421000785 Turntable assembly

1 A810421000787 Lower revolving table 1
2 A820101328023 Gear baffle of reducer 2
3 A210111000011 Bolt 12
4 A210401000001 Spring washer 22
5 A210405000011 Plain washer 22
6 B220800000230 Reduction Gear 2
7 A810422001181 Upper rotary platform 1
8 A810421000802 Buffer threaded stud 4
9 A810497000955 Indicator lampshade 1
10 A210405000007 Plain washer 10
11 A210307000012 Nut 6
12 A820101328024 Pipeline Bracket 1
13 A210111000101 Bolt 3
14 A210401000002 Washer12GB93 23
15 A210405000001 Plain washer 23
16 A810314000009 Slide block assembly 4
17 A810421000799 Axis pin assembly 2
18 A210111000023 Bolt 4
19 A229900005468 swing joint 1
20 A210111000323 Bolt 4
21 A210401000017 Spring washer 4
22 A810421000800 Axis pin assembly 2

23 A810421000801 Axis pin assembly 2
24 A820101328029 Connecting board of rotary joint 1
25 A210111000027 Bolt 4
26 A210110000213 Bolt 51
27 10956911 Bolt 9
28 A229900007632 Nut M24 Grade 10 Shibilao hexagonal flan 116
29 B229900001917 Swing ring 1
30 A210110000302 Bolt M24×150GB5782 Grade 10.9 56
31 A819700001094 Lubricating oil pipeline assembly 1
32 10265981 Nut ring 2
33 A210110000011 bolt 20
34 A820210000292 Pinion 2
35 A210111000026 Bolt 6
36 A820101328535 Board 2
37 10023645 Terminal plate 1
38 A210204000129 Screw 8
39 A210401000016 Spring washer 8
40 A210405000007 Plain washer 10
41 10023667 Rope-fastening seat 1
42 11041944 Buffer pad of indicator lampshade 1
43 A210111000090 Bolt 2
44 A210307000012 Nut 6

11117006
