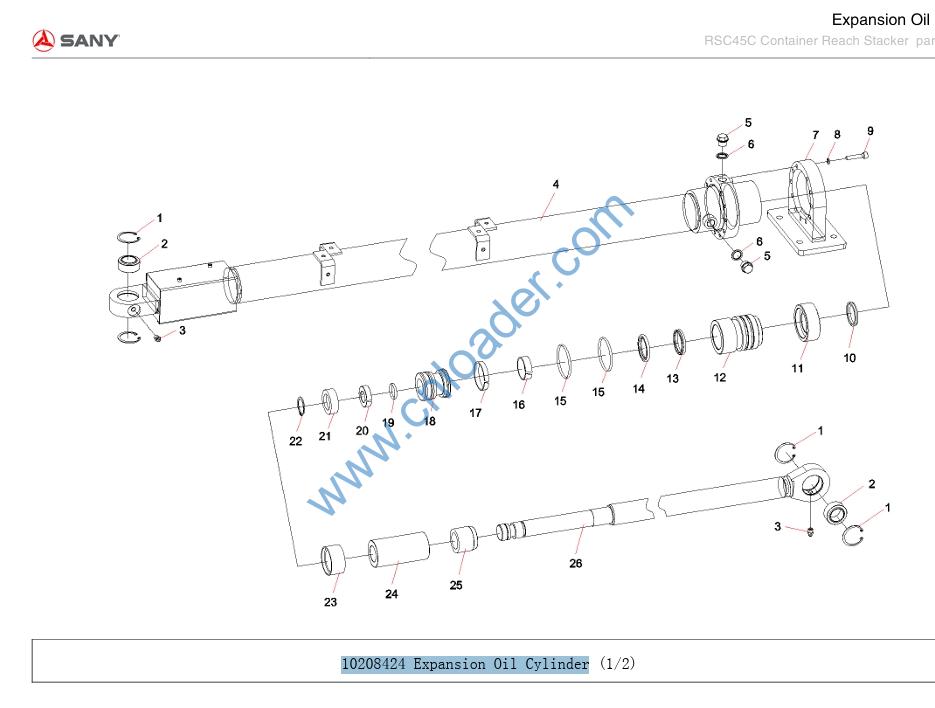

10208424 Expansion Oil Cylinder

10208424 Expansion Oil Cylinder

1 A210416000039 Retainer Ring 4
2 A880806030022 CRMD-type seal ring 1
3 A210804000002 Oil nipple 2
4 10208428 Cylinder assem. 1
5 A880803040003 Guide Ring 1
6 A210414000028 Retainer ring 1
7 A210609000134 O-ring 2
8 10208419 Spacer Sleeve 1
9 A210609000044 O-ring 1
10 A880808070004 Dust Ring 1
11 A880806030023 CRSIL-type seal ring 1
12 B230101001967 CRGS-type seal ring 1
13 10208416 Pressure cover 1
14 10208417 Guide sleeve 1
15 10208426 Oil Cylinder Seat 1
16 10208422 Clipping key cap 1
17 A210372000001 Screw plug 2
18 10208420 Piston 1
19 A210204000148 Screw 11
20 10208418 Bumper Sleeve 1
21 B230101001969 Guide Ring 1
22 A210434000009 Washer 2

23 A221500000035 Joint bearing 2
24 A210401000017 Spring washer 11
25 10208423 Clipping Key 1
26 10208437 Piston rod assem. 1

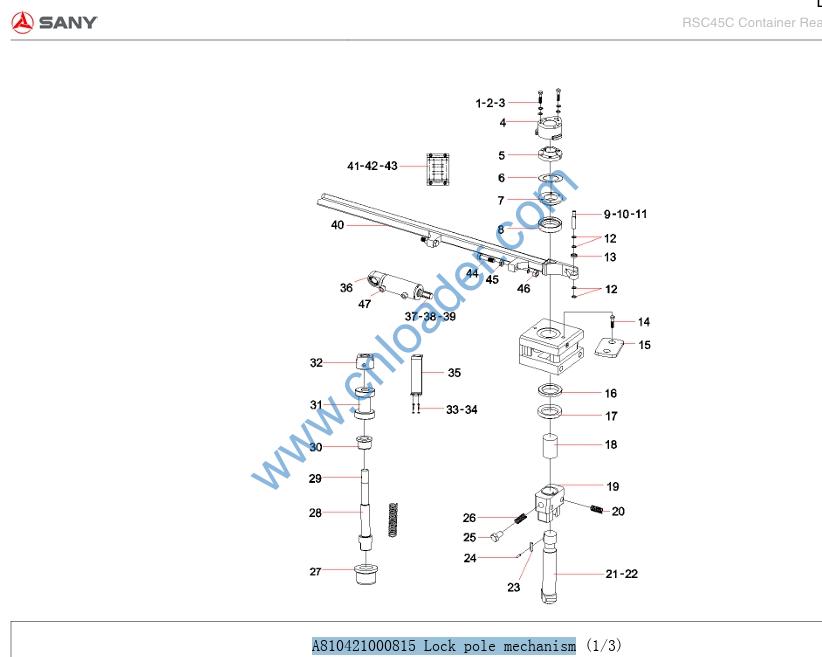

A810421000815 Lock pole mechanism

1 A210405000007 Plain washer 8
2 A210401000017 Spring washer 32
3 A210108000097 Bolt 8
4 10993972 Turntable 2
5 A820301021047 Bayonet lock 4
6 10018050 Adjusting Spacer 2
7 A820208000247 Upper spherical bearing (1)SDJ450.2.6-3 2
8 A820208000248 Upper spherical bearing (2)SDJ450.2.6-4 2
9 A210501000009 Pin 2
10 A820301015798 Lock pin 2
11 10262659 Spring 2
12 A210407000004 Plain washer 8
13 A210612000026 Knuckle spindle GE15CGB 2
14 A210111000089 Bolt 12
15 10042829 Bearing Baffle 4
16 A820208000249 Upper spherical bearing (1)SDJ450.2.6-5 2
17 A820208000250 Upper spherical bearing (2)SDJ450.2.6-6 2
18 A221500000219 Slide Bearing 2
19 A820101328330 Protective sleeve 2
20 A820209010088 Spring 8
21 A210804000001 Oil nipple 2
22 A820302020060 Lock pole pin shaft 2

23 A820103010873 Key 2
24 A210507000012 Pin 2
25 A210333000003 Screw Plug 4
26 A820209010110 Spring 4
27 10486682 Lower bushing 2
28 10261833 Mandrel 2
29 A210507000012 Pin 2
30 10920435 Upper liner sleeve 2
31 10261863 Turntable lock 2
32 10261868 Nut 2
33 A210111000089 Bolt 12
34 A210401000017 Spring washer 32
35 10899840 Sensor supporting 2 2
36 10221660 Turning Lock Cylinder 1
37 A210204000215 Screw 4
38 A210401000001 Spring washer 4
39 A210405000011 Plain washer 4
40 A810421000819 Connecting Rod 1
41 10023645 Terminal plate 2
42 A210204000130 Screw 8
43 A210401000016 Spring washer 8
44 A810102990062 Transmission bolt 2

45 A210307000028 Nut 2
46 A210309000014 Nut 1
47 A210507000015 shaft 2
