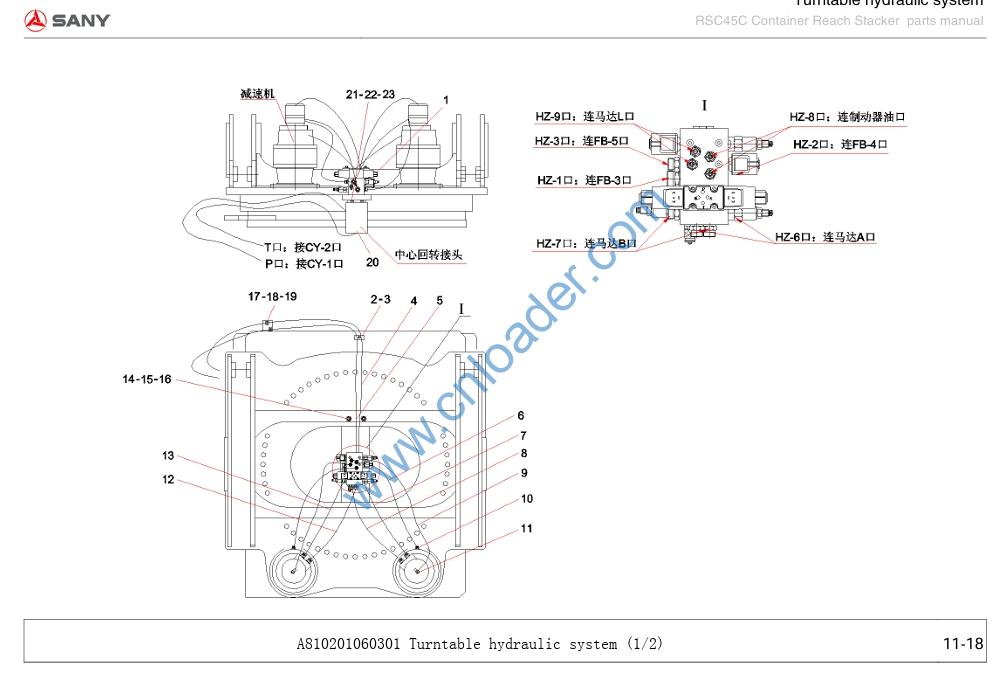

A810201060301 Turntable hydraulic system

A810201060301 Turntable hydraulic system

1 11055733 Revolving valve group A 1
2 B210840000016 Single pipe clamp 4
3 A210204000122 Screw 8
4 B230103004299 Rubber Hose 1
5 B230103007871 Rubber Hose 1
6 B230103000478 Rubber hose 2
7 A832513075000 Rubber Hose 2SN12-DKOL-DKOL90-750 1
8 B230103005247 Rubber Hose 1
9 B230103005376 Rubber Hose 2
10 B210780000733 Pipe joint 4
11 B210780000043 Pipe joint 4
12 B230103005377 Rubber Hose 1
13 B230103000159 Rubber Hose 2SN12-DKOL-DKOL90-730 1
14 A210111000024 Bolt 8
15 A210401000001 Spring washer 8
16 A210402000046 Washer 8
17 A210111000323 Bolt 4
18 A210401000017 Spring washer 4
19 A210402000044 Plain washer 4
20 B210780000049 Pipe joint 2
21 A210204000139 Screw 8
22 A210401000016 Spring washer 8

A210405000006

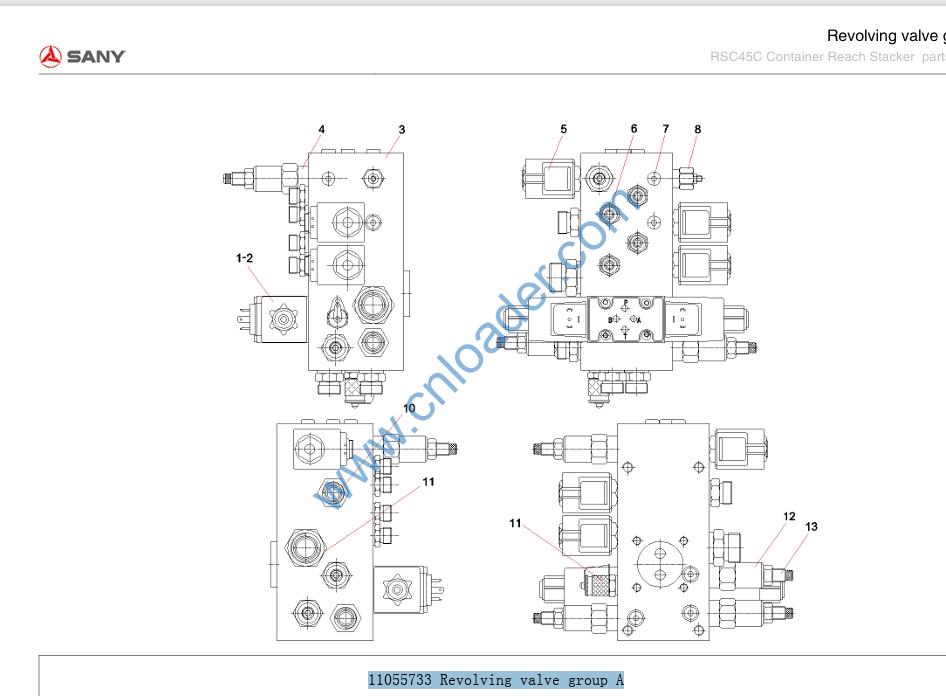

11055733 Revolving valve group A

1 B220400000323 Electromagnetic Steering Valve 1
2 A820601020466 Waterproof cover 4
3 11053618 Revolving valve block A 1
4 B220401000492 Flow control valve 1
5 B220400000023 Electromagnetic Steering Valve 3
6 B210780000036 Pipe joint 4
7 B210399000003 Screw plug 12
8 B220401000546 One-Way Throttle 1
10 B210780000201 Screw plug 4
11 B210770000084 Pressure measuring joint 2
12 B220401000493 Overflow valve 1
13 B220401000158 Overflow valve 2

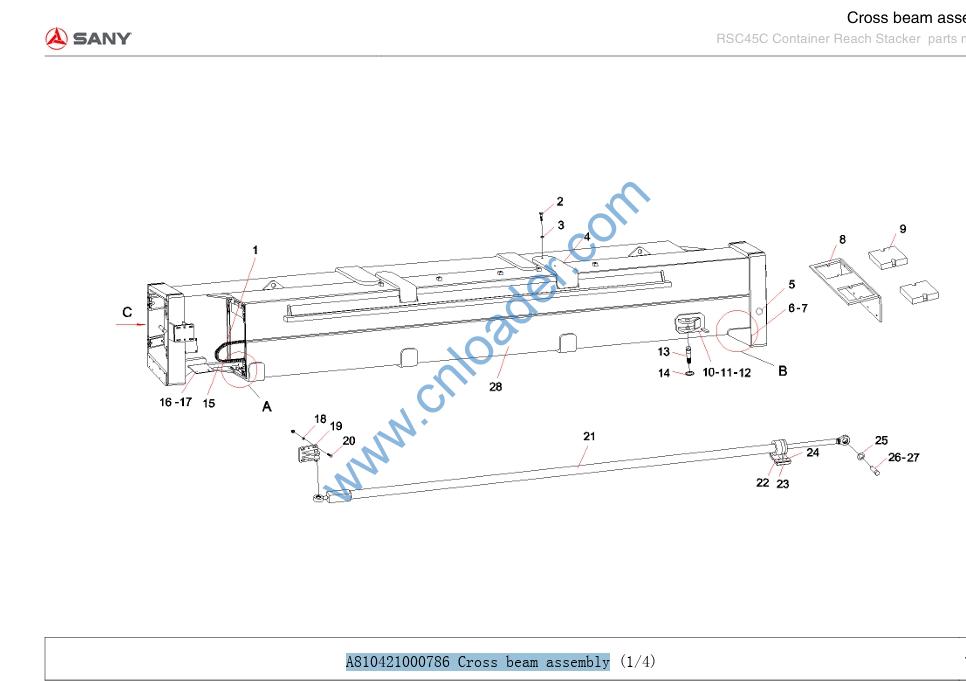

A810421000786 Cross beam assembly

1 B229900005701 imported Telescopic drag-chain 2
2 A210111000030 Bolt 12
3 A210401000001 Spring washer 52
4 A820101328311 Upper backup plate 2
5 A210804000001 Oil nipple 4
6 A210401000017 Spring washer 16
7 A210111000089 Bolt 8
8 A820101328314 Slide block plate 2
9 A820601040287 Lower slide block 4
10 A210111000080 Bolt 4
11 A210401000016 Spring washer 20
12 A820101339664 Clamp plate 2
13 A820301015793 Transverse axial pin 2
14 A820202004467 Retainer Ring 2
15 A820101328208 Drag-chain board 2
16 11037724 Spotlight support 1
17 10767376 Spotlight support 1
18 A210404000004 Washer 12
19 A810404031023 Telescopic oil cylinder bearer 2
20 A210111000042 Bolt 12
21 10208424 Expansion Oil Cylinder 2
22 A820101350991 Cushion 2

23 A820601040286 Bracket Lower slide block 4
24 A210110000011 bolt 8
25 A210405000014 Plain washer 4
26 A820301015792 Telescopic oil cylinder connecting pin 4
27 A210501000009 Pin 4
28 A810303000170 Telescopic beam 1

29 A810303000171 Telescopic beam 1
30 A810421000972 Main body of cross beam 1
31 11228384 Lock plate component 4
32 A210322000003 Nut 8
33 A820101328319 Steering indicator board 2
34 A229900007631 Nut M20 Grade 10 Shibilao Hexagon flange 2
35 24000670 Washer 30GB97.2 300HV DACROMET 2
36 A210111000093 Bolt 4
37 A210319000004 Nut 12
38 A810406000348 Steering shaft 2
39 A820202004470 Steering sleeve seat 2
40 A221500000240 Bearing 2
41 A210414000006 Retainer ring 2
42 A210491000014 Pin 4
43 10762009 Torsional Spring 4
44 10759532 Lock pin 4
45 A810421000815 Lock pole mechanism 2
46 10833253 Buffer threaded stud 2 2
47 10833167 Supporting of electric control cabinet 2
48 A210204000130 Screw 4
49 A210307000016 Nut 4
50 10759366 Retainer board

51 A210201000005 Screw 16
52 A210401000016 Spring washer 20
53 A210405000011 Plain washer 52
54 A210111000197 Bolt 40
55 B210852000002 Double pipe clamp 2
56 A210319000006 Nut 20
57 A210111000037 Bolt 8
58 A820101328209 Slide block plate 12
59 A820601040285 Slide Block 12
60 10030816 Cushion pad components SDJ450.2.9 2
61 A210204000146 Screw 4
62 A210405000007 Plain washer 16
63 A210111000091 Bolt 8
64 A210204000359 Screw 32
65 A210401000002 Washer12GB93 40
66 A210405000001 Plain washer 40
67 10184722 Cushion 8
68 10184723 Side sliding block 8
69 A229900007632 Nut M24 Grade 10 Shibilao hexagonal flan 8
70 A210111000321 Bolt 8
71 10184725 Positioning board of slide block 8
