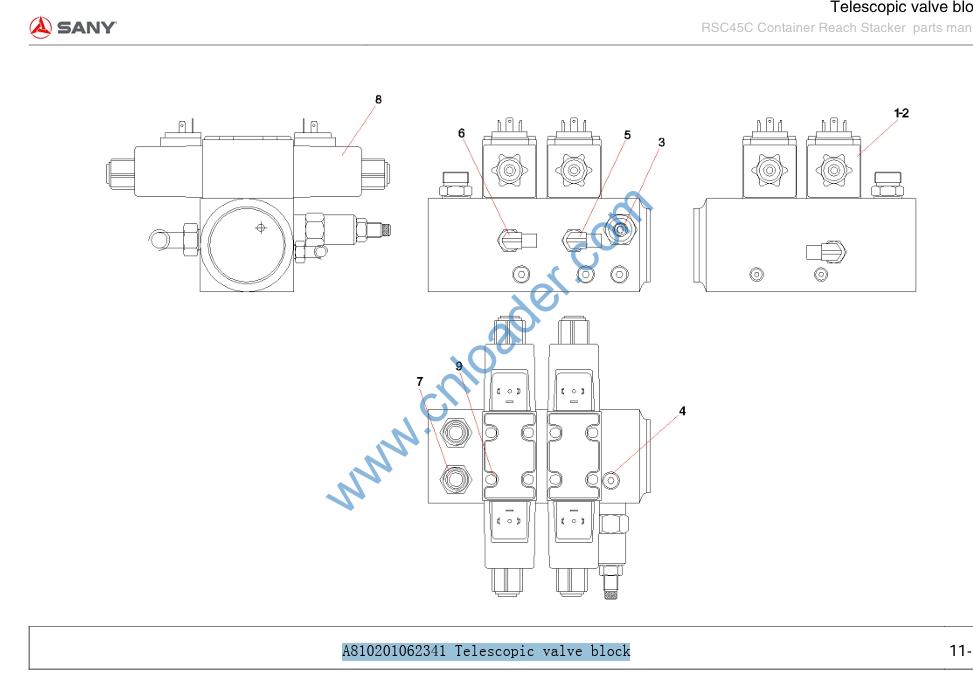

A810201062341 Telescopic valve block

A810201062341 Telescopic valve block

1 B220400000323 Electromagnetic Steering Valve 1
2 B220402000363 Electromagnetic Steering Valve 1
3 A820601020466 Waterproof cover 8
4 B210780000040 Pipe joint 2
5 B210780000439 FALSE 1
6 B210780001444 Pipe connector 2
7 A210204000168 Screw 8
8 B210399000003 Screw plug 6
9 B220401000493 Overflow valve 1

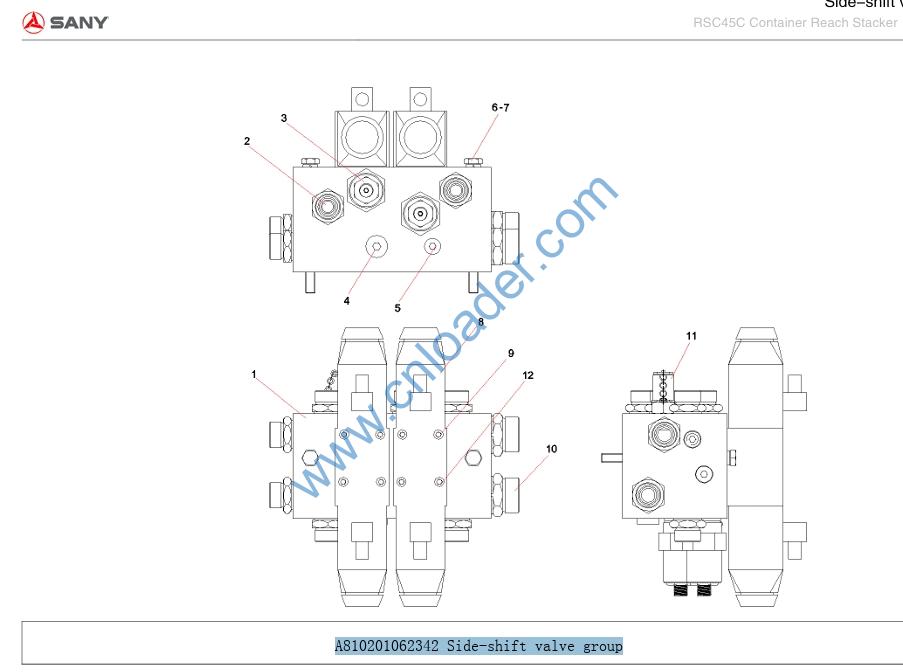

A810201062342 Side-shift valve group

1 B220400000323 Electromagnetic Steering Valve 2
2 A210204000168 Screw 8
3 A820601020466 Waterproof cover 8
4 B210780000712 Pipe joint 2
5 A820302010289 Side-shift valve block 1
6 B210770000084 Pressure measuring joint 2
7 B210780000040 Pipe joint 8
8 B220402000035 One-way overflow valve 1
9 B210399000003 Screw plug 4
10 A210401000017 Spring washer 2
11 A210110000367 Bolt 2
12 B210780000201 Screw plug 2
